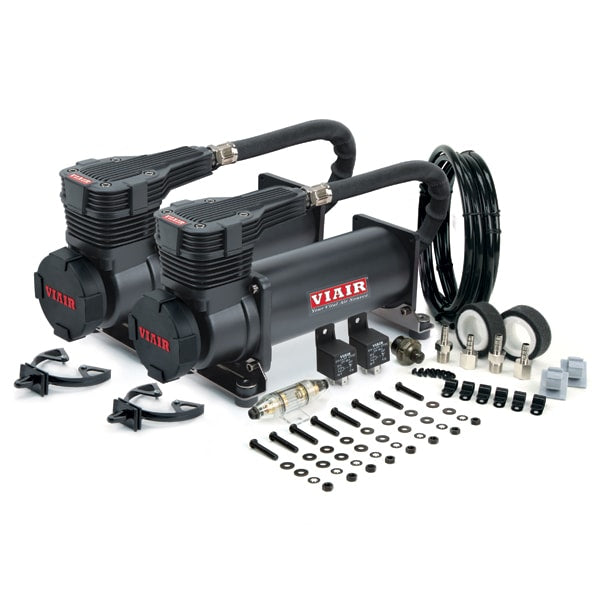

VIAIR 485C Gen. 2 Compressors Dual Value Pack Black

VIAIR 485C Gen. 2 Compressors Dual Value Pack Black

Specification

VIAIR’s NEW 485c Gen.2 Compressors

Duty Cycle of 100% @200PSI


View full details

Product Description

Introducing the New Gen 2

VIAIR’s NEW 485C Gen. 2 compressors have now been released to our dealers! In case you haven’t heard, this 485C compressor features a newly developed sleek head design, and duty cycle of 100% @200PSI. And, due to thicker vibration isolators on its feet, the compressor is also quieter than ever before. These 485C compressors have the same mounting footprint as our 480C, making it easy for a 480C to be upgraded to the new 485C.

Available in Platinum or Stealth Black, the 485C comes equipped with a stainless steel braided leader hose with an inline check valve, and NEW VIAIR removable filter cover. The Gen. 2 485C compressors are available as a single compressor or dual performance value pack for both colors.

FEATURES

  • –         (2) 485C (Platinum or Stealth Black) Compressors
  • –         w/Thermal Overload Protectors
  • –         (2) Air Filter Assemblies
  • –         (2) VIAIR Removable Filter Covers
  • –         (2) Remote Mount Brackets
  • –         (2) Sets of Remote Mount Fittings
  • –         (2) Sets of Spare Air Filter Elements
  • –         (2) Leader Hose Clips
  • –         (6) Air Line Clips with Included Hardware
  • –         (8) Sets of Nuts, Bolts, Washers and Lock Washers
  • –         (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)
  • –         (2) 40-Amp Relays
  • –         (1) One Pressure Switch (165 PSI on, 200 PSI off)
  • –         (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
  • –         Air Line (For Remote Mount Filter Installation)

SPECIFICATIONS

  • –         12-Volt
  • –         Permanent Magnetic Motor
  • –         Duty Cycle: 100% @ 200 PSI
  • –         Max. Working Pressure: 200 PSI
  • –         Max. Air Tank Size: 10.0 Gallon
  • –         Combined Max. Amp Draw: 44 Amps
  • –         Ingress Protection Rating: IP67
  • –         Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)
  • –         Net Weight: 22.10 lbs.

PERFORMANCE DATA

PSI CFM A BAR LPM A
0 3.82 23 0 110.0 23
10 3.51 26 1.0 93.0 27
20 3.27 30 2.0 84.0 31
30 3.05 32 3.0 75.0 35
40 2.90 35 4.0 71.0 37
50 2.73 37 5.0 65.0 39
60 2.61 38 6.0 61.0 41
70 2.45 40 7.0 55.0 41
80 2.34 41 8.0 50.0 42
90 2.24 41 9.0 45.0 42
100 2.09 41 10.0 41.0 42
110 1.94 42 11.0 39.0 41
120 1.87 42 12.0 34.0 40
130 1.72 42 13.0 32.0 40
140 1.64 42 14.0 29.0 39
150 1.55 42
160 1.48 41
170 1.37 41
180 1.29 41
190 1.22 40
200 1.13 39

FILL RATES

2.5 Gallon Tank Fill Rate
0 to 200 PSI 2 min. 20 sec. (± 05 sec.)
165 to 200 PSI 35 sec. (± 03 sec.)
5.0 Gallon Tank Fill Rate
0 to 200 PSI 4 min. 50 sec. (± 15 sec.)
165 to 200 PSI 1 min. 15 sec. (± 05 sec.)

* Supply Voltage: 13.8 Volts
