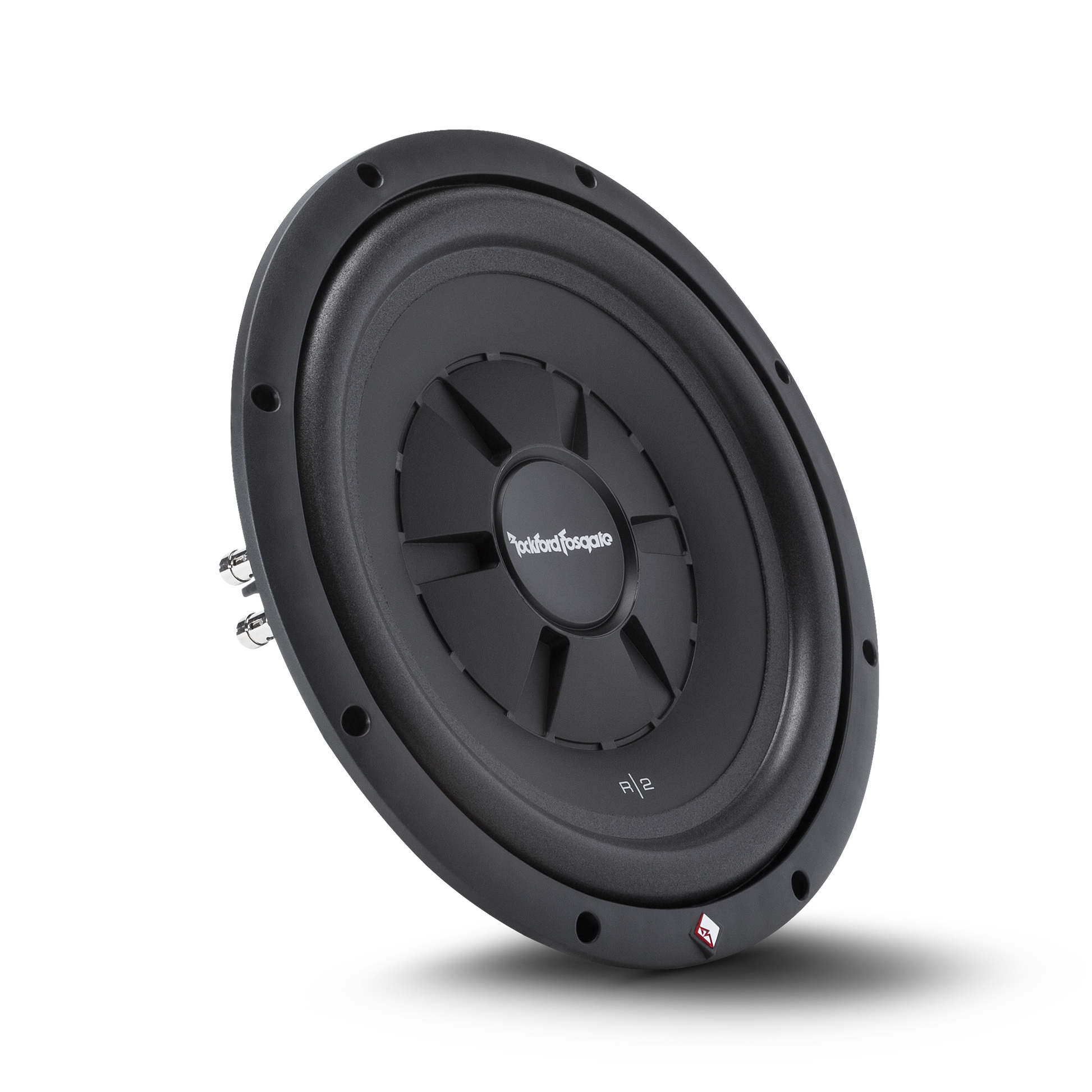

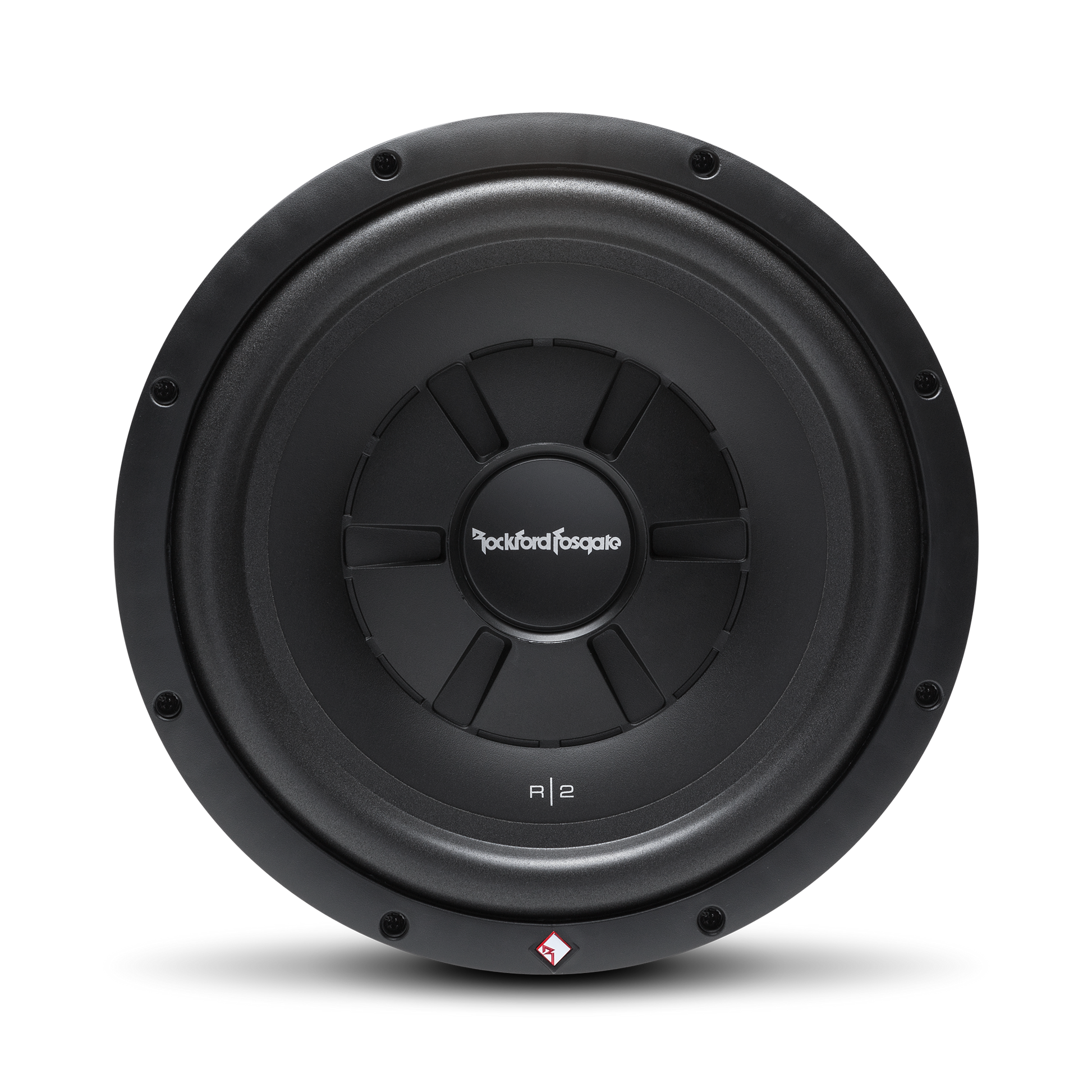

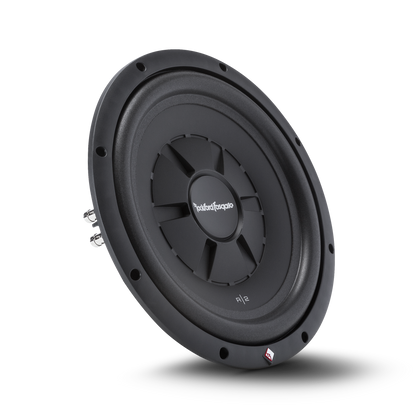

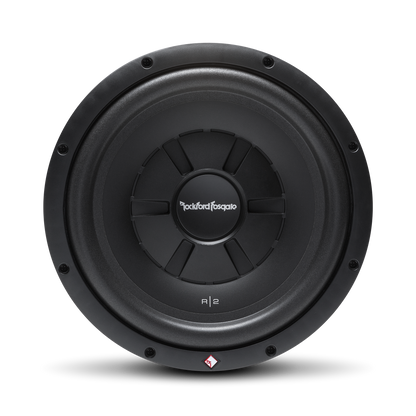

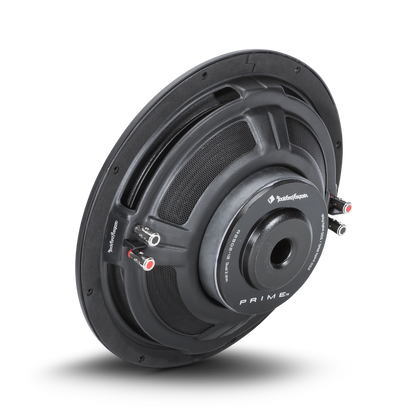

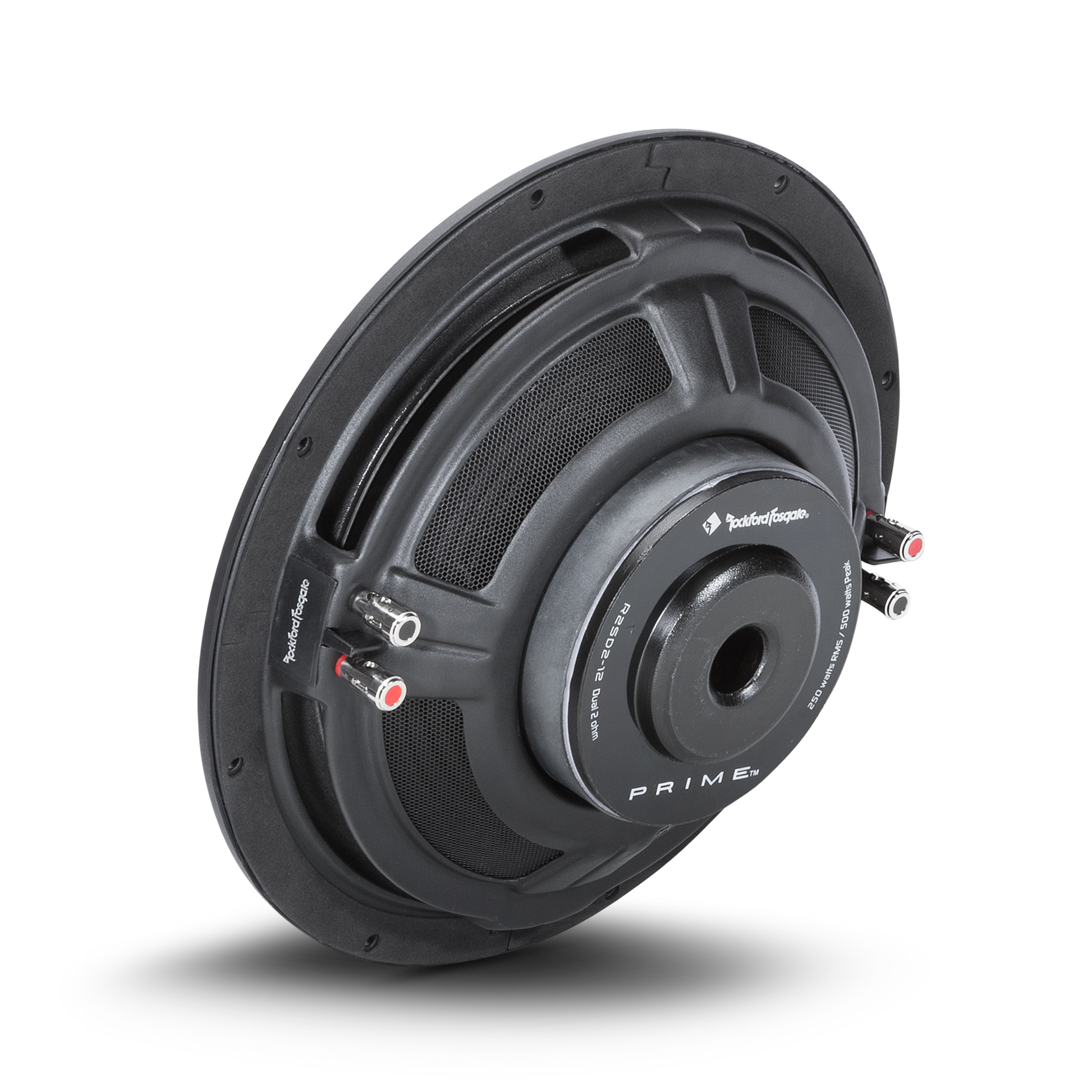

When you have no space for bass, our R2 12" shallow subwoofer can help satisfy your need for low frequency music. These drivers can fit in tight spaces due to an elevated motor structure that reduces speaker depth. Mica injected polypropylene cones make sure bass notes are clean and accurate. Stamp-cast baskets feature spider venting typically reserved for traditional depth mounted models to keep the motor cool! These shallow subwoofers are optimized for sealed enclosures.

Specifications

• Size: 12"
• Nominal Impedance: Dual 2-Ohm
• Power Handling: 250 Watts RMS / 500 Watts Max
• 12 AWG compression terminals
• Anodized Aluminium voice coil former
• Integrated PVC trim ring
• Linear spider with embedded 16 AWG tinsel leads
• Mica injected polypropylene cone
• Optimized for sealed enclosures
• Shallow Motor Assembly
• StampCast basket with integrated spider venting
• Voice Coil Diameter: 2" (50 mm)
• Magnet Weight: 51 oz. 1.45 kg.
• Speaker Connector: Dual 12 AWG compression
• Fs (Hz): 29.7
• Re (Ohms): 3.80
• Le (mH): 4.2
• Qms: 9.00
• Qes: 0.71
• Qts: 0.66
• Vas (Liters): 65.4
• Sd (cm2): 534.8
• SPL (dB @ 1w/1m): 85
• Xmax (mm): 10.0
• Woofer Displacement: 0.039 cu. ft. (1.10 Liters)
• Cutout Diameter: 11.25 in. (285 mm)
• Mounting Depth: 3.602 in. (91.5 mm)
