ROCKFORD FOSGATE PUNCH MARINE PM300X1
ROCKFORD FOSGATE PUNCH MARINE PM300X1

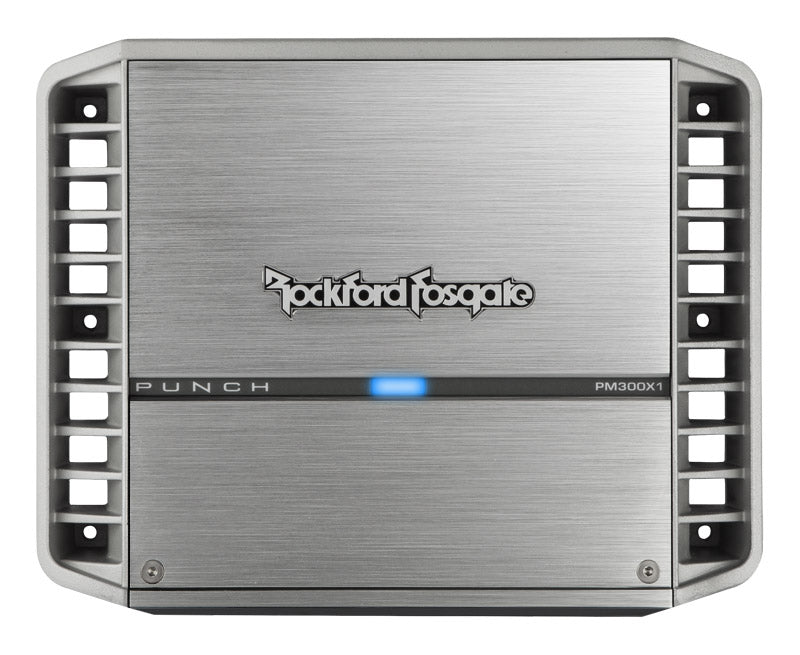

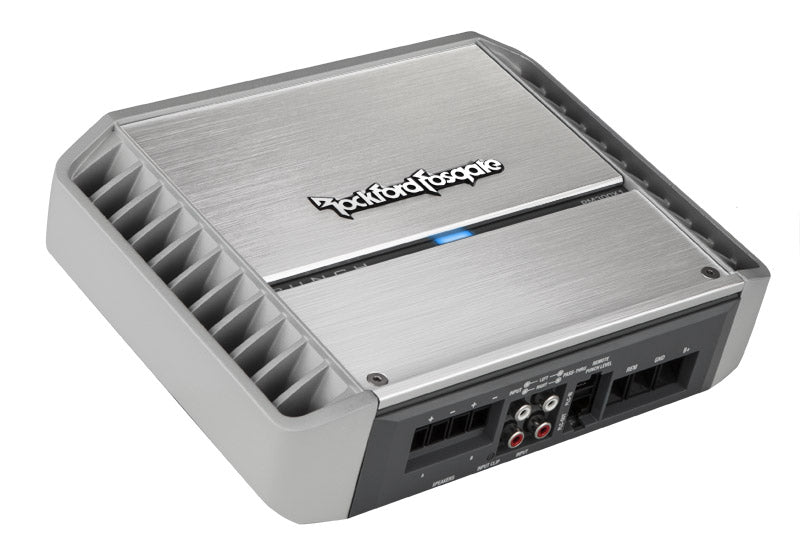

Punch Marine 300 Watt Full-Range Mono Amplifier
The PM300X1 is a 300 Watt mono amplifier with high dynamic power using Class-a/b technology and a conformal coated pc board designed for motorsport and marine applications.
- High level input capable with Auto Turn-On circuit
- RCA pass-thru outputs
- Features C.L.E.A.N. Set-up
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- 12dB/octave Butterworth crossover
- On-board Punch EQ with +18dB boost @ 45Hz.
- Muted turn on

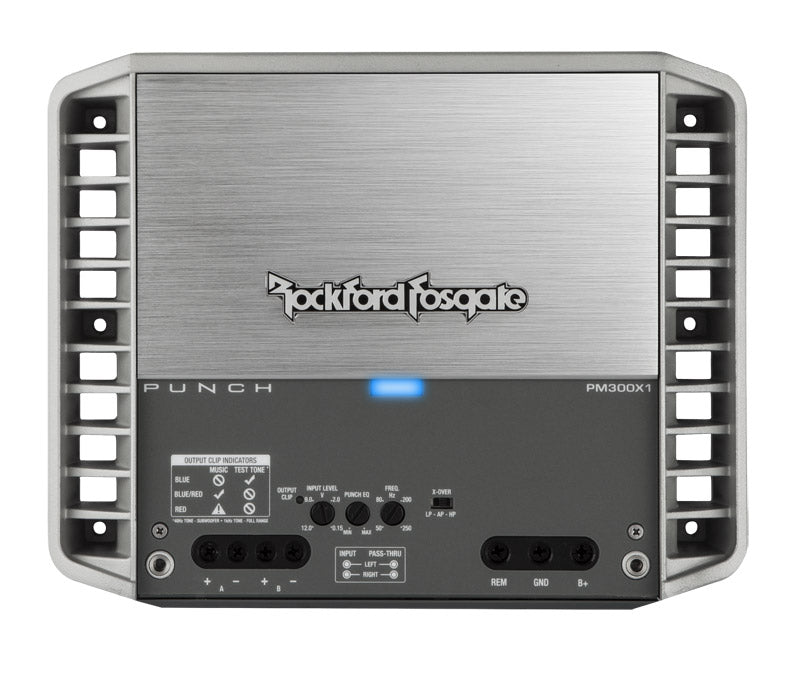

- Stealth top mounted control panel
- Cast aluminum heatsink
- Short circuit protection
- Over current protection

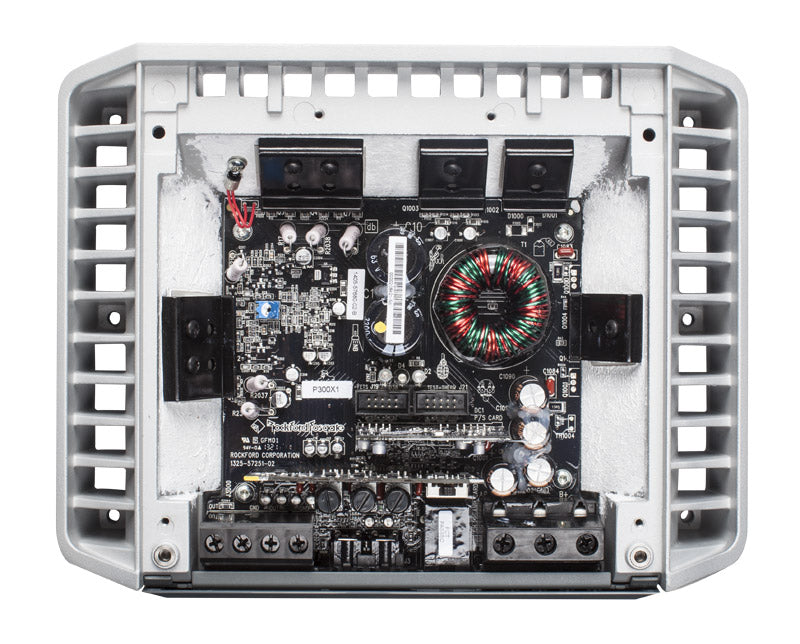

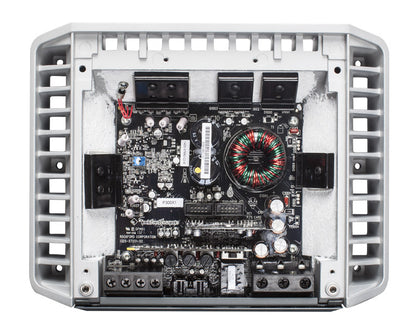

- Marine grade two part epoxy coating on circuit boards
- Marine grade stainless steel hardware
- 1 Year Standard Warranty
*PLEASE CHECK AVAILIBILITY
Product Description
The PM300X1 is perfect for use as a dedicated subwoofer or center channel amplifier. Regardless if you're driving multiple speakers or just one, the hefty 2-ohm capability will deliver the right amount of PUNCH that you want! Now, thanks to its small chassis design, it will also fit where traditional amplifiers cannot.
CEA-2006 Compliant: [CEA-2006 Guidelines] CEA-2006 Power Rating
- 200W x 1 @ 4Ω
- ≤1.0% THD+N
Rated Power (RMS Continuous Power):
- 200 Watts x 1 @ 4-Ohm
- 300 Watts x 1 @ 2-Ohm
- Total Power (Sum of Rated Power): 300 Watts
- Dynamic Power (PVC/PowerCube®): 260 Watts x 1 @ 4-Ohms 0° Res / 444 Watts x 1 @ 2-Ohms 0° Res
- Frequency Response: 20Hz to 20kHz +/- 1.0dB
- Efficiency (average): 74% @ 4-Ohm
Total Harmonic Distortion (THD+Noise):
- 4-Ohm: <1.0%
- 2-Ohm: <1.0%
Crossover Controls:
- High-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
- Low-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
- All-Pass
- Number of Channels: 1
- Bridgeable
- Tone Controls: Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
- Function depends upon LP/AP/HP switch position
- Input Sensitivity: 150 mV - 12 V

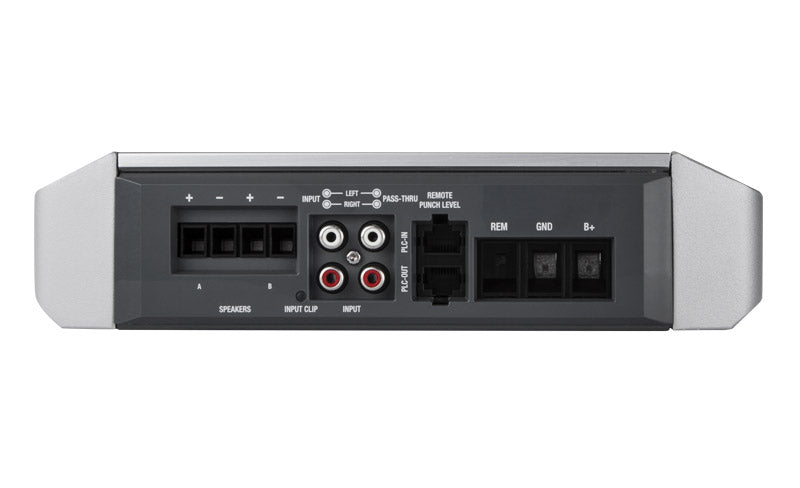

- Signal Input: Hi/Low level: 1 RCA pair
- Signal Output: Low Level: 1 RCA Pair
- Power Input Connector: Captive C-Clamp
- Power Wire Gauge: 8 AWG to 4 AWG
- Speaker Output Connector: Captive C-Clamp
- Speaker Wire Gauge: 8 AWG to 18 AWG
- Heat Sink Type: Cast aluminum
- Cooling: Convection
- Remote Controls: Optional Punch Level Control (PLC2) Ready
- Visual Indicators: Power/Protect/Thermal LED
- Input Clip LED
- Output Clip LED
- Circuit Topology Class: Class-A/B
- Operating Voltage: 9 - 16 VDC
- Recommended Fuse (not included): 50 A
- Max. Current Draw (13.8V Sinewave): 45 A
- Average Current Draw (13.8V Music): 23 A
- Suggested Alternator: 75 A
- Shipping Weight: 9.5 Lbs. (4.30 Kg.)
- Dimensions (H x W x D): 2.38 x 7.76 x 9.86 (in) 6.05 x 19.71 x 25.04 (cm)
