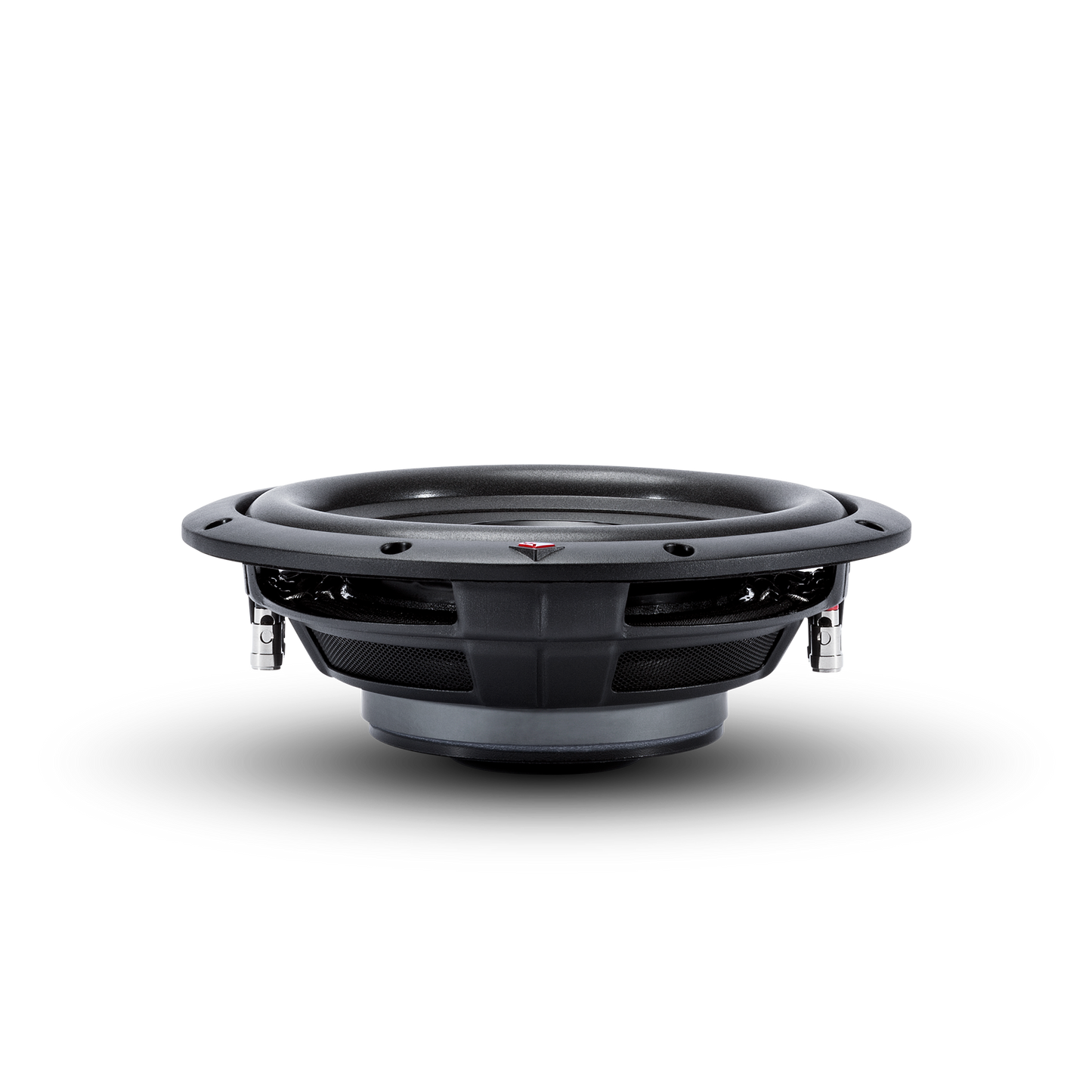

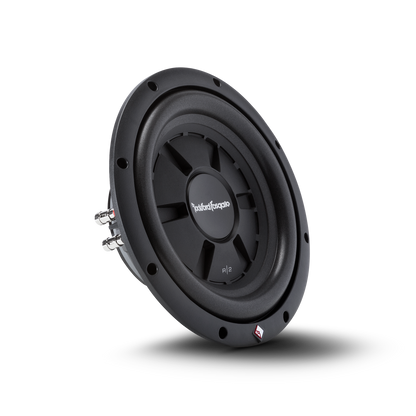

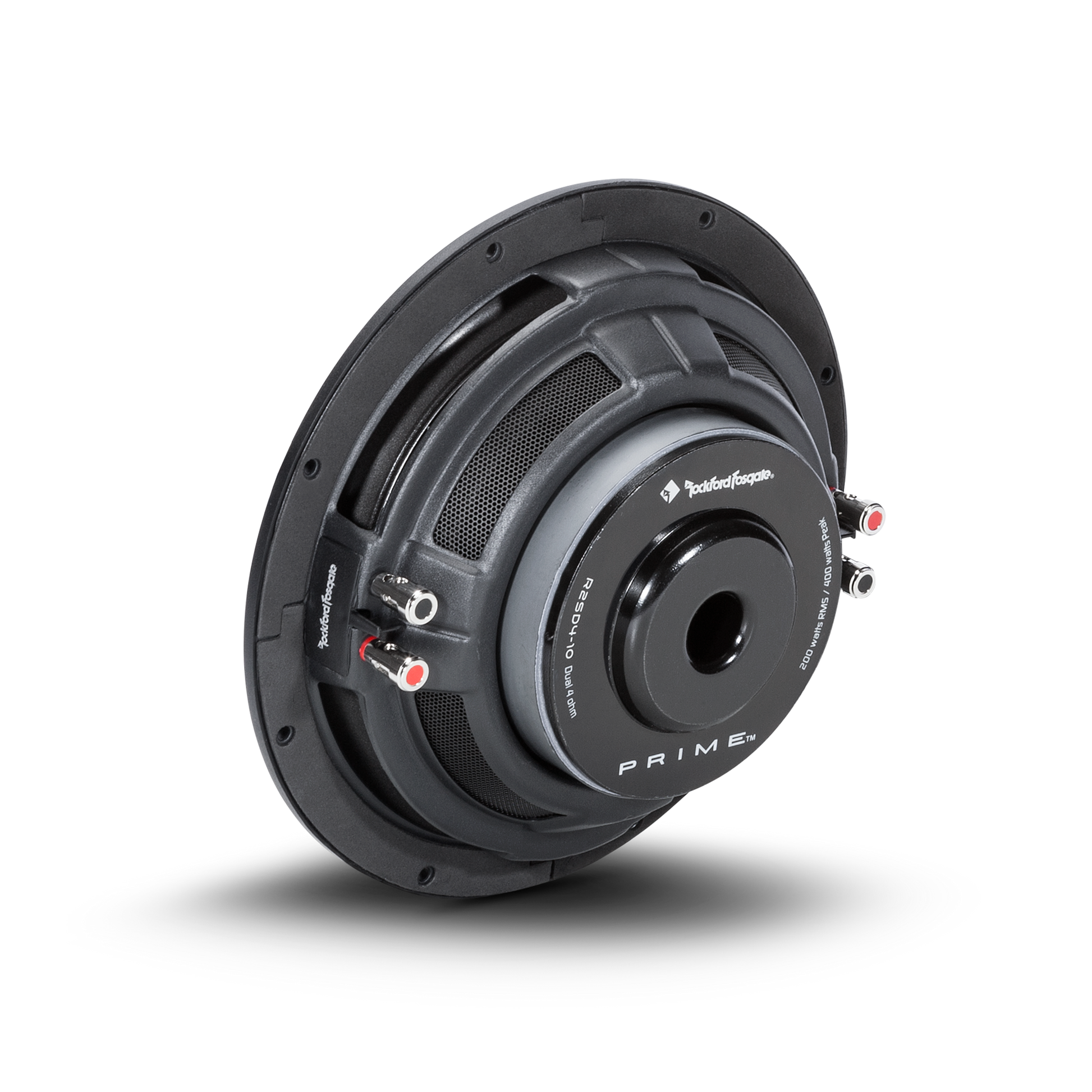

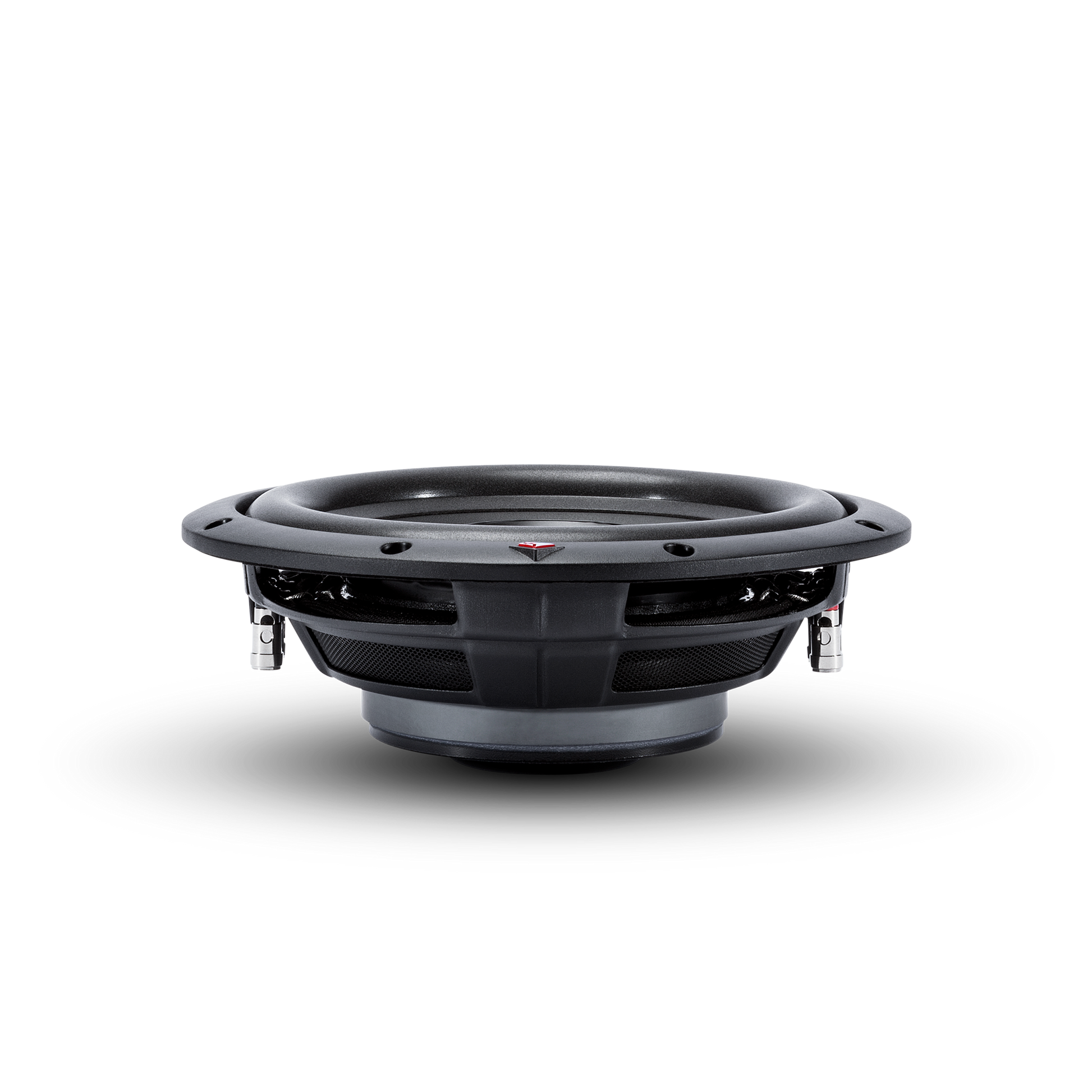

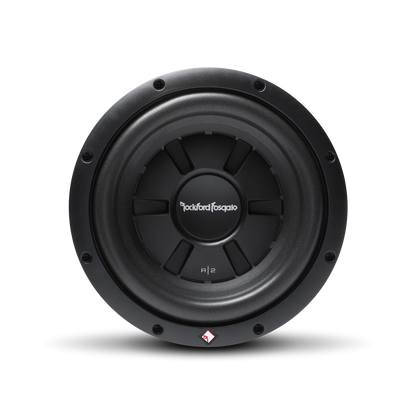

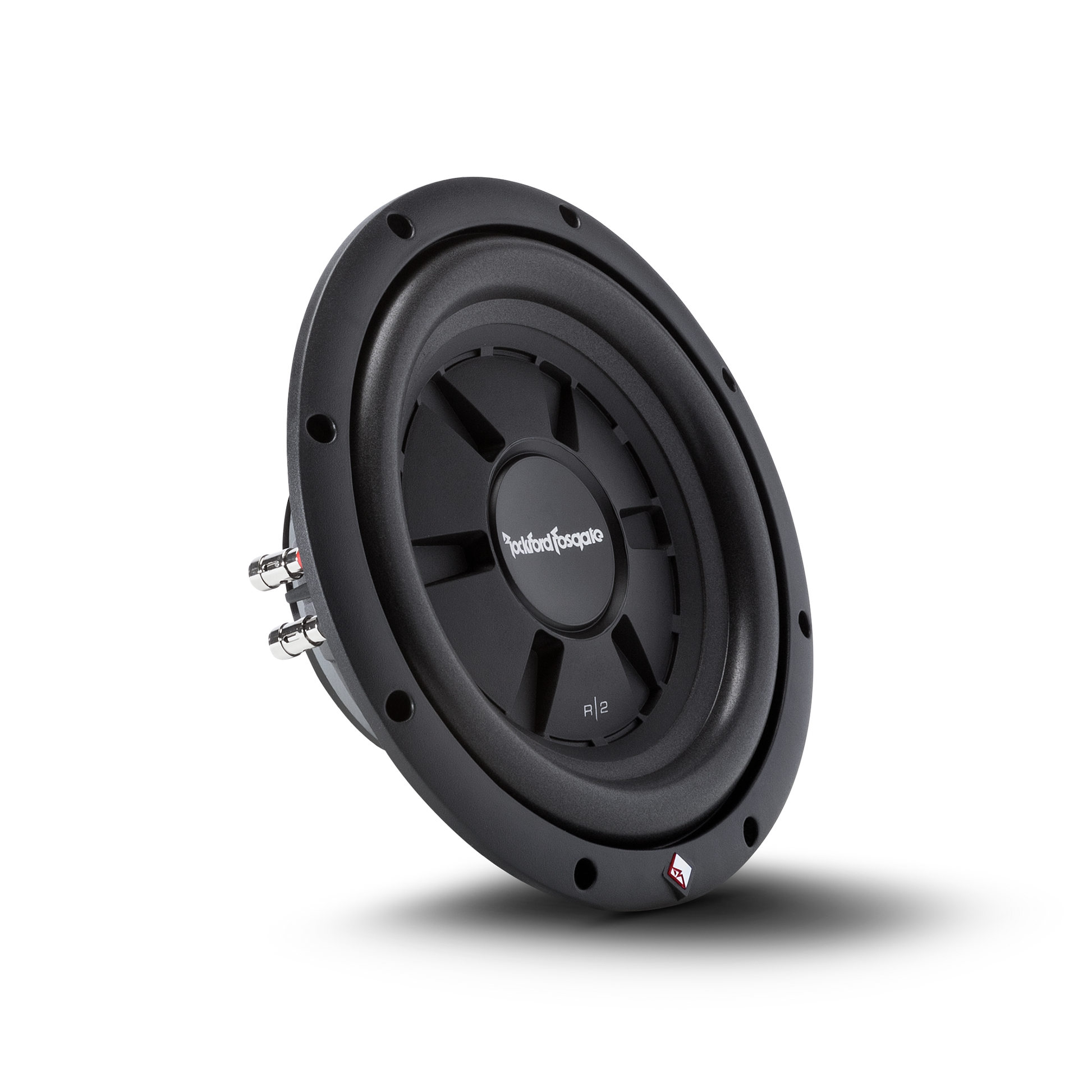

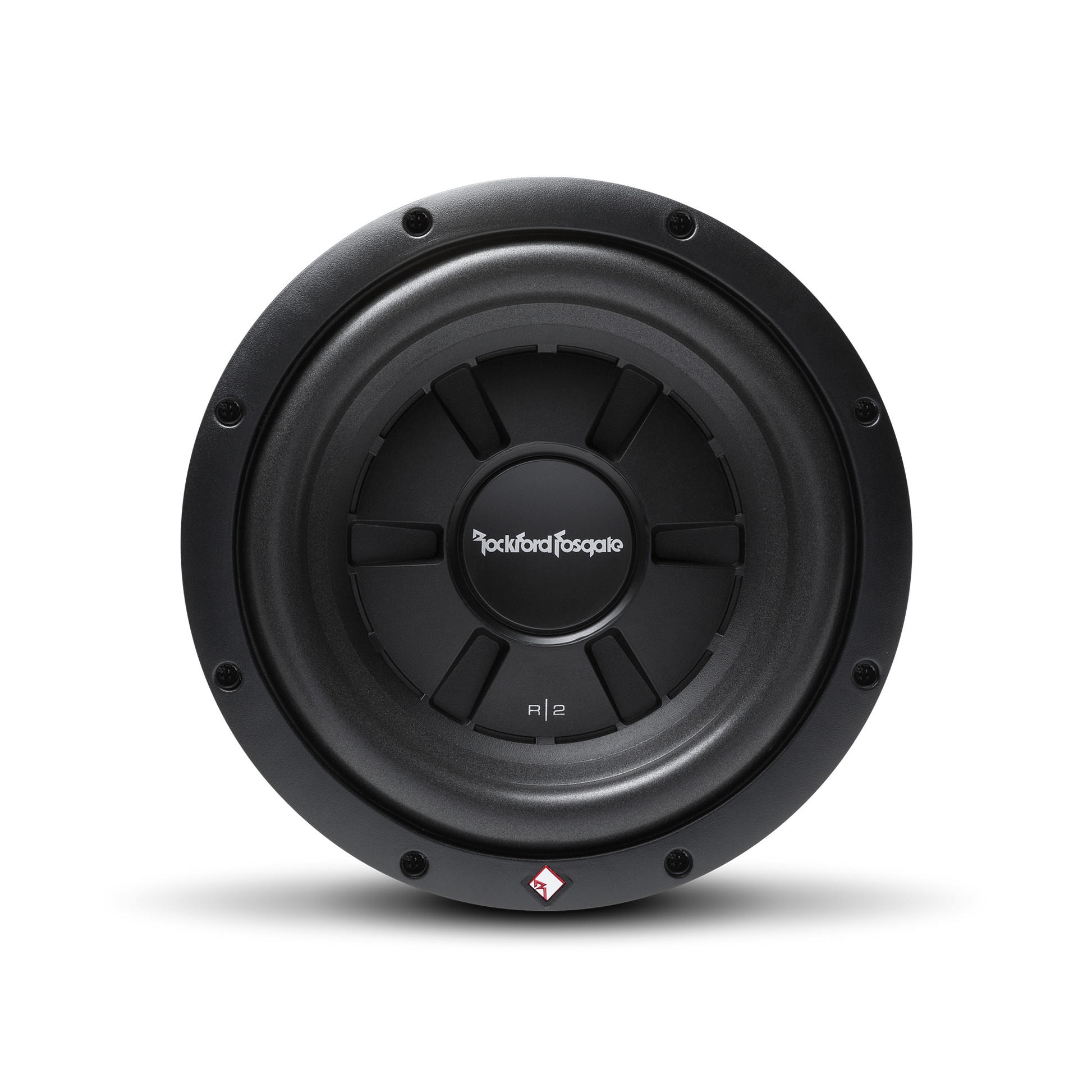

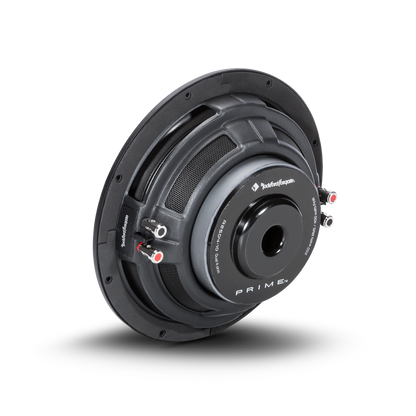

When you have no space for bass, our R2 10" shallow subwoofer can help satisfy your need for low frequency music. These drivers can fit in tight spaces due to an elevated motor structure that reduces speaker depth. Mica injected polypropylene cones make sure bass notes are clean and accurate. Stamp-cast baskets feature spider venting typically reserved for traditional depth mounted models to keep the motor cool! These shallow subwoofers are optimized for sealed enclosures.

Specifications:

• Power Handling
• 200 Watts RMS
• 400 Watts Max
• Size 10"
• Nominal Impedance Dual 4-Ohm
• Mounting Depth 3.417 in. (86 mm)
• Magnet Weight (oz) 45 oz. 1.28 kg
• SPL (dB @ 1w/1m) 82.5
• Fs (Hz) 39.3
• Cutout Diameter 9.125 in. (232 mm)
• Re (Ohms) 6.60
• Le (mH) 4.2
• Vas (Liters) 21.7
• Xmax (mm) 8.0
• Xmax (mm) 8.0
• Voice Coil Diameter 2" (50 mm)
• Shipping Weight 10.588 Lbs. (4.80 kg.)
• Speaker Connector Dual 12 AWG compression
• Qts 0.73
• Woofer Displacement 0.037 cu. ft. (1.05 Litres)
• Qms 7.00
• Qes 0.81
• CEA-2031 Compliant CEA-2031 Guidelines
• Subwoofer Type Shallow
• Voice Coil Type Dual Voice Coil
• Sealed Box Volume (Vb) 0.7 cu. ft. (19.8 Liters)
• Vented Box Volume (Vb) 1.4 cu. ft. (39.6 Liters)
