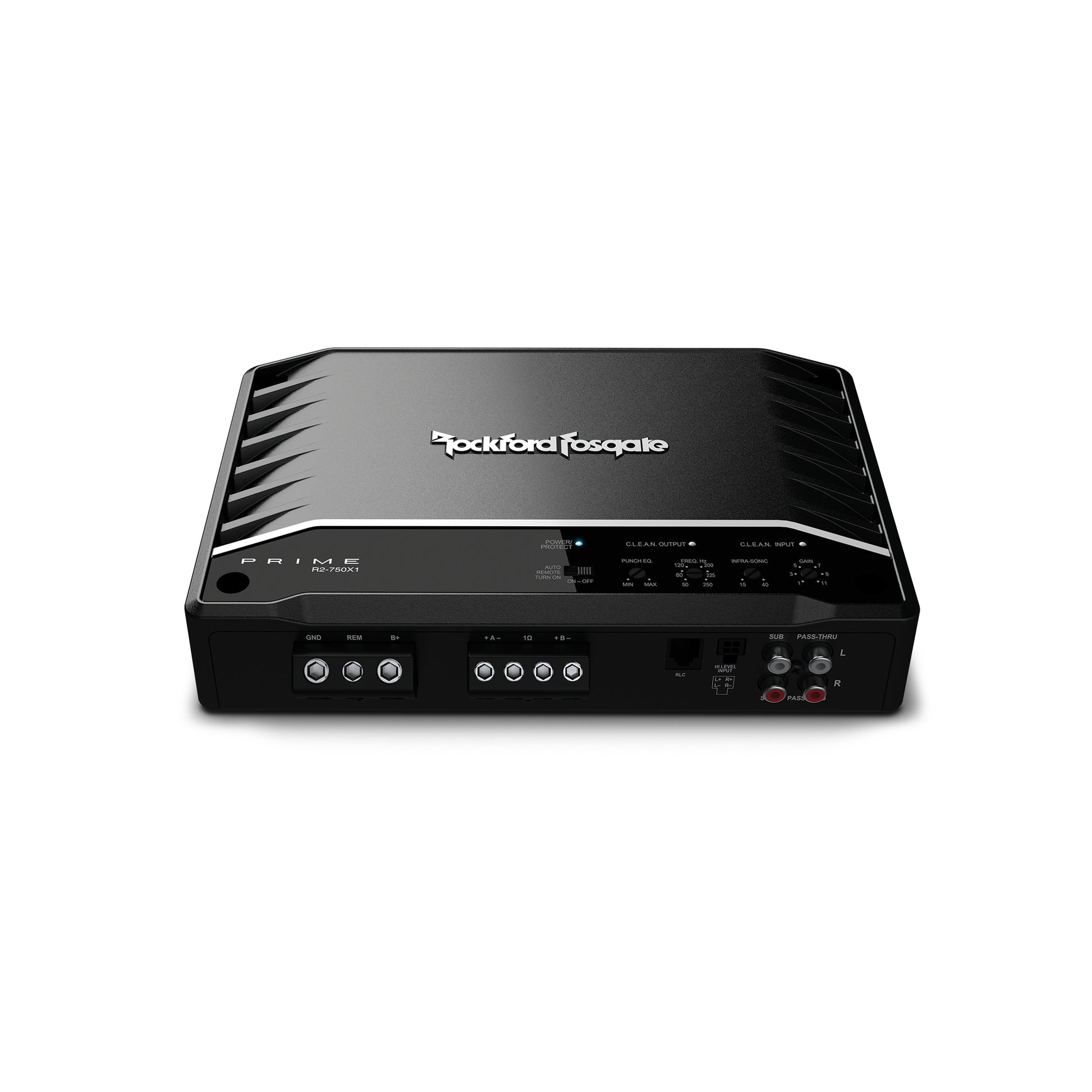

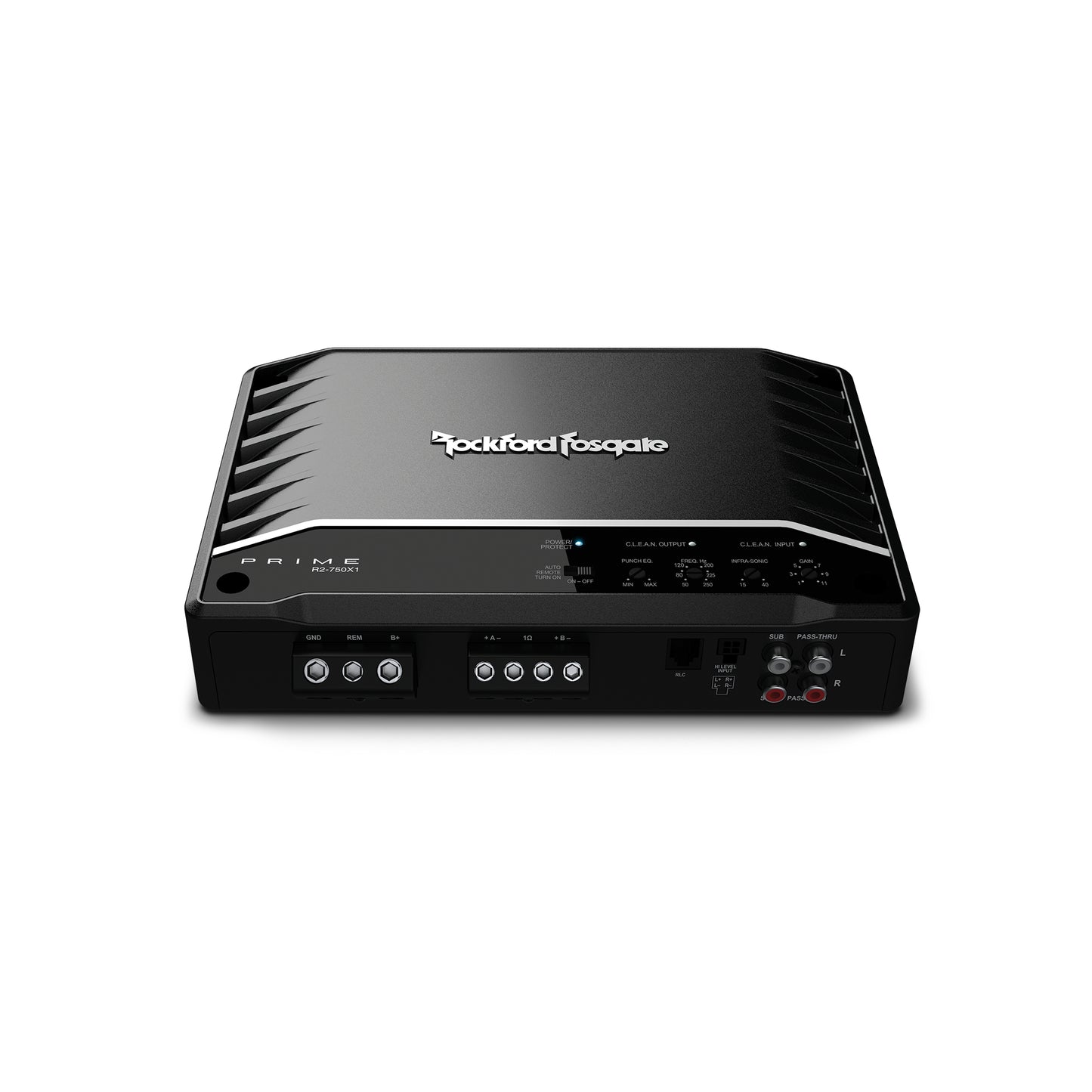

Primed for Performance, the R2-750X1 amplifier is a 750 watt, Class-D, capable of operating at 4Ω, 2Ω or 1Ω mono. This amplifier is extremely efficient because of its Class-D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. For subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.

Features

• Variable Input Gain adjustment level
• Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
• High Level Input Capable

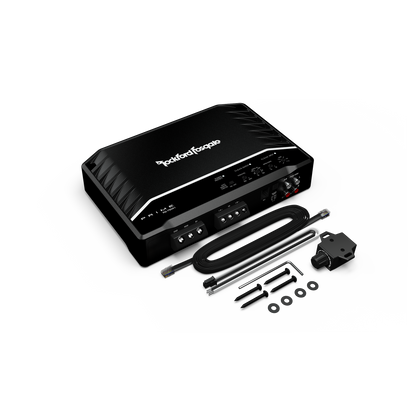

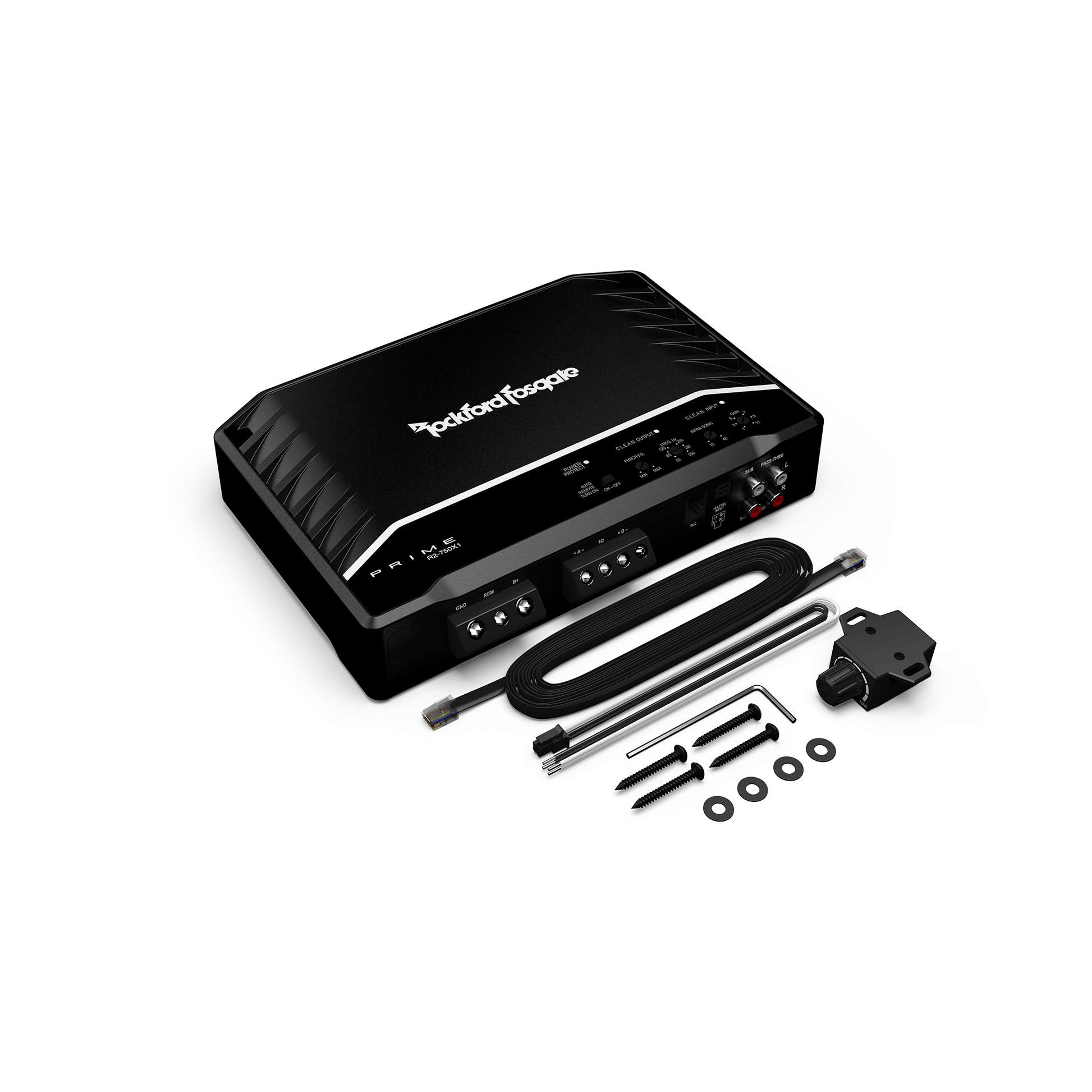

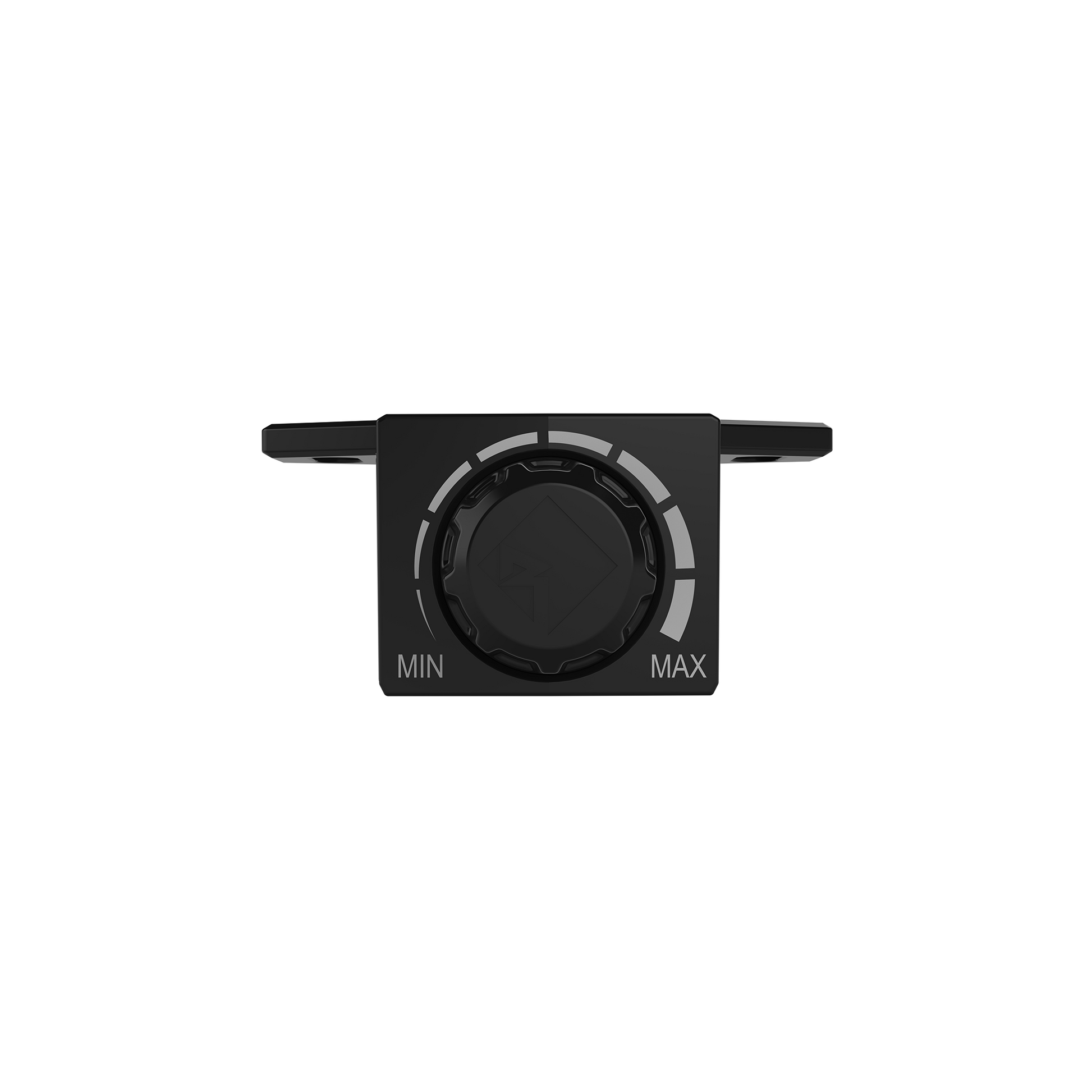

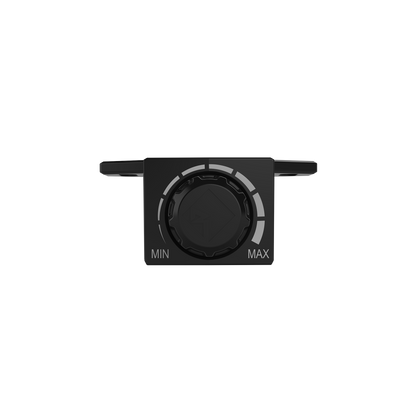

• Includes RLC Remote Level Control
• Variable Infrasonic Filter
• Balanced Differential Inputs with RCA Pass Through Outputs
• Class-D Topology
• CEA-2006 Compliant & CE Compliant
• Continuously Variable On Board Punch EQ
• Cast aluminum heat sink
• Short Circuit & Over Current Protection
• Rollback Protection
• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
• Features C.L.E.A.N. Set-up

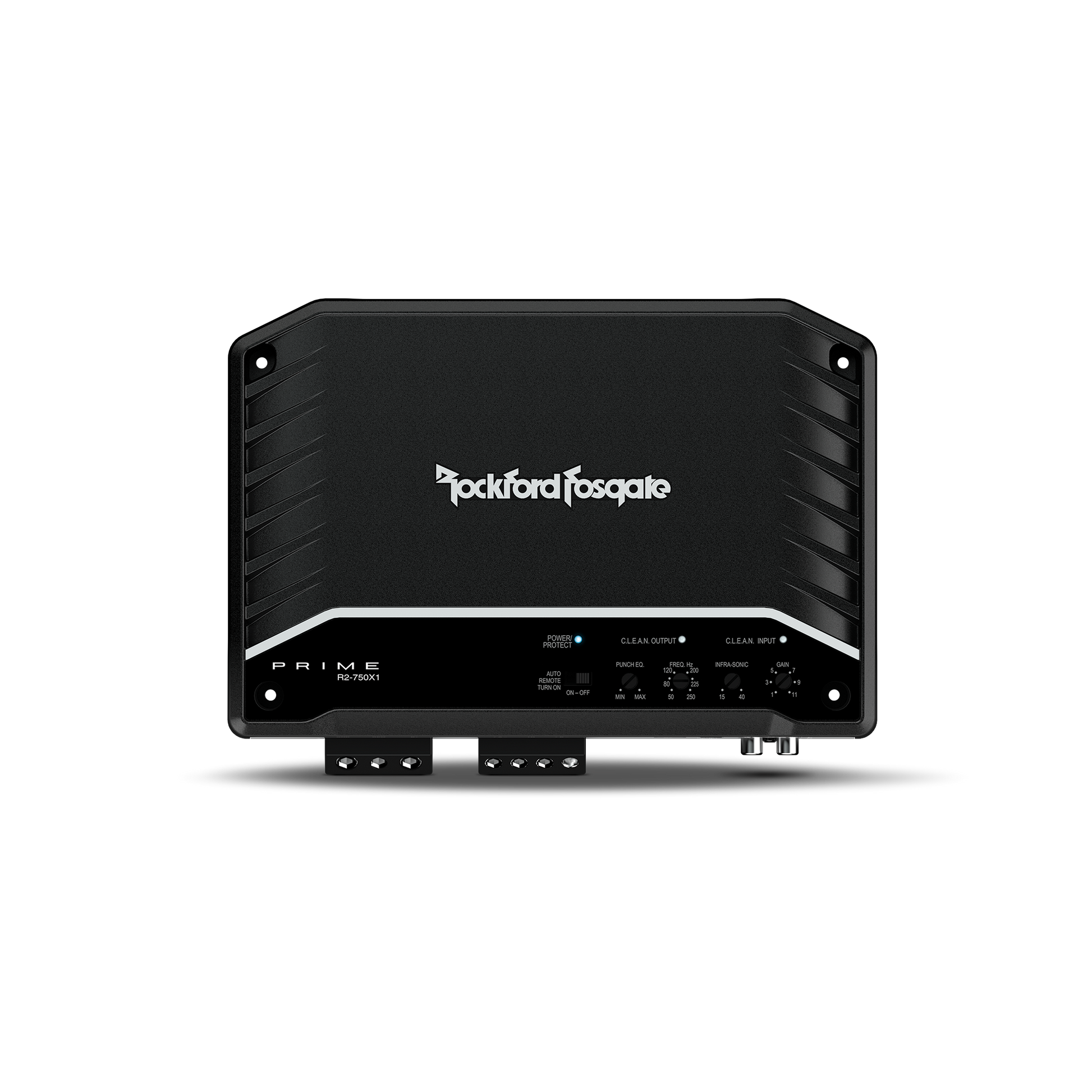

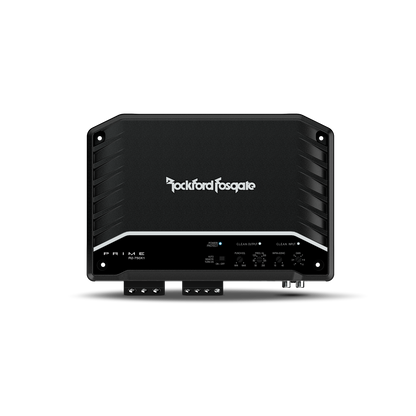

• Top Mounted Control Panel

Specification

• Total Power (Sum of Rated Power) - 750 Watts
• Rated Power (RMS Continuous Power)
  250 Watts x 1 @ 4Ω
  500 Watts x 1 @ 2Ω
  750 Watts x 1 @ 1Ω
• Dynamic Power (PVC/PowerCube®)
  300 Watts x 1 @ 4Ω
  545 Watts x 1 @ 2Ω
  830 Watts x 1 @ 1Ω
• Bridgeable - No
• Frequency Response - 20 Hz - 250 Hz
• Input Sensitivity
  Low-Level: 150 mV - 4 V
  High-Level: 450 mV - 12 V
• Circuit Topology Class - Class-D
• Total Harmonic Distortion (THD+Noise)
  4Ω: <1.0%
  2Ω: <1.0%
  1Ω: <1.0%

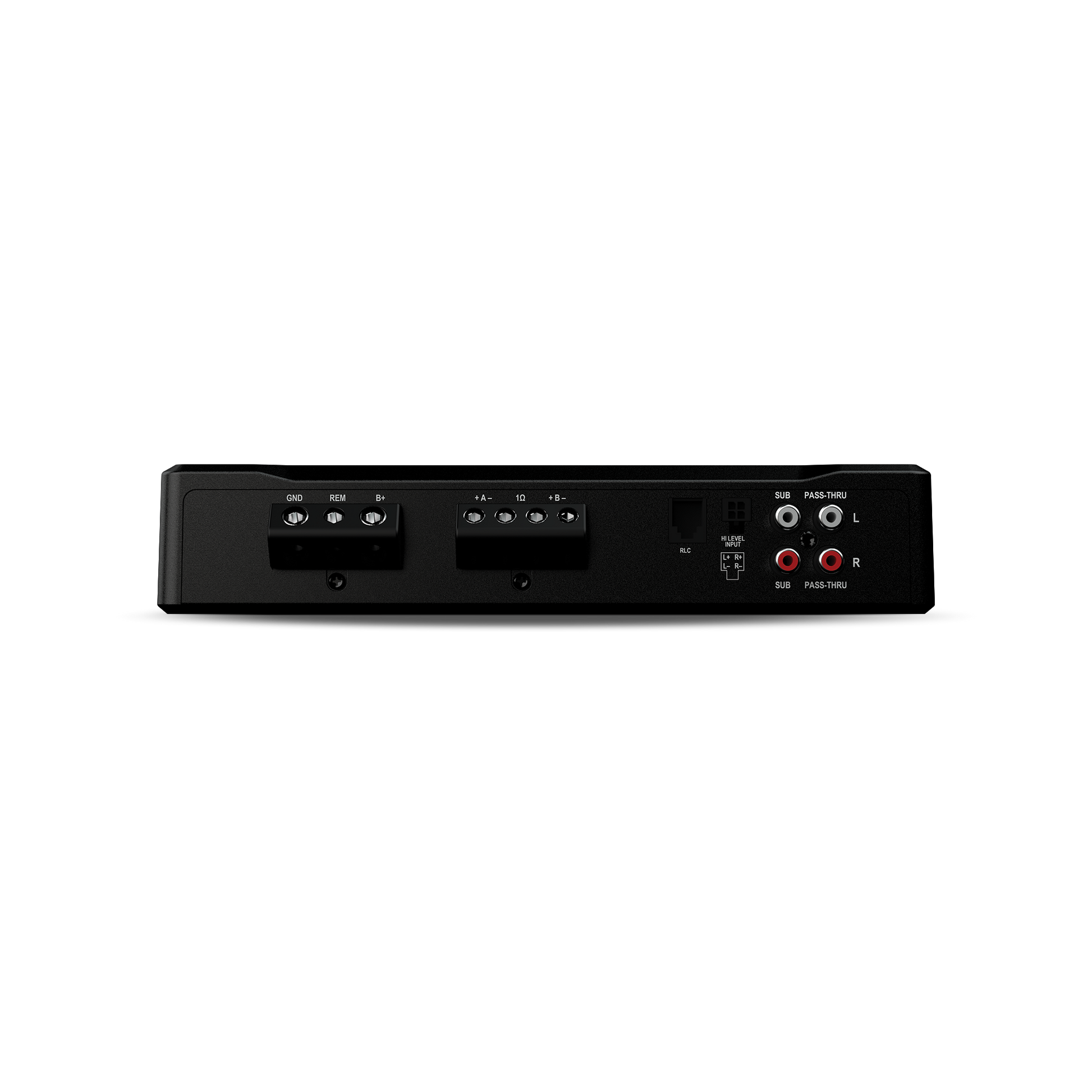

• Signal Input
  Low-Level: 2 RCA
  High-Level: 4-Pin Molex
• Signal Output
  Low-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input)
• Tone Controls - 0 to +18 dB @ 45 Hz
• Crossover Controls
  Low-Pass - 50 Hz - 250 Hz @ 12dB/Octave Butterworth
  Infrasonic - 15 Hz - 40 Hz @ 12dB/Octave Butterworth
• Remote Controls - Yes
• Visual Indicators
  POWER (Blue) / PROTECT (Red)
  C.L.E.A.N. IN (Red)
  C.L.E.A.N. OUT (Blue/Red)
• Power Wire Gauge - 4 AWG

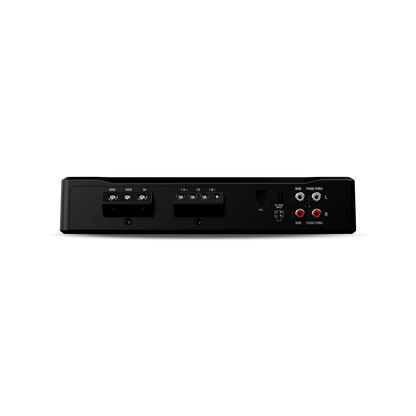

• Power Input Connector - Compression Terminal Block
• Speaker Wire Gauge - 8 AWG
• Speaker Output Connector - Compression Terminal Block
• Cooling - Convection
• Operating Voltage - 9 - 16 VDC
• Recommended Fuse (not included) - 120 A
• Max. Current Draw (13.8V Sinewave) - 71 A
• Dimensions (H x W x D) - 1.9" x 6.8" x 10.1" (4.9 cm x 17.3 cm x 25.5 cm)
