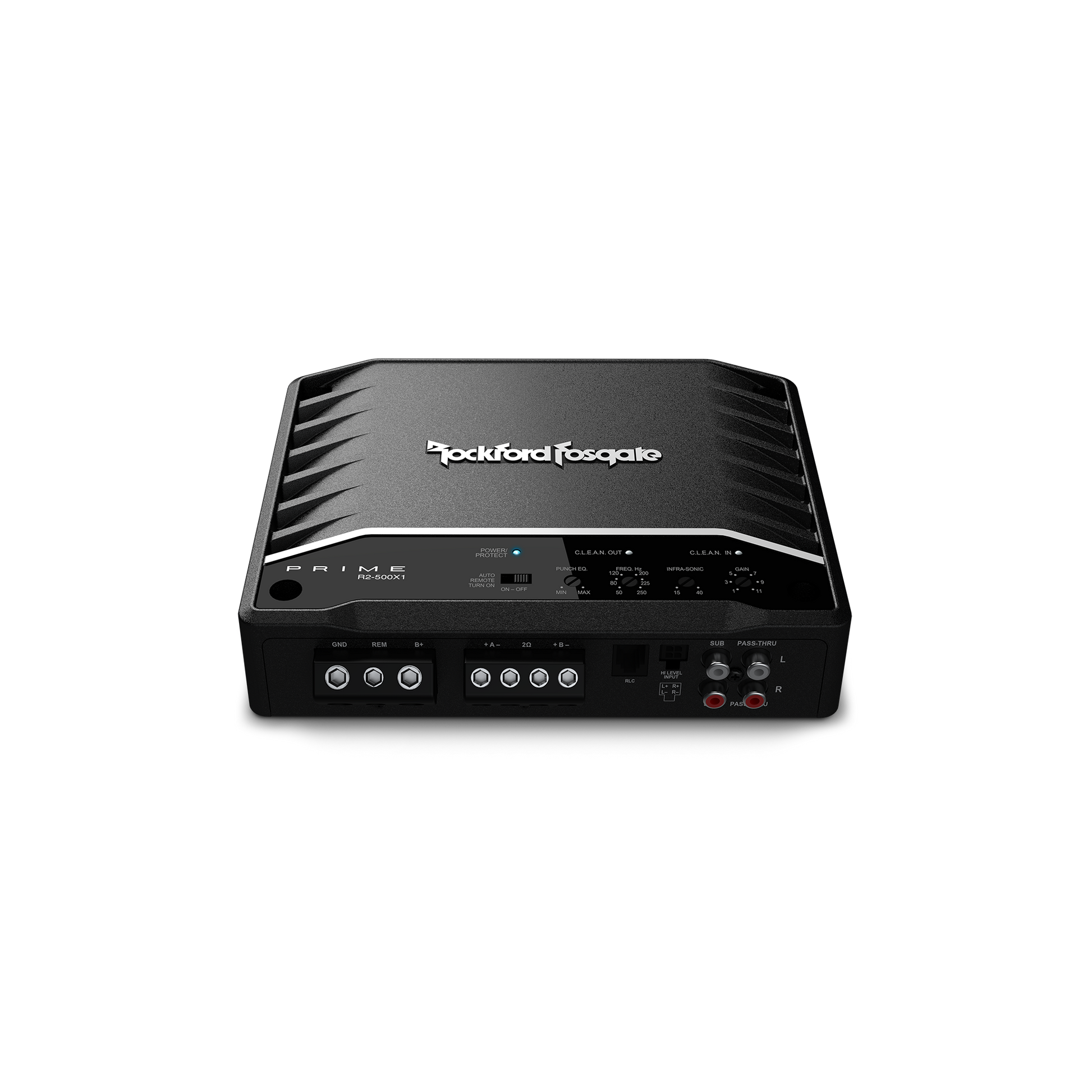

The Prime Series were developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of Prime Series amplifiers are also designed to be easy to setup and configure, making them perfect for use with factory audio or custom aftermarket systems.

Specification

• Total Power (Sum of Rated Power) - 500 Watts
• Rated Power (RMS Continuous Power)
  300 Watts x 1 @ 4Ω
  500 Watts x 1 @ 2Ω
• Dynamic Power (PVC/PowerCube®)
  350 Watts x 1 @ 4Ω
  590 Watts x 1 @ 2Ω
• Bridgeable - No
• Frequency Response - 20 Hz - 250 Hz
• Input Sensitivity
  Low-Level: 150 mV - 4 V
  High-Level: 450 mV - 12 V
• Circuit Topology Class - Class-D
• Total Harmonic Distortion (THD+Noise)
  4Ω: <1.0%
  2Ω: <1.0%

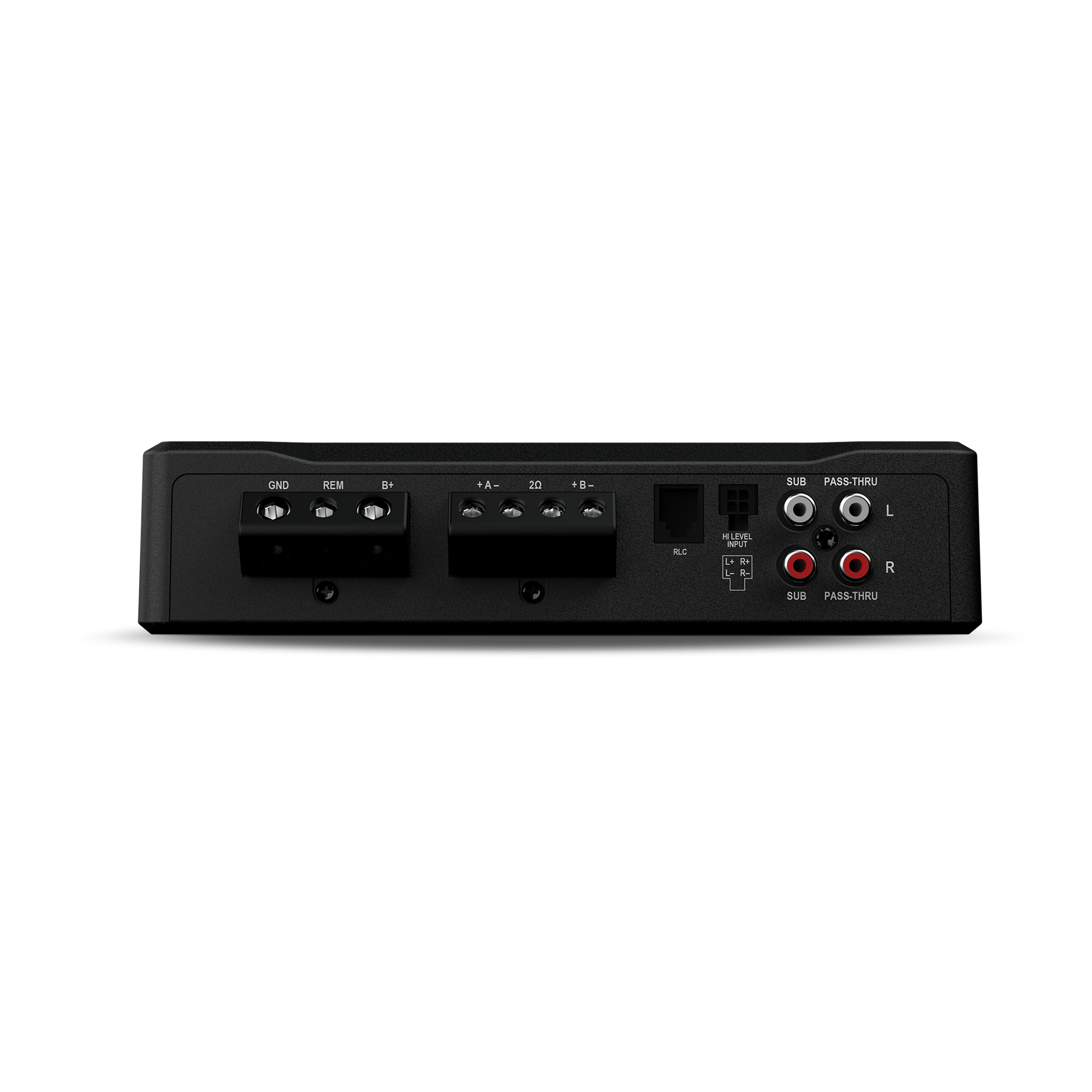

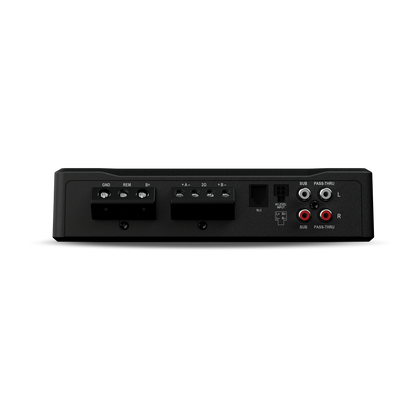

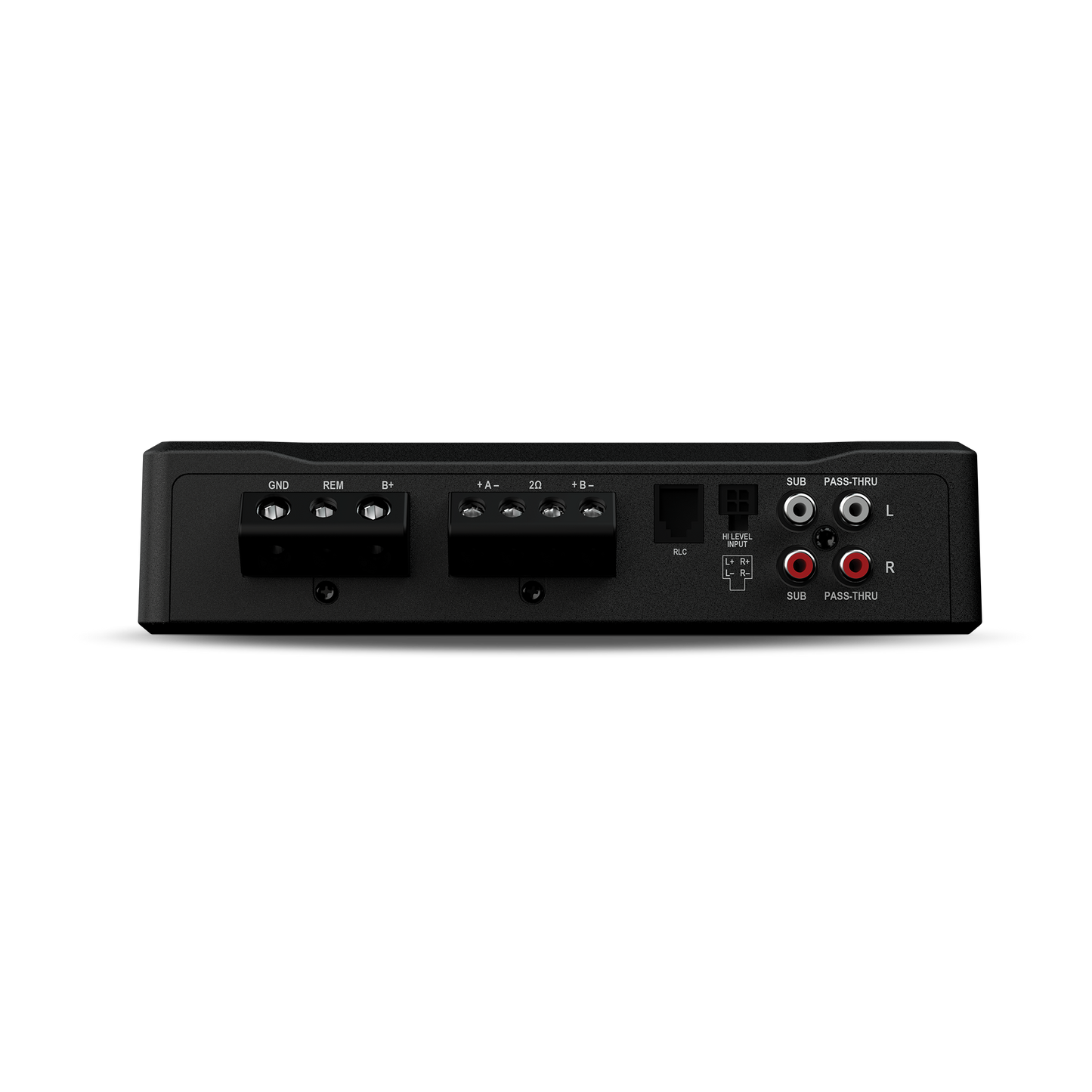

• Signal Input
  Low-Level: 2 RCA
  High-Level: 4-Pin Molex
• Signal Output - Low-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input)
• Tone Controls - 0 to +18 dB @ 45 Hz
• Crossover Controls
  Low-Pass - 50 Hz - 250 Hz @ 12dB/Octave Butterworth
  Infrasonic - 15 Hz - 40 Hz @ 12dB/Octave Butterworth
• Remote Controls - Yes
• Visual Indicators
  POWER (Blue) / PROTECT (Red)
  C.L.E.A.N. IN (Red)
  C.L.E.A.N. OUT (Blue/Red)
• Power Wire Gauge - 4 AWG
• Power Input Connector - Compression Terminal Block
• Speaker Wire Gauge - 8 AWG
• Speaker Output Connector - Compression Terminal Block
• Cooling - Convection
• Operating Voltage - 9 - 16 VDC
• Recommended Fuse (not included) - 80 A
• Max. Current Draw (13.8V Sinewave) - 52 A
• Dimensions (H x W x D) - 1.9" x 6.8" x 8.5" (4.9 cm x 17.3 cm x 21.5 cm)

Features

• Variable Input Gain adjustment level
• Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
• High Level Input Capable

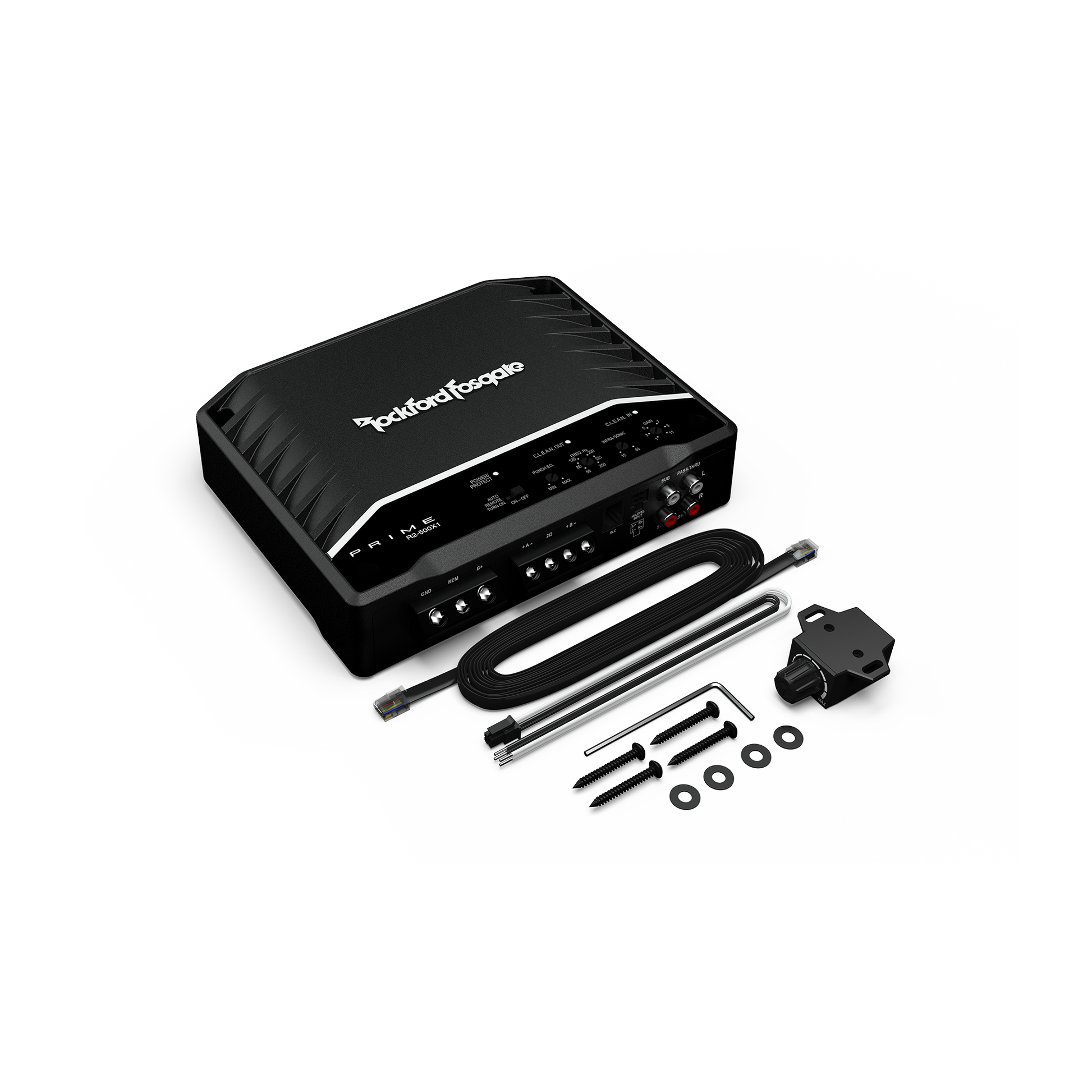

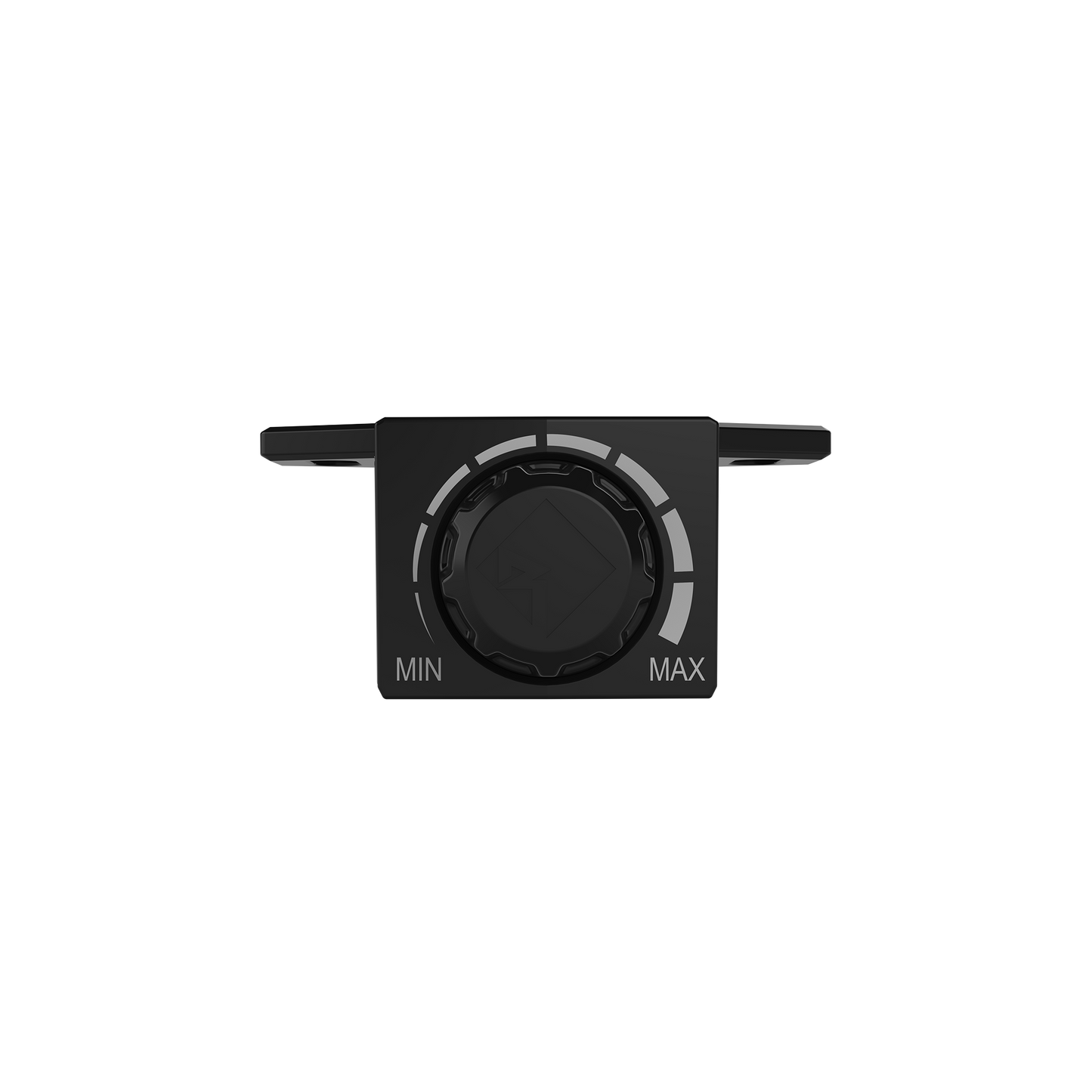

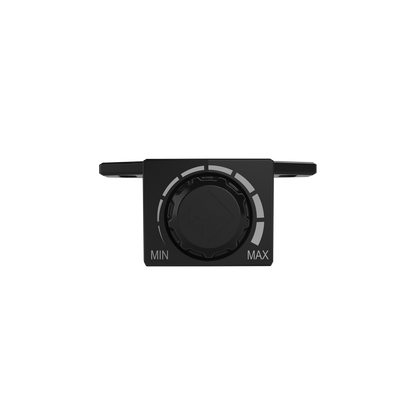

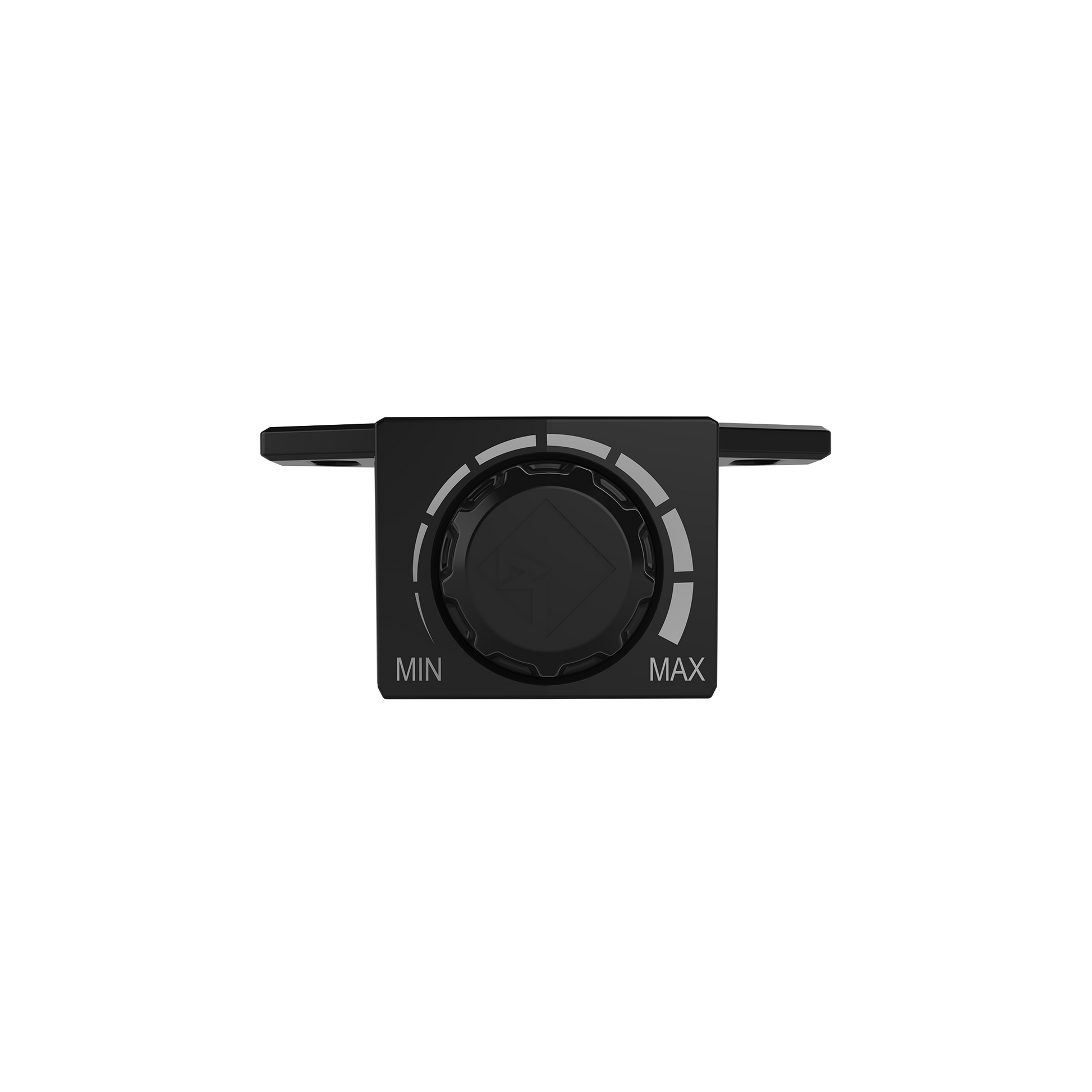

• Includes RLC Remote Level Control
• Variable Infrasonic Filter
• Balanced Differential Inputs with RCA Pass Through Outputs
• Class-D Topology
• CEA-2006 Compliant & CE Compliant
• 1 Year Warranty
• Continuously Variable On Board Punch EQ
• Cast aluminum heat sink
• Short Circuit & Over Current Protection
• Rollback Protection
• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
• Features C.L.E.A.N. Set-up

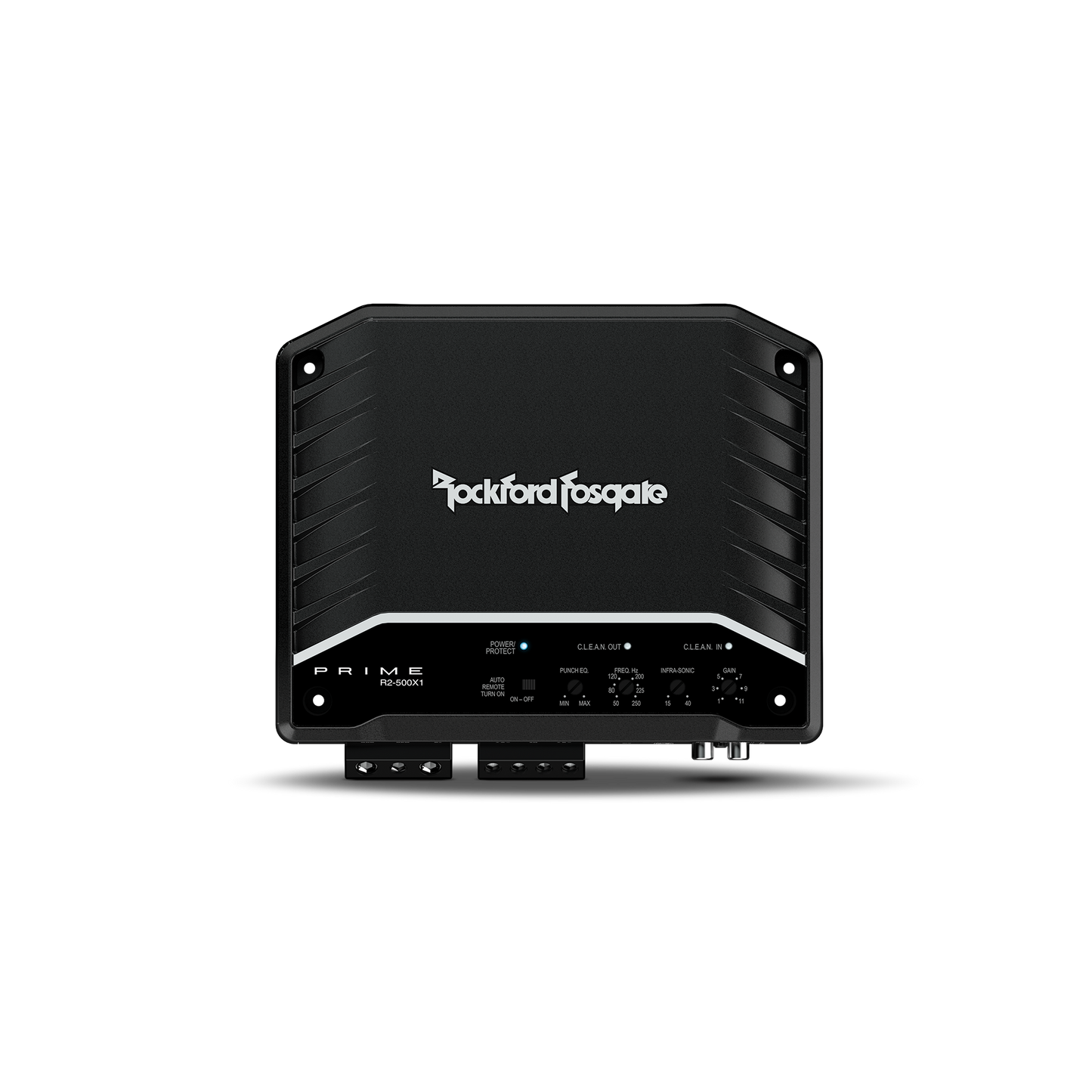

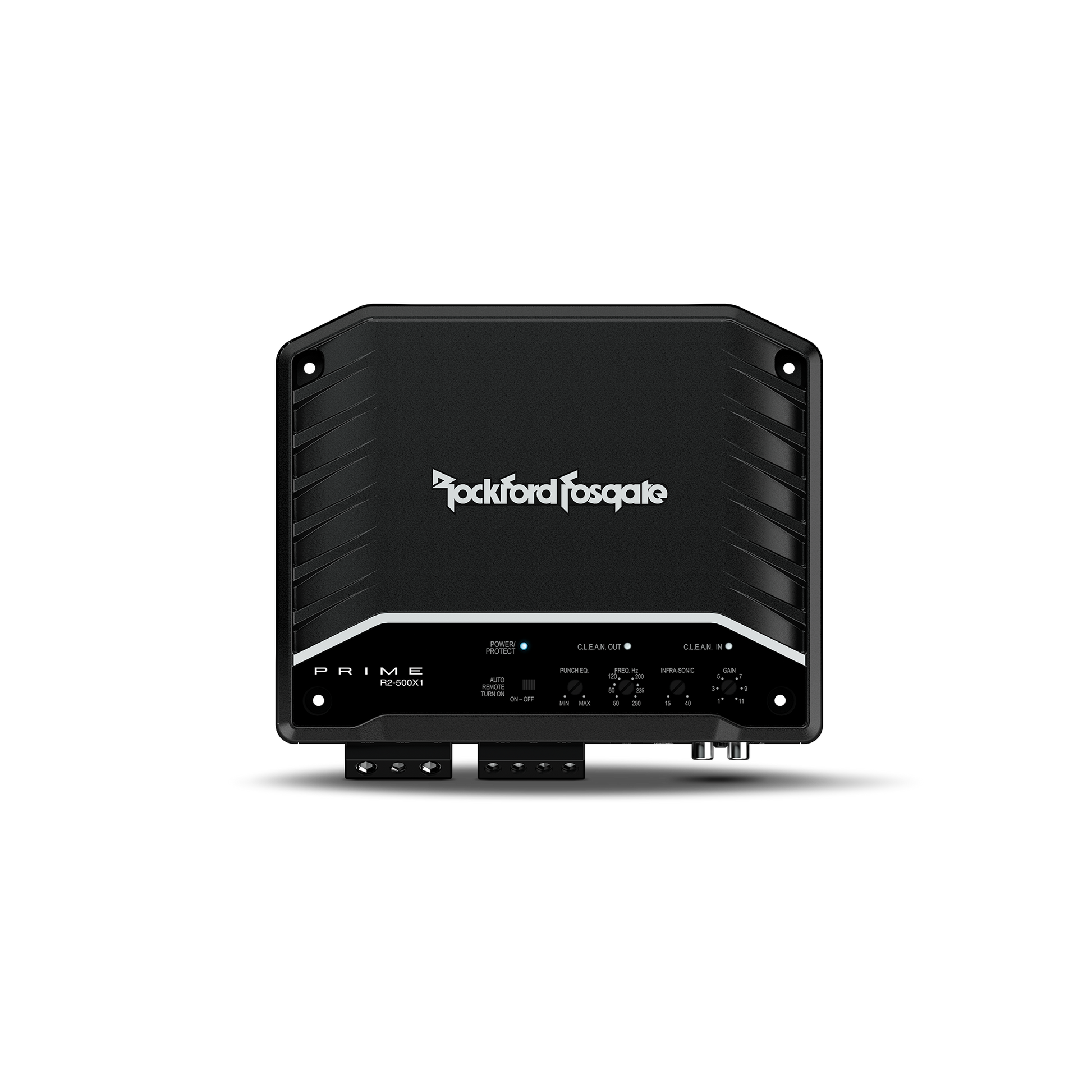

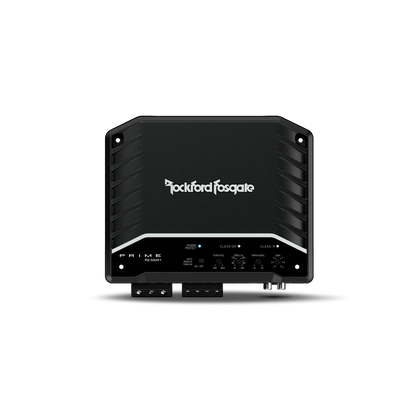

• Top Mounted Control Panel
