ROCKFORD FOSGATE PP8-X

Punch Pro 8-Ohm Passive Crossover

The PP8-X is designed for use with 8-Ohm Punch Pro midrange drivers and tweeters.

Designed for use with Punch Pro midrange drivers and tweeters
125 Watts RMS (250 Watts MAX) power handling
Must use 8-Ohm load on woofer outputs
Dual woofer outputs for use with two Punch Pro midrange
Provides 6dB/Octave, 3kHz low pass for woofer
Works with built-in 6dB/Octave Punch Pro tweeter crossover

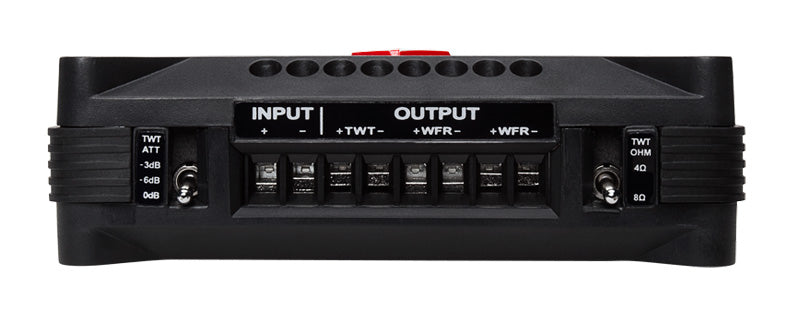

Selectable tweeter impedance: 4-Ohm or 8-Ohm
Selectable tweeter attenuation: 0dB, -3dB, -6dB
Mounting hardware included
Sold as individual units (not in pairs)

View full details

Product Description

The PP4-X is designed for use with 8-Ohm Punch Pro midrange drivers and tweeters. It features dual woofer outputs for use with two Punch Pro midrange drivers. Provides 6dB/Octave dedicated low pass filter for the woofer.

Must use existing built-in 6dB/Octave Punch Pro crossover supplied with tweeter. Designed ONLY for Rockford Fosgate Punch Pro speakers (not designed to be used as a stand-alone passive crossover for other "pro" brands). Mounting hardware included.

Midrange Nominal Diameter (cone/diaphragm):
Crossover:    4kHz @ 6dB/Octave Low-Pass / 0dB/-3dB/-6dB Tweeter Attenuation
Shipping Weight:    1.29 Lbs. (0.58 Kg)
