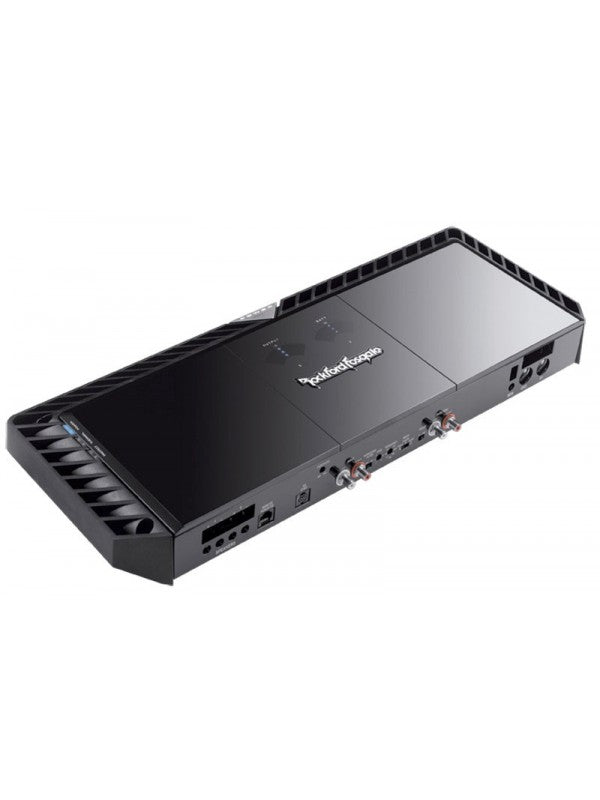

The T2500-1bdCP is based on the legendary T2500-1bd amplifier design with a proprietary "Constant Power" configuration that delivers up to 25% more power (Watts) across all impedance loads. The result is a listening experience cleaner, louder and more impressive than ever before. This T2500-1bdCP amplifier pumps out 2,500 watts, easily driving any array of woofers wired to a 1-ohm load. Use two amps in Power-Sync mode for a whopping 5,000 watt power horse!

Features

• Number of Channels 1
• Rated Power (RMS Continuous Power):
• 1500 Watts x 1 @ 4-Ohms
• 2500 Watts x 1 @ 2-Ohms
• 2500 Watts x 1 @ 1-Ohm
• Two amplifiers in bdSYNC configuration: 5000 Watts x 1 @ 2-Ohms
• Total Power (Sum of Rated Power): 2500 Watts RMS
• Dynamic Power (PVC/PowerCube® Measurement):
• 1823 Watts x 1 @ 4-Ohms
• 2940 Watts x 1 @ 2-Ohms
• 2980 Watts x 1 @ 1-Ohm
• Bridgeable: Yes (two amps "strapped" using bd-Sync2 creates one monster amplifier)
• Efficiency (average):
• 81.9% @ 4-Ohm
• 77.7% @ 2-Ohm
• 64.5% @ 1-Ohm
• Crossover Controls:
• Low-Pass (LP): 35Hz-250Hz @ 24dB/octave Butterworth
• Infrasonic: 12dB/octave Butterworth, -3dB @ 28Hz
• Tone Controls:
• Bass: 0dB to +18dB @ 45Hz
• Signal Input:
• 1 RCA pair
• Signal Output:
• 1 RCA pair
• Power Input Connector: Block
• Power Wire Gauge: 1/0 AWG
• Speaker Output Connector: Block
• Speaker Wire Gauge: 8 AWG to 16 AWG
• Heat Sink Type: Cast aluminum
• Cooling: Convection
• Remote Controls: Optional Remote PEQ
• (overrides built-in Punch Bass)
• Visual Indicators:
• Power (Blue LED)
• Thermal (Red LED)
• Protect (Yellow LED)
• Output -00dB to +2dB @ 11 steps (Blue LEDs)
• Battery 9VDC to 16VDC @ 11 steps (Blue LEDs)
• Circuit Topology Class: Class bd
• Frequency Response: 20Hz to 250Hz +/-0.5dB
