Power Marine 500 Watt Class-BR Mono Amplifier
The TM500X1br is a 500 Watt mono amplifier with boosted rail Class-br technology and a conformal coated pc board designed for motorsport and marine applications.
- Rockford Fosgate proprietary Boosted Rail technology
- Differential inputs with high level auto turn-on feature
- Upgraded RCA connectors
- 8 AWG Power/Ground connector. 10 AWG speaker connector
- Remote-Out feature when using high level inputs
- 2013 PLC2 remote ready
- C.L.E.A.N. input/output clip detection and indicator LEDs

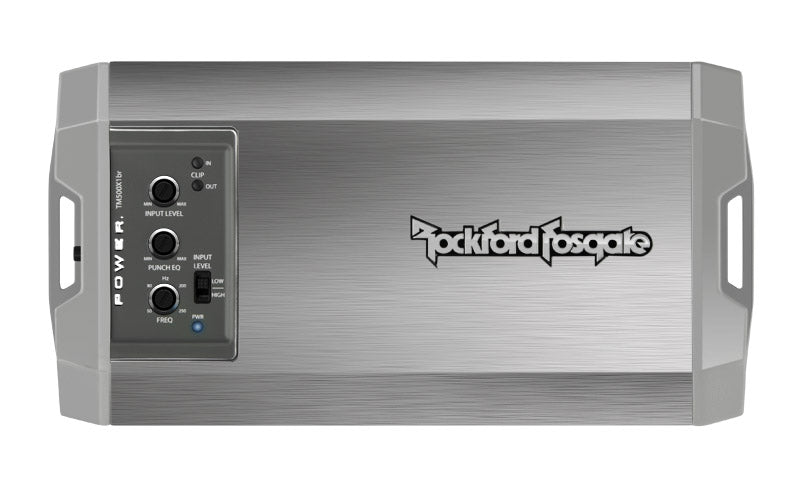

- Top mounted controls
- Dual fan cooled
- Real time thermal sensing with Rollback technology
- Dual extruded heat sinks

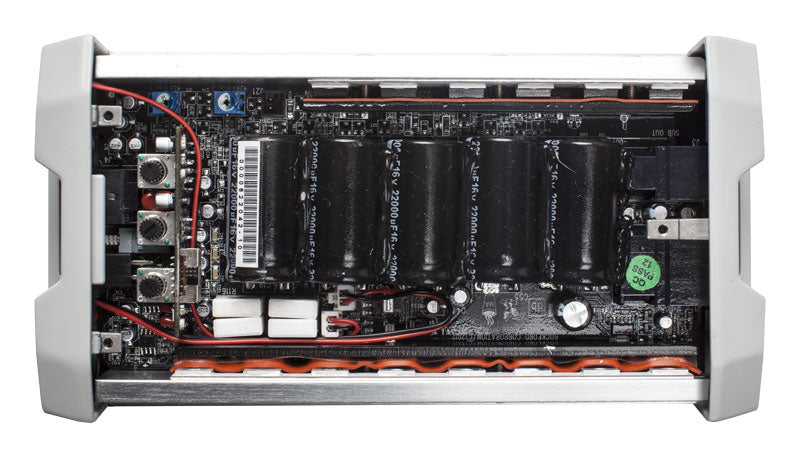

- Discrete surface mount technology
- Marine grade two part epoxy coating on circuit boards
- 2 Years Standard Warranty
*PLEASE CHECK AVAILABILITY
Product Description
CEA-2006 Compliant: [CEA-2006 Guidelines] CEA-2006 Power Rating
- 175W x 1 @ 4Ω
- ≤1.0% THD+N
Rated Power (RMS Continuous Power):
- 175 Watts x 1 @ 4-Ohm
- 300 Watts x 1 @ 2-Ohm
- 500 Watts x 1 @ 1-Ohm
Dynamic Power (PVC/PowerCube®):
- 201 Watts x 1 @ 4-Ohm
- 342 Watts x 1 @ 2-Ohm
- 540 Watts x 1 @ 1-Ohm
Visual Indicators:
- Power: Blue LED
- Protect: Red LED
- Input Clip: Red LED
- Output Clip Blue/Red LED
- Total Power (Sum of Rated Power): 500 Watts
- Frequency Response: 20Hz - 220Hz +/-1dB
- Efficiency (average): >75%
- Crossover Controls: Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
- Tone Controls: Bass: 0 to +18 dB @ 45 Hz
- Input Sensitivity: 150 mV to 12 V

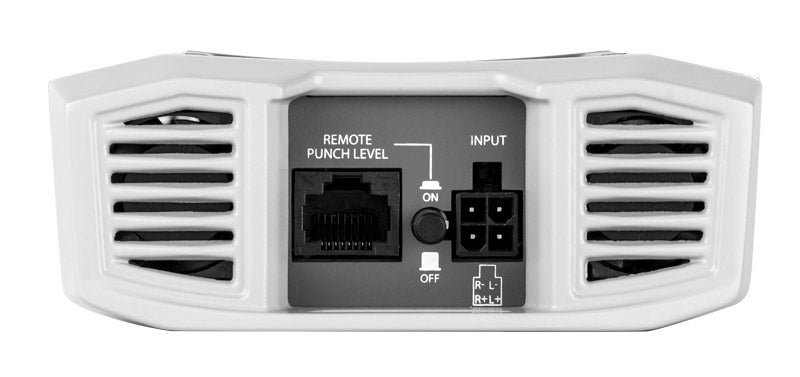

- Signal Input: High/Low Level Input: 4-Pin harness

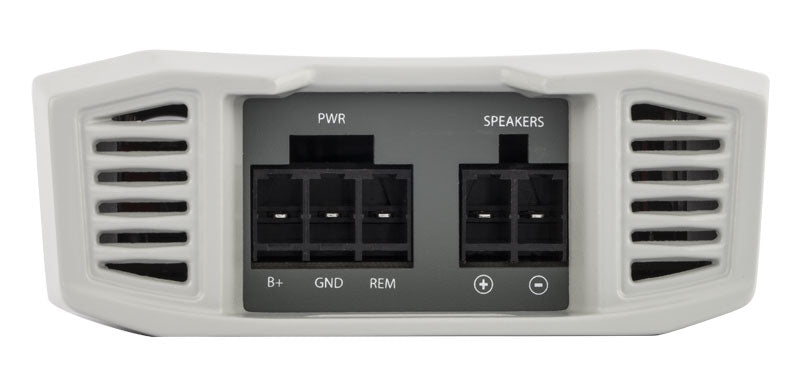

- Power Input Connector: Detachable Compression Terminal
- Power Wire Gauge: 8 AWG
- Speaker Output Connector: Detachable Compression Terminal
- Speaker Wire Gauge: 10 AWG
- Heat Sink Type: Extruded Aluminum
- Cooling: Dual Fan Cooled
- Remote Controls: Optional PLC2 provides Punch Level Control
- Circuit Topology Class: Class-BR
- Operating Voltage: 9 - 16 VDC
- Recommended Fuse (not included): 60 A
- Max. Current Draw (13.8V Sinewave): 60 A
- Average Current Draw (13.8V Music): 30 A
- Suggested Alternator: 75 A
- Shipping Weight: 3.1 Lbs. (1.4 Kg.)
- Dimensions (H x W x D): 1.6 x 4.25 x 8.3 (in.) 4.1 x 10.79 x 21.1 (cm)
