Power Marine 400 Watt Class-ad 2-Channel Amplifier
The TM400X2ad is a 400 Watt 2-channel amplifier with high efficiency Class-ad technology and a conformal coated pc board designed for motorsport and marine applications.
- Rockford Fosgate proprietary Class-AD technology
- 4/2 Ohm muti-impedance Constant Power
- Differential inputs with high level auto turn-on feature
- 8 AWG power/ground connector w/ upgraded RCA connectors
- Remote-Out feature when using high level inputs
- 4 Ohm bridged capable
- 2013 PLC2 remote ready
- C.L.E.A.N. input/output clip detection and indicator LEDs

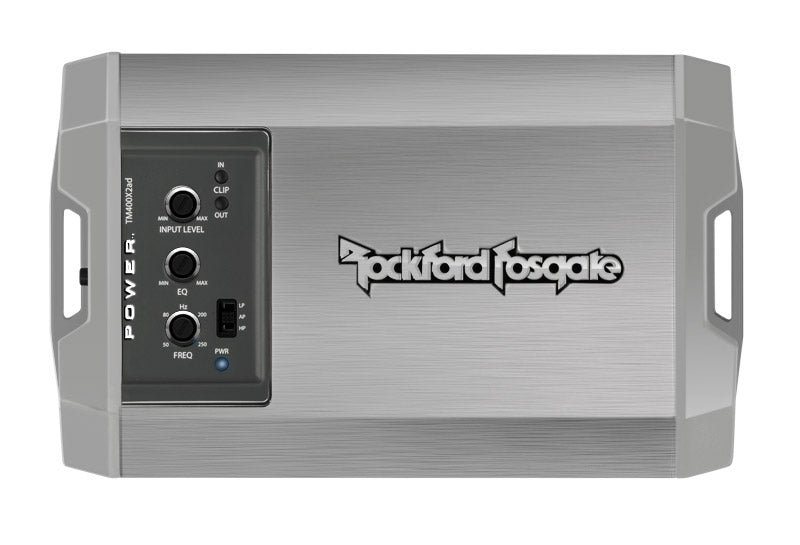

- Top mounted controls
- Dual fan cooled
- Real time thermal sensing
- Dual extruded heat sinks

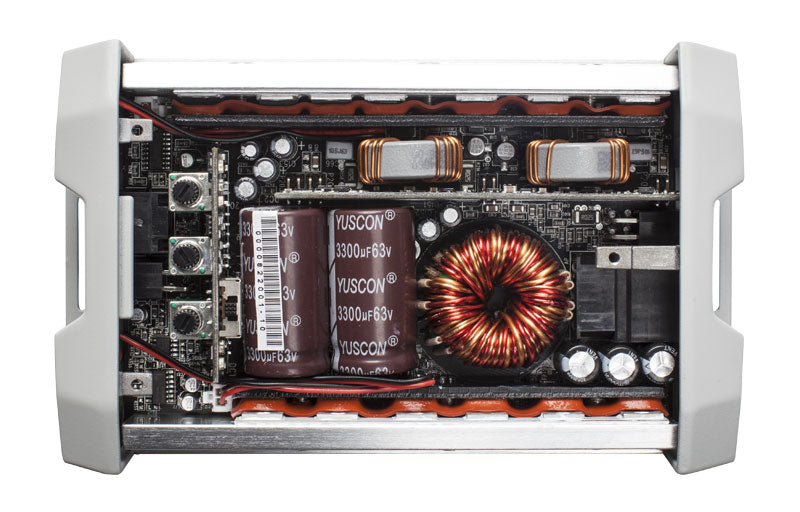

- Discrete surface mount technology
- Marine grade two part epoxy coating on circuit boards
- 2 Years Standard Warranty
*PLEASE CHECK AVAILABILITY
Product Description
The Power TM400X2ad 400 Watt 2-channel ultra-compact amplifier is built on Rockford Fosgate’s proprietary Class-AD technology, featuring Constant Power to produce the same output at both 4-Ohm and 2-Ohm impedances. Flexible vehicle integration enabled through low-level and high-level inputs with auto turn-on. Top mounted controls allow easy access to built-in crossover and C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while real-time thermal/protection schemes safeguard the amplifier.
CEA-2006 Compliant: [CEA-2006 Guidelines] CEA-2006 Power Rating
- 200W x 2 @ 4Ω
- ≤1.0% THD+N
Rated Power (RMS Continuous Power):
- 200 Watts x 2 @ 4-Ohm
- 200 Watts x 2 @ 2-Ohm
- 400 Watts x 1 @ 4-Ohm Bridged
Dynamic Power (PVC/PowerCube®):
- 223 Watts x 2 @ 4-Ohm
- 248 Watts x 2 @ 2-Ohm
- 449 Watts x 1 @ 4-Ohm Bridged
Visual Indicators:
- Power: Blue LED
- Protect: Red LED
- Input Clip: Red LED
- Output Clip Blue/Red LED
Total Harmonic Distortion (THD+Noise):
- 4-Ohm: <1.0%
- 2-Ohm: <1.0%
Terminals: Left (+) Right (-)
- Frequency Response: 20Hz - 20kHz +/-1dB
- Efficiency (average): >75%
- Total Power (Sum of Rated Power): 400 Watts
- Number of Channels: 2
- Bridgeable
- Crossover Controls: High-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
- Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
- All-Pass
- Tone Controls: Treble: 0 to +14 dB @ 12.5 kHz
- Bass: 0 to +18 dB @ 45 Hz
- Input Sensitivity: 150 mV - 12 V

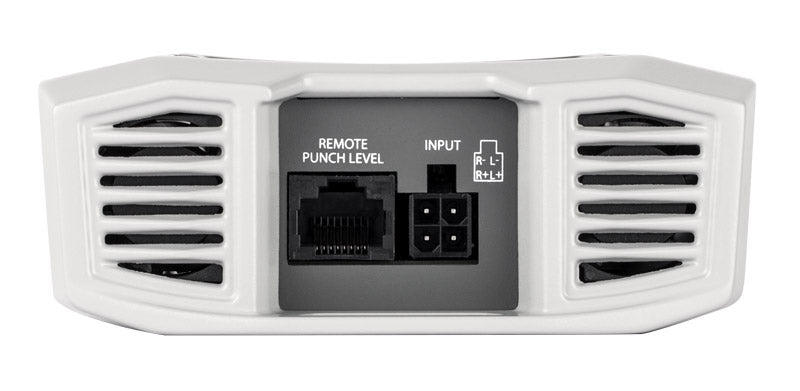

- Signal Input: High/Low Level Input: 4-Pin harness

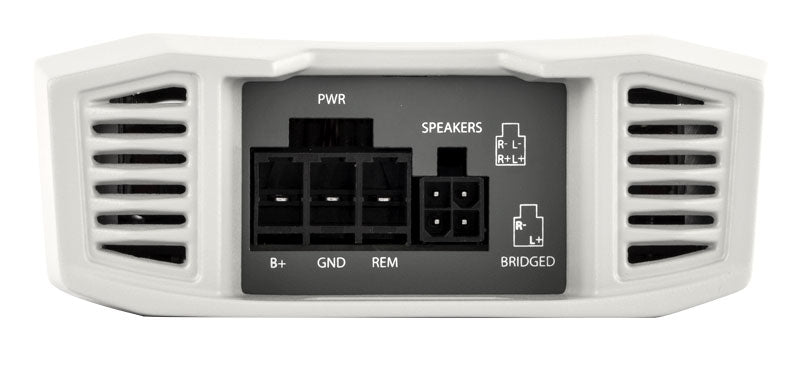

- Power Input Connector: Detachable Compression Terminal
- Power Wire Gauge: 8 AWG
- Speaker Output Connector: 4-Pin Harness
- Speaker Wire Gauge: 16 AWG
- Heat Sink Type: Extruded Aluminum
- Cooling: Dual Fan Cooled
- Remote Controls: Optional PLC2 provides Punch Level Control
- Circuit Topology Class: Class-A/D
- Operating Voltage: 9 - 16 VDC
- Recommended Fuse(not included): 60 A
- Max. Current Draw (13.8V Sinewave): 45 A
- Average Current Draw (13.8V Music): 23 A
- Suggested Alternator: 75 A
- Shipping Weight: 2.9 Lbs. (1.31 Kg.)
- Dimensions (H x W x D): 1.6 x 4.25 x 7 (in.) (4.1 x 10.79 x 17.78 (cm)
