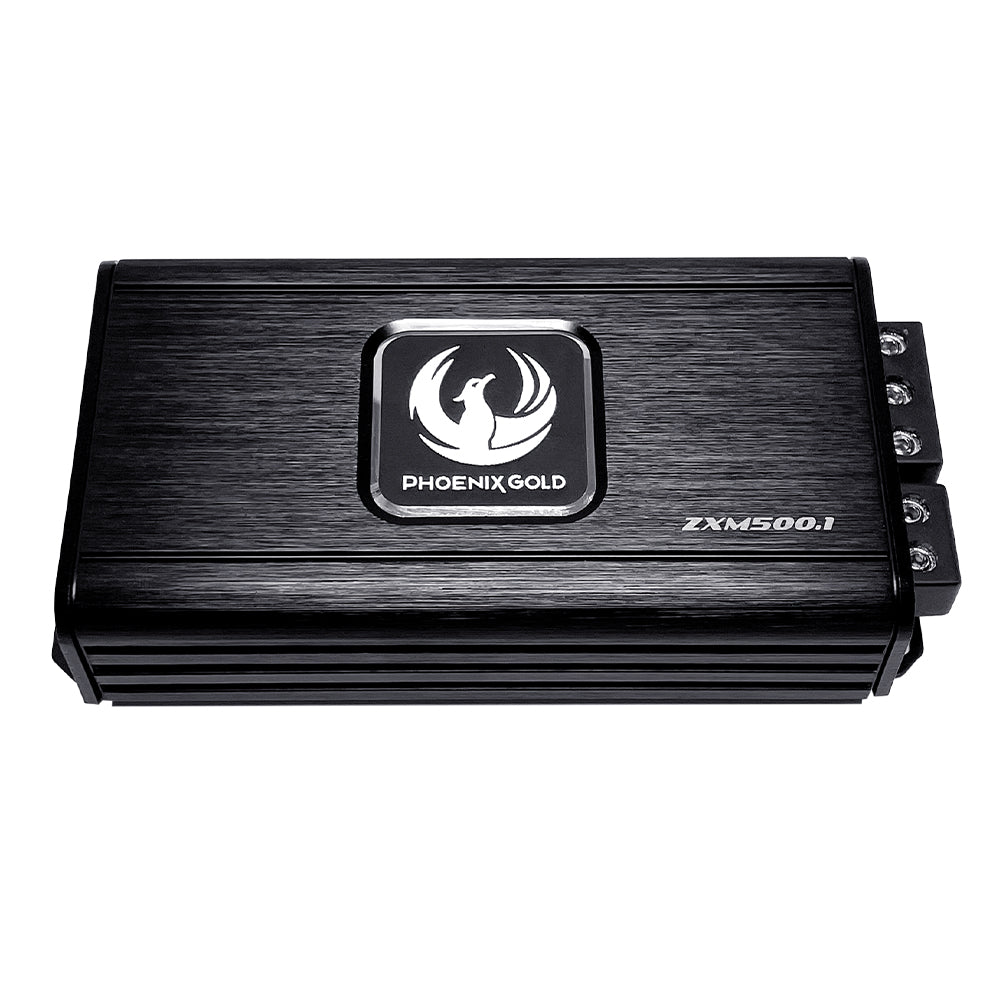

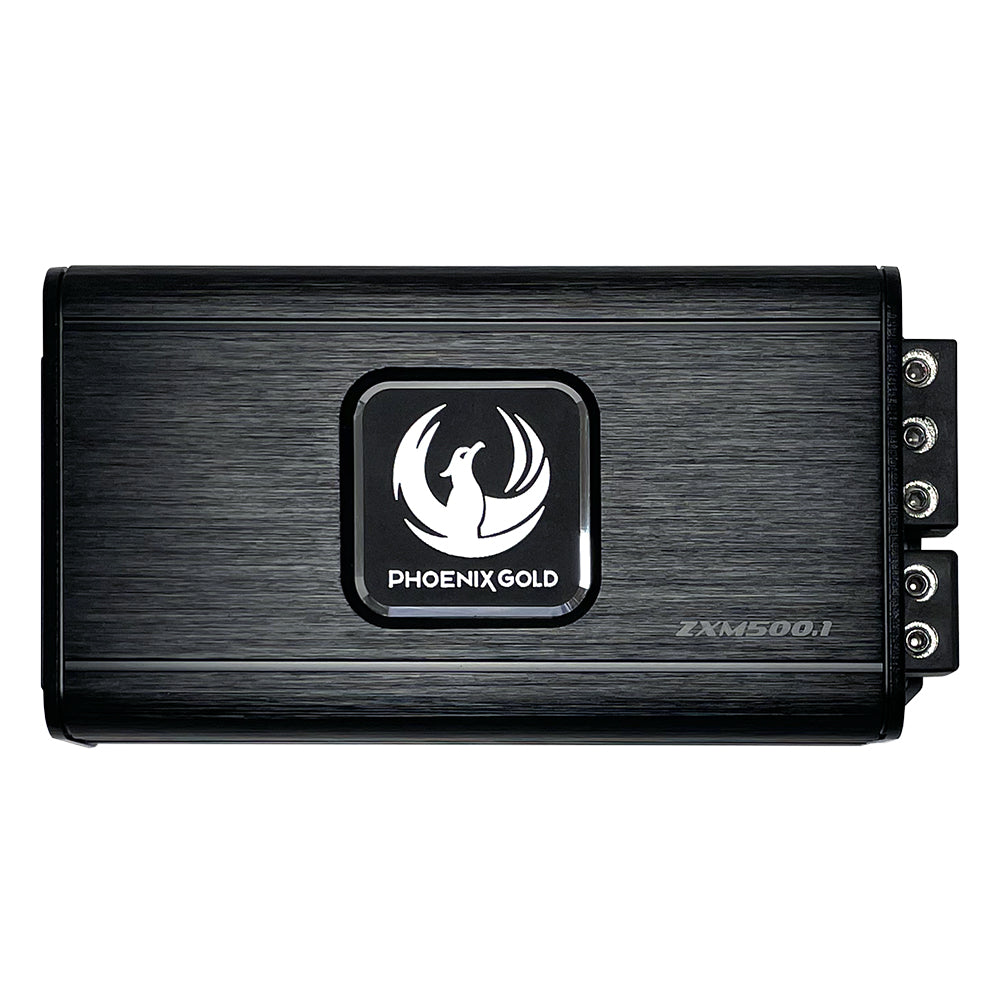

Phoenix Gold ZXM500.1 - 1 Channel Class-D Mono Mini Amplifier 1000W
Phoenix Gold ZXM500.1 - 1 Channel Class-D Mono Mini Amplifier 1000W
Specifications
- Class-D Mono Mini Amplifier
- Power (MAX) 1000W
- Power Ratings (RMS)
- 500W x 1 @ 1Ohm
- 360W x 1 @ 2Ohm
- 230W x 1 @ 4Ohm
- Frequency Response: 20Hz – 500Hz
- Signal to Noise Ratio: >90dB
- Total Harmonic Distortion: <0.3%
- Low Pass Filter: 40Hz – 250Hz (24dB/Oct)
- Subsonic: 10Hz – 50Hz (24dB/Oct)
- Bass Boost: 0 – 18dB @ 45Hz
- High Level Input Auto Turn-On
- Remote Control Included

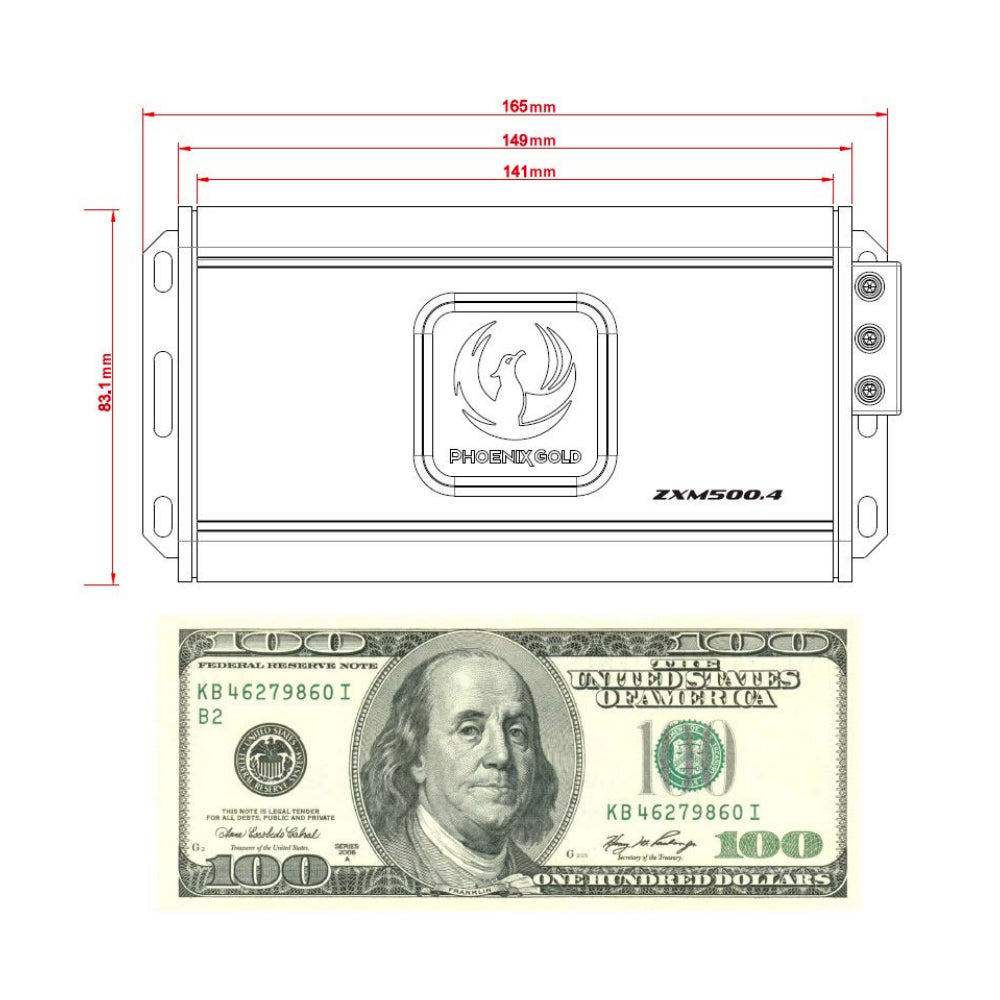

- Dimensions (L x W x H) 165 x 83.1 x 34.8mm
Product Description
Small in size big in power
The ZXM500.1 is an impressive Class-D Mono Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.1 is a 1-channel amplifier with 500W RMS into 1 Ohm. The power output in 2 Ohm is 360W RMS and in 4 Ohm is 230W RMS. This means it can be loaded between 4-1 Ohm with lots of power.

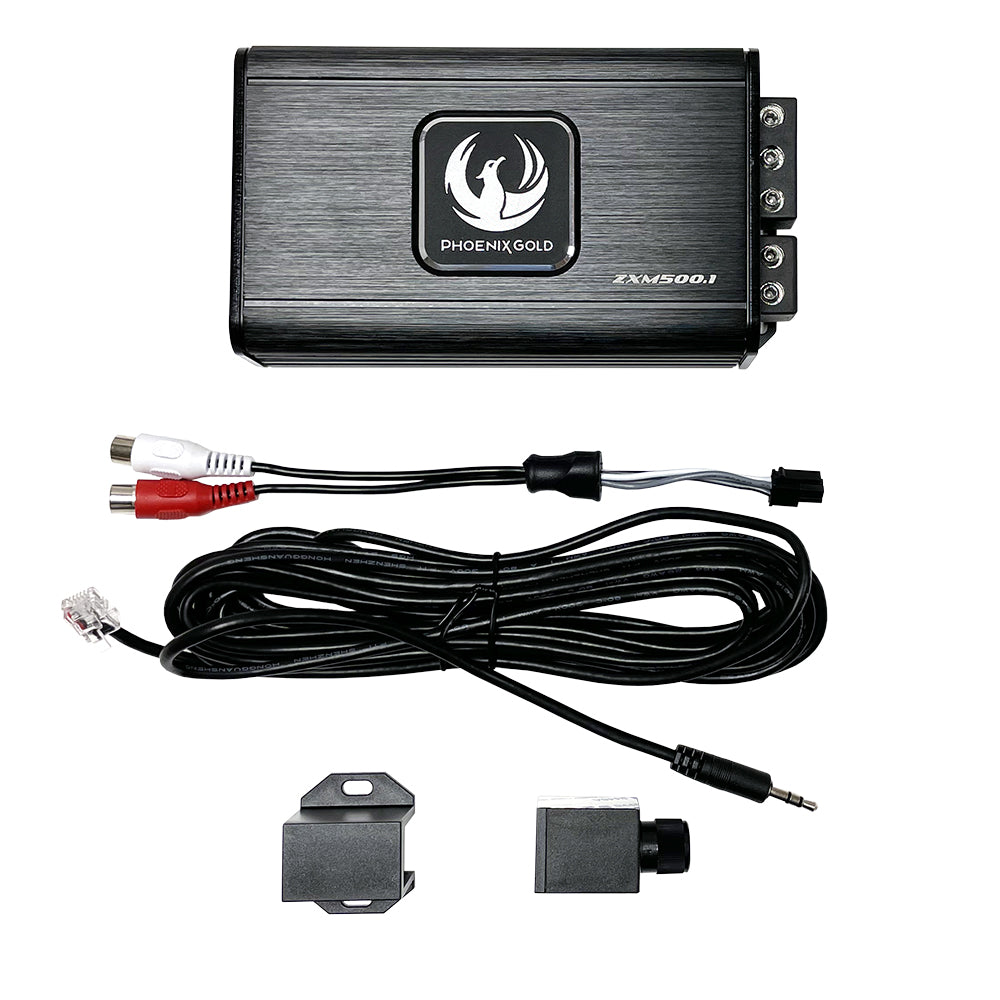

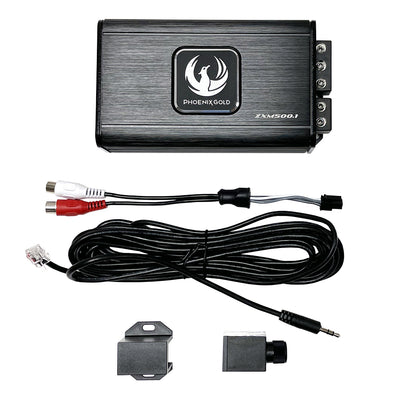

The ZXM500.1 has 24dB Low pass filter and also an adjustable Subsonic filter. This amazing amplifier also has a bass-boost function and comes with a 5M remote gain controller to adjust the sub-level. The ZXM500.1 amp can
handle both RCA and High-level input on the same terminals and the smart-made supplied connectors make it easy to connect. A high level of engineering has gone into making these amps with low EMI emissions to
not interfere with the advanced electronics or FM signal.
