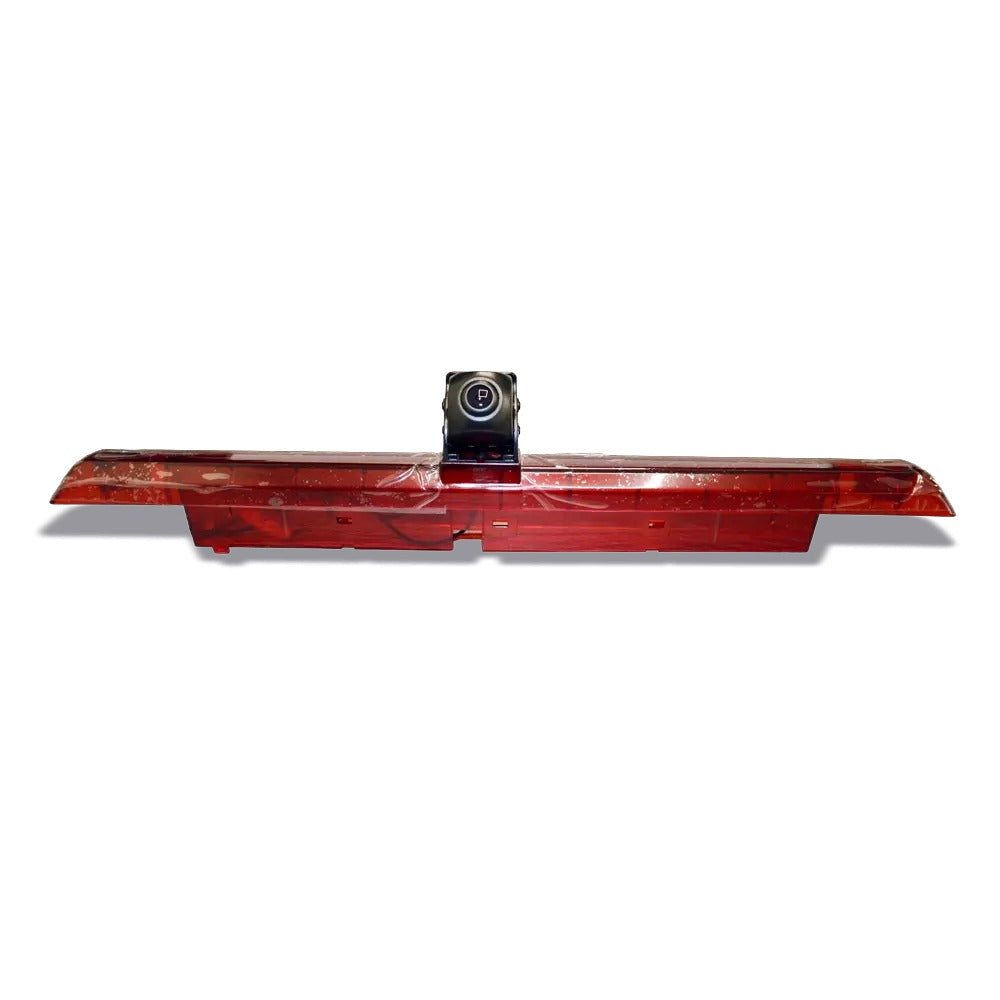

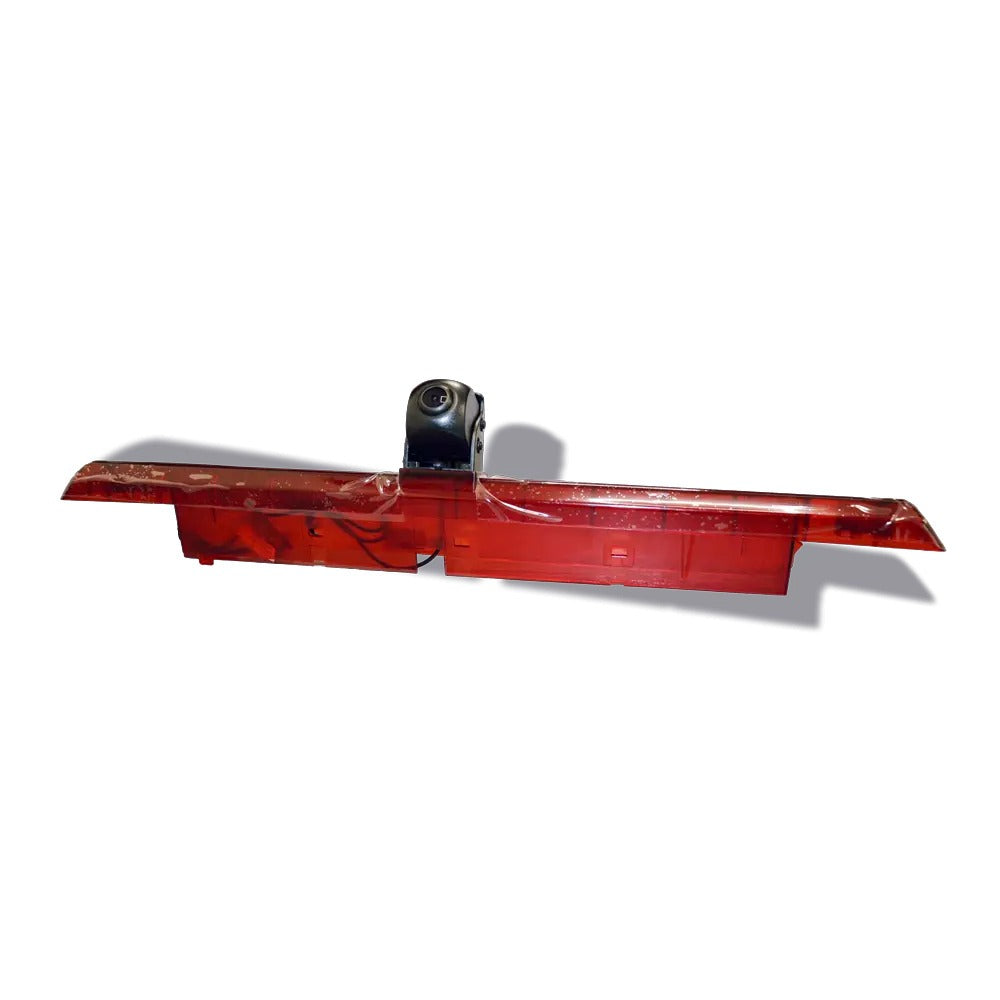

The PSC63 is a brake light camera for the 2024> Renault Master or Nissan Interstar Van. We now feature selectable D1 or AHD resolution which will work perfectly with our AHD compatible Monitor range, giving an extra level of detail. There are switchable parking guidelines & NTSC / PAL formats via loop wires.

Key Specifications

• Lens - 1.9mm

• Minimum illumination - 0.1lux

• IP Rating - IP68

• Viewing Angle - 150°

• Voltage - 12V DC

• Guidelines - Switchable

• NTSC / PAL System - Switchable

• Connection - 4pin Aviation

• Operation Temperature - -20°C  ~ +70°C

Additional Specification

D1

• Sensor - 1/3 PC2399 CMOS

• Type - CVBS

• Effective Pixels - 728(H) x 488(V)

• TV Lines - 700 TVL

AHD

• Sensor - 1/3 PC2399 720P

• Type - AHD

• Effective Pixels - 1280(H) x 720(V)

• TV Lines - 800 TVL
