Description

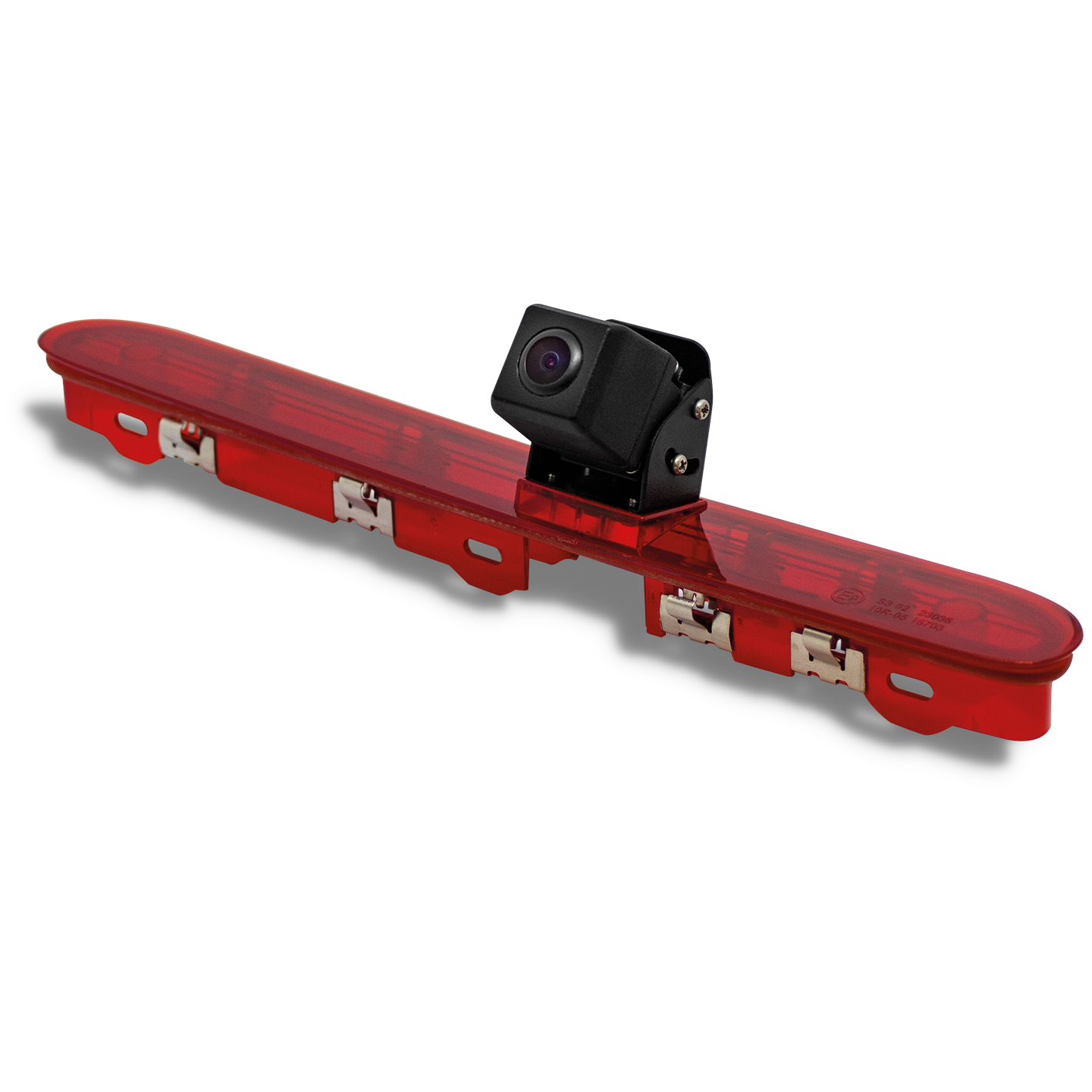

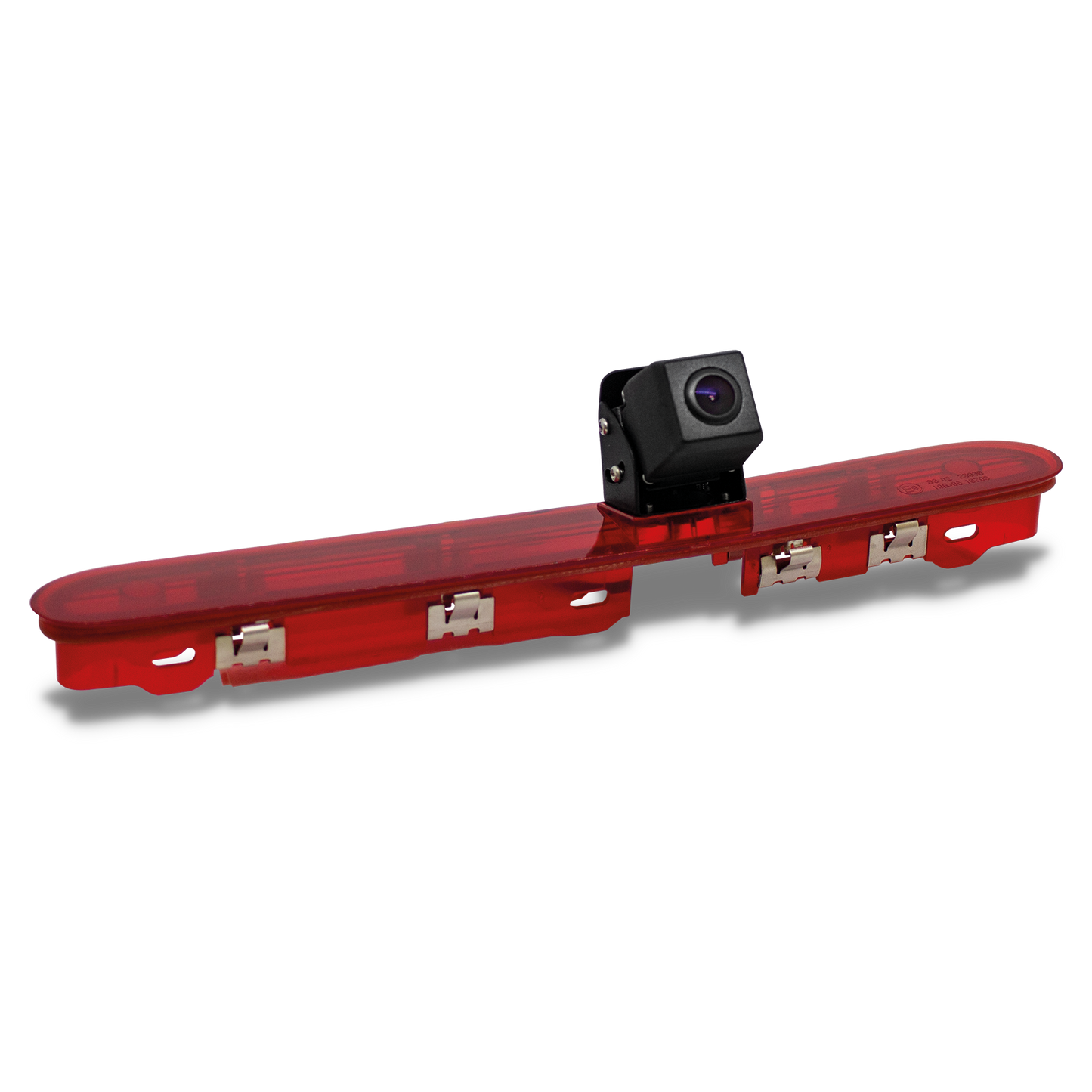

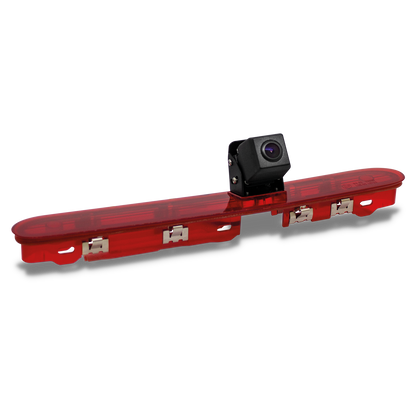

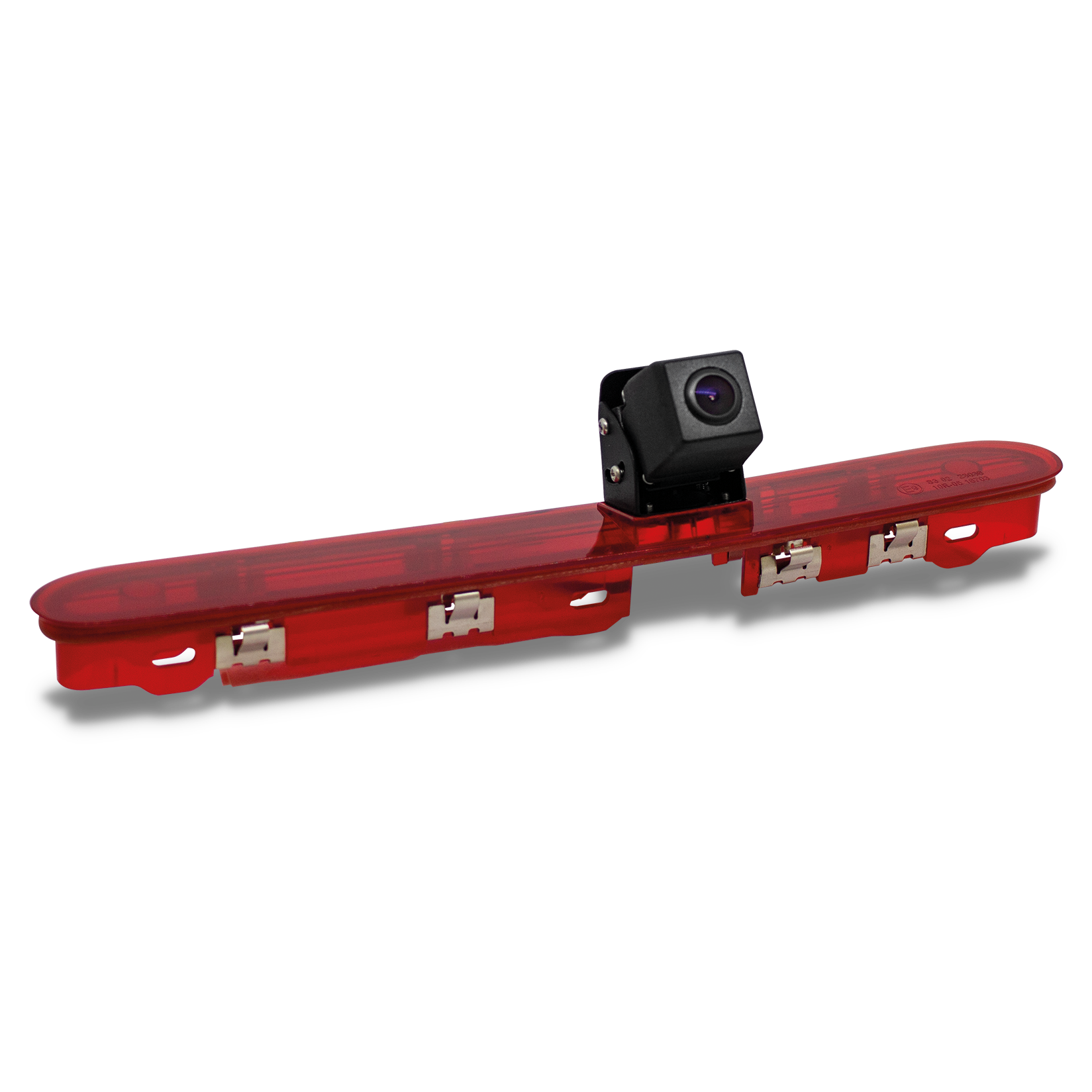

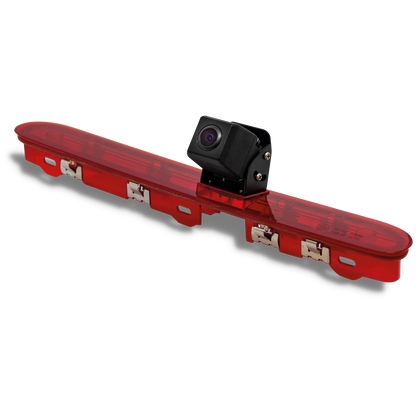

Brake Light D1 resolution camera for:

• Citroen: Dispatch & Jumpy 2016 – Present day
• Peugeot: Expert 2016 – Present day
• Toyota: Proace 2016 – Present day

Specifications

• Image Sensor: 1/3″ Colour Super CMOS
• TV System: PAL / NTSC Switchable
• Effective Pixels: 967(H) x 592 (W
• Resolution: 700TV Line
• Sensing Area: 4.6228mmm x 3.6112m
• Waterproof: IP69K
• Parking Guidelines: On / Off

Additional Specifications

• Camera Head: Adjustable 20° Upward or Downward
• Video Output: 1.0Vp-p, 750hm
• AGC: Auto
• Signal to Noise Ratio: Better than 48dB
• White Balance: Auto
• Electronic Shutter: Auto
• Power Supply: DC 12V
• Operating Temperature: -20°c ~ +70°c RH95% max
• Storage Temperature: -40°c ~ +80°c RH95% max

Approvals & Certifications: E Mark, CE, UKCA
