Description

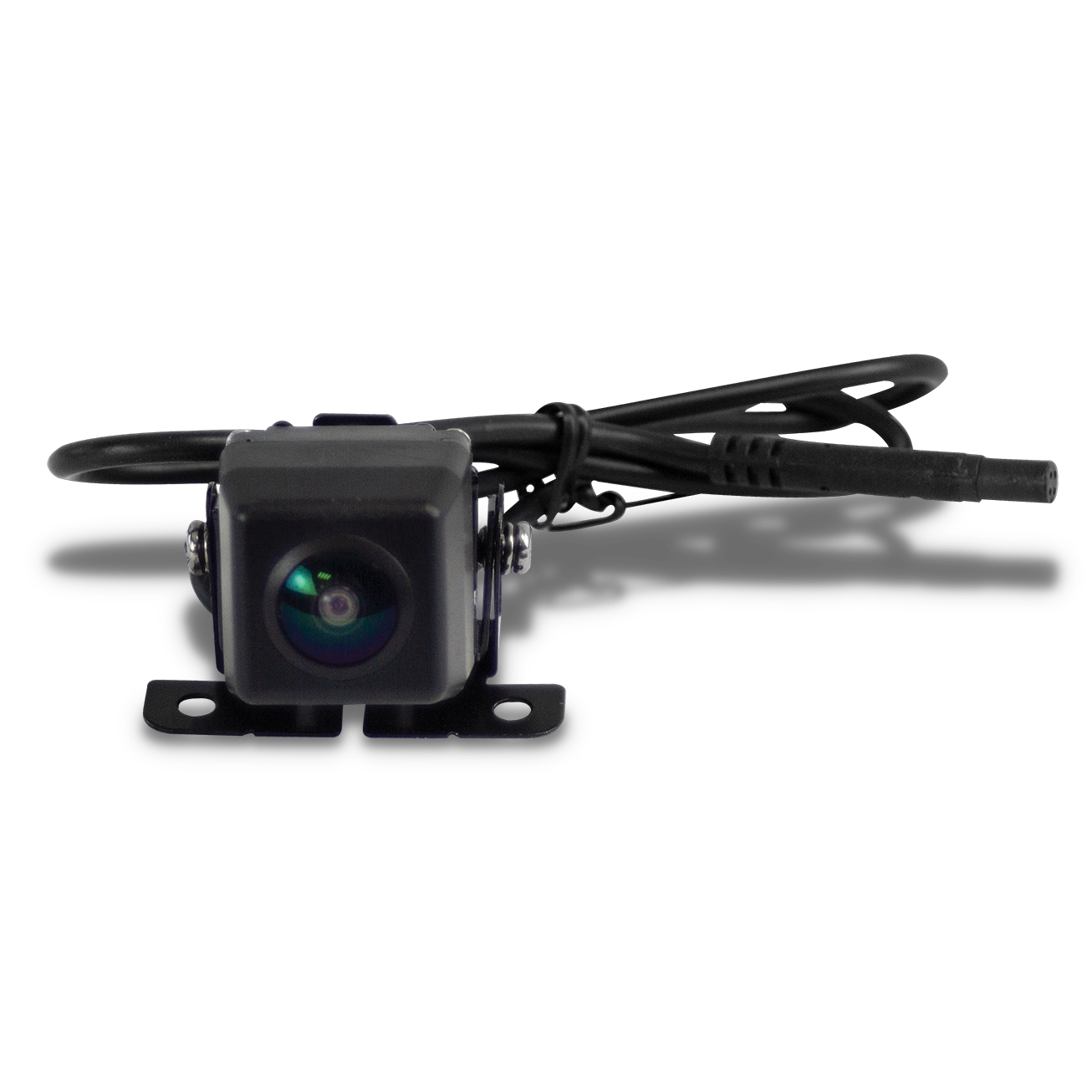

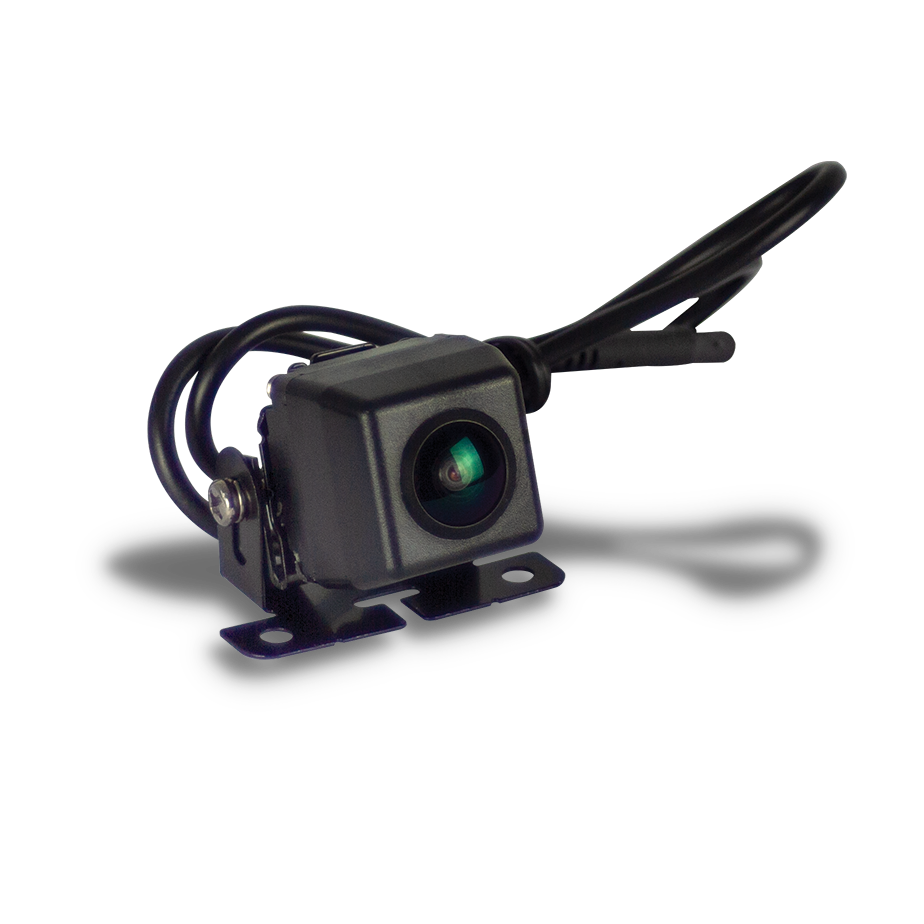

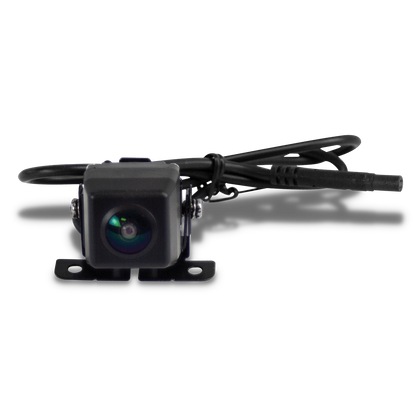

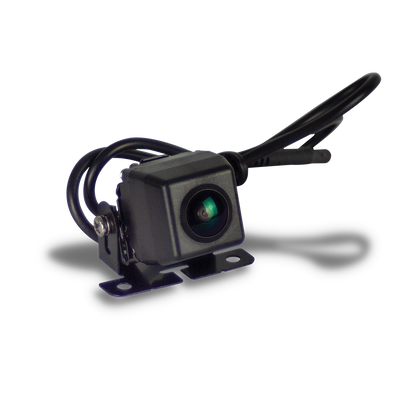

The D1 Mini Square Camera is mounted on an adjustable bracket for flexibility for viewing angle.

Specification

• Power: 12V DC
• IP Rating: IP68
• Viewing angle 160º
• PAL / NTSC Switchable
• Features: Parking Lines, Mirror – Switchable
• Body Mount Bracket
• Connection: Micro 4pin
• Resolution: 580 TV Lines
• Extension Cable Length: 6M 4pin Aviation
• Front or rear body mount

Additional Specification

• Power Consumption:0.2A
• External Dimensions: 40mm(W) x 30mm(L) x 40mm(H)
• Working temperature: -20ºC ~ +70ºC

Approvals & Certifications: E Mark, CE
