Description

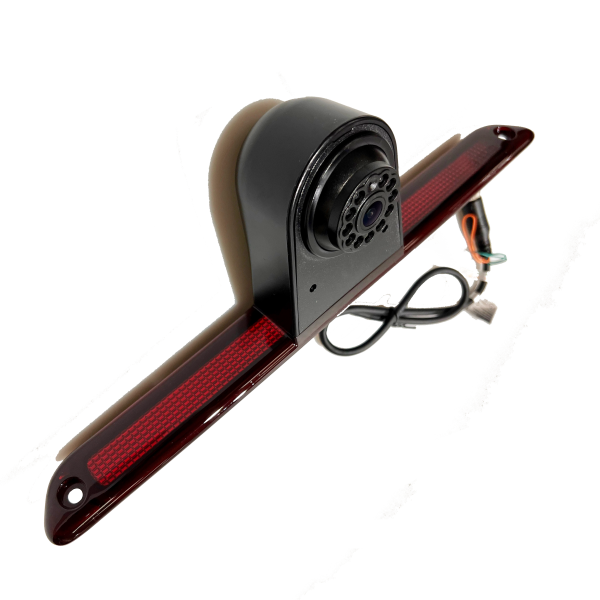

Brake Light D1 resolution camera with eight IR lights for:

• Mercedes Sprinter 2007 – Present Day
• VW Crafter 2006 – 2017

Specifications

• Image Sensor: 1/3″ Colour Super CMOS
• TV System: PAL / NTSC Switchable
• Effective Pixels: 967(H) x 592 (W)
• Resolution: 700TV Lines
• IR LED: 8pcs
• IR Distance: 10M
• Waterproof: IP68
• Parking Guidelines: On / Off

Additional Specifications

• Lens Angle: 160°
• Video Output: 1.0Vp-p, 750hm
• AGC: Auto
• Signal to Noise Ratio: Better than 48dB
• White Balance: Auto
• Electronic Shutter: Auto
• Back-light Compensation: Auto
• Power Supply: DC 12V
• Operating Temperature: -20°c ~ +70°c RH95% max
• Storage Temperature: -40°c ~ +80°c RH95% max

Approvals & Certifications: FCC, CE, Rohs, E-Marking
