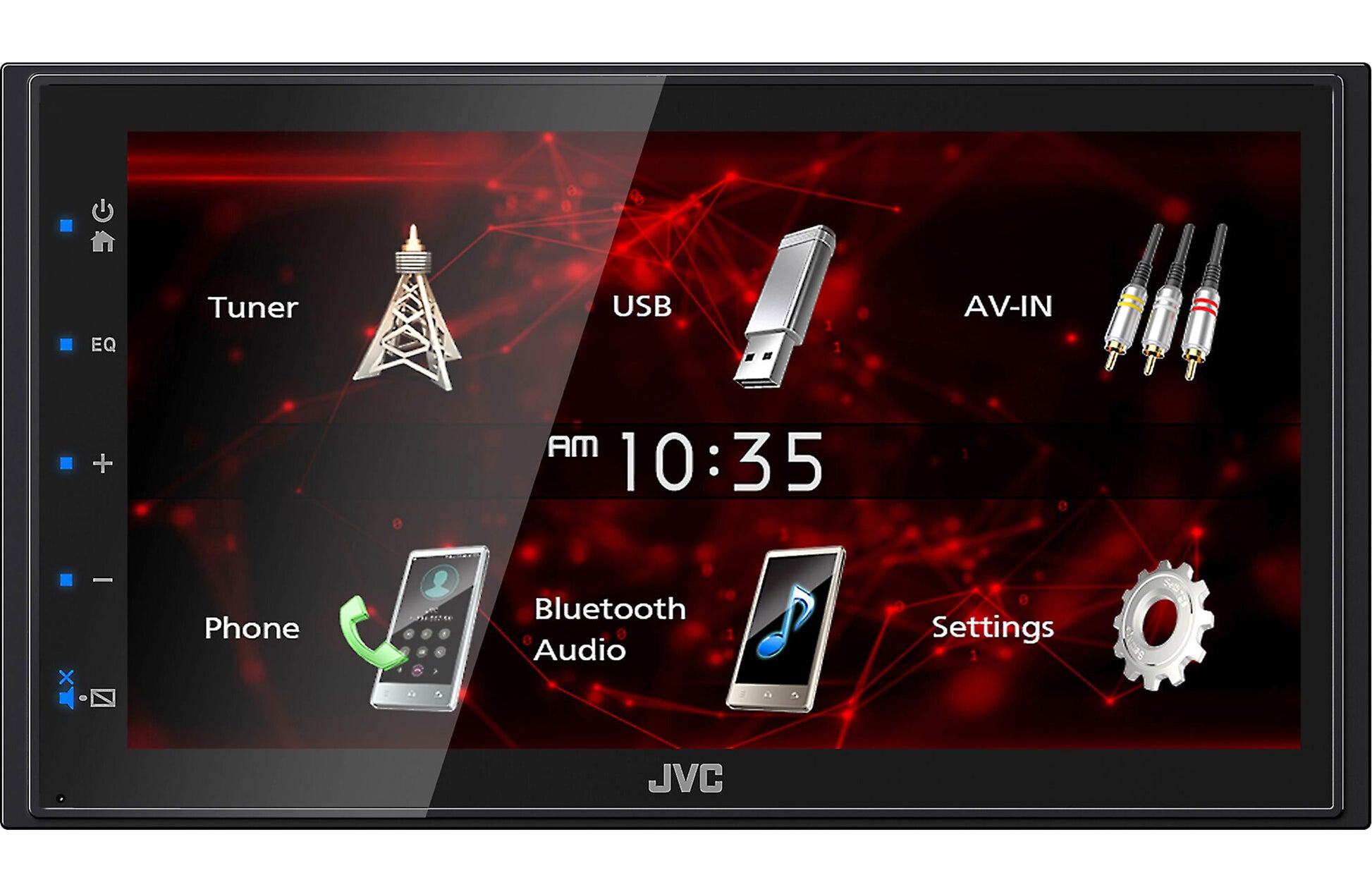

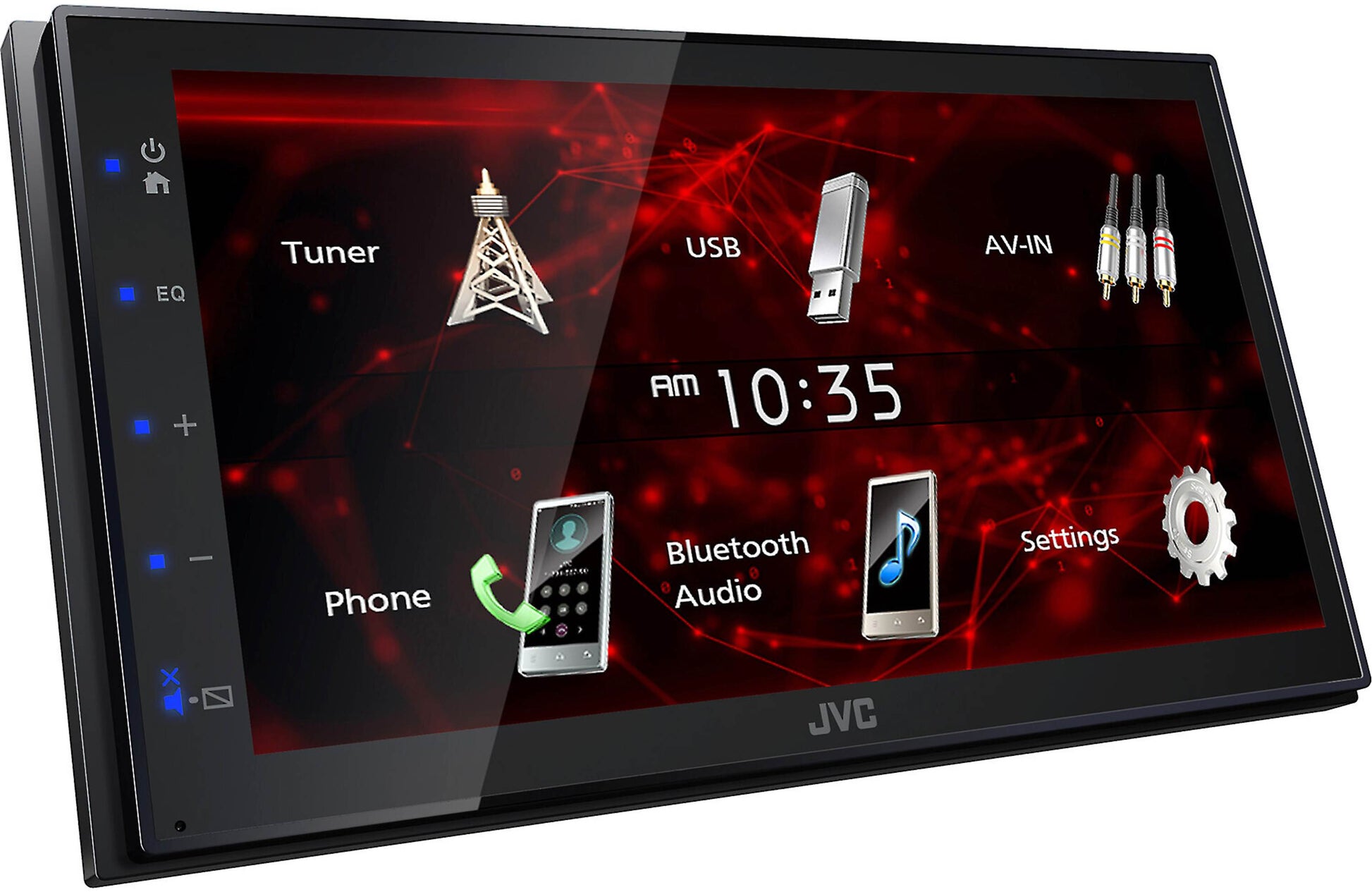

Monitor

• Screen Size - 6.8 inches (diagonal) wide
• Touch Control - Yes
• Panel Type - Capacitive with Printing
• Display System - TN LCD panel
• Drive System - TFT active matrix system
• Number of Pixels - 1,152,000 (800 x 480 x RGB)
• Effective Pixels - 99.99 %
• Pixel Arrangement - RGB striped arrangement
• Back Lighting - LED
• Key Illumination Colour - Blue
• Dimmer - Yes, "High" (Default) / "Mid" / "Low"
• Multilanguage Display - Yes

Radio Tuner

• FM Tuner:
• Radio Data System (RDS) - Yes
• FM Frequency Range - 87.5-108.0MHz
• AM Tuner:
• AM Frequency Range - 531kHz ~ 1611kHz (9kHz Frequency Step)
• Preset Stations - 30 (6ch x 5band)
• Automatic Preset / SSM - Ye

Media Playback

• Audio Decoder:
• MP3 Compatible with Tag - USB
• WMA Compatible with Tag - USB
• WAV Compatible with Tag - USB
• AAC Compatible with Tag - USB
• FLAC Compatible with Tag - USB
• Video Decoder:
• MPEG-1 / MPEG-2 Compatible - USB
• MPEG-4 Compatible - USB
• H.264 Compatible - USB
• MKV Compatible - USB
• AVI/MKV Compatible - USB

USB

• USB Port(s) - x 1
• Location - Rear
• USB Standard - 2.0 Full Speed (High Speed)
• File System - FAT16 / FAT32 / exFAT / NTFS
• USB Mass Storage Class - Yes
• Tag Information Display - Yes
• Album Art Display - Yes
• List Access - Yes
• Random / Repeat Play -Yes
• Skip - Yes
• Time Code Display - Yes
• Last Position Memory / Resume - Yes
• Digital / Analog Converter (DAC) - 24 bit
• Frequency Response - 20 Hz ~ 20kHz
• 1.5A Max. Power Supply Current - Yes

Bluetooth

• Bluetooth Technology - V 5.0
• Built-In Bluetooth [1] - Yes
• Bluetooth® Version - 5.0
• Voice Dialing [2] - Yes * Voice recognition compatible mobile phone required *
• Supported profiles - Multi profile
• Hands Free Call (HFP) - (HFP1.6 Wideband Speech)
• Advanced Audio Distribution Profile (A2DP) - V1.2
• Audio/Video Remote Control Profile (AVRCP) - V 1.5
• Phone Book Access Profile (PBAP) - Yes
• Audio Codec - AAC / SBC
• Noise Canceller - Yes (Auto)
• Echo Canceller - Yes (Auto)
• Wired Microphone included - Yes

Android Control

• USB mirroring for Android - Yes, (via USB)
• Android Music Playback [3] - Yes (via Bluetooth(R))

iPod/iPhone Control

• iPod/iPhone Music Playback - Yes (via USB or Bluetooth(R))
• iPod/iPhone Mode (2-Way Control Mode) - Yes (USB)
• Random/Repeat Play - Yes
• Battery Charge - Yes (USB: 1.5A High Current Charging)
• App(s) Mirroring OB for JVC - Yes

Audio

• Maximum Power Output (Front & Rear) - 45Wx4
• Full Bandwidth Power (at less than 1%THD) - 16W x 4
• Speaker Load Impedance - 4 ohms (4 - 8 ohms allowable)
• Output Frequency Band - 20 - 20,000Hz
• EQUALIZER - 13-Band Graphic EQ - Yes
• Preset EQ - Preset x 7 + User set x 3 / All SRC
• High-Pass Filter/Low-Pass Filter - Yes/Yes
• Digital Sound Processor (DSP)
• Time Alignment - Yes
• Loudness Control - Yes
• Bass Boost (Hyper Bass System) - Yes

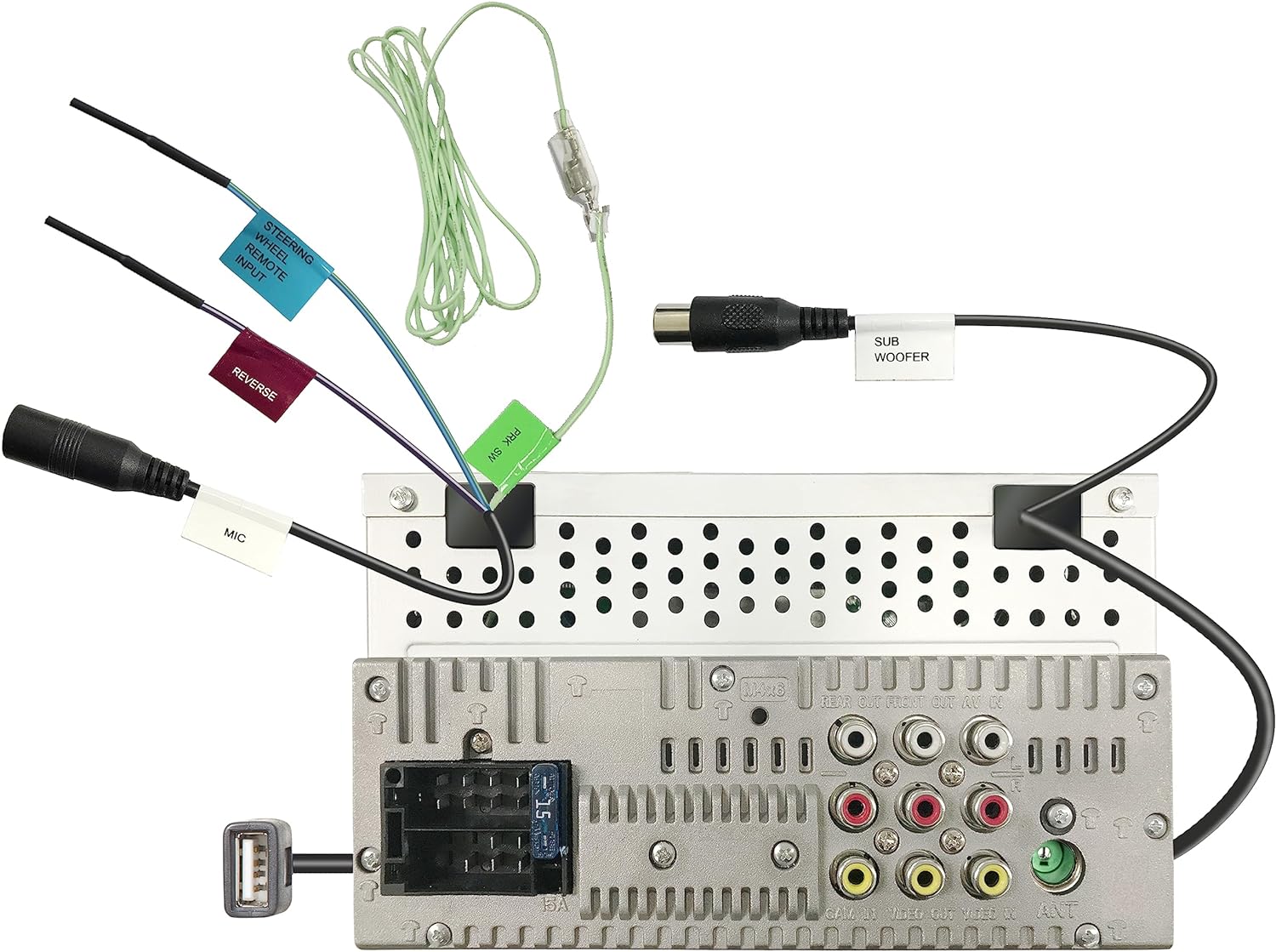

Inputs and Outputs

Audio Inputs and Outputs:

• Pre-Out Terminals - Front (L+R), Rear (L+R), Subwoofer (mono)
• Pre-Output Level - 2V / 10kΩ
• Pre-Out Impedance - 1,4 kΩ
• Pre-Out Level/Impedance - 2.0V / 10kΩ
• Subwoofer Output with Level/Frequency Control - Yes

Video Inputs and Outputs:

• Video Input Level/Impedance - 1.0Vp-p/75Ω
• AV Input - RCA x 1
• Video Out - RCA
• Colour System - NTSC/PAL
• Video Output Level/Impedance - 1.0Vp-p / 75 ohms
• Camera inputs - Rear view camera Input - Yes

General

• Wireless Remote Control
• Ready (RM-RK258 required)
• Wired Steering Remote Control Ready - Yes
• Learning Direct OEM Remote - Yes
• ISO Connector - Cable
• Short Chassis - Yes
• Operation Voltage - 12 VDC
• Dimensions (W x H x D) - 178 x 100 x 75 mm
• Installation Size (W x H x D) - 182 x 112 x 75 mm
• Weight - 1.2kg ( Including Sleeve and Trim plate)
