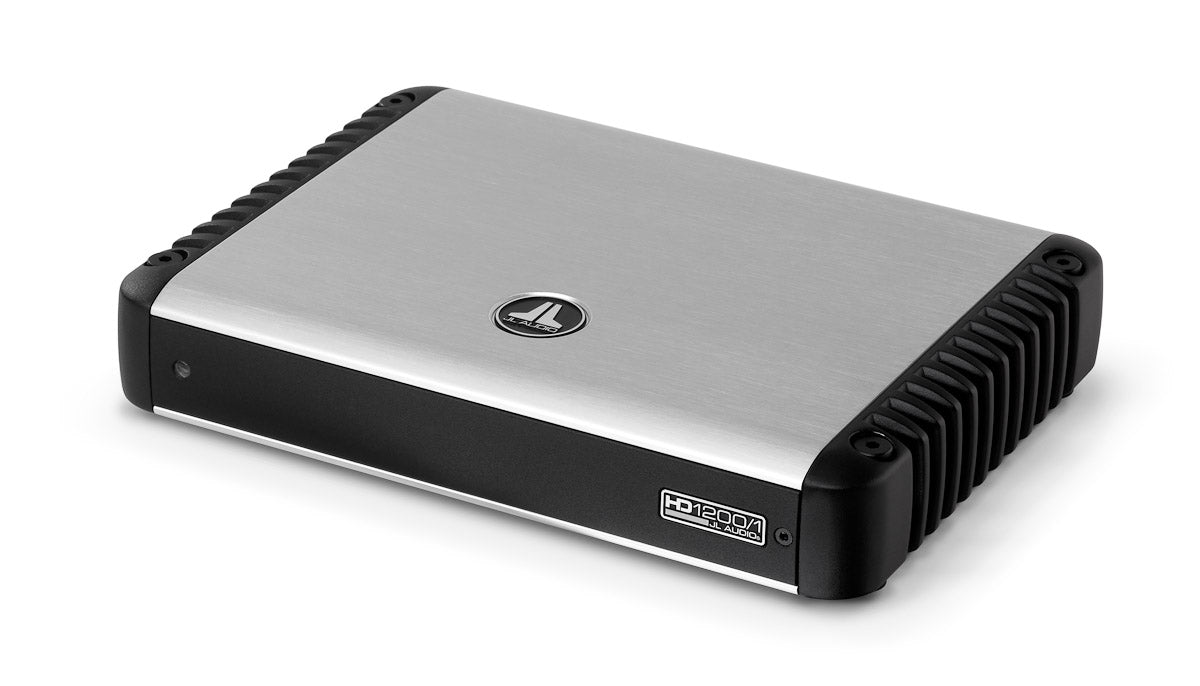

JL  Audio's most power amplifier ever employs their advanced Single-Cycle Control switching design and R.I.P.S. technology to deliver 1200 W (RMS) of clean power into any impedance between 1.5 and 4 Ω, giving you the highest degree of flexibility in designing your subwoofer system. Tight power supply regulation keeps distortion down and maximizes your bass quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.

Rated Continuous (RMS) Power @ 14.4 V

@ 4 Ω 1200 W RMS x 1
@ 3 Ω 1200 W RMS x 1
@ 2 Ω 1200 W RMS x 1
@ 1.5 Ω 1200 W RMS x 1

Rated Continuous (RMS) Power @ 12.5 V

@ 4 Ω 1200 W RMS x 1
@ 3 Ω 1200 W RMS x 1
@ 2 Ω 1200 W RMS x 1
@ 1.5 Ω 1200 W RMS x 1

General Specifications

• Frequency Response 6 Hz - 8 kHz (+0, -1dB)
• S/N Ratio, referred to highest rated power >110 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W (Main Channels) >79 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω >500 / 50 Hz
• Damping Factor @ 2 Ω >250 / 50 Hz
• THD+N @ Rated Power (Main Channels) <0.03% @ 4 Ω
• Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
• Min Copper Power / Ground Wire Gauge 2 AWG wire
• Fuse Rating 100 A (AFS, AGU or MaxiFuse™)

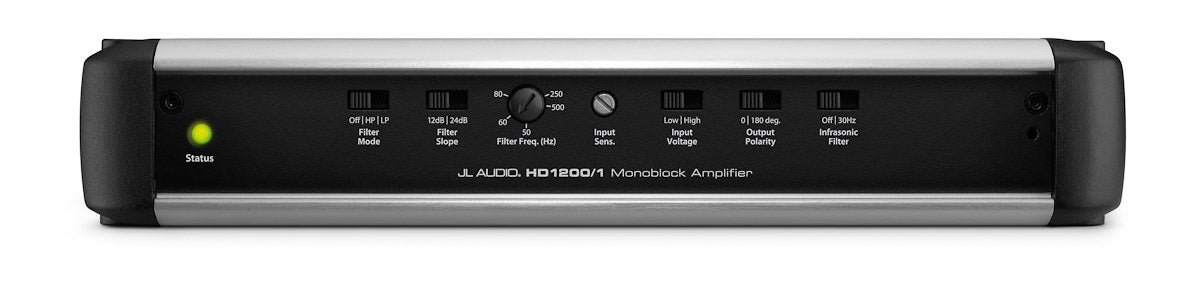

Signal Processing

• Filter Modes Low-Pass or High-Pass
• Filter Slope (dB/Octave) 12 dB or 24 dB
• Filter Frequency Range 50-500 Hz
• Detented, Calibrated Filter Freq. Potentiometer Yes
• Filter Defeatable? Yes
• Infrasonic Filter 30 Hz, defeatable
• Bass Boost EQ No
• Output Polarity Switch Yes
• Remote Subwoofer Level Control Optional (HD-RLC)
• Remote Bass EQ Boost Control No
• Pass-Through Preamp Output Buffered

Physical Specifications

• Height (H) 1.93 in / 49 mm
• Width (W) 10.74 in / 273 mm
• Depth (D) 8.29 in / 211 mm
• Net Weight 6.6 lb / 2.99 kg
