OEM Integration DSP with Automatic Time Correction and Digital EQ. 8-ch. Inputs / 4-ch. Stereo + 2 Subwoofer RCA Outputs

General Specifications

• Power Supply Type     Regulated DC-DC SMPS
• Input Operating Voltage     10 - 16 VDC
• Standby Current Draw     <1.5 mA
• Operating Current Draw     0.7 A
• Recommended Fuse Value     1 A

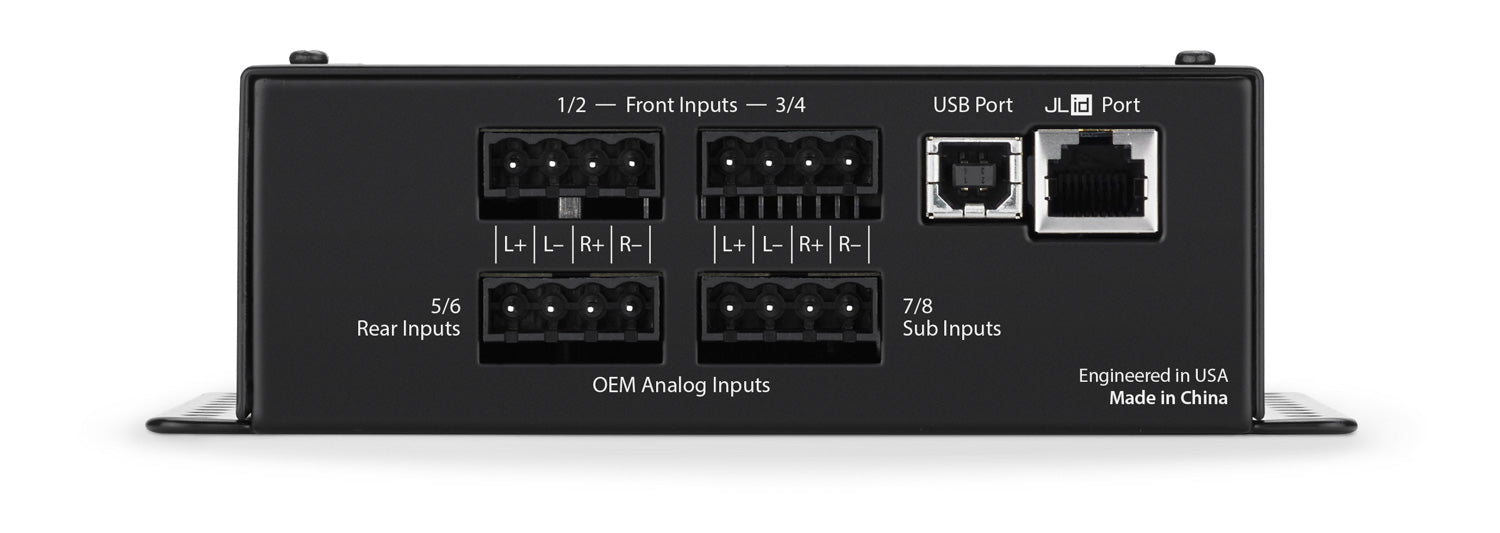

• Input Channels     Eight
• Input Type     Differential-Balanced
• Input Voltage Range     250 mV - 30 V RMS
• Minimum Input Voltage     10 mV RMS
• Input Level Setting     Fully automatic

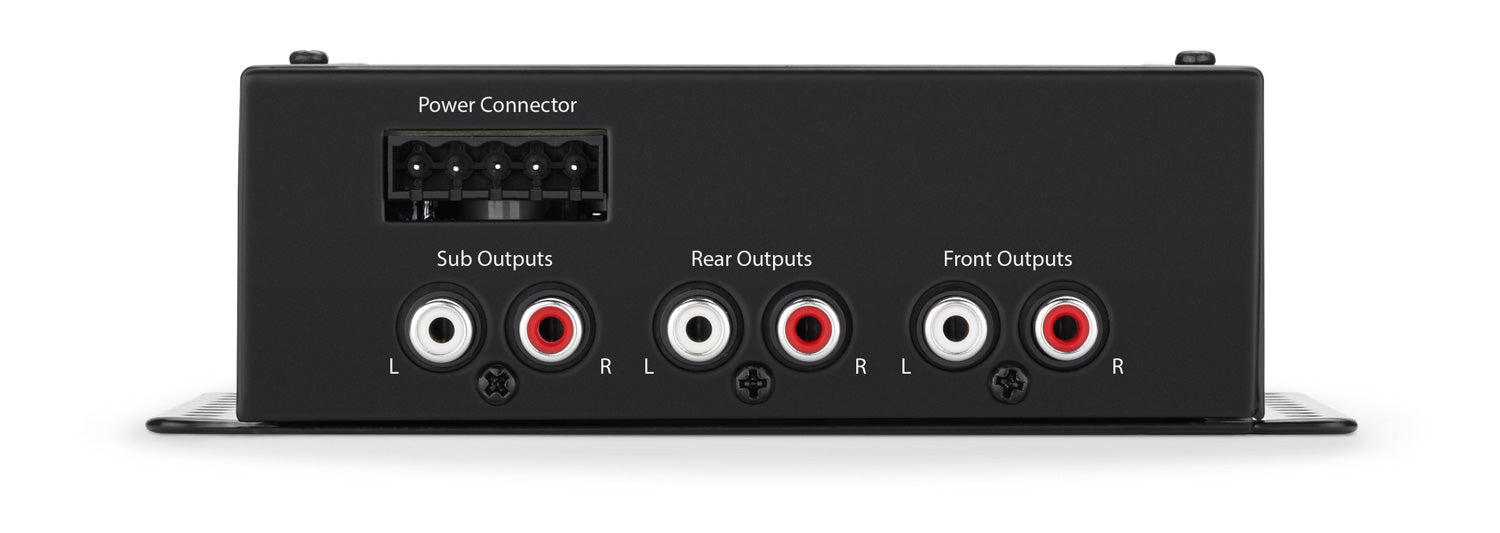

• Output Channels     Six (Front/Rear/Sub Output Pairs)
• Analog Output     Unbalanced, stereo RCA jacks
• Digital Output     N/A
• Output Impedance     450 Ω
• S/N Ratio     96 dB (A-Weighted, referred to 4V RMS Output)
• THD+N @ Rated Output     0.02% (20 Hz - 20 kHz)

Signal Processing

• Audio Resolution     24 bit / 48 kHz

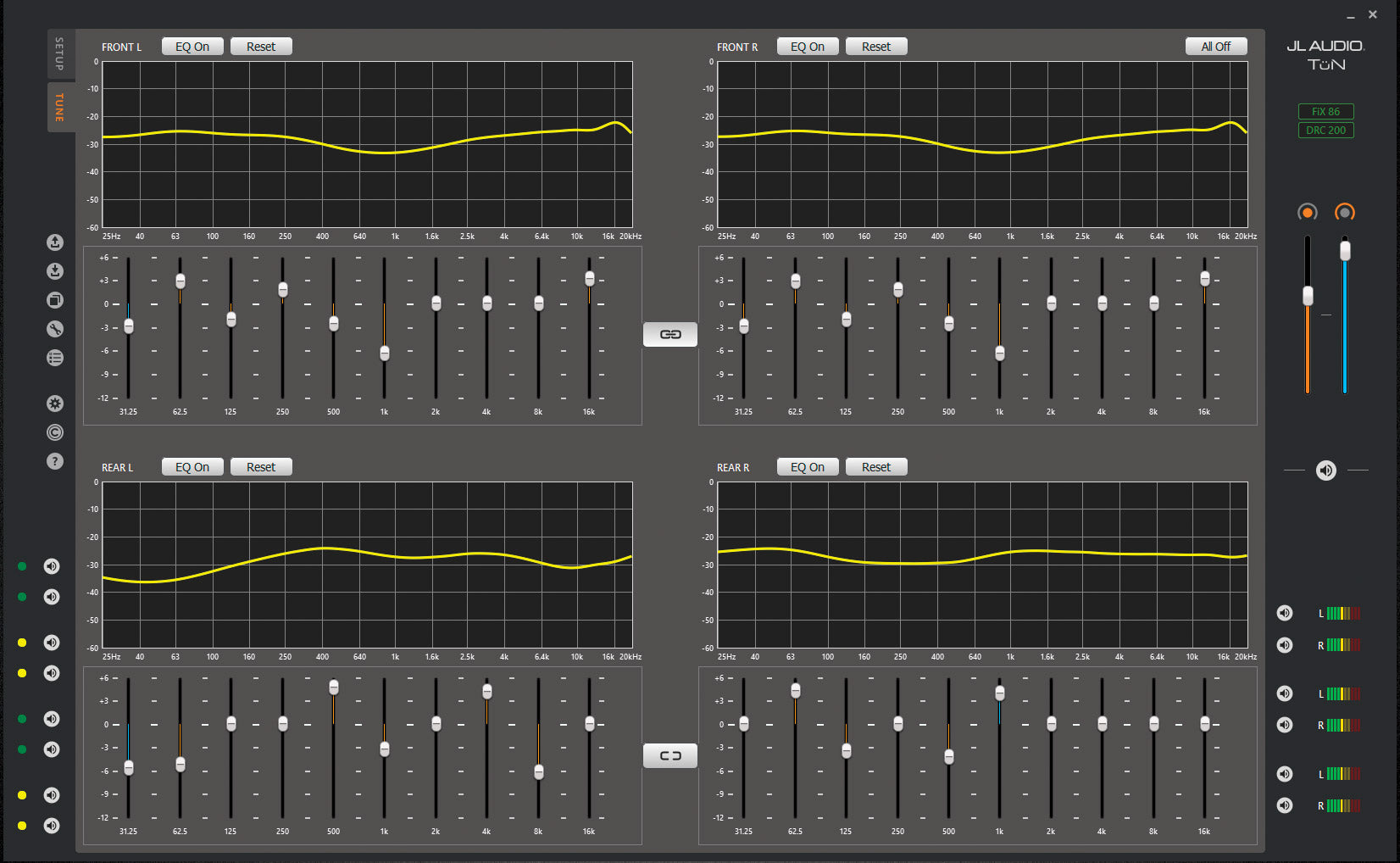

• Number of EQ Bands     30 x 2 channels
• EQ Resolution     1/3 octave (25 Hz - 20 kHz)
• Remote Level Control     Optional (DRC-100 or DRC-200)
• Remote Level Functions     Master Volume Control, Handsfree Optimization, LED Status Reporting (DRC-200 adds Subwoofer Level Control)

Physical Specifications

• Height (H)     1.85 in / 47 mm
• Width (W)     4.29 in / 109 mm
• Depth (D)     6.14 in / 156 mm
• Net Weight     2.58 lb / 1.17 kg
