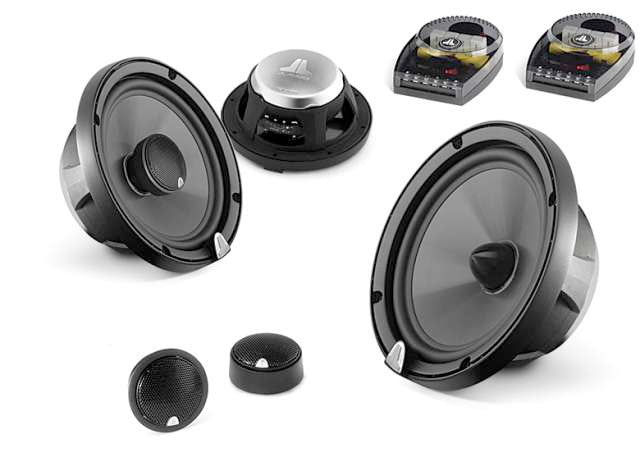

The JL Audio C3-525 Convertible Coaxial Speaker System features 5.25-inch (130 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-moulded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modelling systems.

The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.

C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!

Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.

Specification

• 5-1/4" Evolution Series 2-Way Convertible Component Speaker System
• Peak: 300 watts per set / 150 watts each side
• RMS: 150 watts per set / 75 watts each side
• Recommended Amp RMS: 25-75 watts each side
• Quickly converts from coaxial to component system
• Phase plug replaces tweeter assembly in component system mode
• Impedance: 4 ohm
• Top-mount depth: 2.27"
• Frequency Response: 48-25,000 Hz ± 3 dB
• Sensitivity: 96 dB
• Efficiency: 90 dB @ 1W/1m, 96 dB @ 1W/0.5m

Woofer Specifications

• Mineral-filled Polypropylene cone
• Injection-moulded Polymer frame
• Patented elevated frame cooling
• Butyl rubber surround
• Patented elevated frame
• DMA-optimized motor system
• Injection-moulded, mica-filled, Polypropylene cone
• 1.2" Kapton former voice coil
• Low profile, symmetrical roll spider
• Ferrite magnet structure

Tweeter Features

• 1" Silk soft dome tweeter
• FerroFluid cooling and damping
• Neodymium magnet structure
• Fixed Angle flush-mount
• Surface-mount and coaxial-mount systems

Crossover Features

• 4-Position adjustable tweeter level
• 3-Position adjustable midrange presence
• Polyswitch protection
• Premium Mylar capacitors
• Premium air-core inductors
• 1st Order low-pass filter
• 2nd Order high-pass filter

Package Includes

• Two 5-1/4" Woofers
• Two 1" Tweeters
• Two Crossover Networks
• Two Surface Mount Tweeter Fixtures
• Two Coaxial Mount Tweeter Fixtures
• Two Flush Mount Tweeter Fixtures
• Two Metal Spring Clips for Tweeter Fixtures
• Two Metal Mesh Woofer Grilles with ABS Grill Tray
• Various Terminals and fixings
