JL-Audio

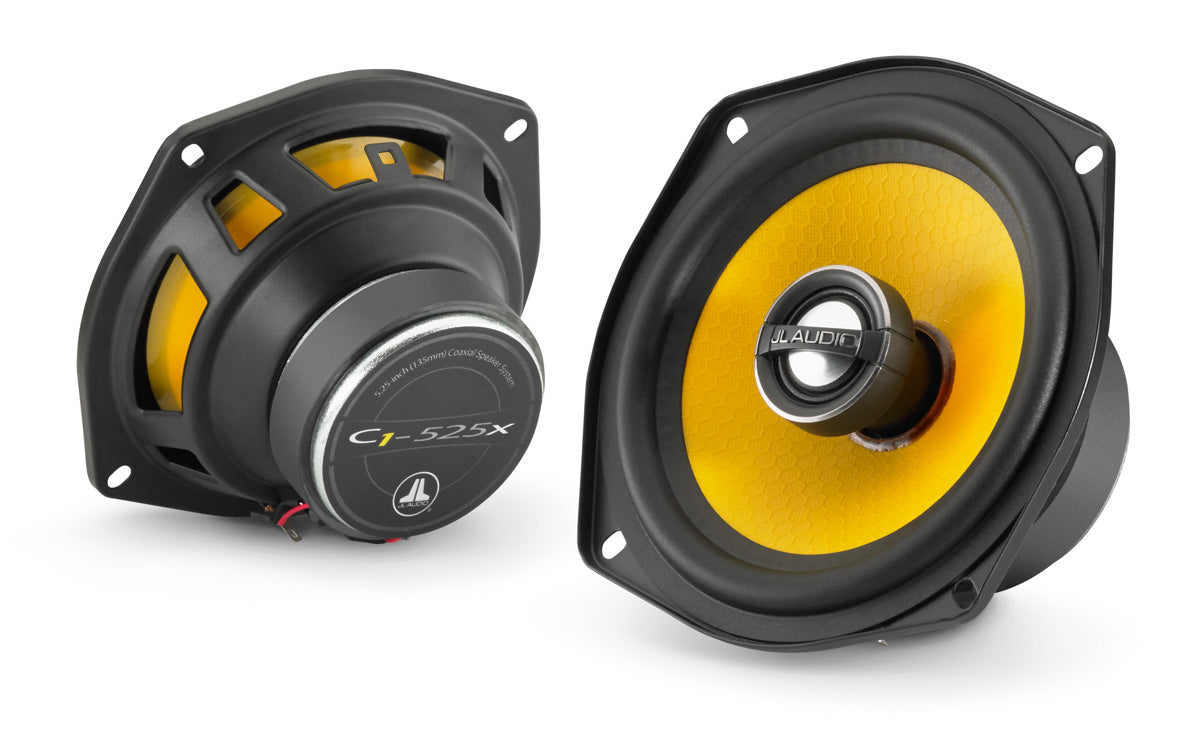

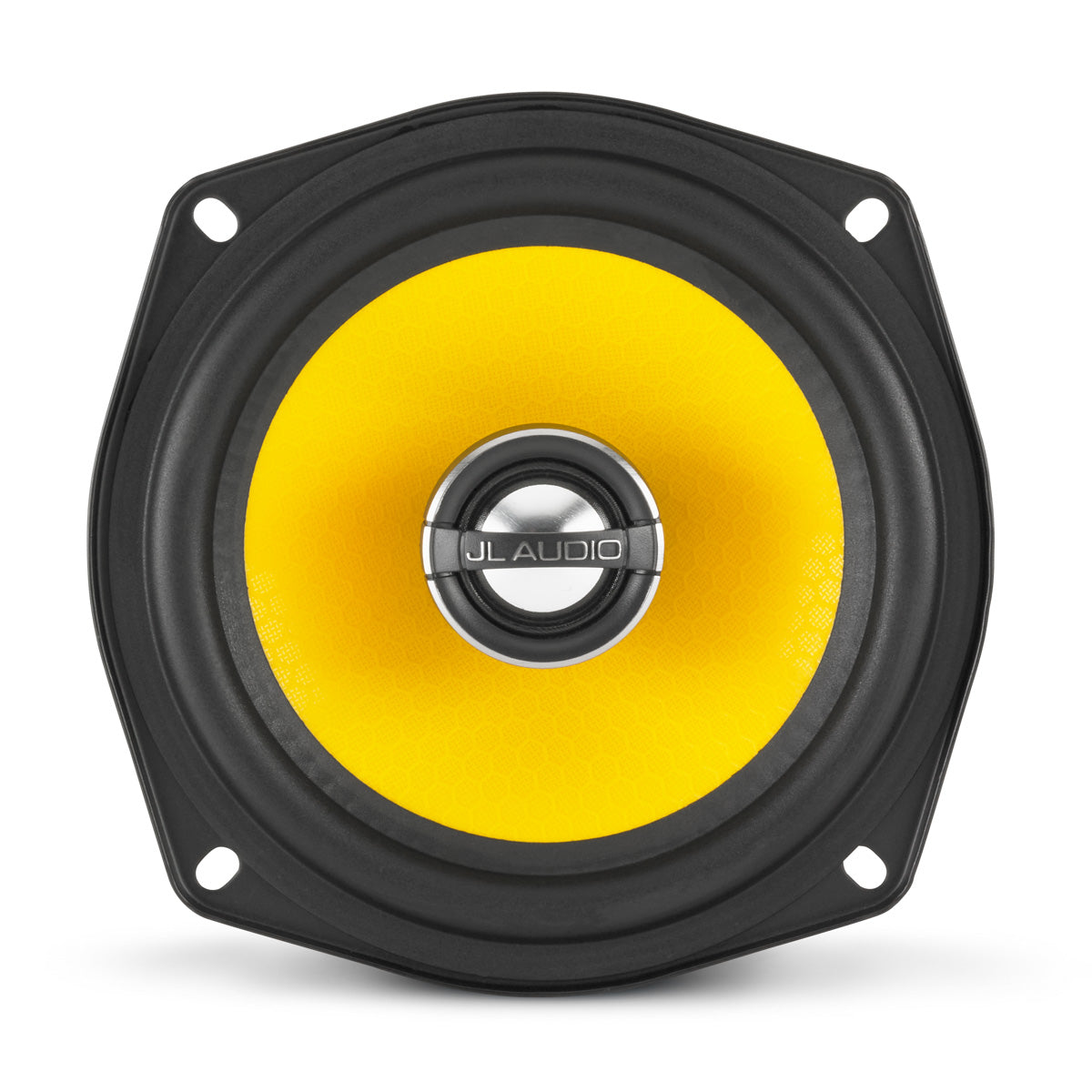

JL AUDIO C1-525X

JL AUDIO C1-525X

C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.

C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. . At the core of the C1-525x is a proprietary, stamped, steel 5.25-inch (130 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil.  These are the same kinds of features and materials normally found on much more expensive loudspeakers.

Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition.

When it comes to value, C1 is the real deal!

Sold as a pair, grilles not included.

View full details

Product Description

General Specifications

  • Continuous Power Handling (RMS): 50 W
  • Peak Music Power: 225 W
  • Recommended Amplifier Power (RMS): 10 - 75 W / Ch.
  • System Efficiency: 89.0 dB @ 1 W / 1 m
  • System Nominal Impedance: 4 Ω
  • System Frequency Response: 54 Hz - 24 KHz ± 3 dB

Coaxial Physical Specifications

  • Table_Image
  • Frame Outer Diameter* (A) 5.83 in / 132 mm
  • Grille Tray Outer Diameter (B) N/A
  • Motor Outer Diameter (C) 2.76 in / 70 mm
  • Frontal Coaxial Tweeter Protrusion** (D) 0.54 in / 14 mm
  • Frontal Grille Protrusion (E) N/A
  • Mounting Hole Diameter (F) 4.70 in / 119 mm
  • Mounting Depth (G) 2.42 in / 62 mm

*Does not take into account mounting tabs

**Frontal coaxial tweeter protrusion measured from mounting surface
