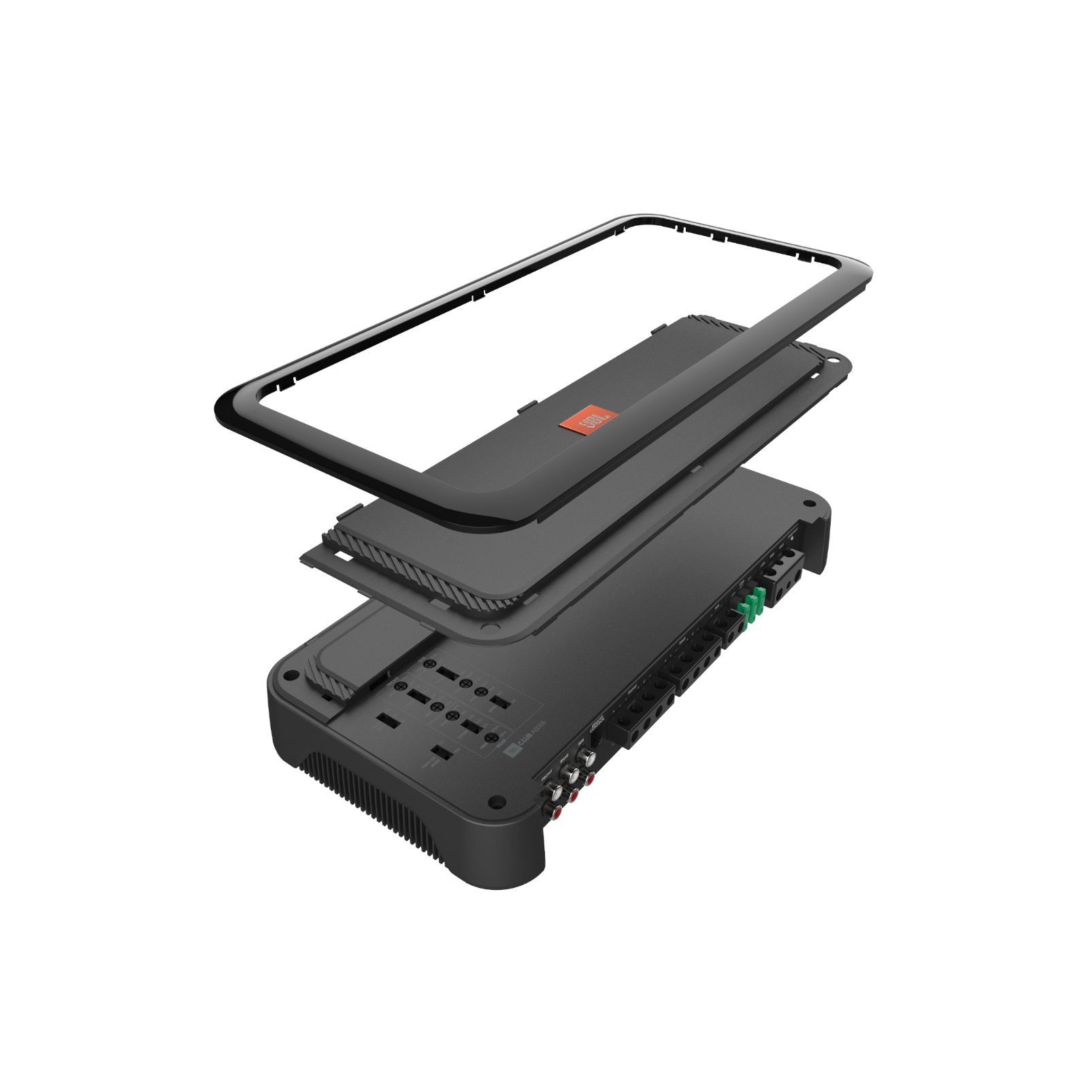

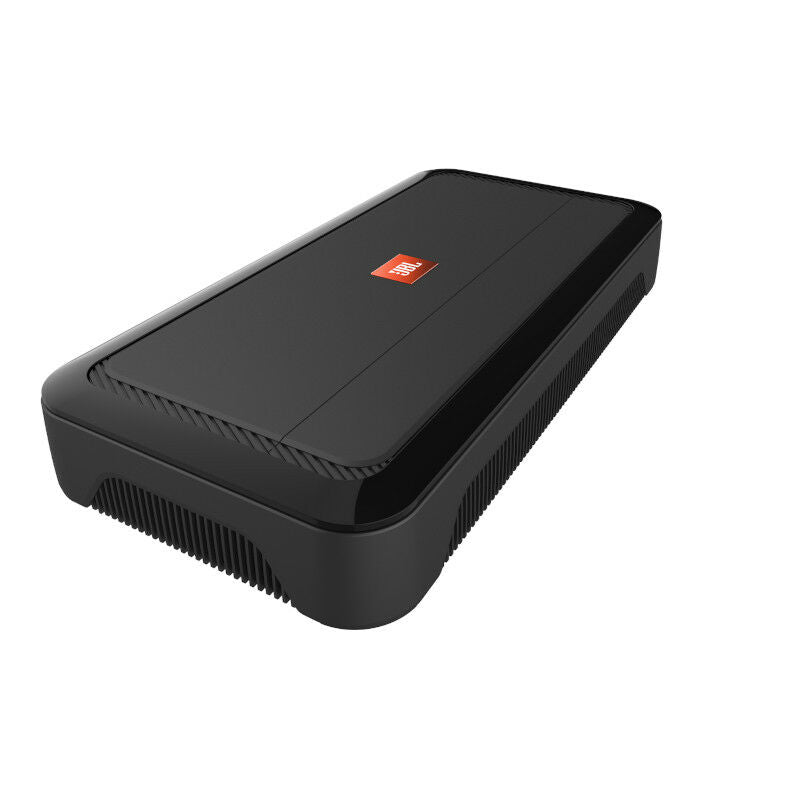

JBL CLUB A5055 - 5 Channel Car Amplifier 50W RMS x 4 + 500W RMS x 1

JBL CLUB A5055 - 5 Channel Car Amplifier 50W RMS x 4 + 500W RMS x 1

Product Features:

  • 5-channel car amplifier
  • 50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms
  • 65 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
  • 140 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
  •  front and rear channels:
  • Class AB amp technology
  • variable high- and low-pass filters (32-320 Hz, 12 dB/octave)
  • subwoofer channel:
  • Class D amp technology
  • variable low-pass filter (32-320 Hz, 12 dB/octave)
  • variable bass boost (0-12 dB at 45 Hz)
  • phase switch (0, 180 degrees)
  • wired remote bass control module included
View full details

Product Description

CLUB A5055 - 5 Channel Car Amplifier 50W RMS x 4 + 500W RMS x 1

Product Features:

  • 5-channel car amplifier
  • 50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms
  • 65 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
  • 140 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
  •  front and rear channels:
  • Class AB amp technology
  • variable high- and low-pass filters (32-320 Hz, 12 dB/octave)
  • subwoofer channel:
  • Class D amp technology
  • variable low-pass filter (32-320 Hz, 12 dB/octave)
  • variable bass boost (0-12 dB at 45 Hz)
  • phase switch (0, 180 degrees)
  • wired remote bass control module included

 More Info:

  • preamp and speaker-level inputs
  • bare wire to RCA adapters included for high-level inputs
  • wiring and hardware not included with amplifier
  • 4-gauge power and ground leads recommended
  • fuse rating: 30A x 3
  • dimensions: 14-3/16"W x 2-1/16"H x 7-1/8"D
  • warranty: 1 year
