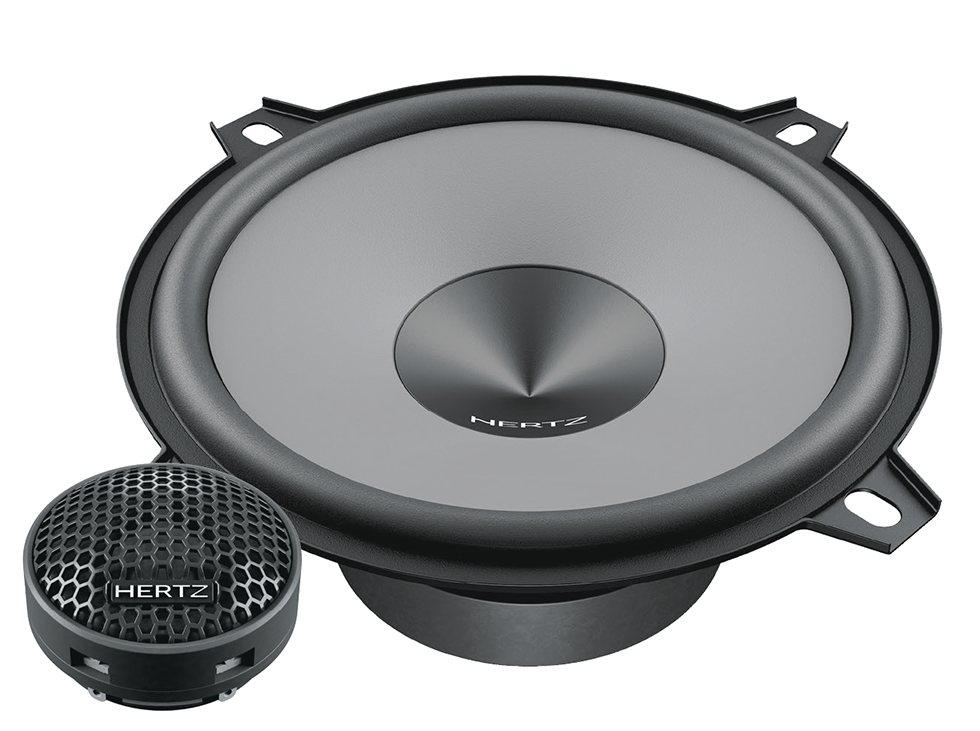

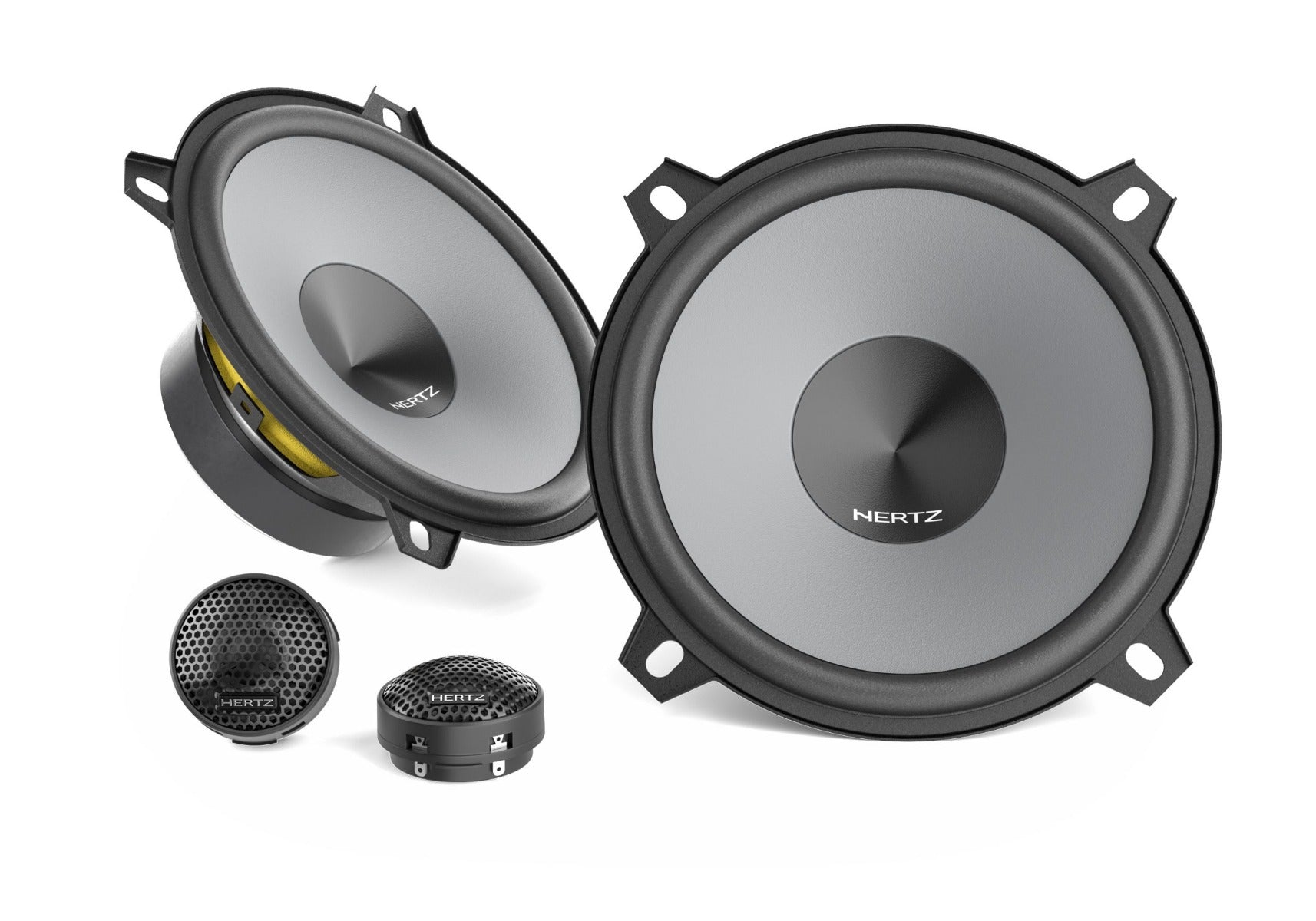

The K 130 Uno system features a 24 mm (0.9ˈ) diaphragm Neodymium tweeter with PEI dome, for a brilliant reproduction of high frequencies in a compact size. The annular acoustic lens is optimized for exceptional off-axis performance, ensuring an accurate stereo image. The 5” woofers features a pressed-paper cone with foam surround, for high SPL and solid bass. The 25 mm(1ˈ) woofer voice coil driven by a high-flux density ferrite magnet offers a highly dynamic power handling for a powerful undistorted sound. The 6dB/Oct crossover is integrated on the tweeter wiring for an easy OEM upgrade.

Technical Specs

• Power Handling - Peak W 220
• Power Handling - Continuous W 55
• Impedance Ω 4
• Frequency response Hz 55 ÷ 23k
• Sensitivity dB SPL 93
• Voice coil Ø mm (in.) 25 (1)
• Woofer size mm (in.) 130 (5)
• Tweeter size mm (in.) 24 (0.9)
• Woofer magnet High density flux ferrite
• Tweeter magnet Neodymium
• Woofer cone Water-repellent pressed paper
• Tweeter dome PEI
• Crossover type 6 dB/Oct tweeter integrated
• Weight of one component - Woofer - 0,53 (1.17)
• Weight of one component - Tweeter kg (lb) - 0,03 (0.07)
