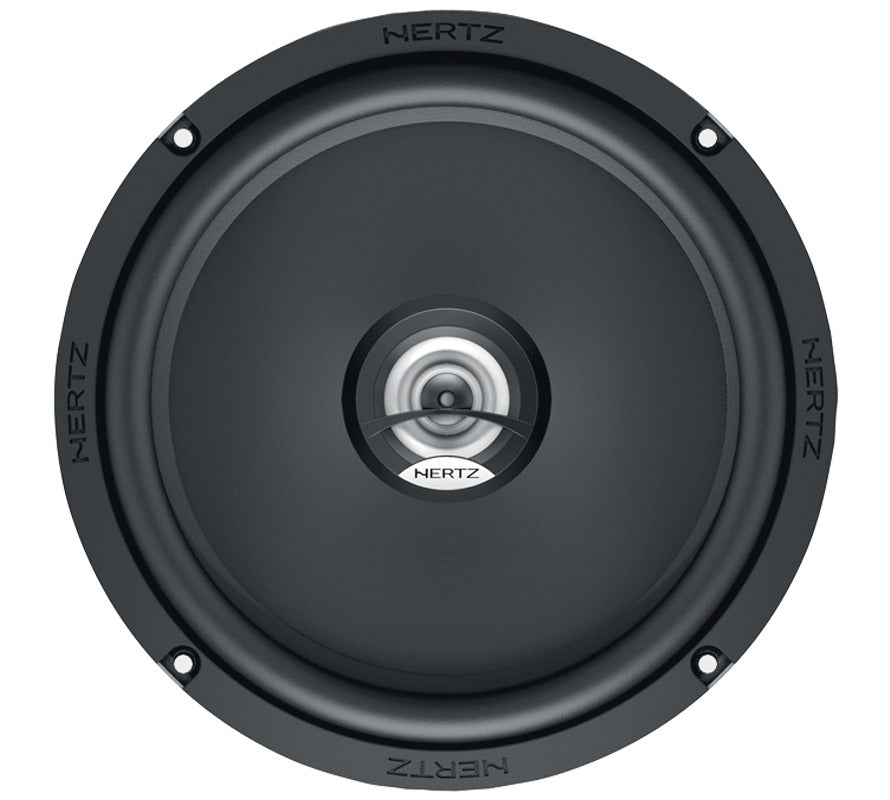

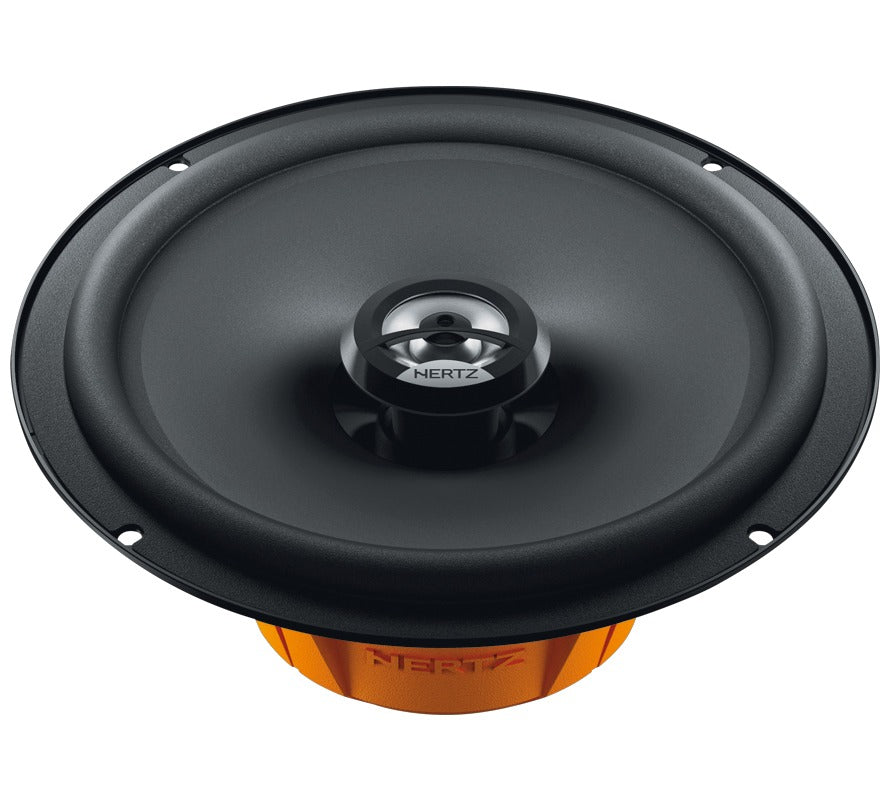

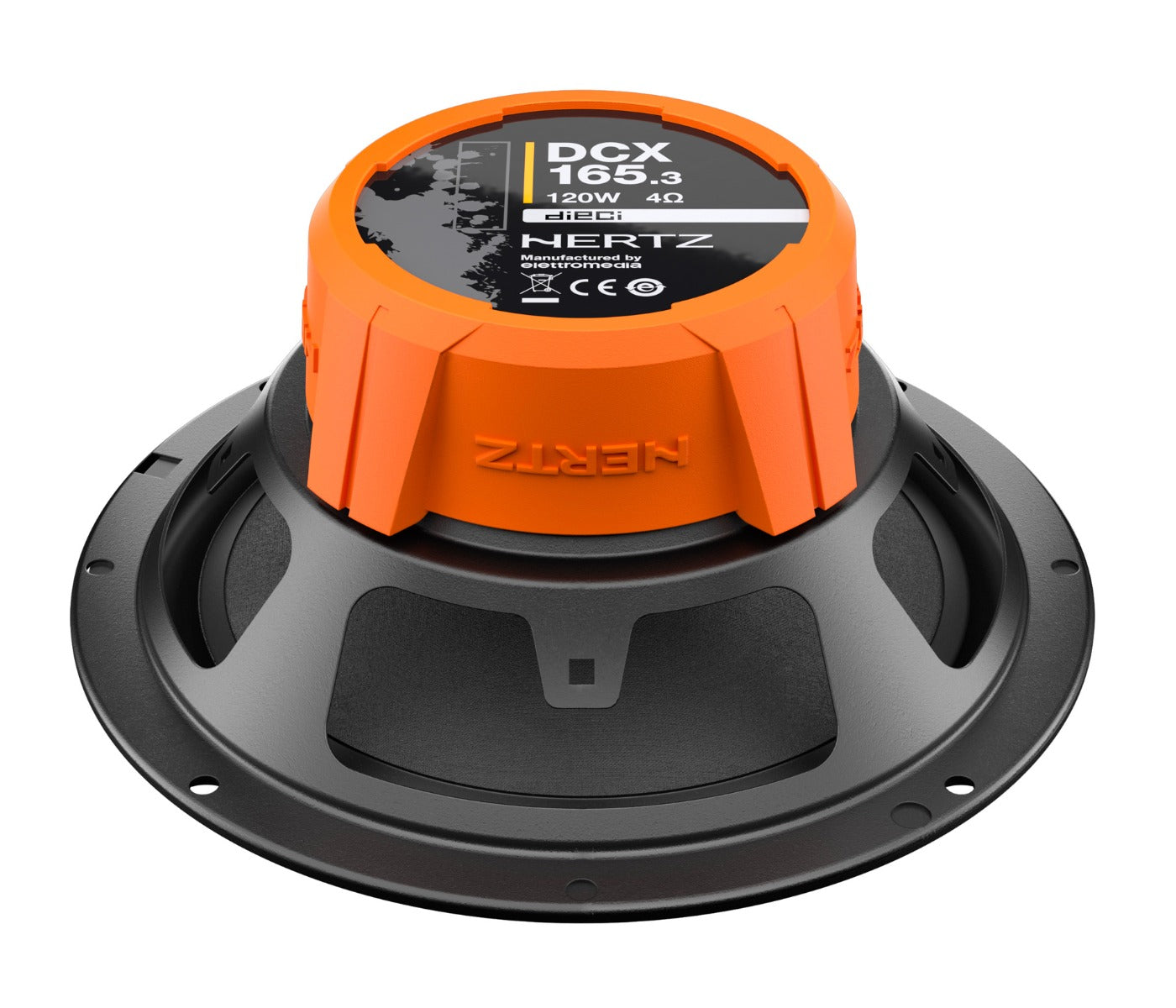

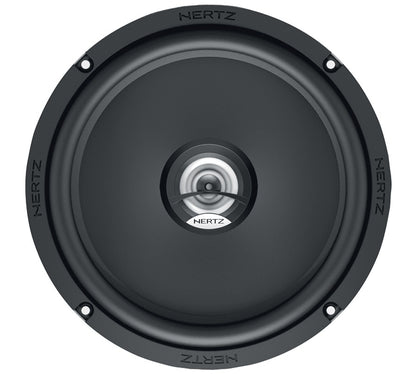

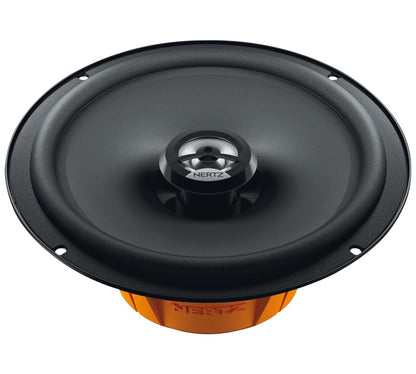

To meet all installation needs, without giving up on Hertz quality and performance, Hertz DCX 165.3 car audio coaxial speaker is designed with maniacal care to provide a linear frequency response and ensure high reliability. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a pressed-paper cone provide the optimum ratio between installation friendliness and sound with dynamic and emotional impact.





• Component - Two way coaxial
• Size mm (in.) - 165 (6.5)
• Power Handling - 60W Continuous
• Power Handling - 120W Peak
• Impedance - 4 Ohm
• Depth mm (in.) - 72 (2.8)
• Woofer Voice Coil Ø mm (in.) - 25 (1.0)
• Frequency Response - 60Hz ÷ 21Khz
• Woofer Magnet size D x d x h mm (in.)  - 80 x 40 x 15 (3.1 x 1.6 x 0.6)
• Weight of one speaker kg (lb.) - 0,77 (1.69)
• Woofer Magnet - High density flux ferri
• Tweeter Magnet - Neodymium
• Cone - Water-repellent pressed paper
• Dome - PEI

Electro-acoustic Specs

• D mm - 135
• Re Ohm - ,3
• Fs Hz - 68
• Vas I - 14,3
• Mms g - 11,0
• Cms mm/N - 0,49
• BL T*m - 4,0
• Qts - 0,85
• Qes - 0,96
• Qms - 7,54
• Spl dB - 93
