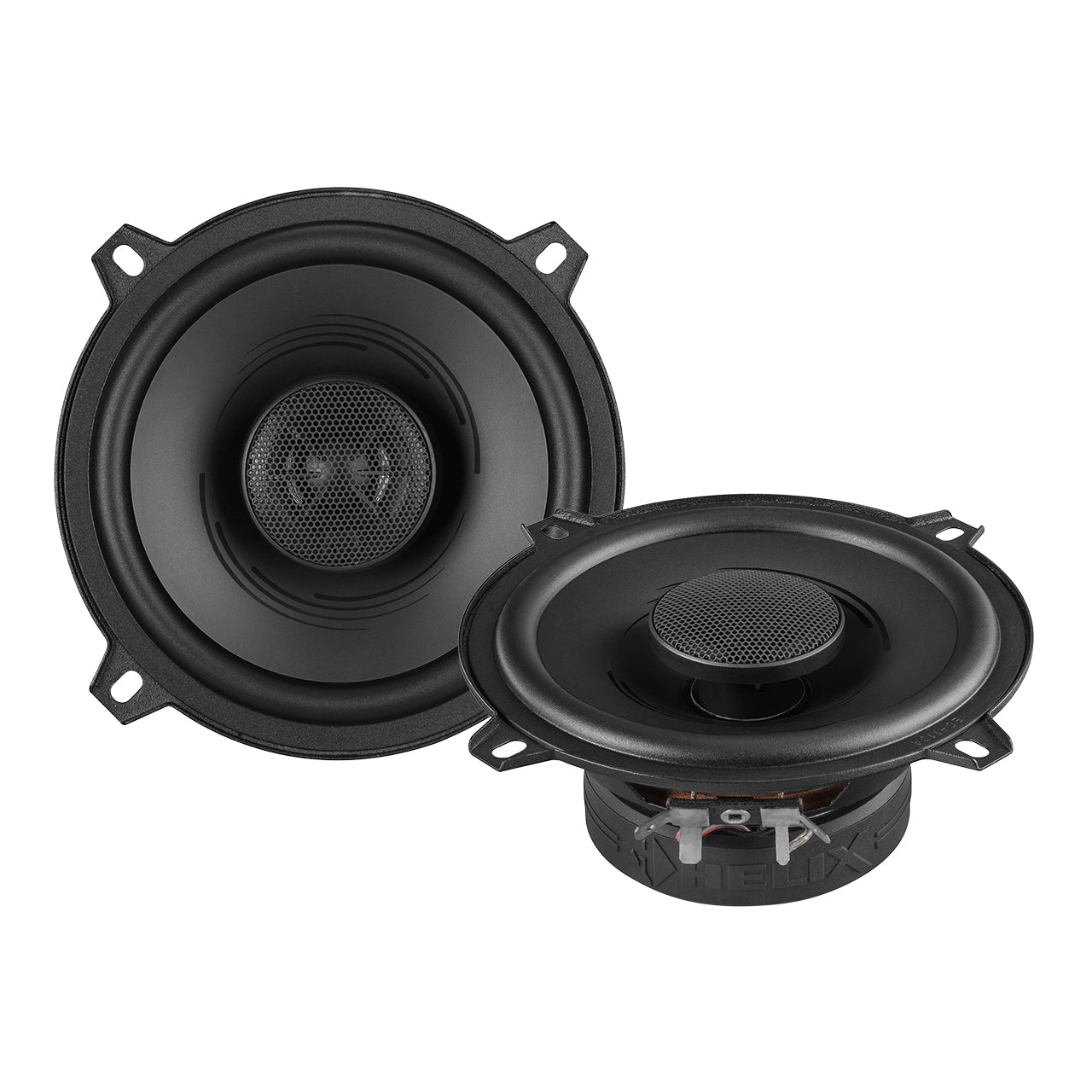

HELIX PF C130.2 Pure F-Series 13 cm 5.25" 2-Way Coaxial System
HELIX PF C130.2 Pure F-Series 13 cm 5.25" 2-Way Coaxial System
Enter the HELIX sound world with our PURE F speaker series. The powerful F-Series gets the maximum power out of your amplifier thanks to its 3 Ohms technology. In combination with the exceptional sound performance with powerful bass, clear mids and detailed highs, an exciting sound experience is bound to occur.
*Special Order Item
Product Description
Helix PF C130.2
Features
- High sound quality with deep bass, clear mids and detailed highs
- Powerful speaker system with high efficiency thanks to 3 Ohms technology
- Low installation depths for trouble-free installation in almost all vehicles
- Elegant HELIX design with black matt cone finish and black shiny Space Line styling
Tweeter
- 0.52” / 13 mm mylar dome and neodymium magnet for brilliant and clear treble response
Woofer
- 5.25” / 130 mm woofer with rigid cone made of injected polypropylene with embedded carbon fibres provides essential stiffness with a high inner damping
- Powerful magnet system with optimum control for powerful and clear depths
- Individual HELIX basket with additional ventilation holes for better voice coil cooling and high-power handling
Crossover
- Integrated with 6 dB slope
Technical data
- Power RMS / Max. 50 / 100 Watts
- Frequency response 70 Hz - 22,000 Hz
- Impedance 3 Ω
- Sensitivity
- 91.0 dB @ 2.83V / 1m
- 87.0 dB @ 1W / 1m
- Cone material
- TW: Mylar
- W: Injected polypropylene with embedded carbon fibres
- Crossover Integrated, 6 dB slope
- Outer diameter 129 mm / 5.08"
- Installation diameter 112 mm / 4.41"
- Installation depth 50 mm / 1.97"
What’s in the box
- 2 x Coaxial speaker HELIX PF C130.2
- 1 x Mounting material
- 1 x Instruction manual
- 1 x Mounting pattern
