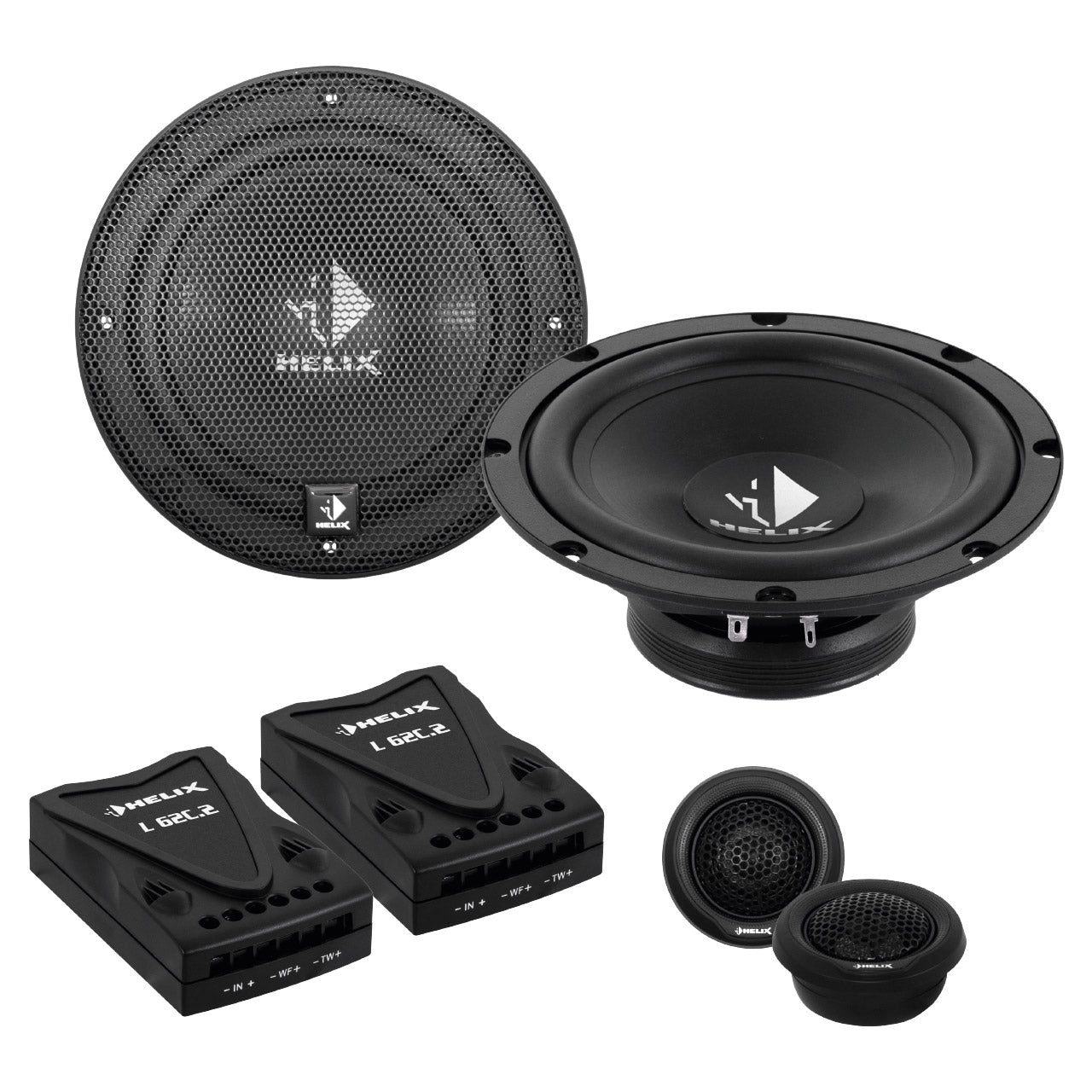

HELIX L 62C.2 16.5cm 6.5" 2-Way Component System 100W RMS / 200W Peak
HELIX L 62C.2 16.5cm 6.5" 2-Way Component System 100W RMS / 200W Peak
Simply impressive – the powerful L.2 loudspeaker series is a clear commitment. These drivers offer a bunch of features that are everything else but standard in this price class and a warrantor for uncompromising HELIX sound quality.
*Special Order Item
Product Description
HELIX L 62C.2
Features
- Powerful component system with stylish black finish and 100 / 200 Watts RMS / max.
- 6.5 inch / 165 mm woofer with novel, low resonant polypropylene cone and long-excursion rubber surround
- 1 inch / 25 mm silk dome tweeter with neodymium magnet for detailed, clear treble response
- Solid rubber magnet protection ring
- Separate crossover with 6/12 dB slope, tweeter protection and three-stage tweeter level adjustment
- Grille and tweeter cups for flush, surface and angle mount included
Technical data
- Power RMS / max. 100 / 200 Watts
- Frequency response 55 Hz - 22,000 Hz
- Impedance 4 Ω
- Sensitivity 1 W / 1 m 90 dB
- Cone material TW: Silk dome W: Polypropylene
- Crossover Separate, 6/12 dB slope, tweeter protection and tweeter level adjustment
- Outer diameter TW: 61 mm / 2.40” W: 167 mm / 6.57”
- Installation diameter TW: 50.5 mm / 2.00” W: 143 mm / 5.63”
- Installation depth TW: 16.8 mm / 0.66” W: 58 mm / 2.30”
What’s in the box
- 2 x Tweeter HELIX L 1T.2 incl. mounting material
- 2 x Woofer HELIX L 6B.2
- 2 x Crossover
- 1 x Mounting material
- 1 x Instruction manual
- 1 x Mounting pattern
