Features

• Extremely powerful 64 Bit “fixed point” Audio DSP with 1.2 billion MAC operations per second
• High Resolution audio bandwidth up to more than 40 kHz for unrivalled sound quality
• A/D and D/A signal converters from BurrBrown
• Advanced CoProcessor (ACO) for extended feature set
• Input Signal Analyzer (ISA) and InputEQ
• DSP Sound Effects (SFX) such as the “Augmented Bass Processing” which dynamically optimizes the bass response of the subwoofer, the “StageXpander” that significantly widens the
• stereo perspective, the “RealCenter” function, which allows a perfectly focussed sound staging for both driver and co-driver and much more
• 10 internal memory locations for sound setups
• Smart highlevel input with ADEP.3 circuit and Auto Turn-On function

Technical data

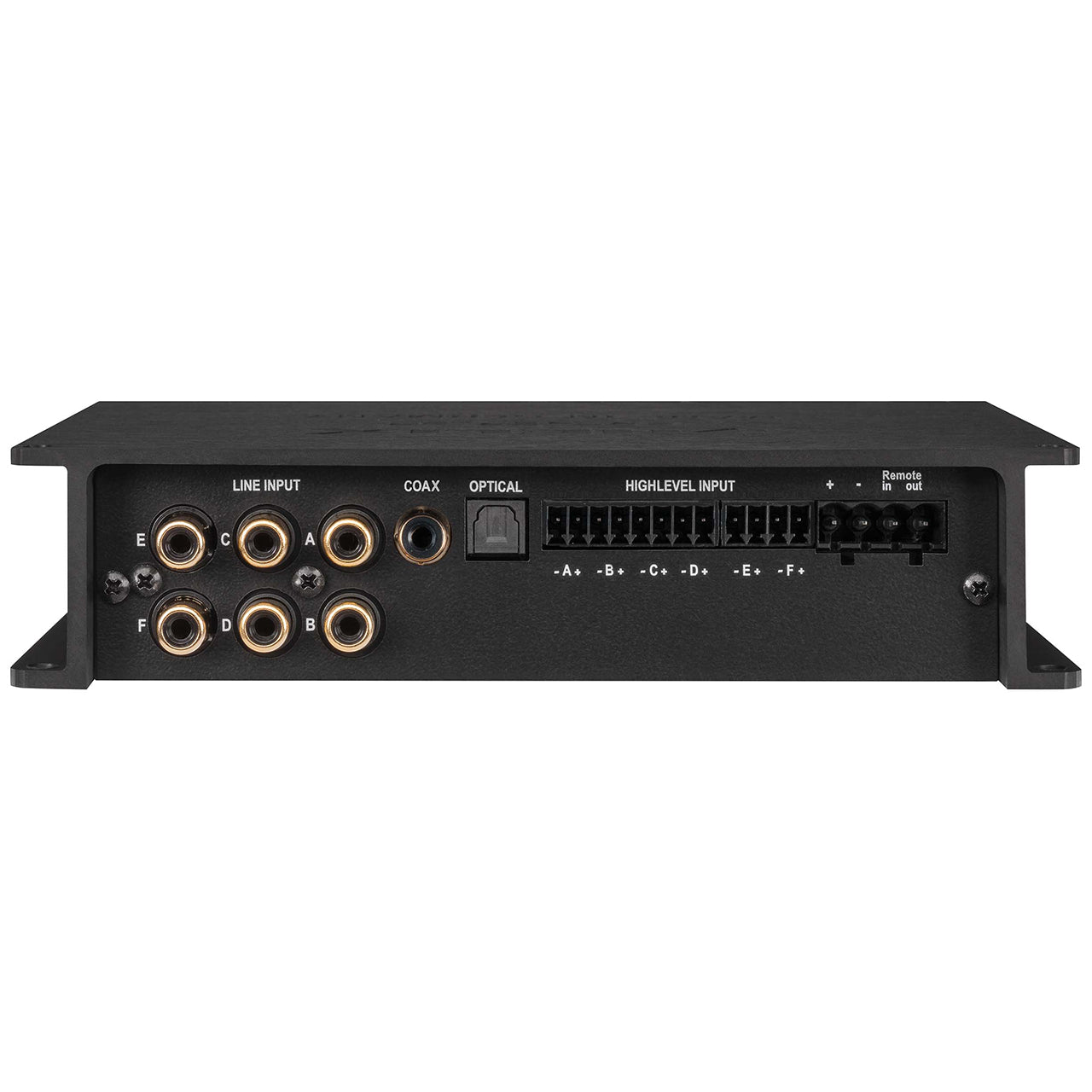

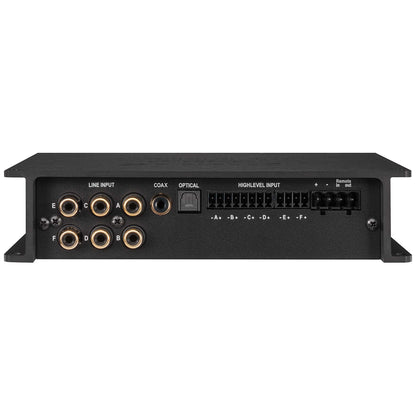

Inputs

• 6 x RCA / Cinch
• 6 x Highlevel speaker input
• 1 x Optical SPDIF (12 - 96 kHz)
• 1 x Coax SPDIF (12 - 192 kHz)
• 1 x Remote In

Input sensitivity

• RCA / Cinch 2 - 4 Volts
• Highlevel 5 - 11 Volts

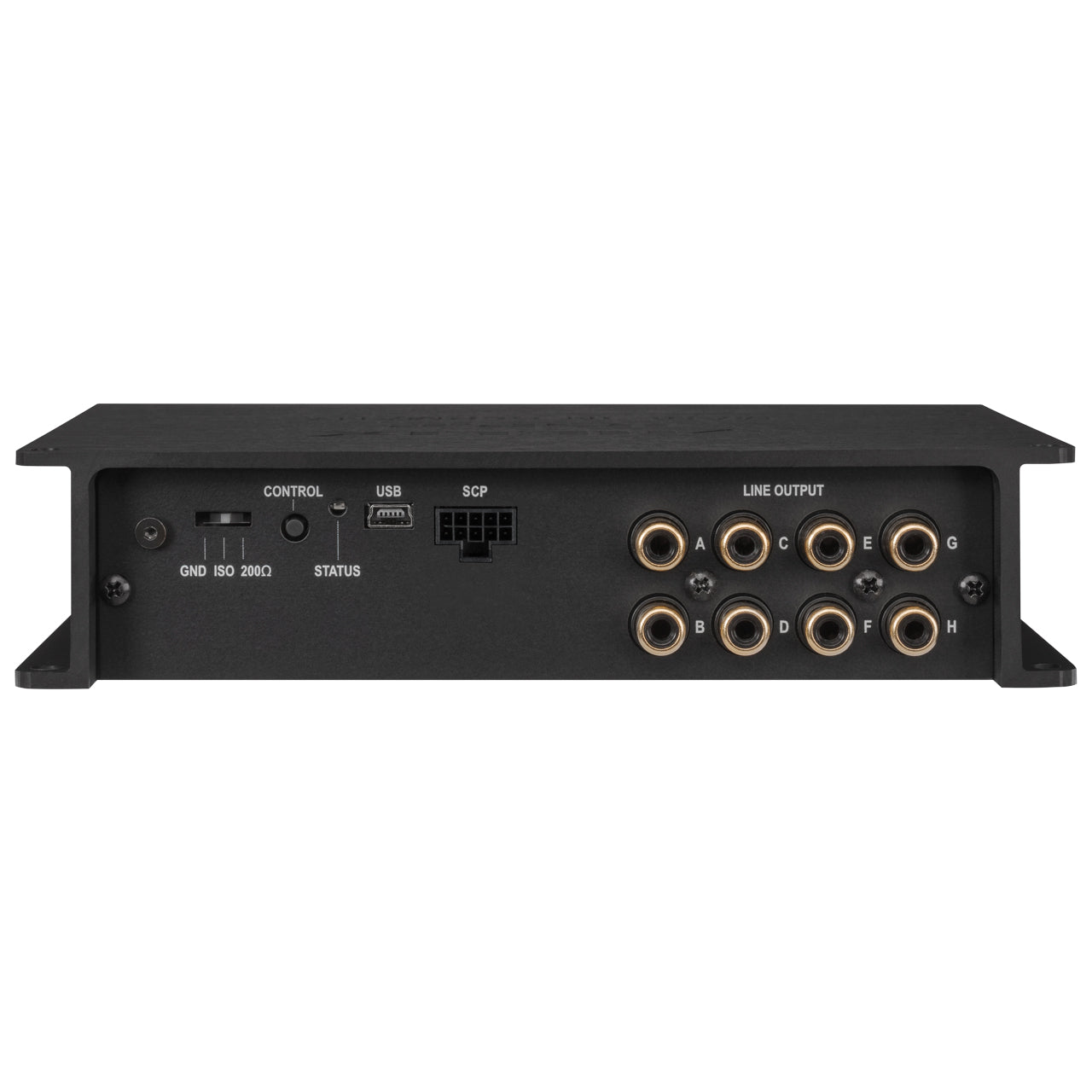

Outputs

• 8 x RCA / Cinch
• 1 x Remote Out

Output voltage

• 6 Volts

Frequency response

10 Hz - 44,000 Hz

DSP resolution

• 64 Bit

DSP power

• 295 MHz (1.2 billion MAC operations/second)

Sampling rate

• 96 kHz

DSP type

• Audio signal processor

Signal converters

• A/D: BurrBrown
• D/A: BurrBrown

Signal-to-noise ratio digital input

• 112 dB (A-weighted)

Signal-to-noise ratio analog input

• 107 dB (A-weighted)

Total harmonic distortion (THD+N) digital input

• < 0.0008 %

Total harmonic distortion (THD+N) analog input

• < 0.002 %

IM distortion (IMD) digital input

• < 0.003 %

IM distortion (IMD) analog input

• < 0.005 %

Crosstalk

• > 90 dB

Operating voltage

• 9.6 - 17 Volts (max. 5 sec. down to 6 Volts)

Power rating

• DC 12 V ⎓ 3 A max.

Current draw

• < 450 mA

Max. remote output current

• 500 mA

Additional features

• HEC slot, Ground lift switch, Smart Control Port, 32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch

Dimensions (H x W x D)

• 40 x 177 x 120 mm /
• 1.58 x 6.97 x 4.72”
