SPECIAL ORDER ITEM

Features

• 6.5” / 165 mm advanced midbass with exceptional sound performance and versatile physical integration options

• High efficiency and 3 Ohms technology for maximized power output of the amplifier

• Silicon coated paper cone for excellent impulse response and unmatched frequency response

• Integrated phase plug for improved upper midrange reproduction, reduced compression effects, and increased thermal power handling of the voice coil

• Engineered for maximum flexibility – delivers impressive depth and stunning dynamics in both 2-way and 3-way system configurations

• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing

• Specially shaped rubber surround for high linear cone excursion

• Large 1.46” / 37 mm voice coil ensures minimum thermal compression and high-power handling

• Automotive grade ProConnect connection terminal allows the use of conventional speaker cables or a fast, secure and fail-safe connection via optionally available WireKits

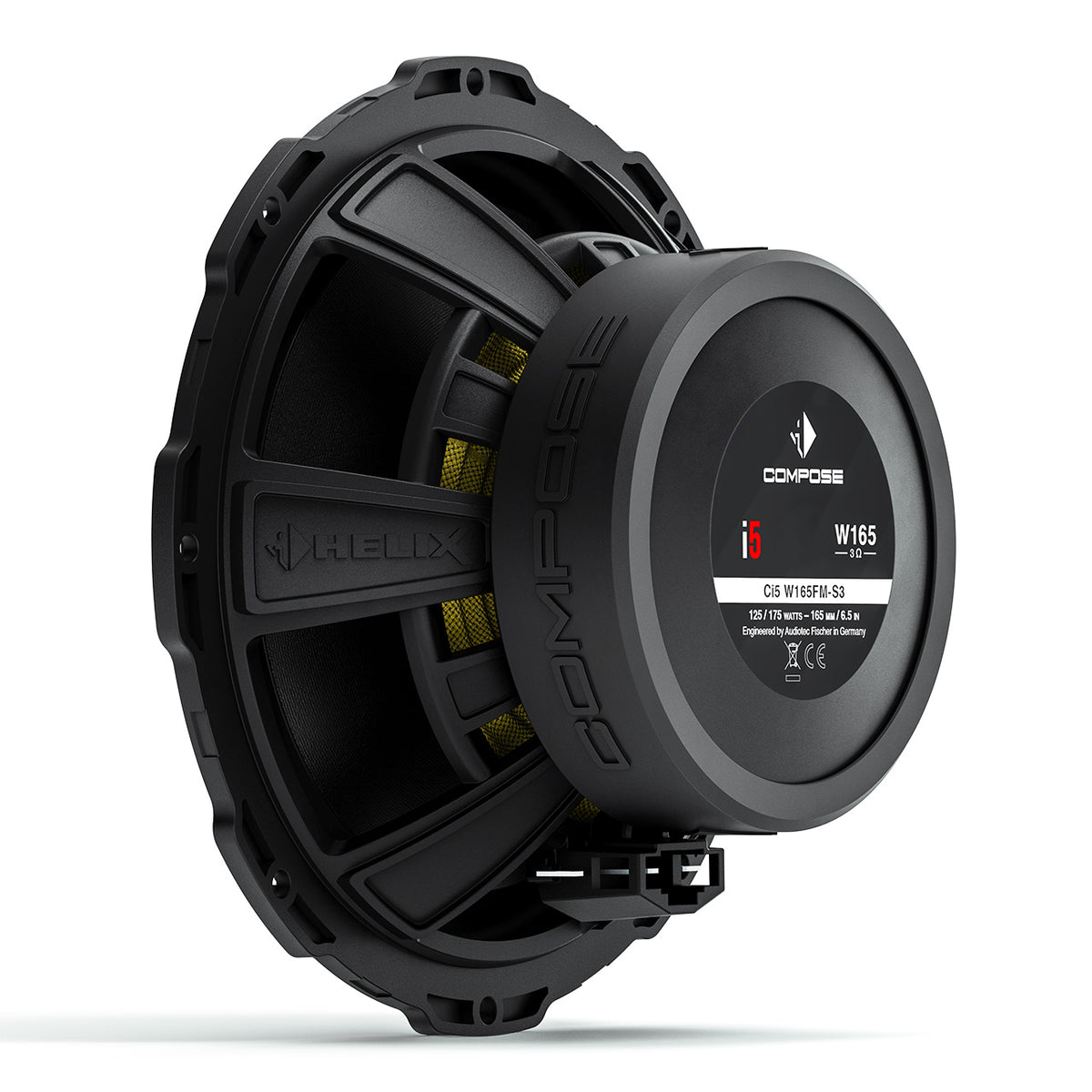

• Powerful magnet system for highest efficiency and extremely low distortion

• Designed for the optionally available car-specific FlexMount165 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle

• Designed for optionally available, car-specific WireKits which allow a non-destructive integration

Technical data

• Power handling RMS / Max - 125 / 175 Watts

• Impedance Z - 3 Ω

• DC resistance Re - 3.1 Ω

• Frequency response - 50 Hz - 5,000 Hz

• Resonance frequency Fs - 50 Hz

• Mechanical Q factor Qms - 2.38

• Electrical Q factor Qes - 0.50

• Total Q factor Qts - 0.41

• Compliance Cms - 742 µm/N

• Equivalent air volume Vas - 17.9 L

• Force factor B*I - 5.2 Tm

• Sensitivity SPL - 92 dB @ 2.83 V / 1m

• Cone area Sd - 131 cm²

• Moving mass Mms - 14.0 g

• Cone material - Silicon coated paper cone

• Mechanical resistance Rms - 1.83 kg/s

• Voice coil diameter ø - 37 mm

• Voice coil winding height - 13.7 mm

• Max. linear excursion – Xmax +/- 3.9 mm

• Outer diameter ø - 165 mm / 6.5"

• Installation diameter ø - 142 mm / 5.59"

• Installation depth - 66.8 mm / 2.63"

• Features - ProConnect terminal,

Compatibility

• FlexMount165

• WireKits

Scope of delivery

• 2 x Ci5 W165FM-S3

• 2 x Mounting material
