SPECIAL ORDER ITEM

Features

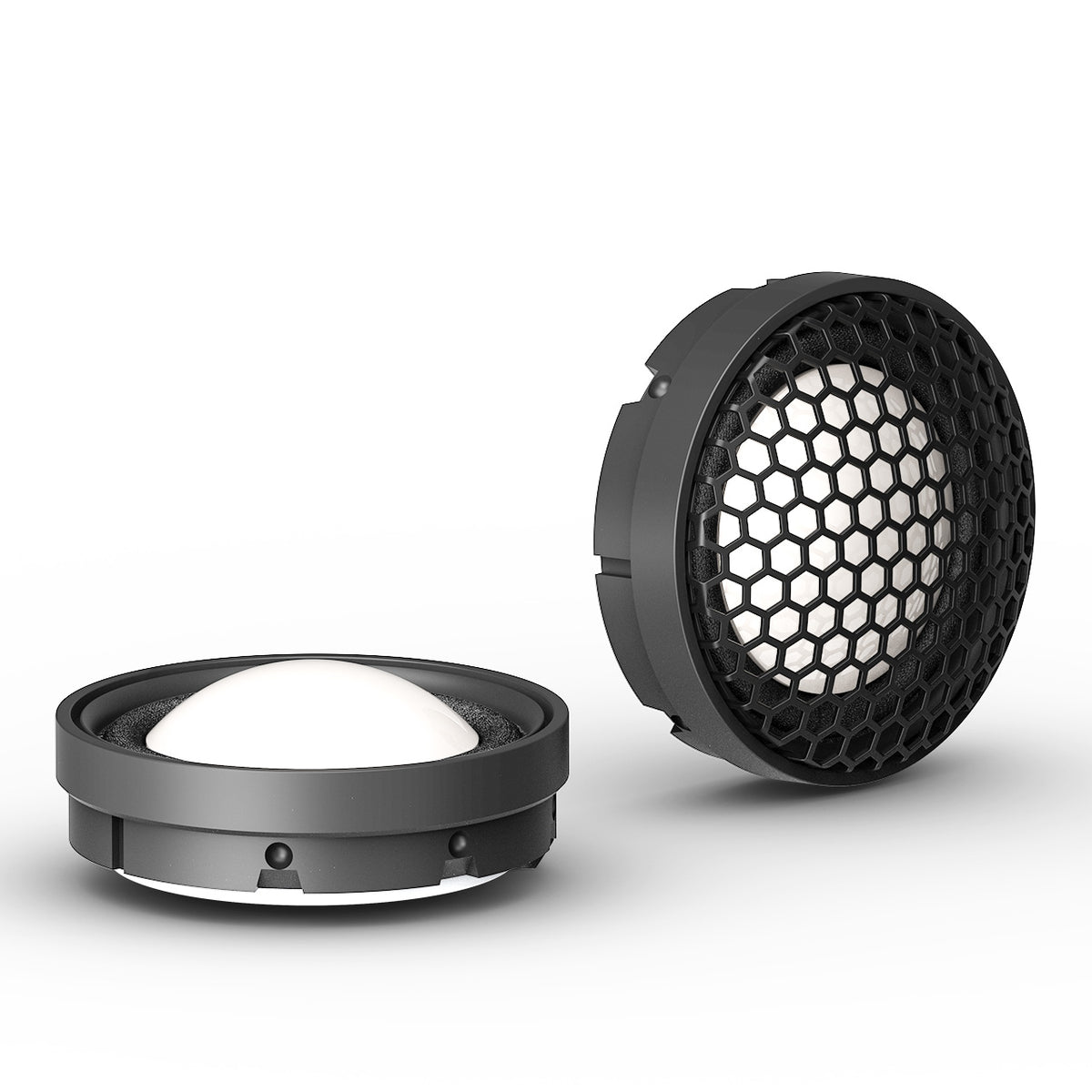

• 1” / 25 mm advanced tweeter with ceramic-coated aluminium dome for balanced frequency response and excellent decay characteristics

• Sturdy aluminium housing with integrated grille for optimum protection of the delicate tweeter dome

• Highly efficient neodymium magnet for high magnetic flux linearity

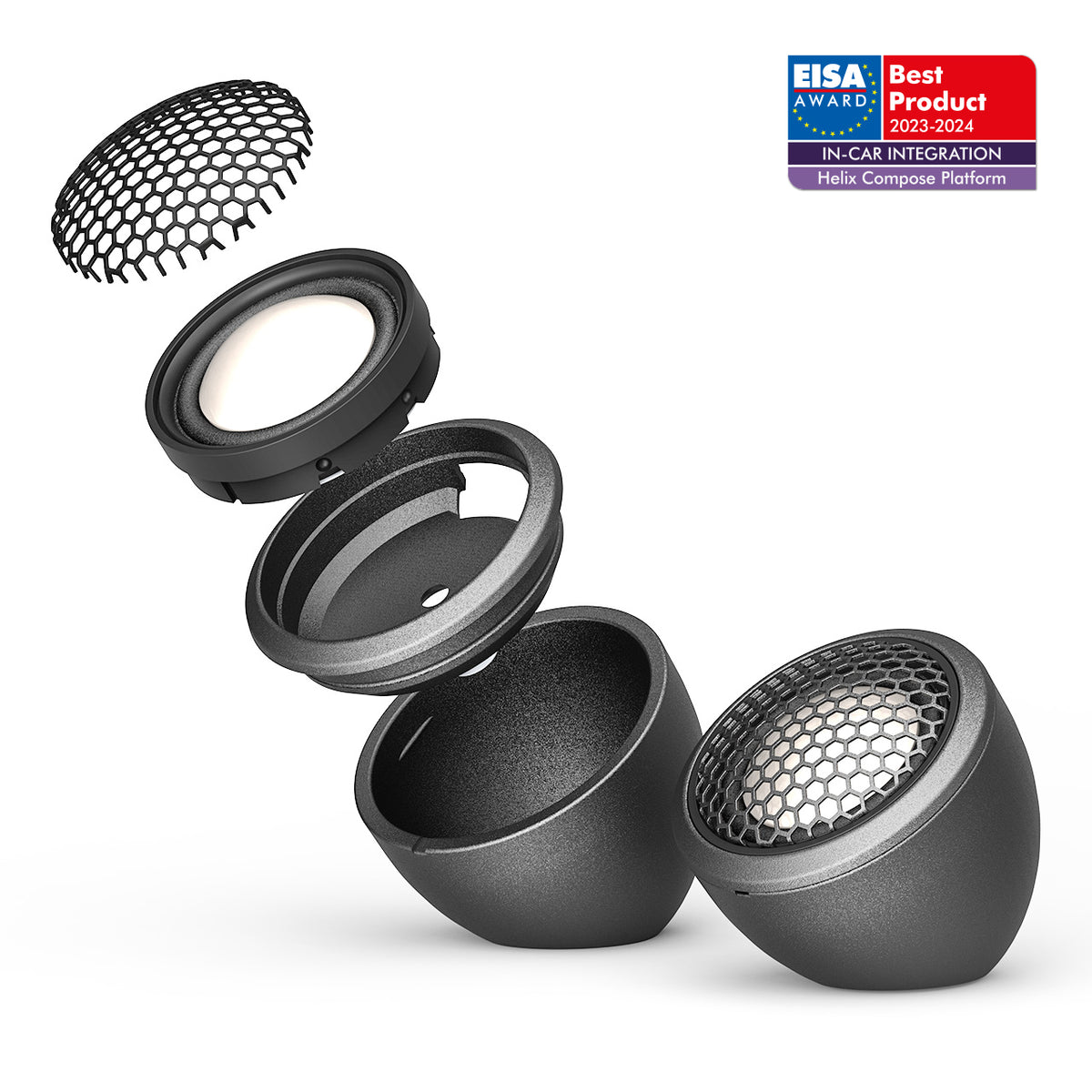

• Compact design and various mounting options for numerous installation demands

• Mounting pods for flush mount and angle mount included in delivery

• Designed for the optionally available car-specific FlexMount25 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle

• Designed for optionally available, car-specific WireKits which allow a non-destructive integration

Technical data

• Impedance - 4 Ω

• DC resistance Re - 3.2 Ω

• Frequency response - 2,000 Hz - 25,000 Hz

• Resonance frequency Fs - 1800 Hz

• Sensitivity – SPL - 94.0 dB @ 2.83V / 1m

• 91.0 dB @ 1W / 1m

• Voice coil diameter – Ø - 25 mm

• Cone material - Aluminium with ceramic coating

• Outer diameter - 40 mm / 1.57"

• Installation diameter - 38 mm / 1.50"

• Installation depth - 11.7 mm / 0.46"

Compatibility

• FlexMount25

• WireKits

• Crossover Ci7 FX-UNI.2

Scope of delivery

• 2 x Ci5 T25FM-CA

• 2 x Tweeter flush mount

• 2 x Tweeter pod

• 2 x Mounting material

• 1 x Instruction manual
