Special Order Only

Features

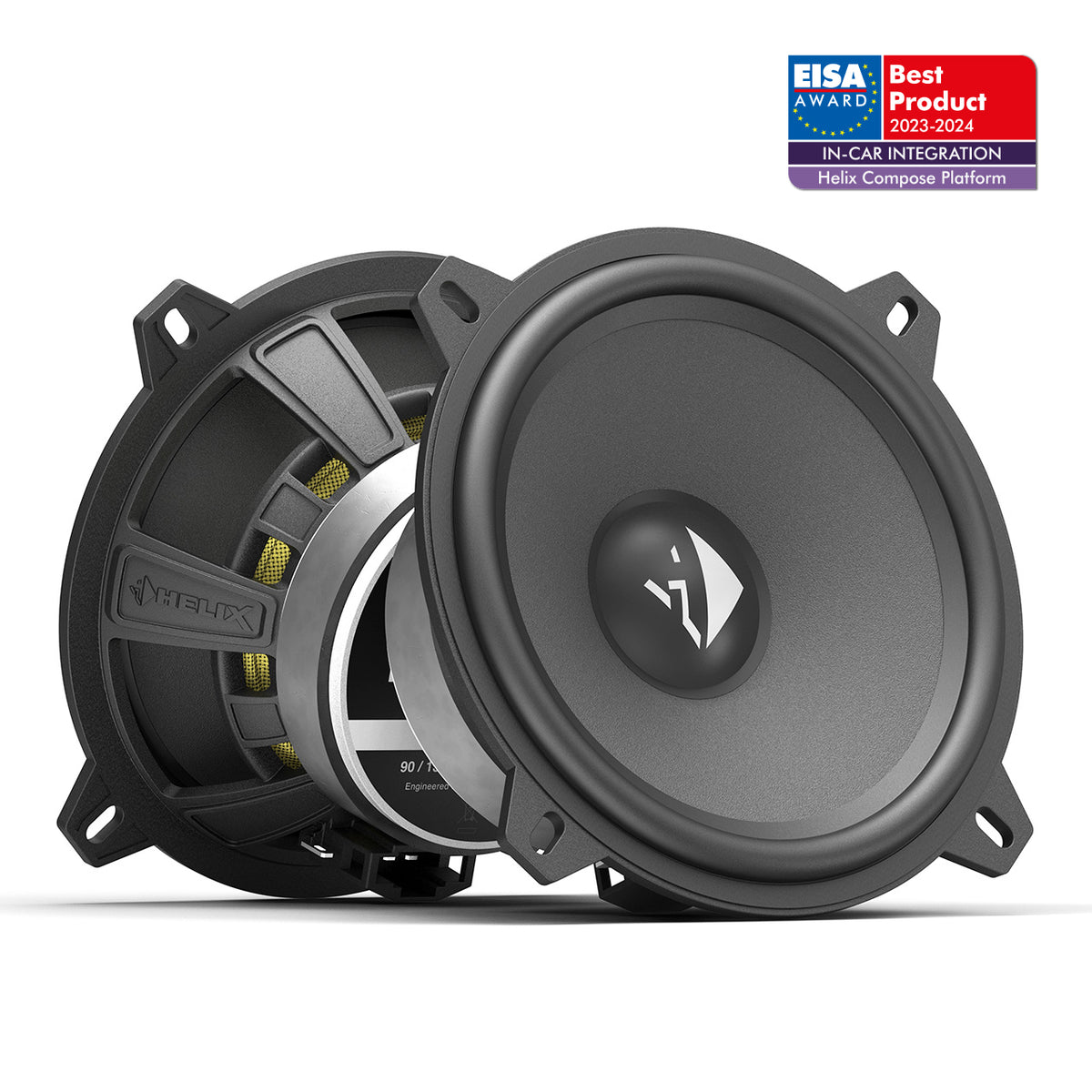

• 5.25” / 130 mm performance midbass which combines high efficiency with outstanding sound quality

• 3 Ohms technology for maximized power output of the amplifier

• Unique Cenosphere coated paper cone for precise and detailed sound reproduction

• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing

• Specially shaped rubber surround for high linear cone excursion

• Polyurethane dustcap for optimized frequency response in the upper midrange area

• 1” / 25 mm voice coil ensures high power handling

• Automotive grade ProConnect connection terminal allows the use of conventional speaker cables or a fast, secure and fail-safe connection via optionally available WireKits

• Powerful magnet system for high efficiency and optimum impulse response

• Designed for optionally available, car-specific WireKits which allow a non-destructive integration

Technical data

• Power handling  - 90w RMS

• Power Handling - 135w Peak

• Impedance - Z - 3 Ω

• DC resistance - Re - 3.1 Ω

• Frequency response - 80 Hz - 4,000 Hz

• Resonance frequency - Fs - 89 Hz

• Mechanical Q factor - Qms - 3.11

• Electrical Q factor - Qes - 0.97

• Total Q factor - Qts - 0.74

• Compliance - Cms - 350 µm/N

• Equivalent air volume - Vas - 4.6 L

• Force factor - B*I - 4.0 Tm

• Sensitivity - SPL - 91 dB @ 2.83 V / 1m - 87 dB @ 1W / 1m

• Cone area - Sd - 98 cm²

• Moving mass - Mms - 9.1 g

• Cone material - Paper with Cenosphere coating

• Mechanical resistance - Rms - 1.65 kg/s

• Voice coil diameter - ø - 25 mm

• Voice coil winding height - 10.5 mm

• Max. linear excursion - Xmax - +/- 3.2 mm

• Outer diameter - ø - 130 mm / 5.12"

• Installation diameter - ø - 116.5 mm / 4.59"

• Installation depth - 55.4 mm / 2.18"

• Features - ProConnect terminal

Compatibility

• Wirekits

Scope of delivery

• 2 x Ci3 W130-S3

• 2 x Mounting material
