Features

• 0.75” / 20 mm performance tweeter with black aluminum dome for accurate, pure and detailed treble response

• High-quality aluminum dome with perfect balance of low weight and high rigidity – for natural brilliance and fine detail reproduction

• Refined highly efficient neodymium magnet for high magnetic flux linearity and optimized performance

• Compact design and various mounting options for numerous installation demands

• Mounting pods for flush mount and angle mount included in delivery

• Designed for the optionally available car-specific FlexMount20 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle

• Designed for optionally available, car-specific WireKits which allow a non-destructive integration

Technical data

• Impedance - Z - 4 Ω

• DC resistance - Re - 3.2 Ω

• Frequency response - 2,000 Hz - 25,000 Hz

• Resonance frequency - Fs - 1800 Hz

• Sensitivity - SPL - 91 dB @ 2.83V / 1m - 88 dB @ 1W / 1m

• Voice coil diameter - Ø - 20 mm

• Cone material - Aluminum

• Outer diameter - 32 mm / 1.26"

• Installation diameter - 28 mm / 1.10"

• Installation depth - 9.8 mm / 0.39"

Recommended crossover frequencies for the highpass

• Slope - Minimum crossover frequency

• 6 dB/Octave > 5,000 Hz

• 12 dB/Octave > 3,500 Hz

• 24 dB/Octave > 3,000 Hz

Compatibility

• FlexMount20

• WireKits

Scope of delivery

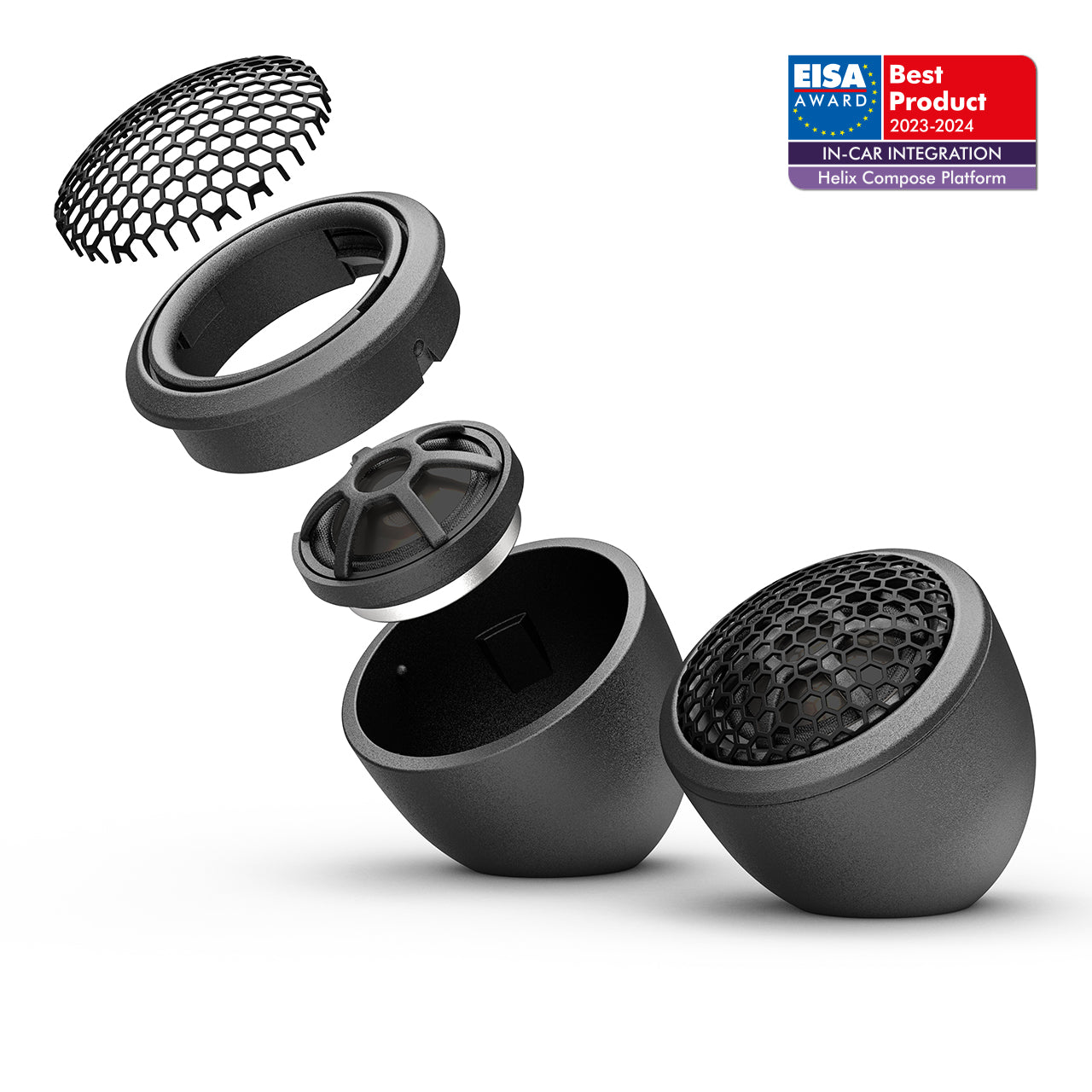

• 2 x Ci3 T20FM-AL MK2

• 2 x Tweeter flush mount

• 2 x Tweeter pod

• 2 x Mounting material
