Features

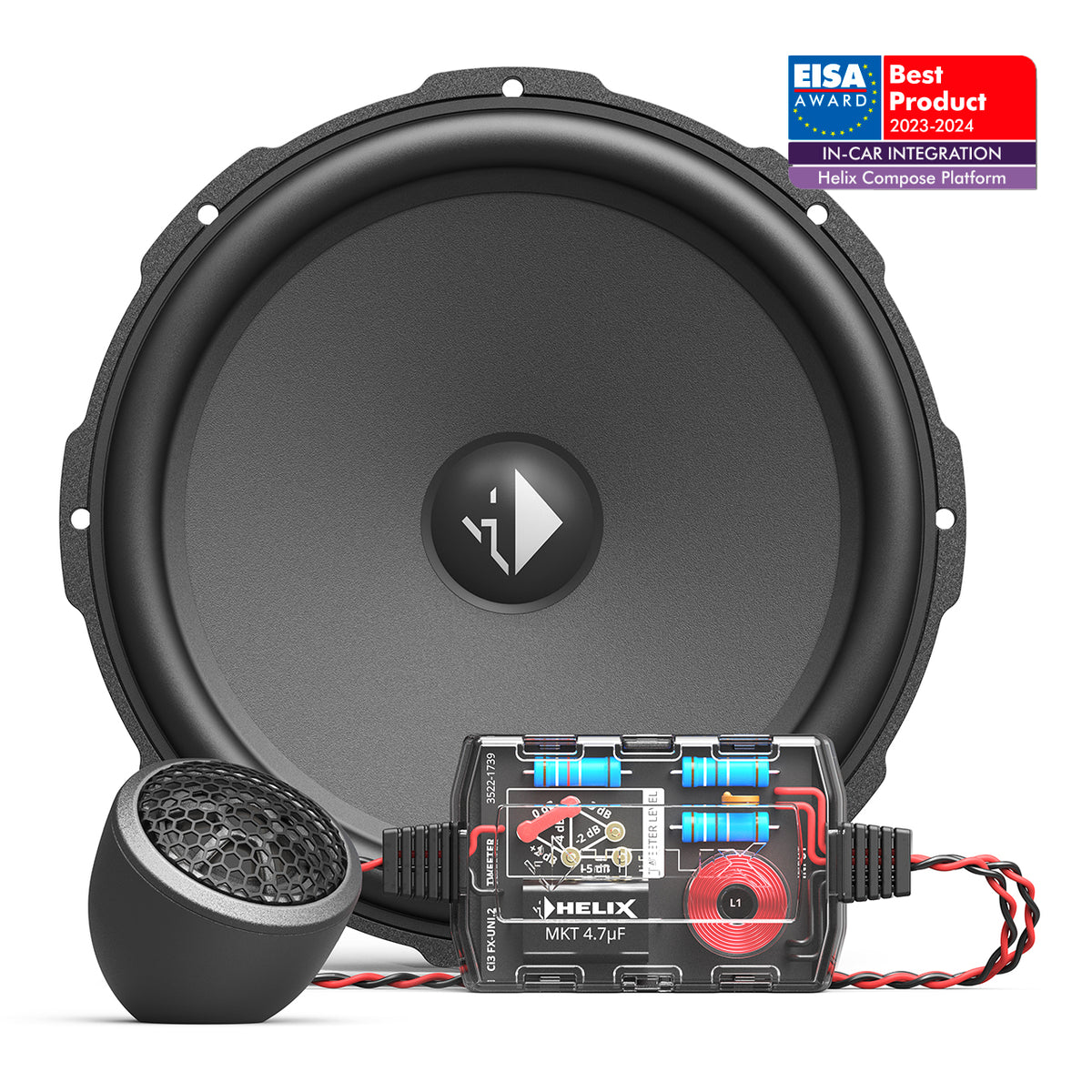

• 2-way performance speaker kit which combines outstanding sound quality with versatile physical integration options

• High efficiency and 3 Ohms technology for maximized power output of the amplifier

• Smart, automotive grade connectors for fail-safe and secure installation – COMPOSE Connect & ProConnect

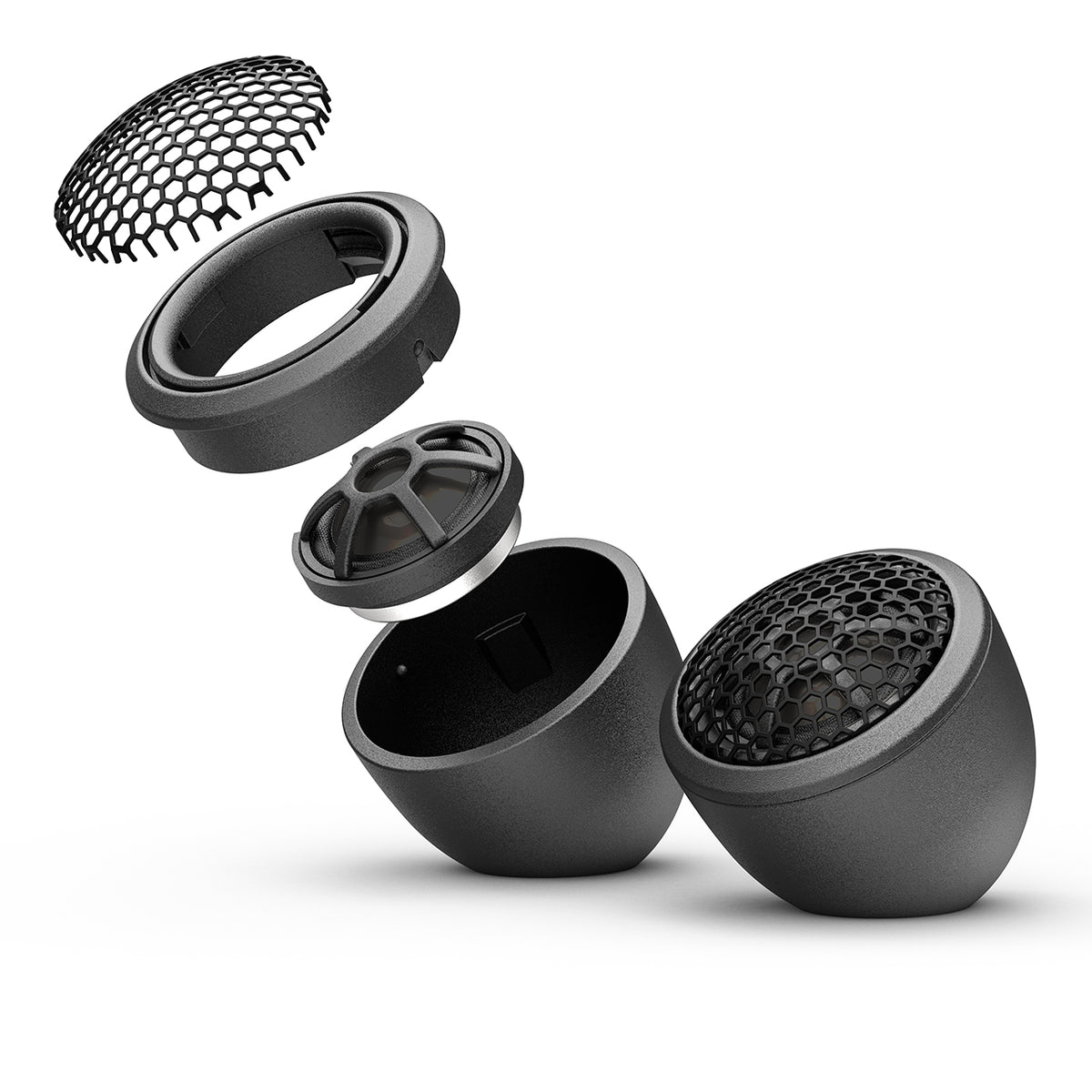

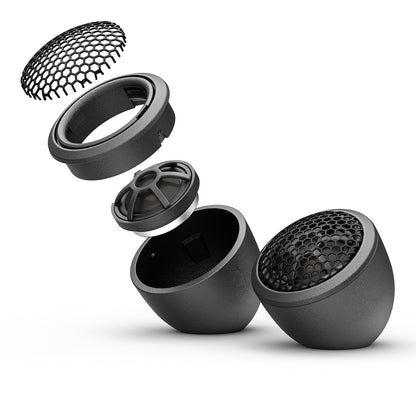

Tweeter

• 0.75” / 20 mm performance tweeter with black aluminum dome for accurate, pure and detailed treble response

• High-quality aluminum dome with perfect balance of low weight and high rigidity – for natural brilliance and fine detail reproduction

• Refined highly efficient neodymium magnet for high magnetic flux linearity and optimized performance

• Compact design and various mounting options for numerous installation demands

• Mounting pods for flush mount and angle mount included in delivery

Woofer

• 8" / 200 mm woofer with unique Cenosphere coated paper cone for precise and detailed sound reproduction

• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing

• Powerful magnet system for high efficiency and optimum impulse response

• Polyurethane dustcap for optimized frequency response in the upper midrange area

• Universal mounting ring with grille included in delivery

Crossover

• Separate, high-grade crossover with compact dimensions for easy integration

• 6-stage tweeter level adjustment with integrated tweeter protection for optimized treble adaptation to mounting position

• Extensively fine-tuned – with 12 dB slope for tweeter

• Designed for optionally available, car-specific WireKits which allow a non-destructive integration

• Designed for the optionally available car-specific FlexMount200 & FlexMount20 adaptors which allow an acoustically optimized and professional integration in the original mounting locations of the vehicle

Technical data

• Power handling - 100w RMS

• Power Handling - 150w Peak

• Frequency response - 50 Hz - 25,000 Hz

• Impedance - Z - 3 Ω

• Sensitivity - SPL - 94 dB @ 2.83V / 1m - 90 dB @ 1W / 1m

• Outer diameter ø - Tweeter: 32.0 mm / 1.26” - Woofer: 195.0 mm / 7.68” - Woofer with universal mounting ring: 208.9 mm / 8.22"

• Installation diameter ø - Tweeter: 32.0 mm / 1.26” - Woofer: 173.5 mm / 6.83”

• Installation depth - Tweeter: 9.8 mm / 0.39” - Woofer: 63.7 mm / 2.51”

• Crossover Dimensions - 103.3 x 50.4 x 25.0 mm / 4.07 x 1.98 x 0.98”

Woofer

• Impedance - Z - 3 Ω

• DC resistance - Re - 3.0 Ω

• Resonance frequency - Fs - 67 Hz

• Mechanical Q factor - Qms - 4.25

• Electrical Q factor - Qes - 0.93

• Total Q factor - Qts - 0.76

• Compliance - Cms - 300 μm/N

• Equivalent air volume - Vas - 19.0 L

• Force factor - B*l - 5.1 Tm

• Cone area - Sd - 214 cm2

• Moving mass - Mms - 18.8 g

• Mechanical resistance - Rms - 1.87 kg/s

• Voice coil diameter - ø - 25 mm

• Voice coil winding height - 11.6 mm

• Max. linear excursion - Xmax - +/- 3.8 mm

Tweeter

• Impedance - Z - 4 Ω

• Resonance frequency - Fs - 1800 Hz

• Voice coil diameter ø - 20 mm

Features

• Tweeter - Ultra compact, aluminum dome, neodymium magnet and FlexMount20

• Woofer - Paper with Cenosphere coating, ProConnect terminal, FlexMount200 and grille

• Crossover - Tweeter: 12 dB highpass, protection and level adjustment

Compatibility

• FlexMount20

• FlexMount200

• WireKits

Scope of delivery

• 2 x Tweeter Ci3 T20FM-AL MK2

• 2 x Midbass Ci3 W200FM-S3

• 2 x Crossover Ci3 FX-UNI.2

• 2 x Woofer connection cable CWK FX.W-550CC

• 2 x Tweeter mounting accessories

• 2 x Woofer mounting ring and grille

• 2 x COMPOSE Connect Kit

• 2 x Mounting material
