Special Order Only

Features

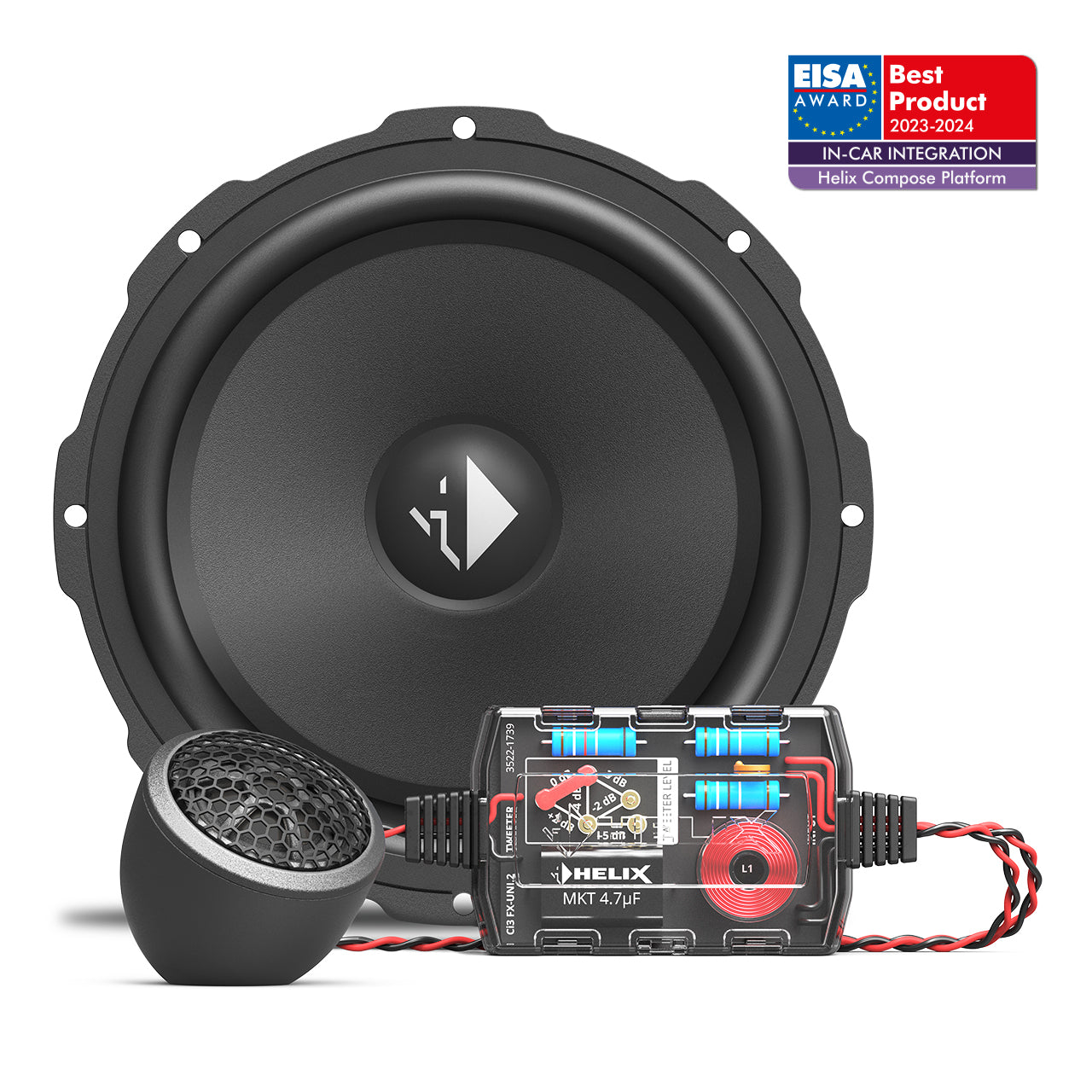

• 2-way performance speaker kit which combines outstanding sound quality with versatile physical integration options

• High efficiency and 3 Ohms technology for maximized power output of the amplifier

• Smart, automotive grade connectors for fail-safe and secure installation – COMPOSE Connect & ProConnect

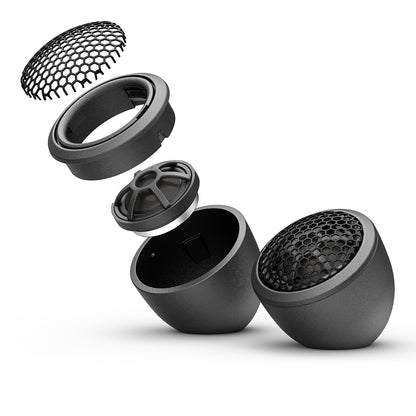

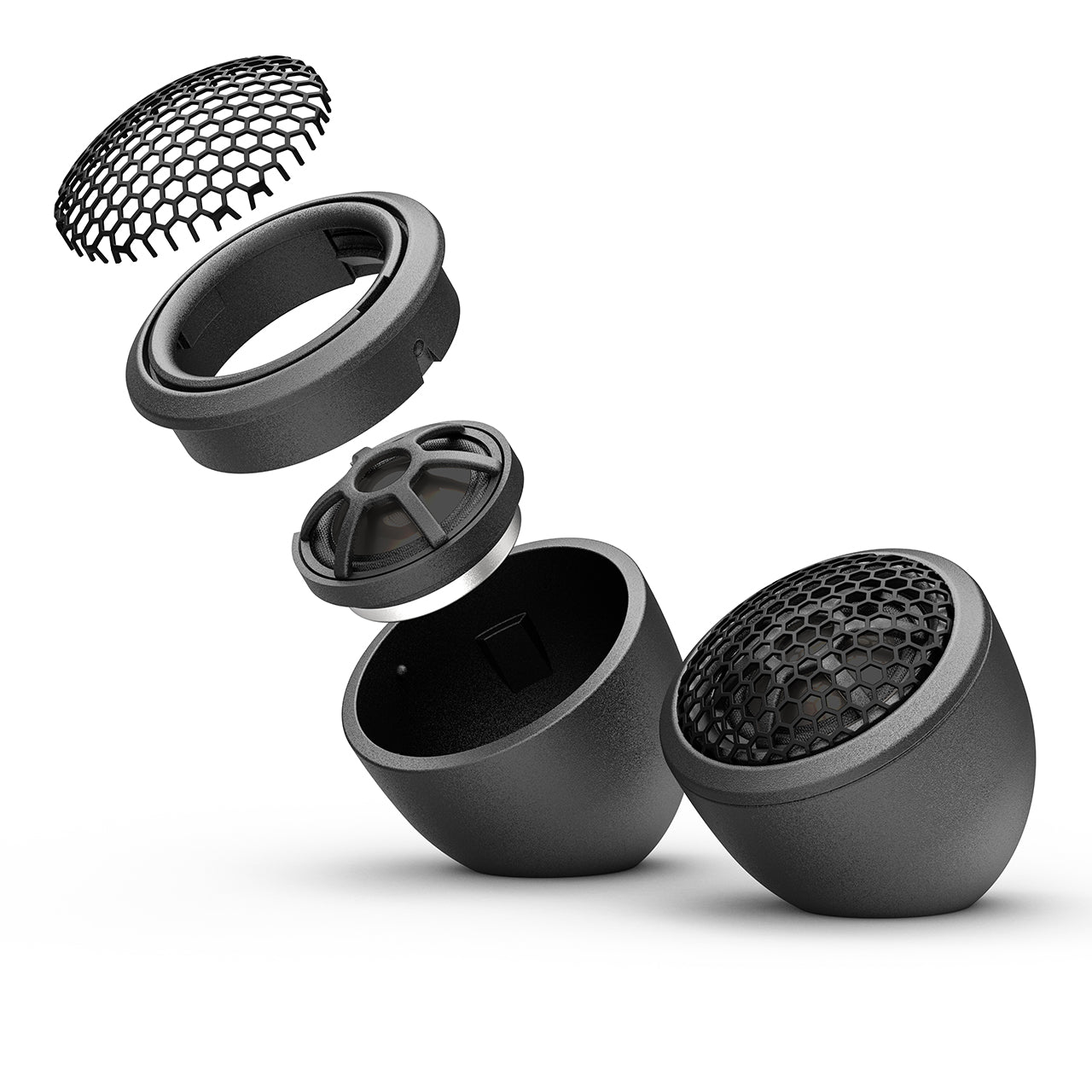

Tweeter

• 0.75” / 20 mm performance tweeter with black aluminum dome for accurate, pure and detailed treble response

• High-quality aluminum dome with perfect balance of low weight and high rigidity – for natural brilliance and fine detail reproduction

• Refined highly efficient neodymium magnet for high magnetic flux linearity and optimized performance

• Compact design and various mounting options for numerous installation demands

• Mounting pods for flush mount and angle mount included in delivery

Midbass

• 6.5" / 165 mm midbass with unique Cenosphere coated paper cone for precise and detailed sound reproduction

• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing

• Powerful magnet system for high efficiency and optimum impulse response

• Polyurethane dustcap for optimized frequency response in the upper midrange area

Crossover

• Separate, high-grade crossover with compact dimensions for easy integration

• 6-stage tweeter level adjustment with integrated tweeter protection for optimized treble adaptation to mounting position

• Extensively fine-tuned – with 12 dB slope for tweeter

• Designed for optionally available, car-specific WireKits which allow a non-destructive integration

• Designed for the optionally available car-specific FlexMount165 & FlexMount20 adaptors which allow an acoustically optimized and professional integration in the original mounting locations of the vehicle

Technical data

• Power handling - 100w RMS

• Power Handling - 150w Peak

• Frequency response - 60 Hz - 25,000 Hz

• Impedance - Z - 3 Ω

• Sensitivity - SPL - 92 dB @ 2.83V / 1m - 88 dB @ 1W / 1m

• Outer diameter ø - Tweeter: 32.0 mm / 1.26” - Midbass: 165.0 mm / 6.50”

• Installation diameter ø - Tweeter: 32.0 mm / 1.26” - Midbass: 142.0 mm / 5.59”

• Installation depth - Tweeter: 9.8 mm / 0.39” - Midbass: 60.7 mm / 2.39”

• Dimensions crossover - 103.3 x 50.4 x 25.0 mm / 4.07 x 1.98 x 0.98”

Midbass

• Impedance - Z - 3 Ω

• DC resistance - Re - 3.0 Ω

• Resonance frequency - Fs - 70 Hz

• Mechanical Q factor - Qms - 4.17

• Electrical Q factor - Qes - 1.05

• Total Q factor - Qts - 0.84

• Compliance - Cms - 454 μm/N

• Equivalent air volume - Vas - 11.2 L

• Force factor - B*l - 4.0 Tm

• Cone area - Sd - 133 cm2

• Moving mass - Mms - 11.3 g

• Mechanical resistance - Rms - 1.18 kg/s

• Voice coil diameter - ø - 25 mm

• Voice coil winding height - 10.5 mm

• Max. linear excursion - Xmax - +/- 3.2 mm

Tweeter

• Impedance - Z - 4 Ω

• Resonance frequency - Fs - 1800 Hz

• Voice coil diameter - ø - 20 mm

Features

• Tweeter - Ultra compact, aluminum dome, neodymium magnet and FlexMount20

• Midbass - Paper with Cenosphere coating, ProConnect terminal and FlexMount165

• Crossover - Tweeter: 12 dB high-pass, protection and level adjustment - Midbass: 6 dB lowpass

Compatibility

• FlexMount20

• FlexMount165

• WireKits

Scope of delivery

• 2 x Tweeter Ci3 T20FM-AL MK2

• 2 x Midbass Ci3 W165FM-S3

• 2 x Crossover Ci3 FX-UNI.2

• 2 x Lowpass cable crossover Ci3 FX-WLP.2

• 2 x Tweeter mounting accessories

• 2 x COMPOSE Connect Kit

• 1 x Mounting material
