Special Order Only

Features

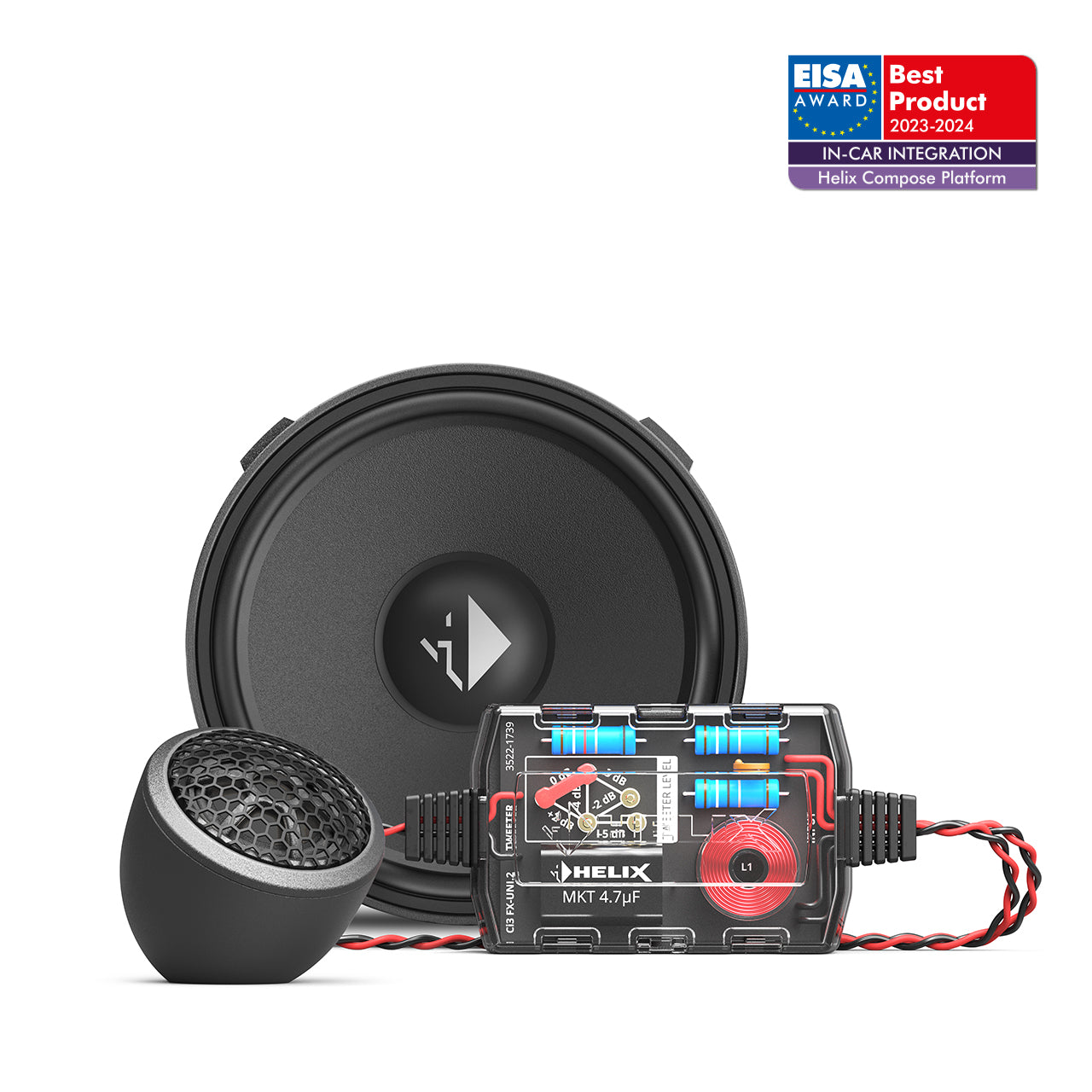

• 2-way performance speaker kit which combines outstanding sound quality with versatile physical integration options

• High efficiency and 3 Ohms technology for maximized power output of the amplifier

• Smart, automotive grade connectors for fail-safe and secure installation – COMPOSE Connect & FlexConnect

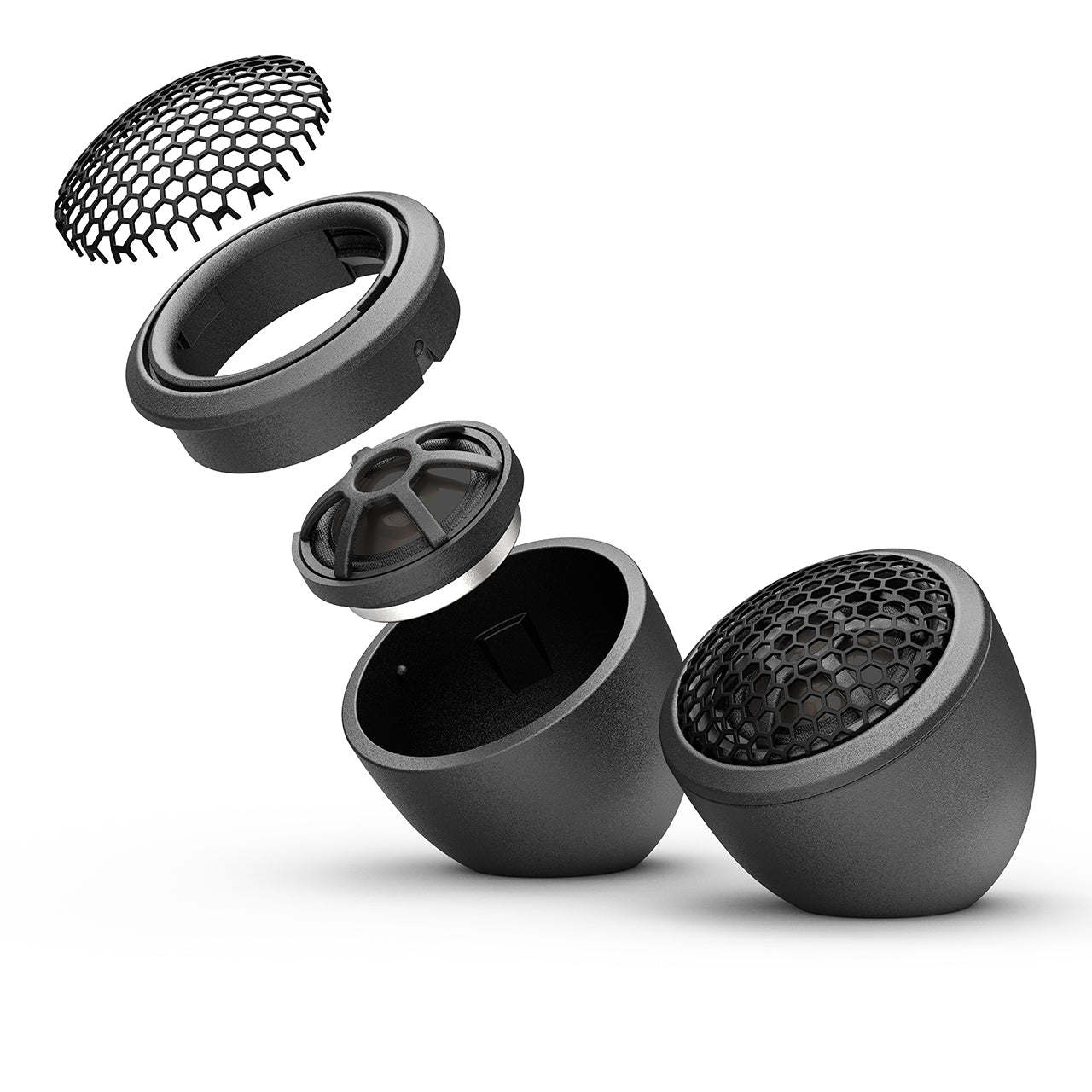

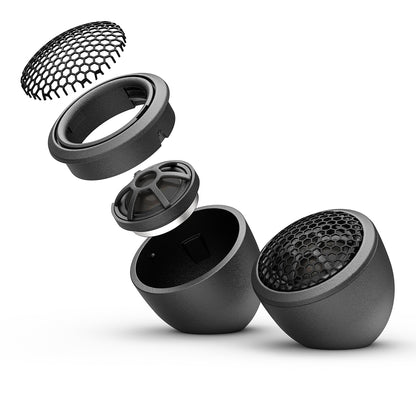

• Tweeter

• 0.75” / 20 mm performance tweeter with black aluminum dome for accurate, pure and detailed treble response

• High-quality aluminum dome with perfect balance of low weight and high rigidity – for natural brilliance and fine detail reproduction

• Refined highly efficient neodymium magnet for high magnetic flux linearity and optimized performance

• Compact design and various mounting options for numerous installation demands

• Mounting pods for flush mount and angle mount included in delivery

• Midrange

• 4" / 100 mm midrange with unique Cenosphere coated paper cone for precise and detailed sound reproduction

• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing

• Shallow neodymium magnet system for low installation depth and high efficiency

• Polyurethane dustcap for optimized frequency response in the upper midrange area

• Crossover

• Separate, high-grade crossover with compact dimensions for easy integration

• 6-stage tweeter level adjustment with integrated tweeter protection for optimized treble adaptation to mounting position

• Extensively fine-tuned – with 12 dB slope for the tweeter

• Designed for optionally available, car-specific WireKits which allow a non-destructive integration

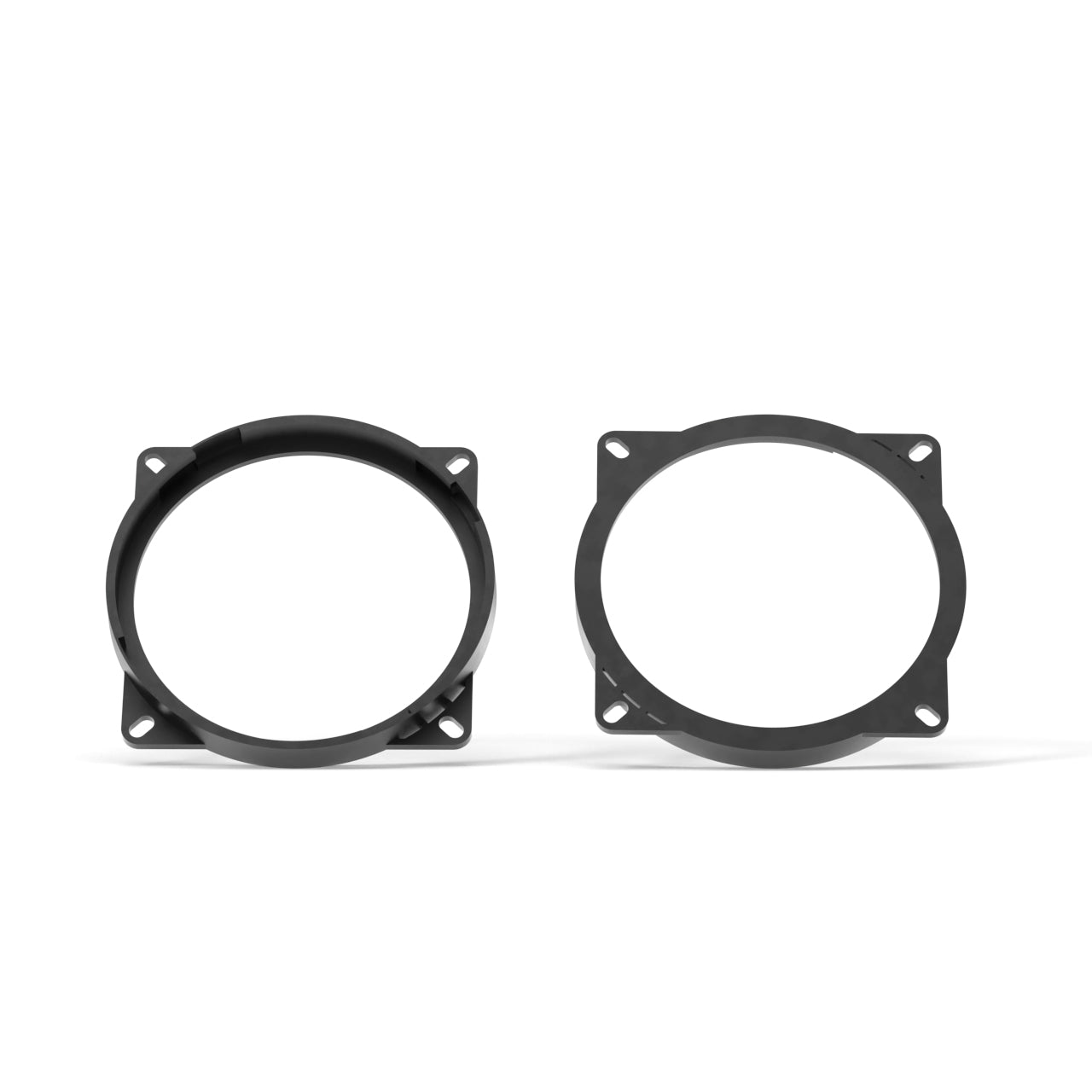

• Designed for the optionally available car-specific FlexMount100 & FlexMount20 adaptors which allow an acoustically optimized and professional integration in the original mounting locations of the vehicle

Technical data

• Power handling - 80w RMS

• Power Handling - 120w Peak

• Frequency response - 120 Hz - 25,000 Hz

• Impedance - Z - 3 Ω

• Sensitivity - SPL - 91 dB @ 2.83V / 1m - 87 dB @ 1W / 1m

• Outer diameter ø Tweeter - 32.0 mm / 1.26”

• Outer diameter ø Midrange - 98.0 mm / 3.86”

• Installation Diameter Tweeter - 32.0 mm / 1.26”

• Installation Diameter Midrange - 89.0 mm / 3.50”

• Installation Depth Tweeter - 9.8 mm / 0.39”

• Installation Depth Midrange - 30.0 mm / 1.18”

• Crossover Dimensions - 103.3 x 50.4 x 25.0 mm / 4.07 x 1.98 x 0.98”

Midrange

• Impedance - Z - 3 Ω

• DC resistance - Re - 3.0 Ω

• Resonance frequency - Fs - 146 Hz

• Mechanical Q factor - Qms - 4.49

• Electrical Q factor - Qes - 1.02

• Total Q factor - Qts - 0.83

• Compliance - Cms - 280 μm/N

• Equivalent air volume - Vas - 1.1 L

• Force factor - B*l - 3.4 Tm

• Cone area - Sd - 53 cm2

• Moving mass - Mms - 4.3 g

• Mechanical resistance - Rms - 0.87 kg/s

• Voice coil diameter - ø - 25 mm

• Voice coil winding height - 4.8 mm

• Max. linear excursion - Xmax - +/- 2.0 mm

Tweeter

• Impedance - Z - 4 Ω

• Resonance frequency - Fs - 1800 Hz

• Voice coil diameter - ø - 20 mm

Features

• Tweeter - Ultra compact, aluminum dome, neodymium magnet and FlexMount20

• Midrange - Paper with Cenosphere coating, FlexConnect terminal, neodymium magnet and FlexMount100

• Crossover - Tweeter: 12 dB highpass, protection and level adjustment

Compatibility

• FlexMount20

• FlexMount100

• FlexConnect inlays

Scope of delivery

• 2 x Tweeter Ci3 T20FM-AL MK2

• 2 x Midrange Ci3 M100FM-S3

• 2 x Crossover Ci3 FX-UNI.2

• 2 x Connection cable

• 2 x COMPOSE Connector Kit

• 2 x Tweeter mounting accessories

• 2 x Midrange mounting material

• 2 x FlexConnect inlay A

• 1 x Mounting material
