Special Order Only

Features

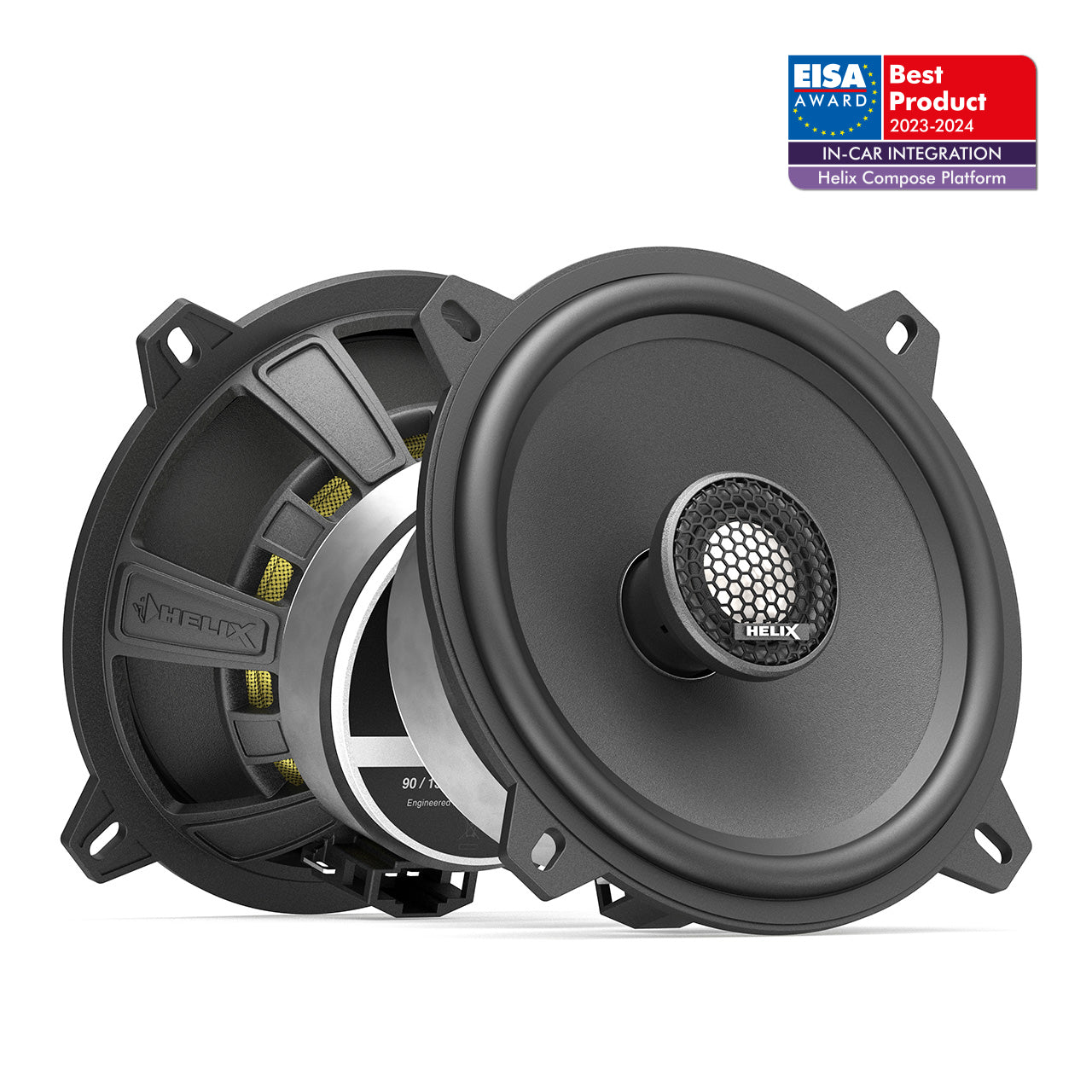

• 2-way performance coaxial speaker system which combines high efficiency with outstanding sound quality

• 3 Ohms technology for maximized power output of the amplifier

• Automotive grade ProConnect connection terminal allows the use of conventional speaker cables or a fast, secure and fail-safe connection via optionally available WireKits

Tweeter

• 0.75” / 20 mm tweeter with titanium dome for accurate and dynamic treble response

• Highly efficient neodymium magnet for high magnetic flux linearity

Midbass

• 5.25" / 130 mm midbass with unique Cenosphere coated paper cone for precise and detailed sound reproduction

• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing

• Powerful magnet system for high efficiency and optimum impulse response

Crossover

• Integrated with 6 dB slope

• Designed for optionally available, car-specific WireKits which allow a non-destructive integration

Technical data

• Power handling 90w RMS

• Power Handling - 135w Peak

• Frequency response - 80 Hz - 25,000 Hz

• Impedance - Z - 3 Ω

• Sensitivity - SPL - 92 dB @ 2.83V / 1m - 88 dB @ 1W / 1m

• Outer diameter ø - 130.0 mm / 5.12”

• Installation diameter ø - 116.5 mm / 4.59”

• Installation depth - 55.4 mm / 2.18”

Midbass

• Impedance - Z - 3 Ω

• DC resistance - Re - 3.0 Ω

• Resonance frequency - Fs - 92 Hz

• Mechanical Q factor - Qms - 2.76

• Electrical Q factor - Qes - 0.90

• Total Q factor - Qts - 0.68

• Compliance - Cms - 374 μm/N

• Equivalent air volume - Vas - 4.9 L

• Force factor - B*l - 3.8 Tm

• Cone area - Sd - 97 cm2

• Moving mass - Mms - 7.6 g

• Mechanical resistance - Rms - 1.60 kg/s

• Voice coil diameter ø - 25 mm

• Voice coil winding height - 10.5 mm

• Max. linear excursion - Xmax - +/- 3.2 mm

Tweeter

• Voice coil diameter ø - 20 mm

Features

• Tweeter - Titanium dome and neodymium magnet

• Midbass - Paper with Cenosphere coating and ProConnect terminal

• Crossover - Integrated, 6 dB highpass

Compatibility

• WireKits

Scope of delivery

• 2 x Ci3 C130.2-S3

• 1 x Mounting material
