Features

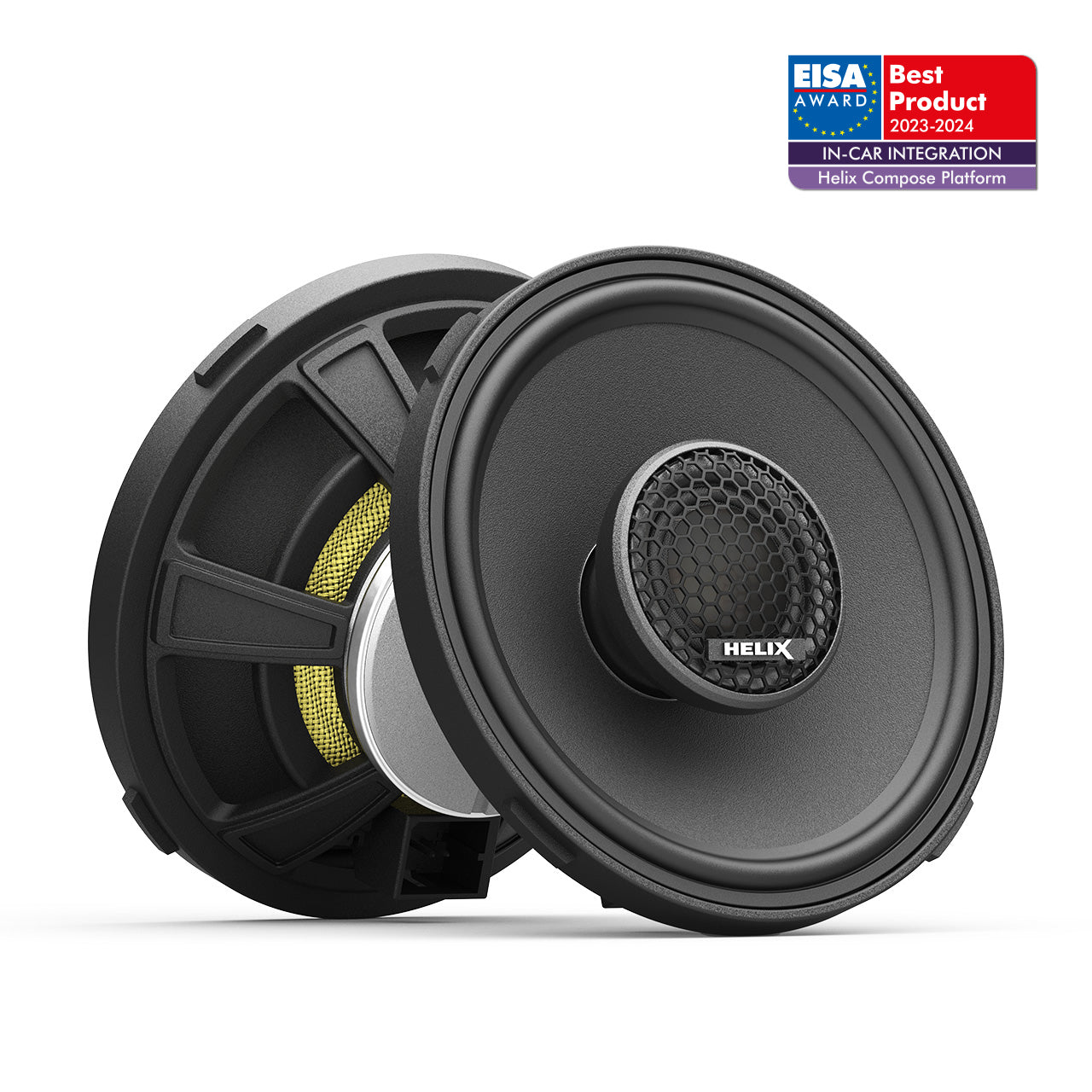

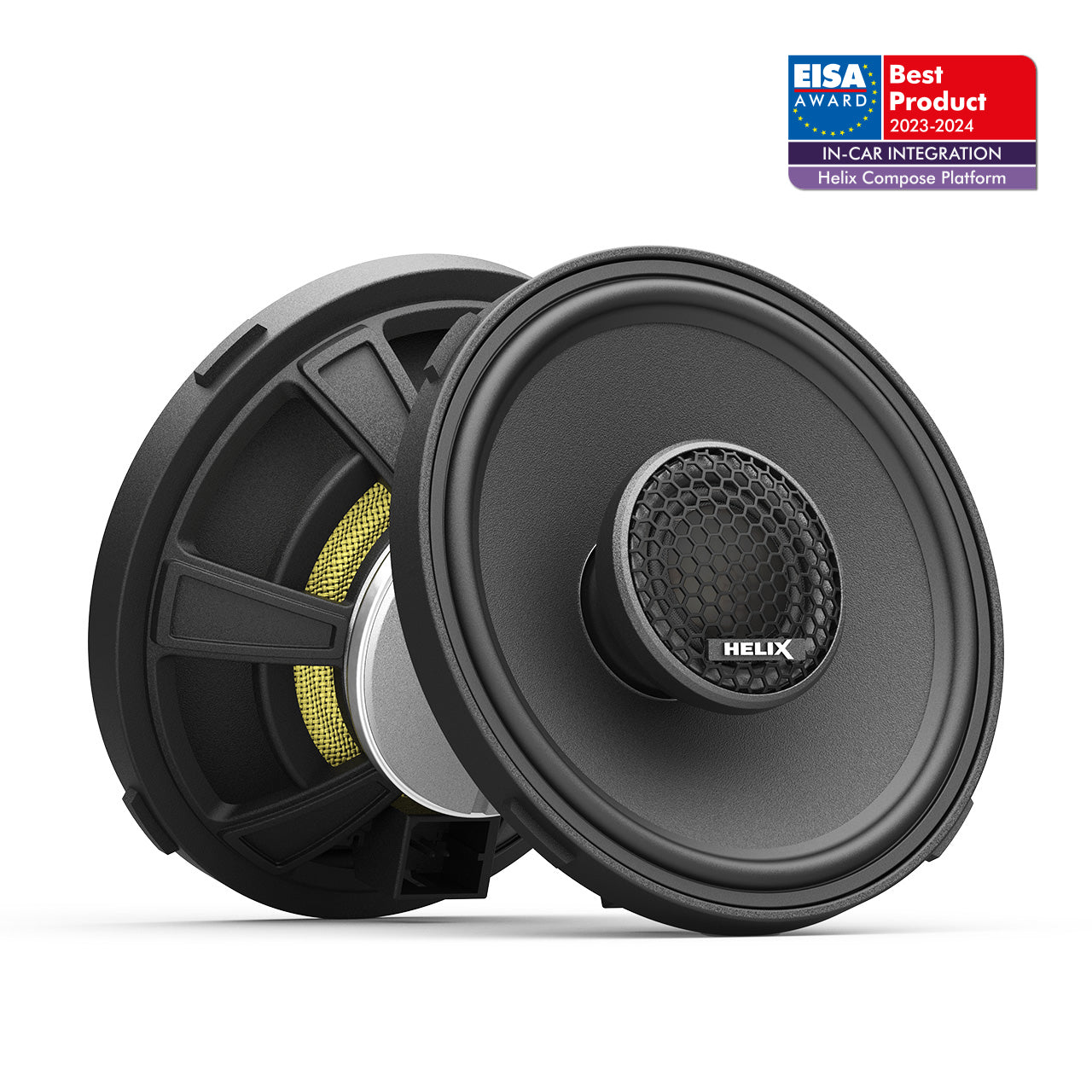

• 2-way performance coaxial speaker system which combines outstanding sound quality with versatile physical integration options

• High efficiency and 3 Ohms technology for maximized power output of the amplifier

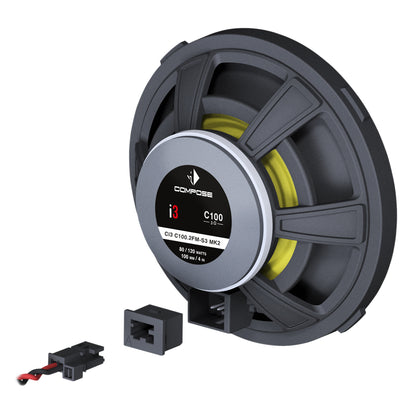

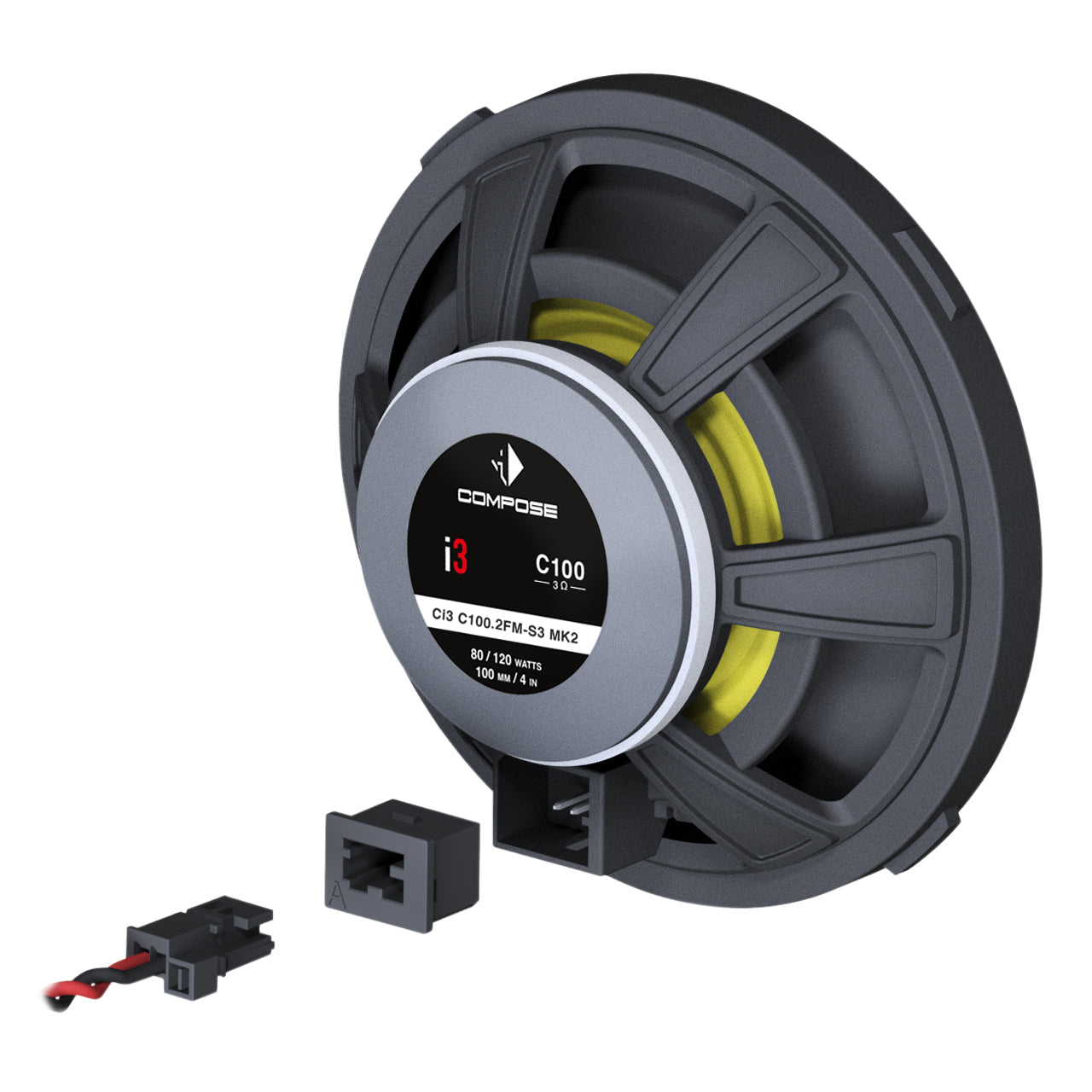

• Automotive grade FlexConnect terminal allow fast and secure connection as well as direct connection to the original cable harness due to optionally available car-specific adaptors

Tweeter

• 0.75” / 20 mm performance tweeter with black aluminum dome for accurate, pure and detailed treble response

• High-quality aluminum dome with perfect balance of low weight and high rigidity – for natural brilliance and fine detail reproduction

• Refined highly efficient neodymium magnet for high magnetic flux linearity and optimized performance

Midrange

• 4" / 100 mm midrange with unique Cenosphere coated paper cone for precise and detailed sound reproduction

• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing

• Shallow neodymium magnet system for low installation depth and high efficiency

Crossover

• Integrated with 6 dB slope

• Designed for the optionally available car-specific FlexMount100 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle

Technical data

• Power handling - 80w RMS

• Power Handling - 120w Peak

• Frequency response - 100 Hz - 25,000 Hz

• Impedance - Z - 3 Ω

• Sensitivity - SPL - 91 dB @ 2.83V / 1m - 87 dB @ 1W / 1m

• Outer diameter ø - 98.0 mm / 3.86”

• Installation diameter ø - 89.0 mm / 3.50”

• Installation depth - 30.0 mm / 1.18”

Midrange

• Impedance - Z - 3 Ω

• DC resistance - Re - 3.0 Ω

• Resonance frequency - Fs - 137 Hz

• Mechanical Q factor - Qms - 4.37

• Electrical Q factor - Qes - 0.78

• Total Q factor - Qts - 0.66

• Compliance - Cms - 456 μm/N

• Equivalent air volume - Vas - 2.1 L

• Force factor - B*l - 3.2 Tm

• Cone area - Sd - 57 cm2

• Moving mass - Mms - 3.0 g

• Mechanical resistance - Rms - 0.58 kg/s

• Voice coil diameter ø - 25 mm

• Voice coil winding height - 4.8 mm

• Max. linear excursion - Xmax - +/- 2.0 mm

Tweeter

• Voice coil diameter - ø - 20 mm

Features

• Tweeter - Aluminum dome and neodymium magnet

• Midbass - Paper with Cenosphere coating, FlexConnect terminal, neodymium magnet and FlexMount100

• Crossover - Integrated, 6 dB highpass

Compatibility

• FlexMount100

• FlexConnect inlays

Scope of delivery

• 2 x Ci3 C100.2FM-S3 MK2

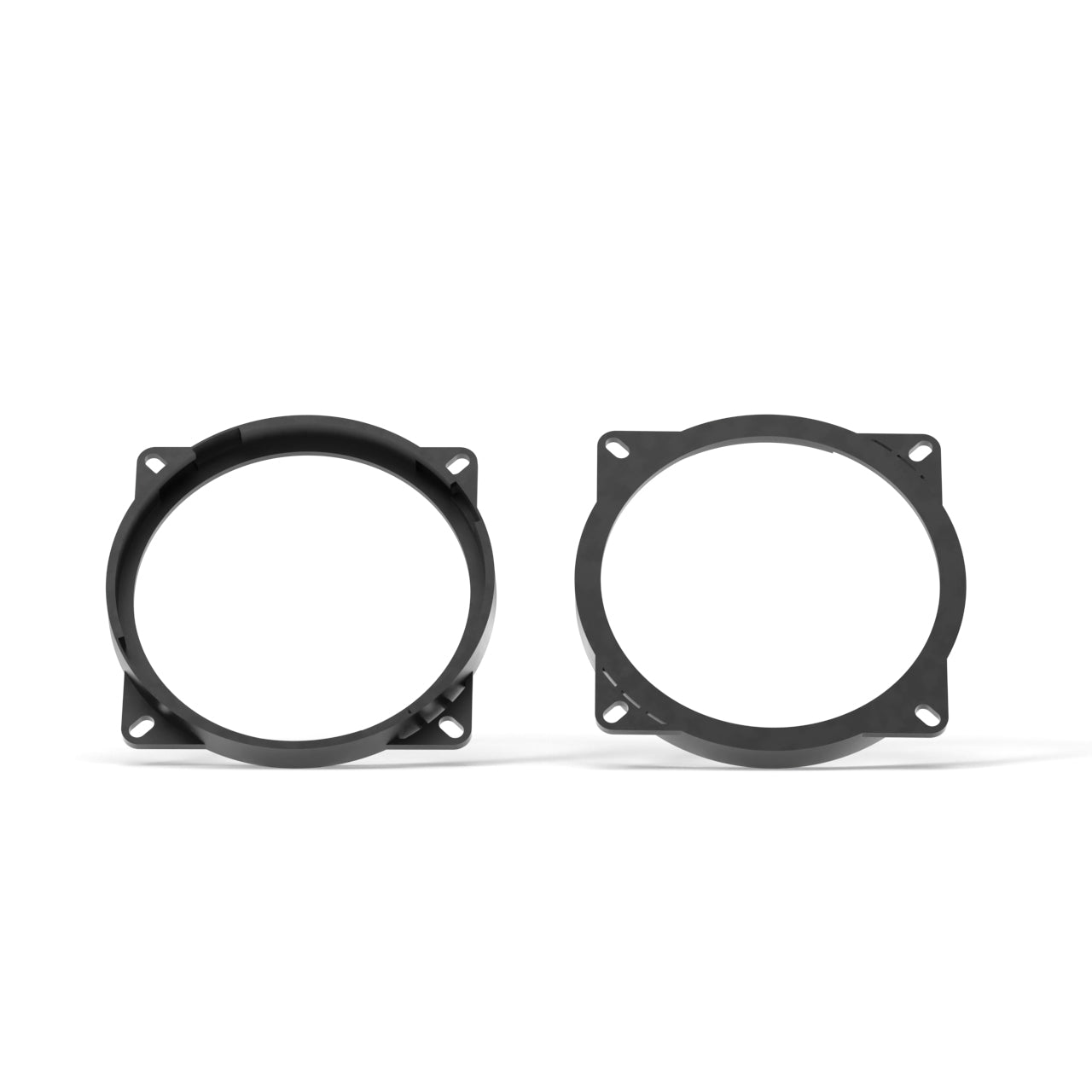

• 2 x Universal FlexMount100 (with standard 4-point mounting)

• 2 x FlexConnect inlay A

• 2 x Universal connection cable

• 1 x Mounting material
