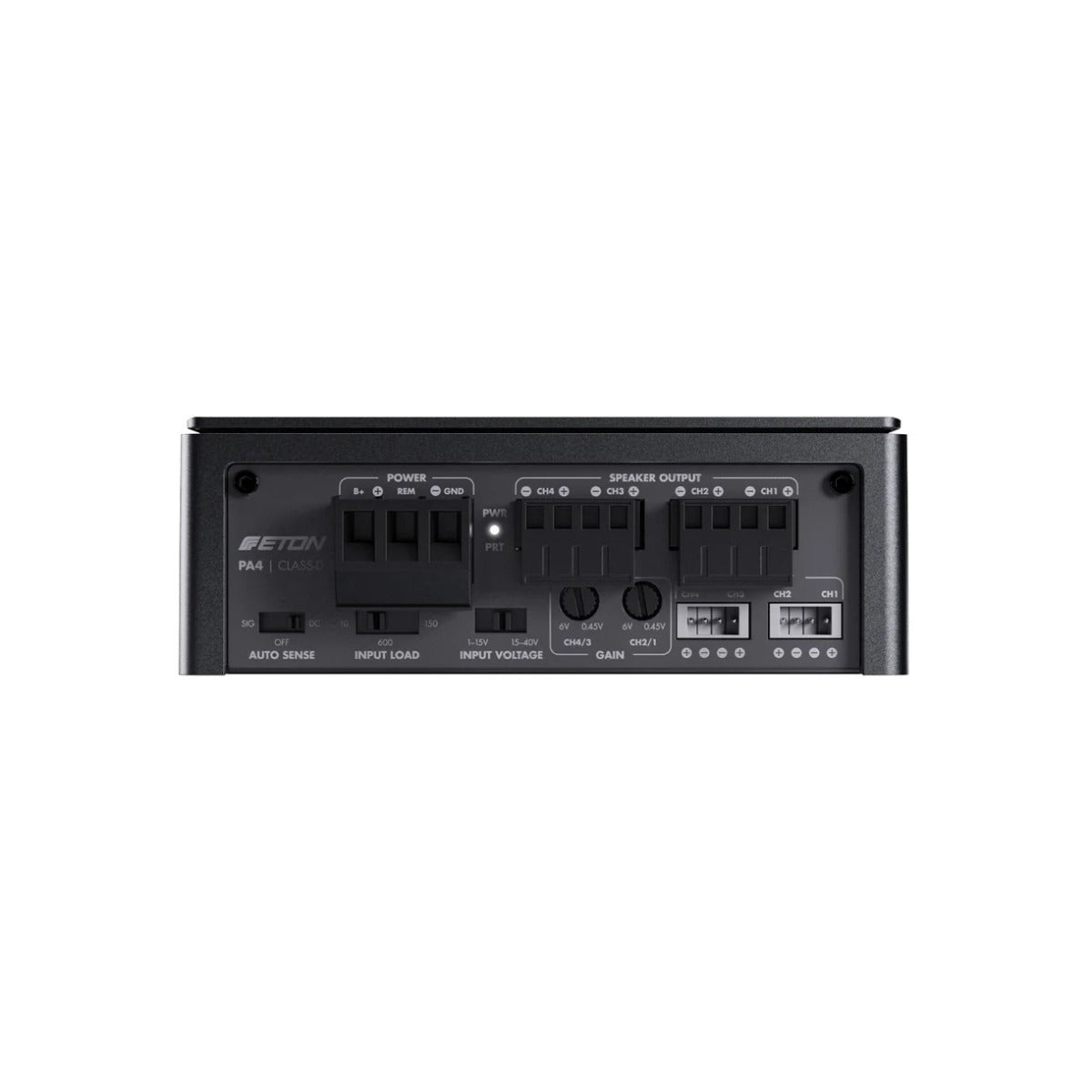

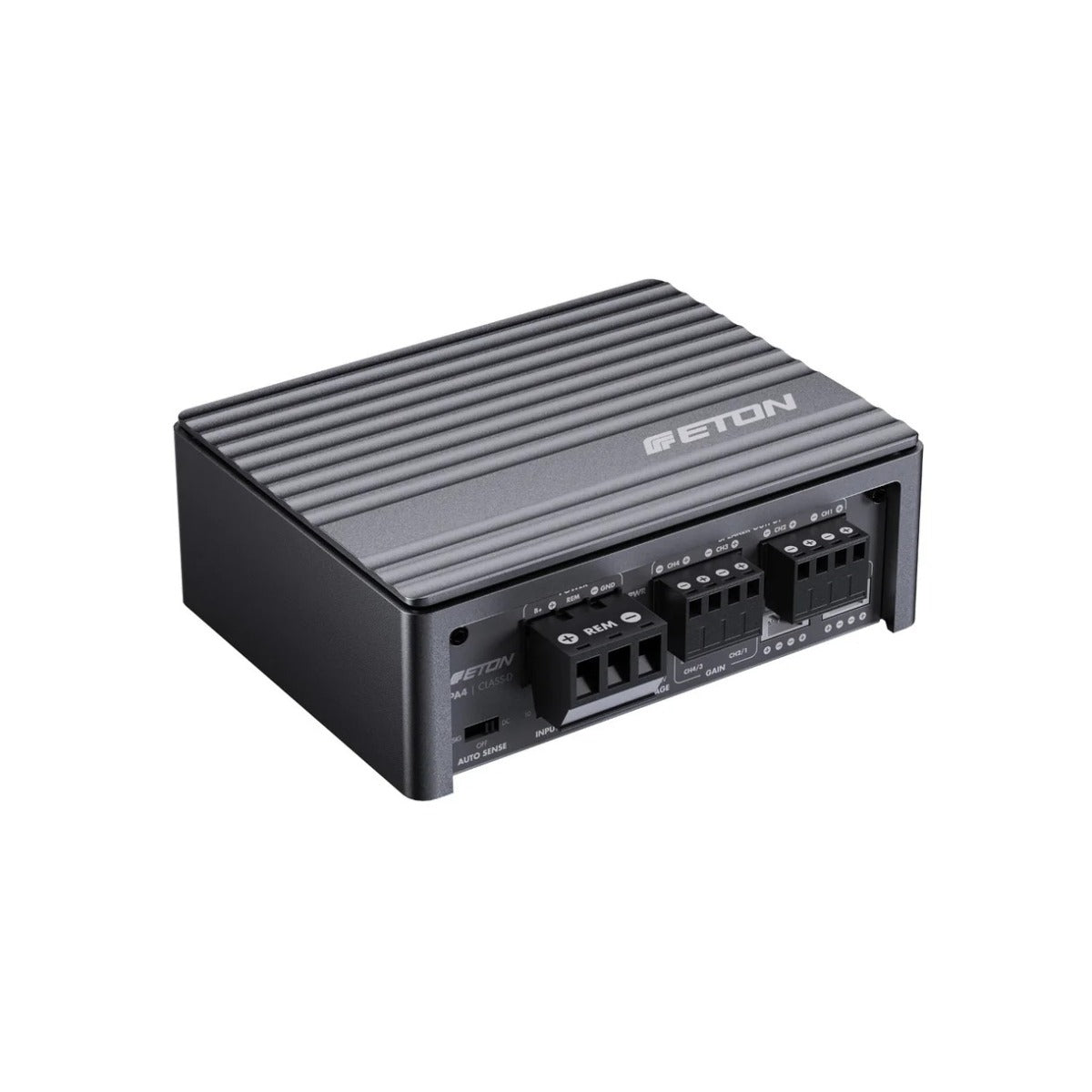

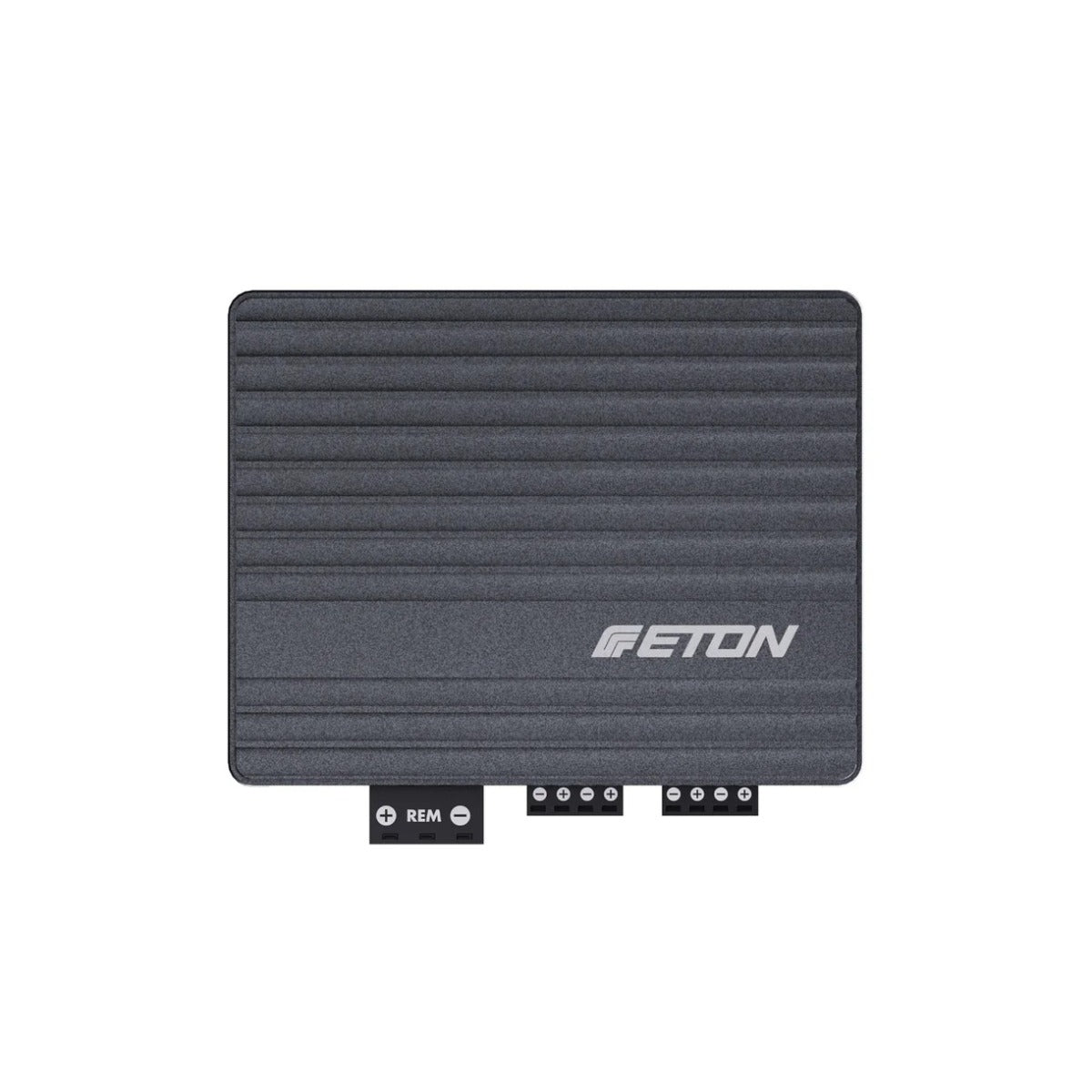

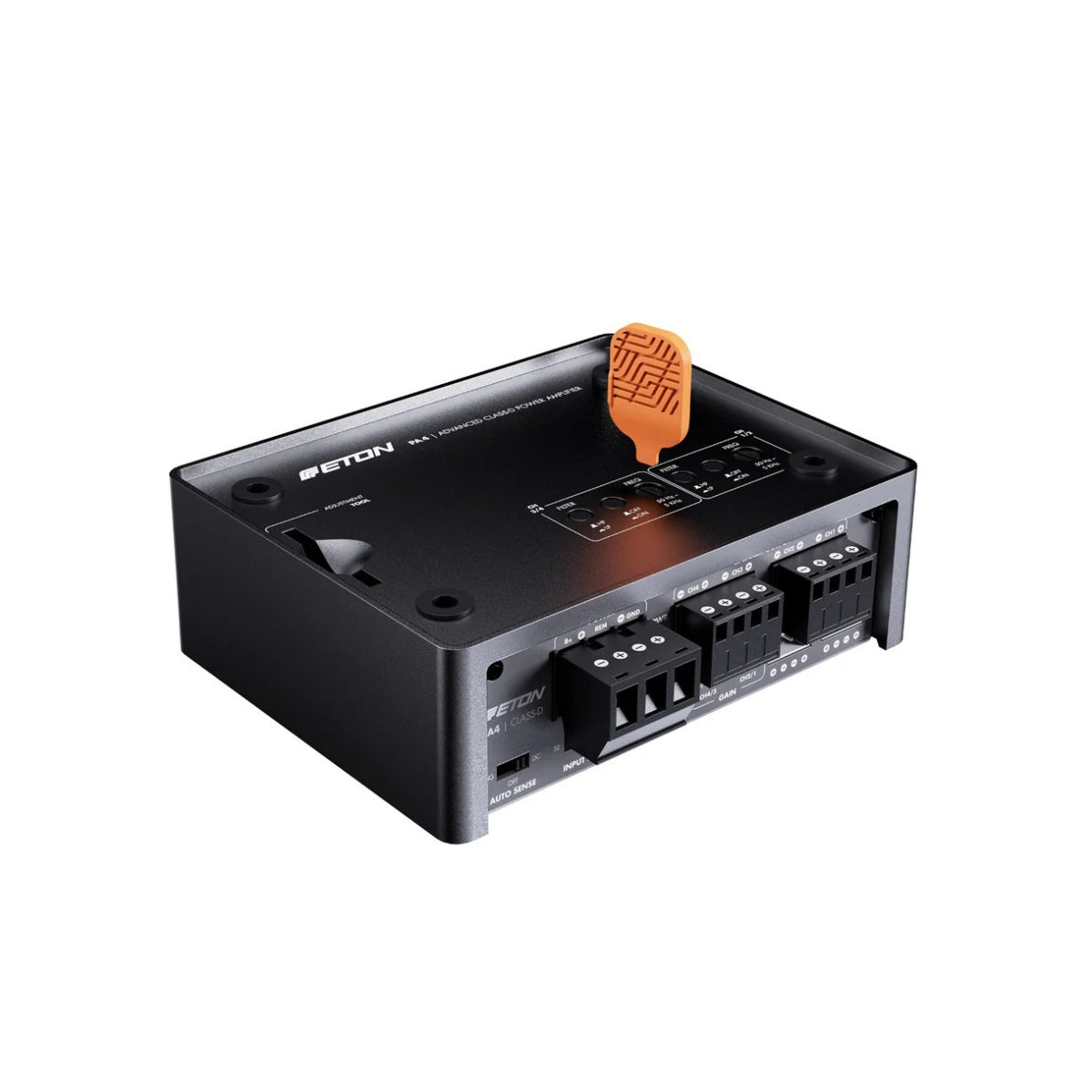

The ETON PA 4 is a 4 channel Advanced Class-D power amplifier with state-of-the-art amplifier technology and high-quality die-cast aluminum housing with removable cover.

Specifications

• Advanced Class-D power amplifier 4-channel with asymmetrical

• power management

• Power at 4 Ω CH1/2: 2 x 45 W (RMS)

• (High-Power) CH3/4: 2 x 80 W (RMS)

• Power at 2 Ω CH1/2: not supported

• CH3/4: 2 x 140 W (RMS)

• Power at 4 Ω bridged CH1/2: not supported

• CH3/4: 1 x 280 W (RMS)

• Signal-to-noise ratio 78 dB

• Damping factor @ 4 Ω >65

• THD+N THD+N 0.01% @ 10 W 1 kHz

• HPF / Highpass filter 50 Hz – 5 kHz / 12 dB

• LPF / Lowpass filter 50 Hz – 5 kHz / 12 dB

• Highlevel inputs 4-channel with10 / 150 / 600 Ω

• 1 – 15 V / 15 – 40 V

• Lowlevel inputs 2-channel „bridged mode“ /

• 4-channell

• Gain / level adjustment CH 1/2 6 V - 0.45 V

• Gain / level adjustment CH 3/4 6 V - 0.45 V

• Auto-turn on detection SIG / DC

• Suitable for vehicles with start stop function yes / 8,5 V – 15,5 V

• Recommended fuse 30 A

• Recommended power cable min. 12 AWG

• fine stranded copper wire

• Weight 0,68 kg

• Dimensions (LxWxH) in mm 128 x 100 x 45 mm

What's Included

• Eton PA 4 Amp

• Hi Level Input
