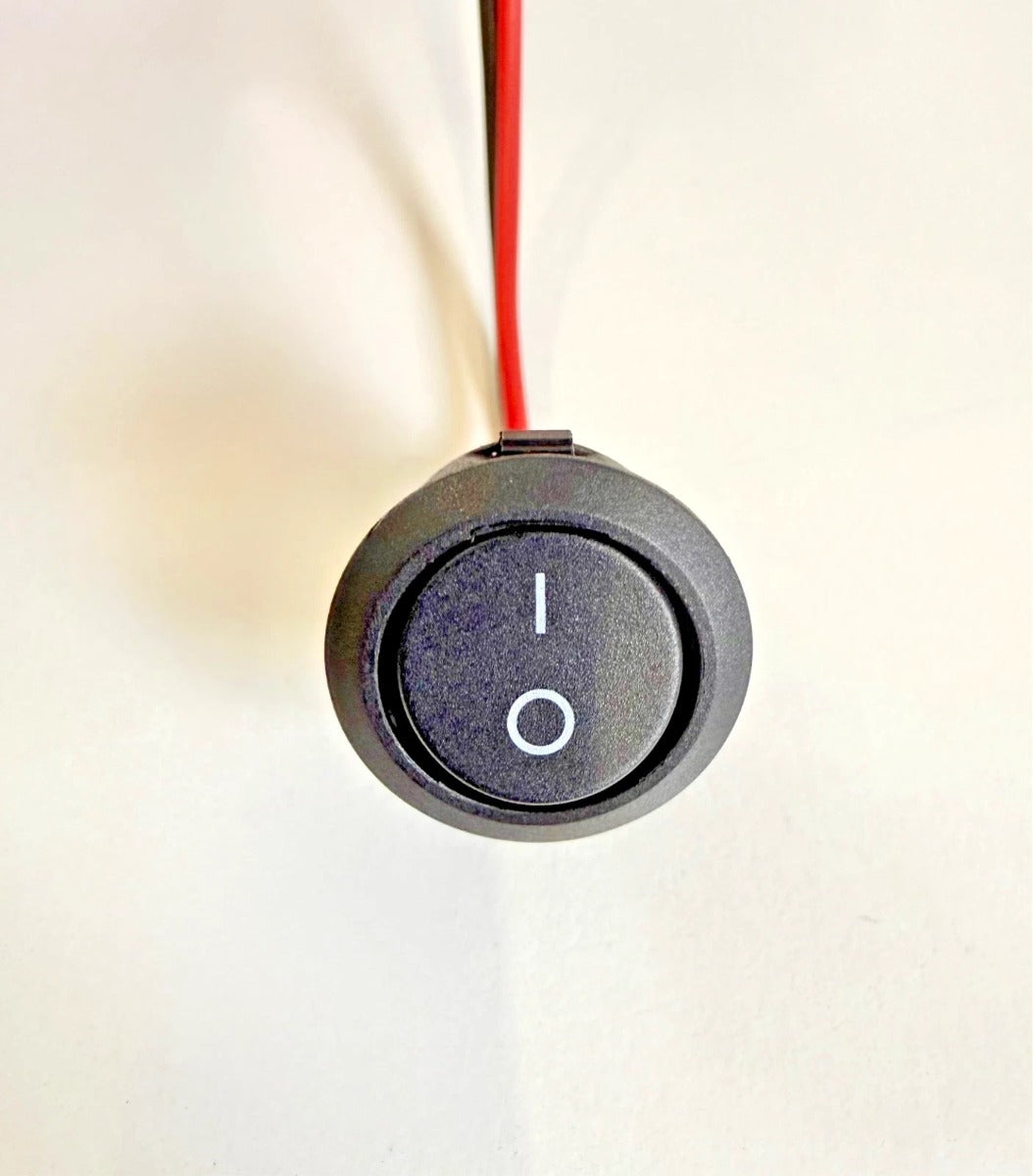

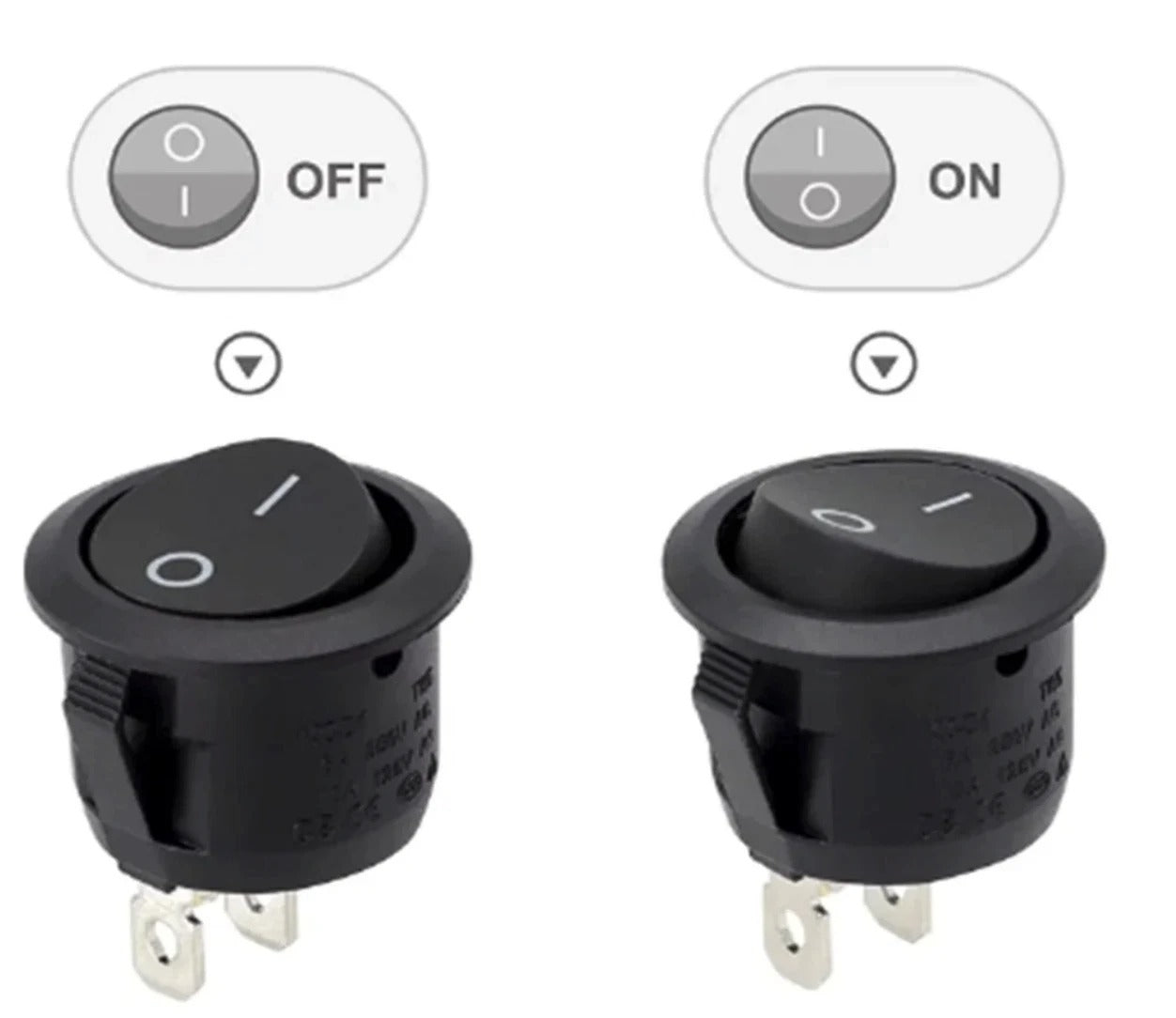

Mini 20mm round black on/off rocker switch with pre-wired 6A/250V 10A/125V AC 12V DC electrical switches.

Features

• Package: one black push button switch with pre-wired, color: black; size: 21x15mm; positions: 2 (on/off); Terminal: 2pin, soldered with 2 wires, easy to install, cost savings

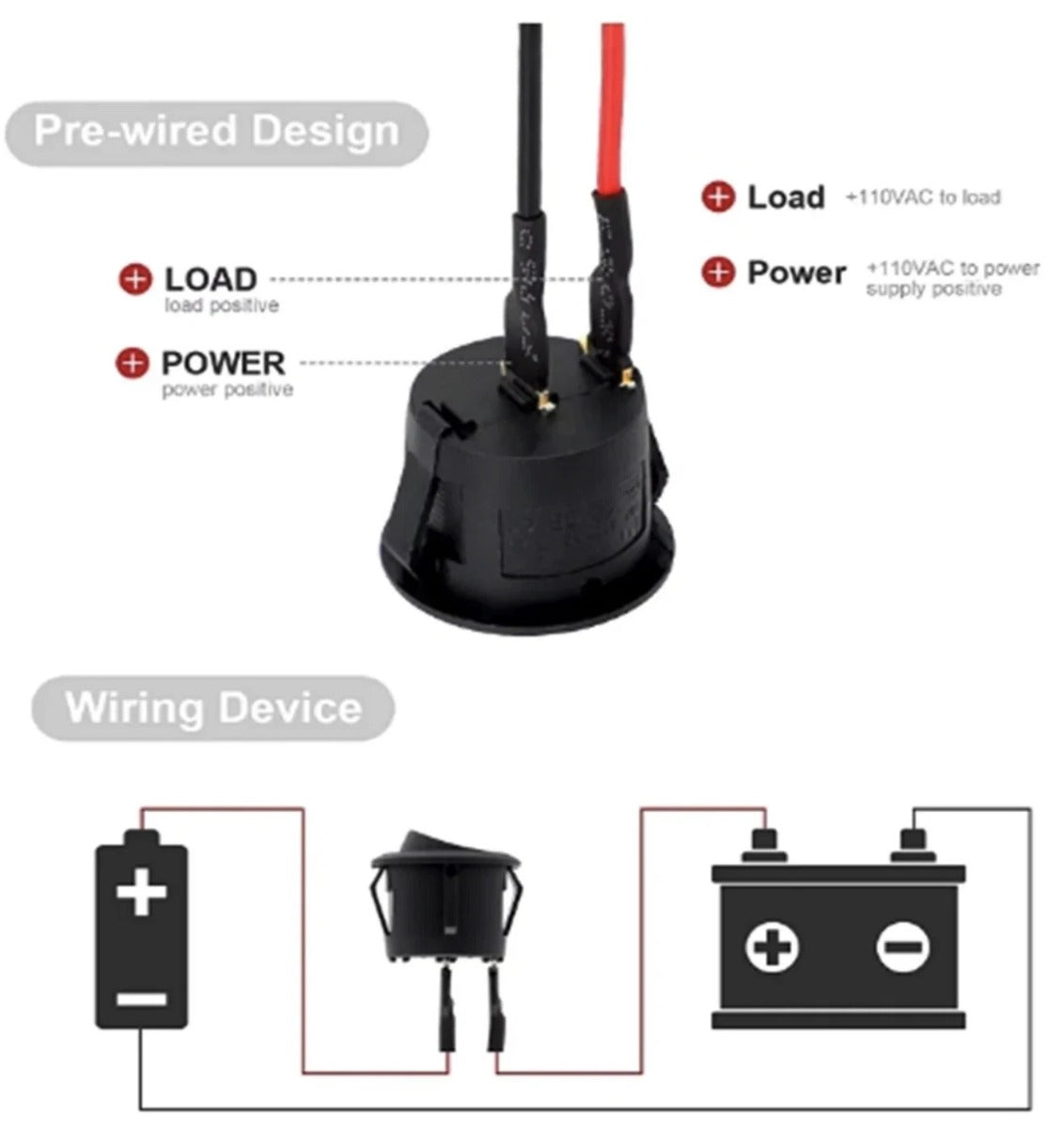

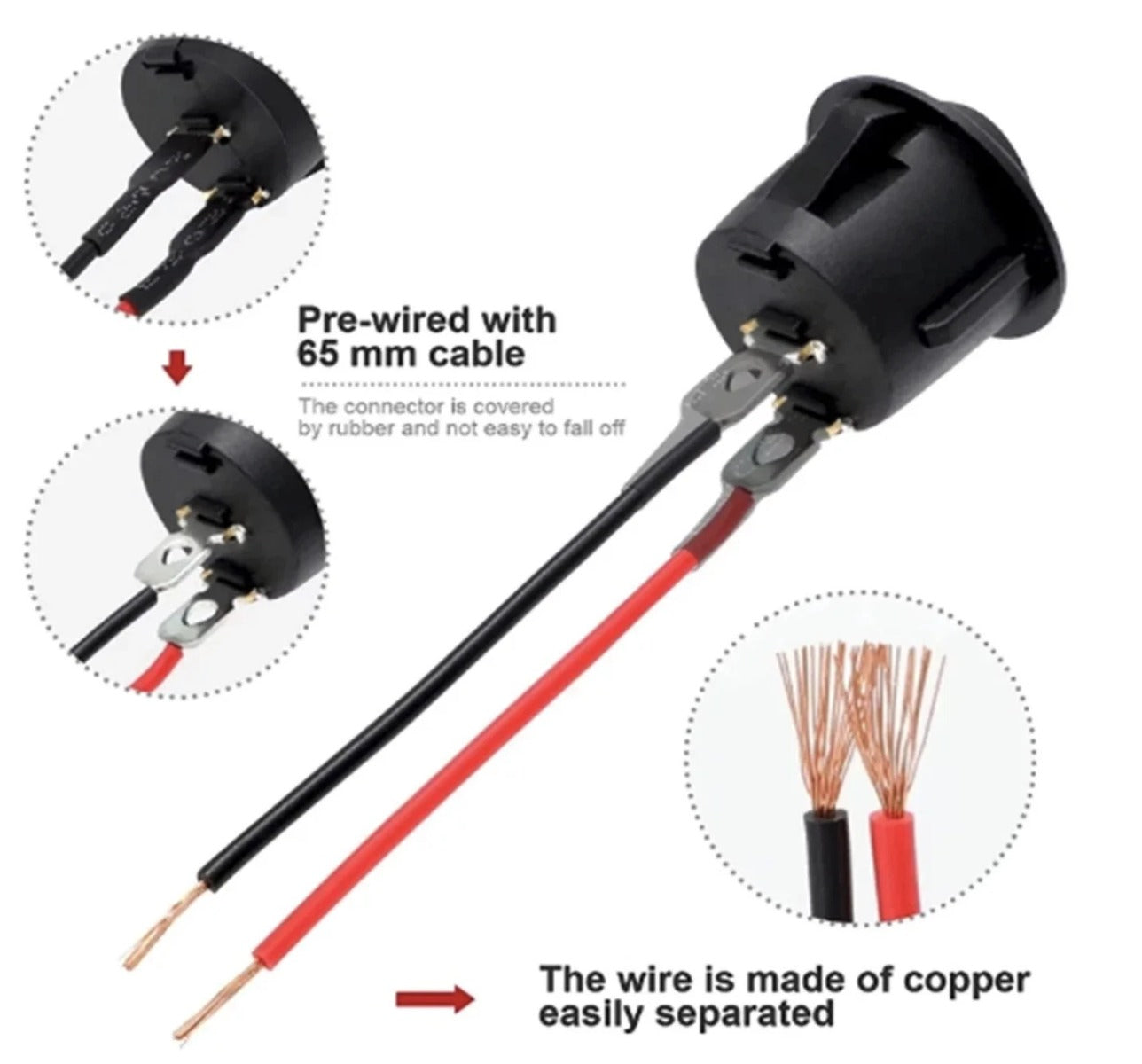

• Pre-wired Design: The rocker switch is pre-wired with 65mm cable. The connector is covered by rubber and not easy to fall off,Cable length & diameter:10cm/2.94" & 20mm/0.08"

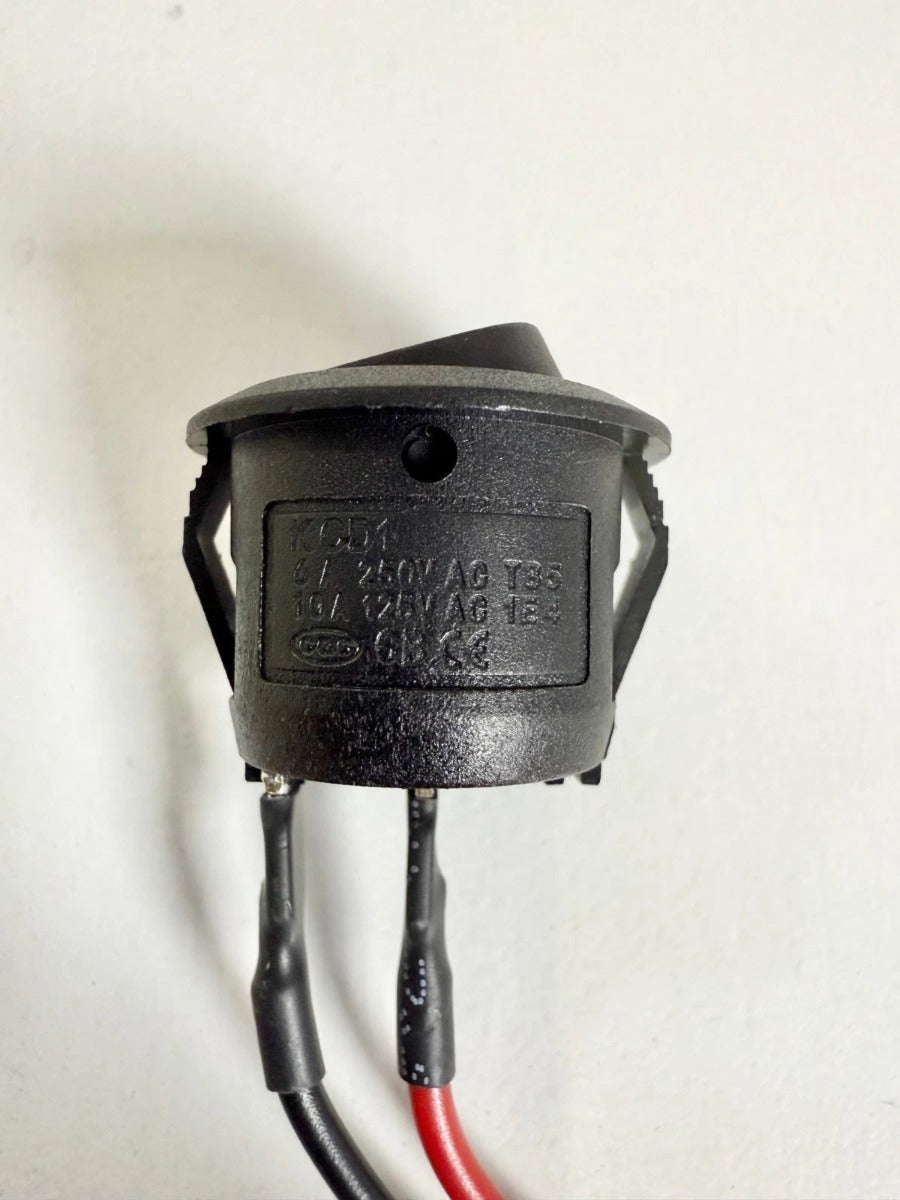

• Voltage & Current:AC 6A/250V 10A/125V Switching Life: 20000-40000 times,

• Snap-In Design: Snap in Design make the switch easy to install. Extruding the plastic part, then Push in to the Panel

• Material: plastic and metal,Every switch has passed the qualified test.

Specification

• Temperature: -25~85°C(258T85)

• Raing: 3A 250V AC

• Insulation Resistance: ≥100MΩ

• Contact Resistance: ≤0.03Ω

• Withstand Voltage: AC 150V(50Hz)/min

• Dielectric Voltage: ≥1500V AC/min
