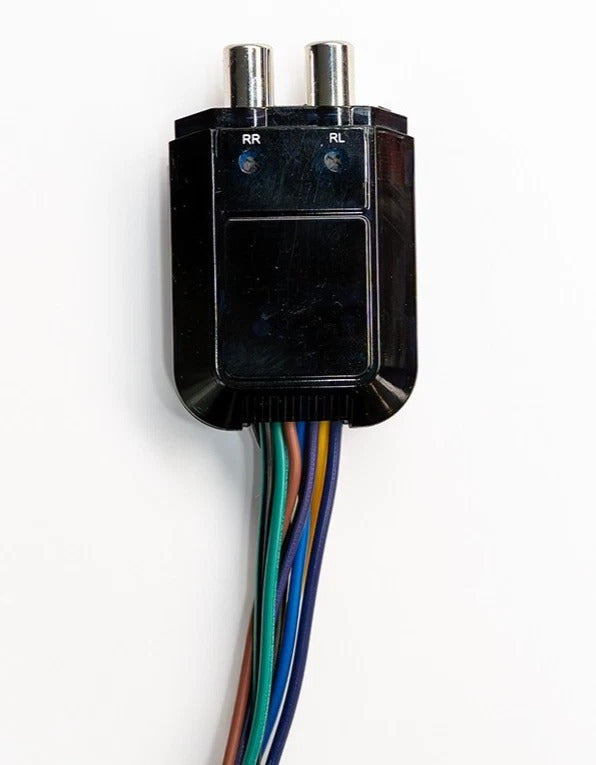

This Line Output Convertor provides the perfect solution for integrating your aftermarket amplifier with your Factory Fit / OEM headunit. Not only does it derive a low level RCA input for your amplifier from the speaker outputs of the headunit but thanks to auto sense technology it also provides a remote turn on for your amplifier. So there is no need to add a separate switch or locate an ignition switched +12 Volt supply in the vehicle.

What's Included

• 1 x Hi 2 Low Level Converter

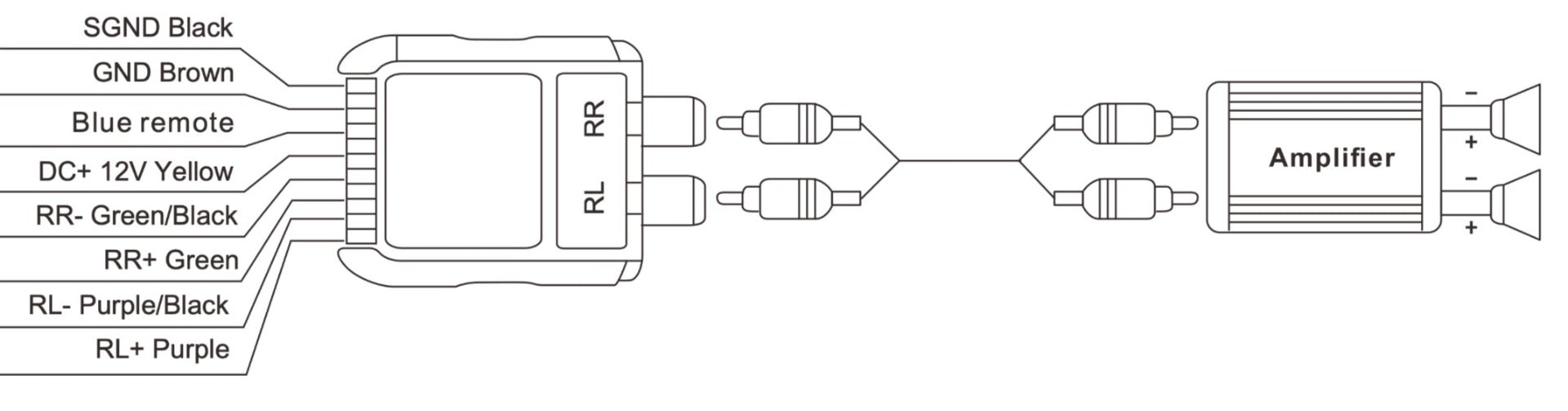

Wiring Configuration

• Purple Solid - Rear Left Positive
• Purple with Black Stripe - Rear Left Negative
• Green Solid - Rear Right Positive
• Green with Black Stripe - Rear Right Negative
• Yellow - DC+ 12V
• Blue - Remote Output To Amplifier
• Brown - Ground
• Black - Signal Ground
