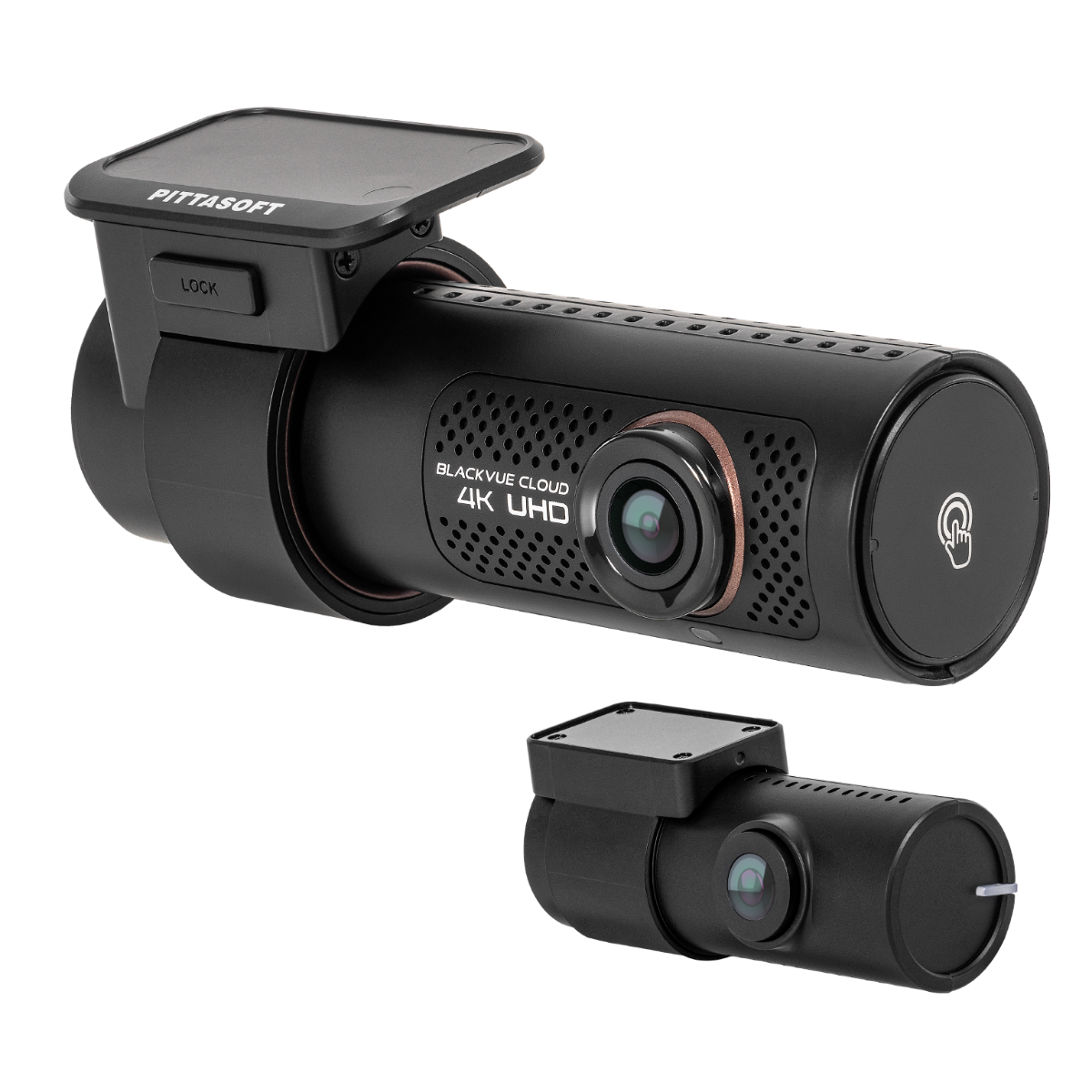

The DR970X-2CH has an ultra-wide 155° viewing angle, broadcast standard HEVC video compression, dual-band 2.4-5GHz Wi-Fi and Night Vision courtesy of its 8-megapixel CMOS camera sensor. The DR970X-2CH is also compatible with BlackVue Cloud – a unique suite of LIVE app-based features that remotely connecting you with your vehicle, providing additional functionality including Live View, Video Backup, Realtime Tracking and Emergency Notifications.

The front camera features a 8.0 MP sensor and ultra-wide 155° viewing angle to take full advantage of the 4K UHD resolution – four times as many pixels as Full HD. The rear camera includes SONY’s remarkable STARVIS technology, recording Full HD video at 139 degrees with outstanding low-light sensitivity.

Specifications

• Model Name - DR970X-2CH

• Colour - Front: Black / Rear: Black

• Size - Front: Width 118.5 mm x Height 36 mm / Rear: Width 67.4 mm x Height 25 mm

• Weight - Front: 93g / Rear: 25g

• Memory - microSD Card (64 GB / 128 GB / 256GB)

• Recording Modes - Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected)

• * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.

• Camera - Front: 8-Megapixel CMOS Sensor / Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 megapixels)

• Viewing Angle - Front: Diagonal 155°, Horizontal 136°, Vertical 77° / Rear: Diagonal 139°, Horizontal 116°, Vertical 61°

• Resolution/Frame Rate - Front: 4K UHD (3840 x 2160) @30fps (Extreme) / Rear: Full HD (1920 x 1080) @30fps, * Frame rate may vary during Wi-Fi streaming

• Video Codec - H.264 (AVC)

• Image Quality - Highest (Extreme): 25 + 10 Mbps / Highest: 12 + 10 Mbps / High: 10 + 8 Mbps / Normal: 8 + 6 Mbps

• Video Compression Mode - MP4

• Wi-Fi - Built-in (802.11 a.b.g.n.ac)

• GPS - Built-in (Dual Band: GPS, GLONASS)

• Bluetooth - Built-in (V2.1 + EDR / 4.2)

• LTE - External

• Microphone - Built-in

• Speaker (Voice Guidance) - Built-in

• LED Indicators - Front: Recording LED, GPS/BT LED, LTE/Wi-Fi LED, Front Security LED / Rear: Rear Security LED / Side: Proximity Sensing Indicate LED

• Button - Wi-Fi button: * Press once to turn on/off Wi-Fi.

• Proximity sensor - Touching the proximity sensor turns on/off audio recording or triggers

• manual recording depending on the firmware settings.

• Sensor - 3-Axis Acceleration Sensor

• Backup Battery - Built-in super capacitor

• Input Power - DC 12V-24V (DC Plug (Ø3.5 x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC)

• Power Consumption:

• Normal Mode (WIFI on / GPS On / 2CH): 430mA / hour

• Normal Mode (WIFI Off / GPS On / 2CH): 400mA / hour

• Parking Mode (WIFI On / GPS Off / 2CH): 392mA / hour

• Parking Mode (WIFI Off / GPS Off / 2CH): 330mA / hour

• * Actual power consumption may vary depending on use conditions and environment

• Operation Temperature - -20 °C ~ +80 °C (-4 °F ~ +176 °F)

• Storage Temperature -  -20 °C ~ +90 °C (-4 °F ~ +194 °F )

• High Temperature Cut-Off - Approx. +85 °C (185 °F)

• Certifications - Front: FCC, CE, UKCA, RoHS, Telec, WEEE, ISED / Rear: FCC, CE, UKCA, RoHS, WEEE

• Software - BlackVue Viewer * Windows XP or higher and Mac Yosemite OS X (10.10) or higher

• Application - BlackVue Application (Android 4.4.2 or higher, iOS 9.0 or higher)
