Thanks to the BlackVue app and the inclusion of Wi-Fi functionality, connecting to the DR590X-2CH from a smartphone or tablet is simple, making setup and accessing video files an easy process.

Video footage can also be viewed on any Windows PC or Apple Mac computer using the supplied BlackVue Viewer application. Lastly the DR590X-2CH’s compact form factor, stealth styling and discreet mounting position behind the rear-view mirror, mean it’s barely noticeable from outside of the vehicle.

With Full HD 1080p performance front and rear, the DR590X-2CH provides class-leading protection for your vehicle by recording fluid 30 frames per second video footage via an ultra-wide lens with a 139° viewing angle. A Sony STARVIS image sensor ensures the best possible image quality under any lighting conditions. GPS logging is available by adding the optional DR590X GPS Antenna.

Specification:

• Channels 2CH
• Highlights Full HD (Front + Rear), Wi-Fi, External GPS, Sony Sensor
• Product Dimensions Front: W 111.8 mm (4.40″) x H 34 mm (1.34″) / 87.8 (3.10 oz), Rear: W 67.4 mm (2.55″) x H 25 mm (0.98″) / 20.3 g (0.72 oz)
• Rear Camera Connection Analog cable
• Memory Support microSD card up to 256GB
• Recording Modes - Normal, Event (Impact Detection / Speed Limit), Parking Mode (Motion + Impact Detection)
• Parking Mode YES (with optional 3-wire hardwiring cable)
• Parking Mode Event Voice Notifications YES
• Imaging Sensor Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP), Rear: CMOS Sensor (Approx. 2MP)
• Viewing Angle Front: Diagonal 139°, Horizontal 116°, Vertical 61°
• Rear: Diagonal 136.8°, Horizontal 111.3°, Vertical 57.5°
• Resolution Frame Rate Front / Rear Full HD @30fps – Full HD @30fps * Frame rate may vary during Wi-Fi streaming.
• Video Codec H.264 (AVC)
• Image Quality and Bitrate Front/Rear Highest: 12+10 Mbps, High: 10+8 Mbps, Normal: 8+6 Mbps
• Format Free YES (Adaptive)
• Event File Overwrite Protection YES
• SD Card Failure Alert YES
• Scheduled Reboot YES
• Video File Extension MP4
• Wi-Fi Built-in (802.11 b.g.n)
• GPS External (Optional – Dual Band: GPS, GLONASS)
• Microphone Built-in
• Speaker Built-in
• Impact Sensor 3-Axis Acceleration Sensor

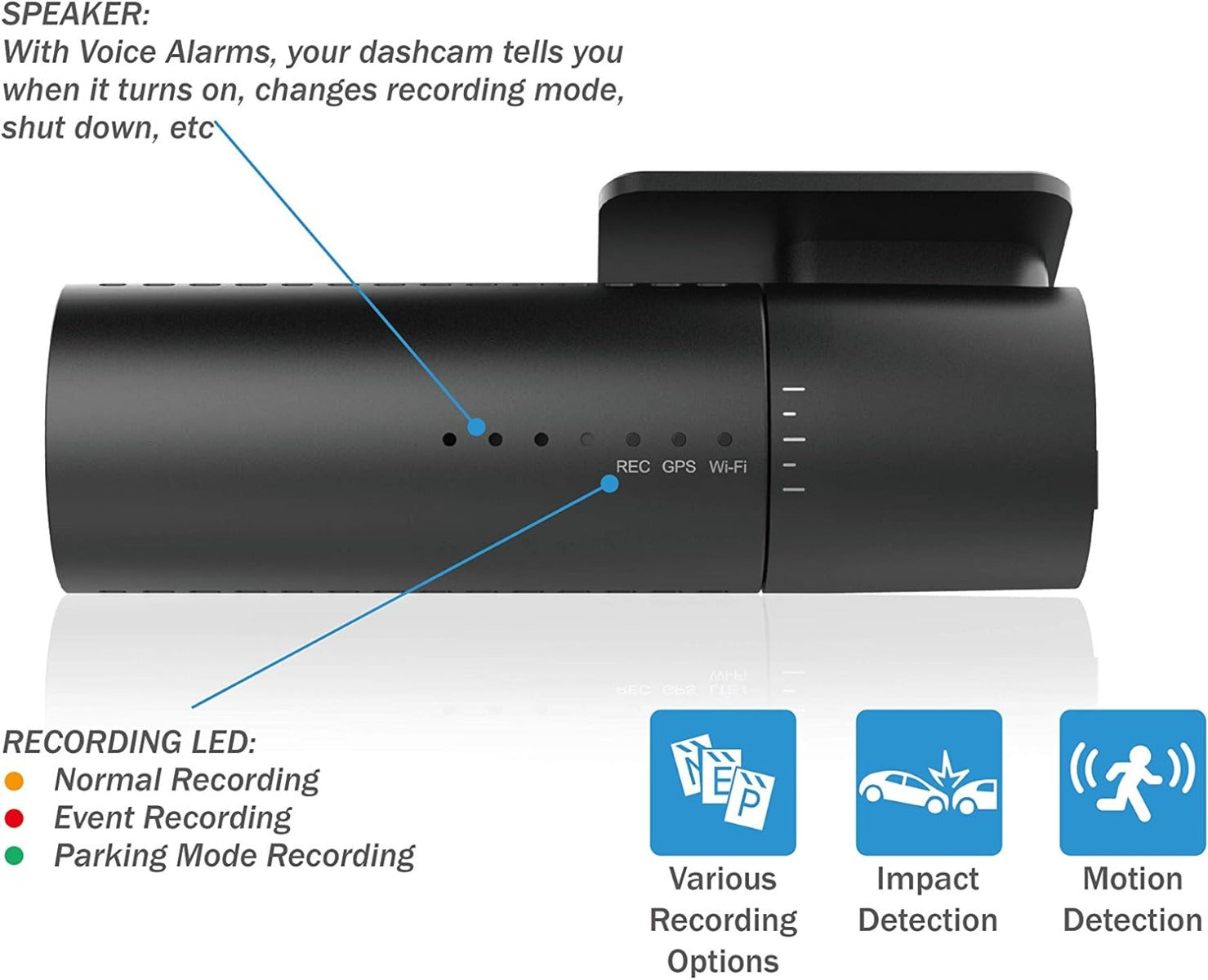

• LED Indicators Front: Recording LED, GPS LED, Wi-Fi LED, Front Security LED
• Rear: Rear Security LED

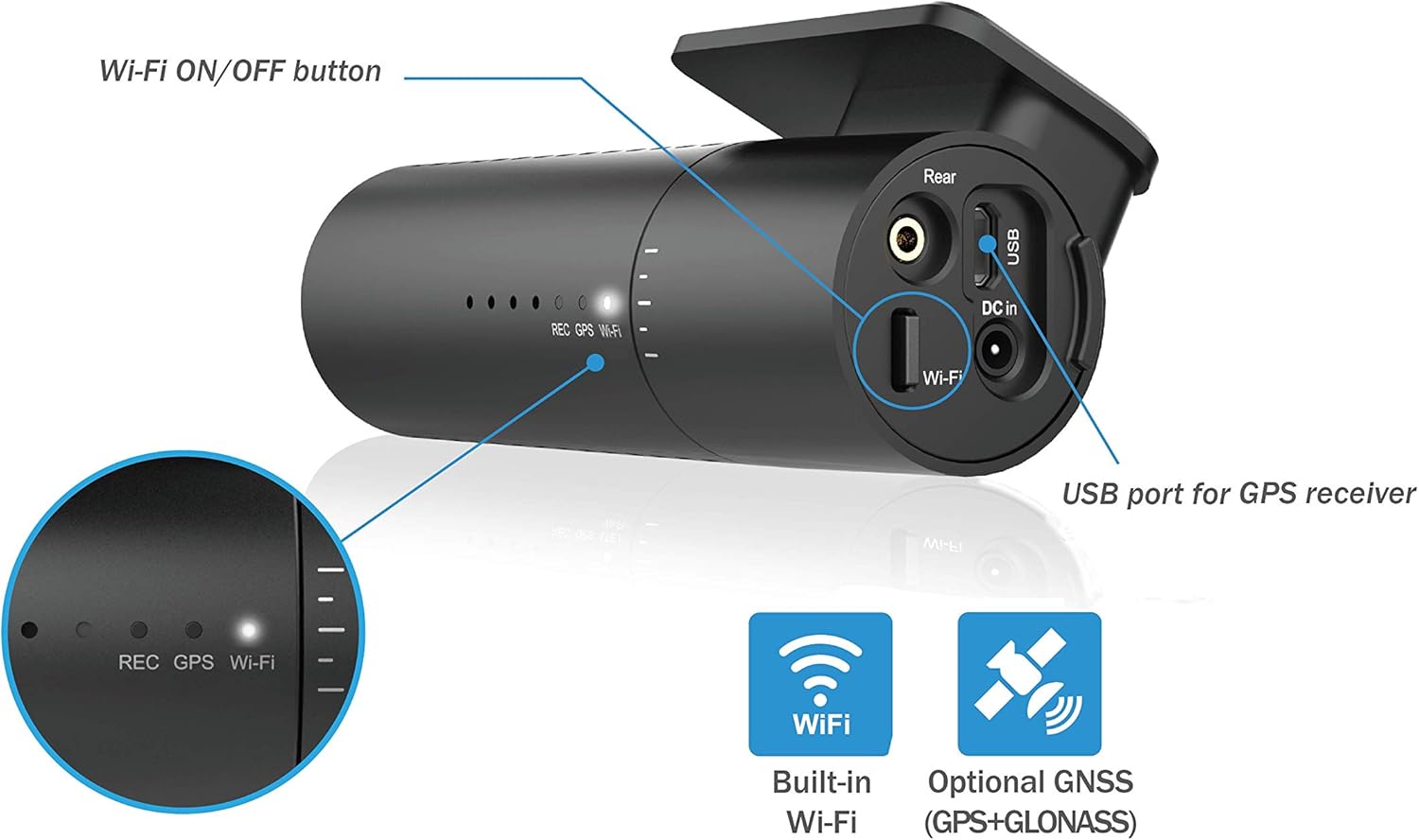

• Button: Wi-Fi ON/OFF
• Operation Temperature -20℃ – 70℃ (-4°F – 158°F)
• Storage Temperature -20℃ – 80℃ (-4°F – 176°F)
• High Temp Cut Off Approx. 70℃ (158°F)
• Backup Battery Built-in supercapacitor
• Input Power DC 12V-24V (DC Plug (Ø3.5 x Ø1.1))
• Power Consumption Hour
• Normal Mode (WiFi On/GPS On): 370mA/hour
• Normal Mode (WiFi Off/GPS On): 330mA/hour
• Parking Mode (WiFi On/GPS Off): 340mA/hour
• Parking Mode (WiFi Off/GPS Off): 300mA/hour * Actual power consumption may vary depending on use conditions and environment.
• Certifications Front: FCC, CE, UKCA, RoHS, Telec, WEEE, IC, Rear: FCC, CE, UKCA, RoHS, WEEE
• Software BlackVue Viewer * Windows 7 or higher and Mac Yosemite OS X (10.10) or higher
• Application BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher)
• Adaptive Format-Free File Management System
