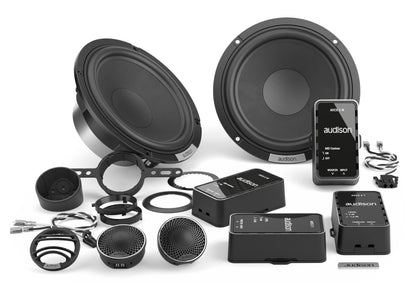

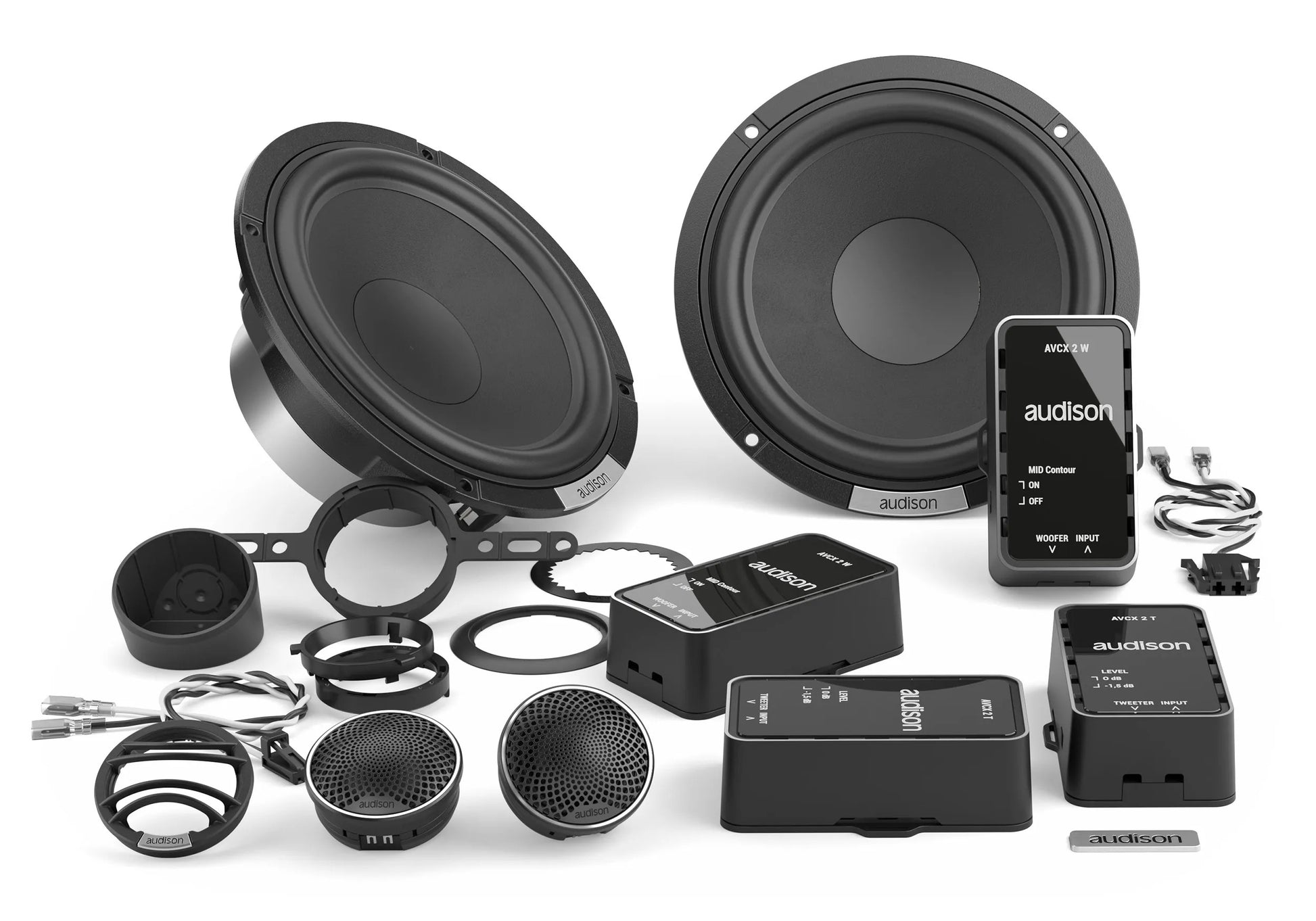

The Audison VOCE II AVK 6 S II system, equipped with the high-power AV 6.5 S II woofer and Hi-Res Audio certified AV 1.0 II tweeter, delivers superb performance. The integration of AVCX 2 W and AVCX 2 T crossovers simplifies installation while enabling advanced sound tuning, including bi-amplification and meticulous adjustments for tweeter level and mid contour. These crossovers, built with high-quality components, ensure a harmoniously balanced audio experience, enhancing durability and clarity. This setup achieves seamless integration and superior sound customization, making it an ideal solution for sophisticated car audio upgrades.

Technical Specs LF

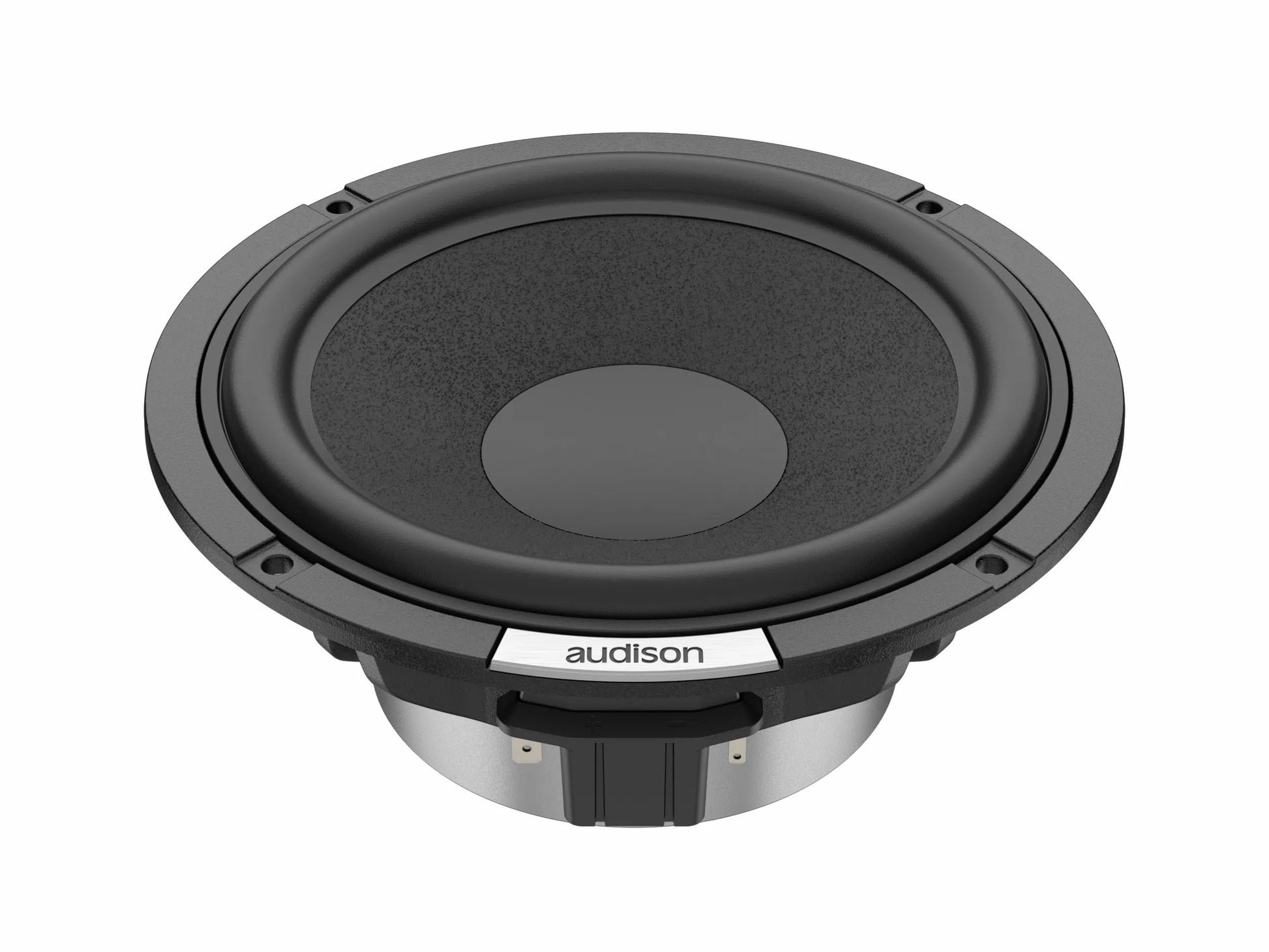

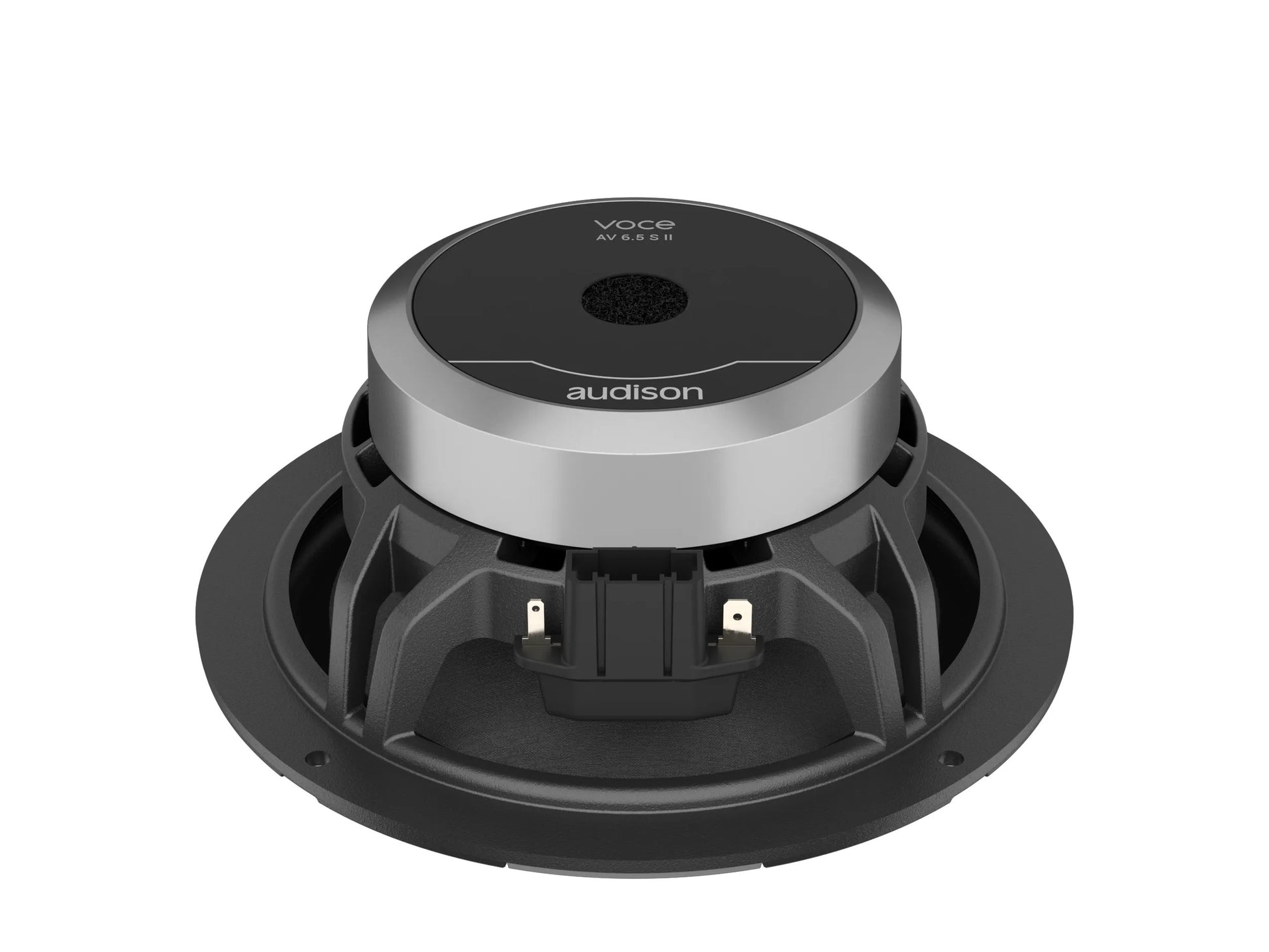

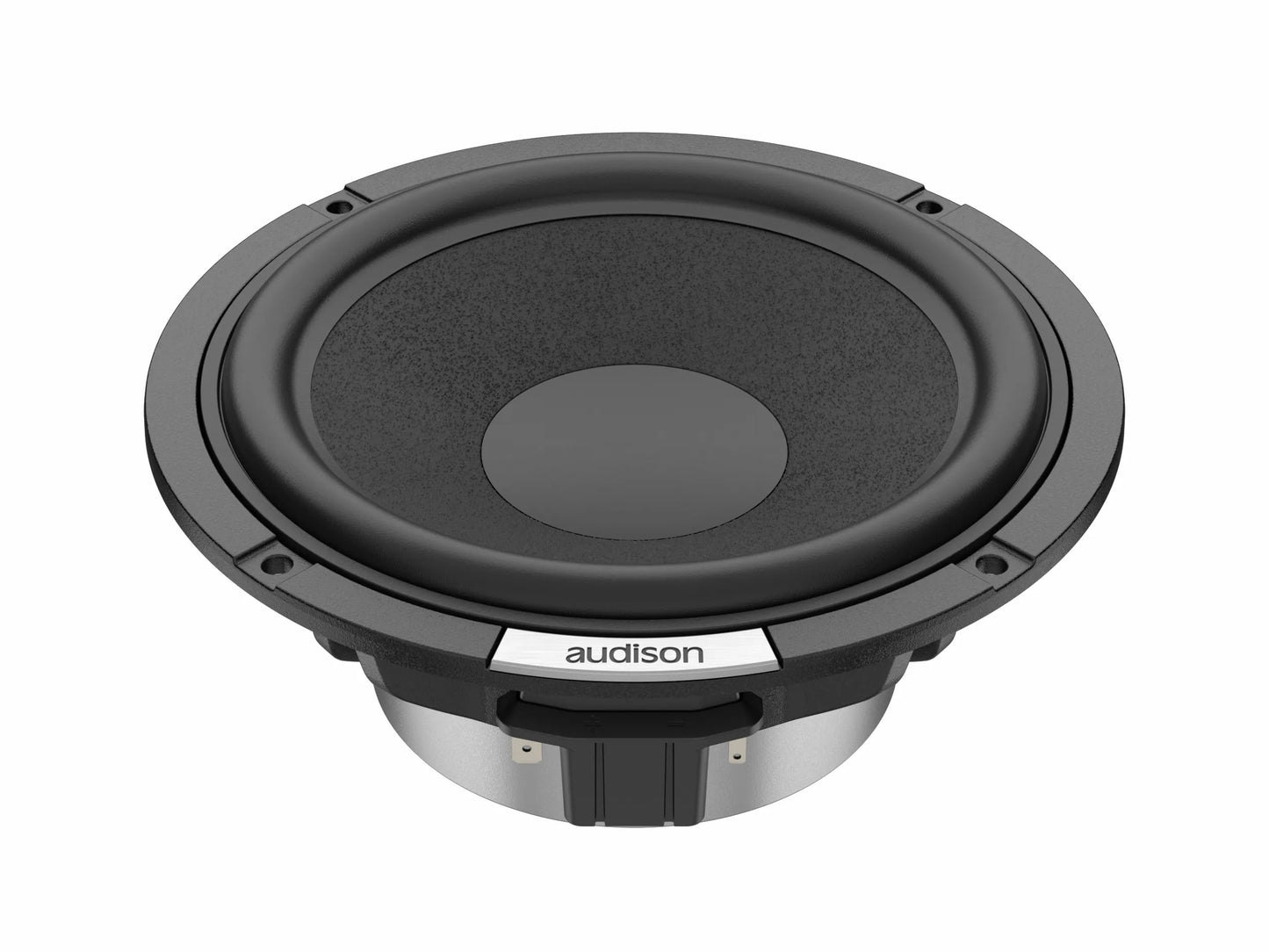

Woofer Size - 165 mm (6.5 in)
Impedance - 4 Ohm
Power Handling - 250 W Peak
Power Handling - 125 W Continuous
Frequency Response - 50 - 5500 Hz (-6dB)
Voice Coil Diameter - 36 mm (1.42 in)
Magnet Material - HIGH DENSITY FLUX FERRITE
Magnet Size - 92 x 42 x 15 mm
Cone Material - PRESSED PAPER CONE
Crossover Type - Two Way Separate case for Woofer (AVCX 2 W - Full/6dB Oct.) & Tweeter (AVCX 2 T - 12dB/Oct.)
Crossover Level Adjustment - AVCX 2 T: Tweeter Level: 0 / -1.5 dB; AVCX 2 W: Woofer Mid-Contour On / Off

Technical Specs HF

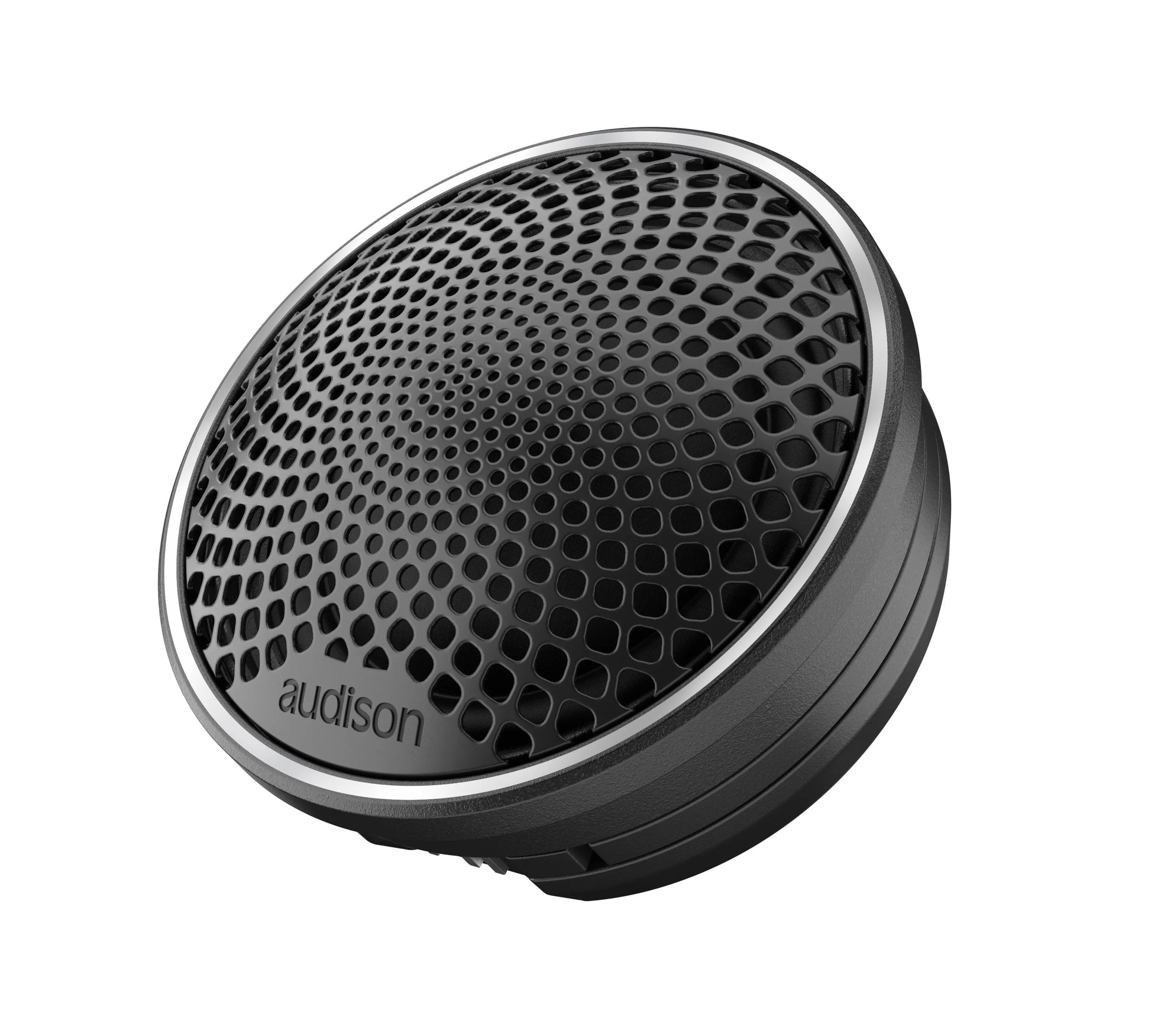

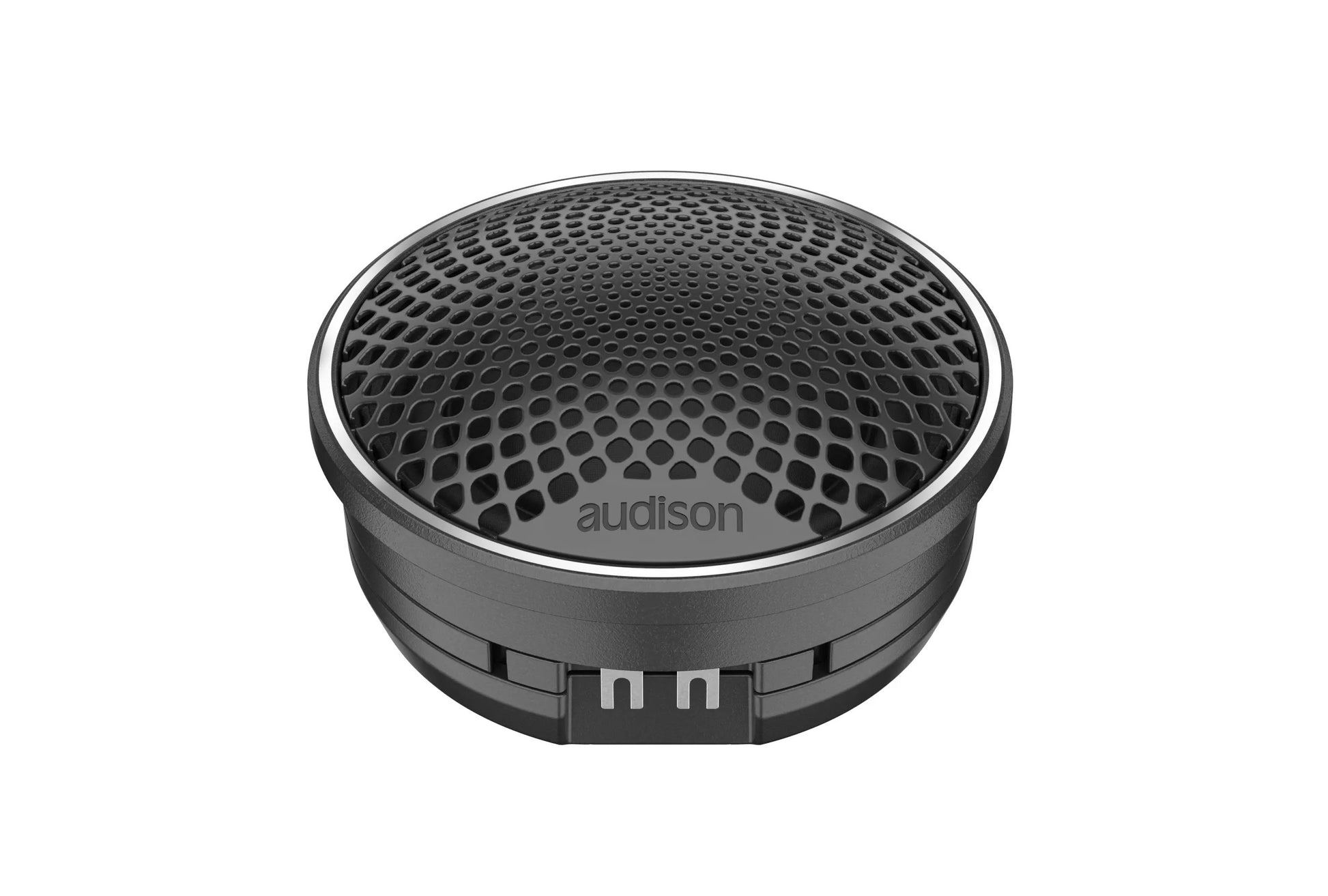

Tweeter Size - 25.4 mm (1 in)
Frequency Response - 1200 - 40000 Hz
Comply with HiRes Audio JAS, testing condition IEC 60268-5
Power Handling - 150 W Peak
Hi-Pass filtered @ 1,5 kHz - 12dB Oct.
Voice Coil Diameter - 25 mm (1.42 in)
Dome Material - TETOLON FIBER

Electric-acoustic Specs LF

Re - 2.9 Ohm
Fs - 67 Hz
Mms - 13.2 g
Cms - 0.43
BL - 4.9
Qms - 6.76
Qes - 0.67
Qts - 0.61
Vas - 10.28 l
Le - 0.3 mH
Spl - 91 dB
Xmax - 4.2 mm (0.17 in)

Kit Tech Data

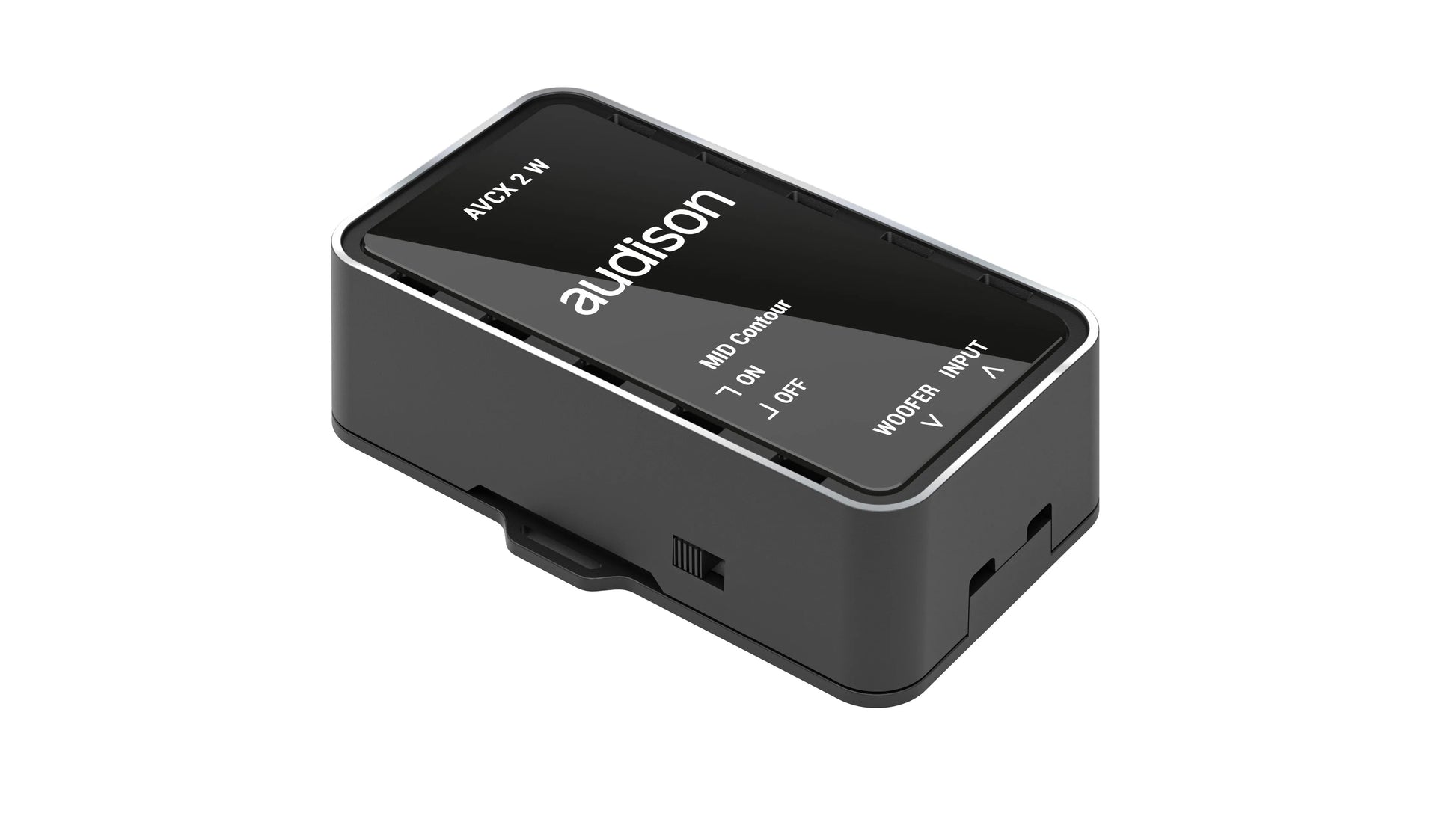

Crossover Low-Pass - AVCX 2 W: Woofer, Full/6dB Oct.
Crossover Hi-Pass - AVCX 2 T: Tweeter, 12dB/Oct.
Crossover Cut Off - 3.5 kHz (Mid-Contour Off)
Cone Diameter - 128.35 mm

General

Woofer Weight - 1.3 kg
Tweeter Weight - 0.14 kg
Crossover Weight - 0.1 kg
