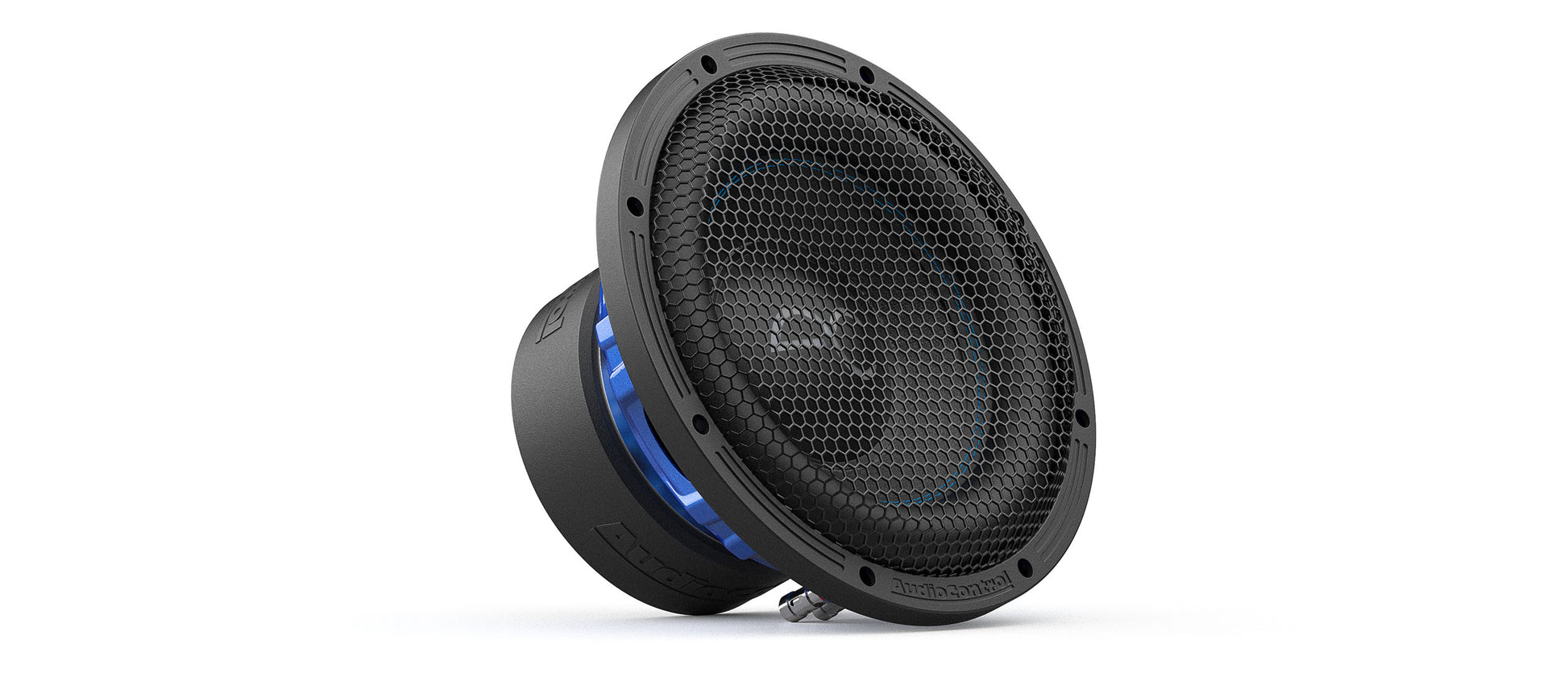

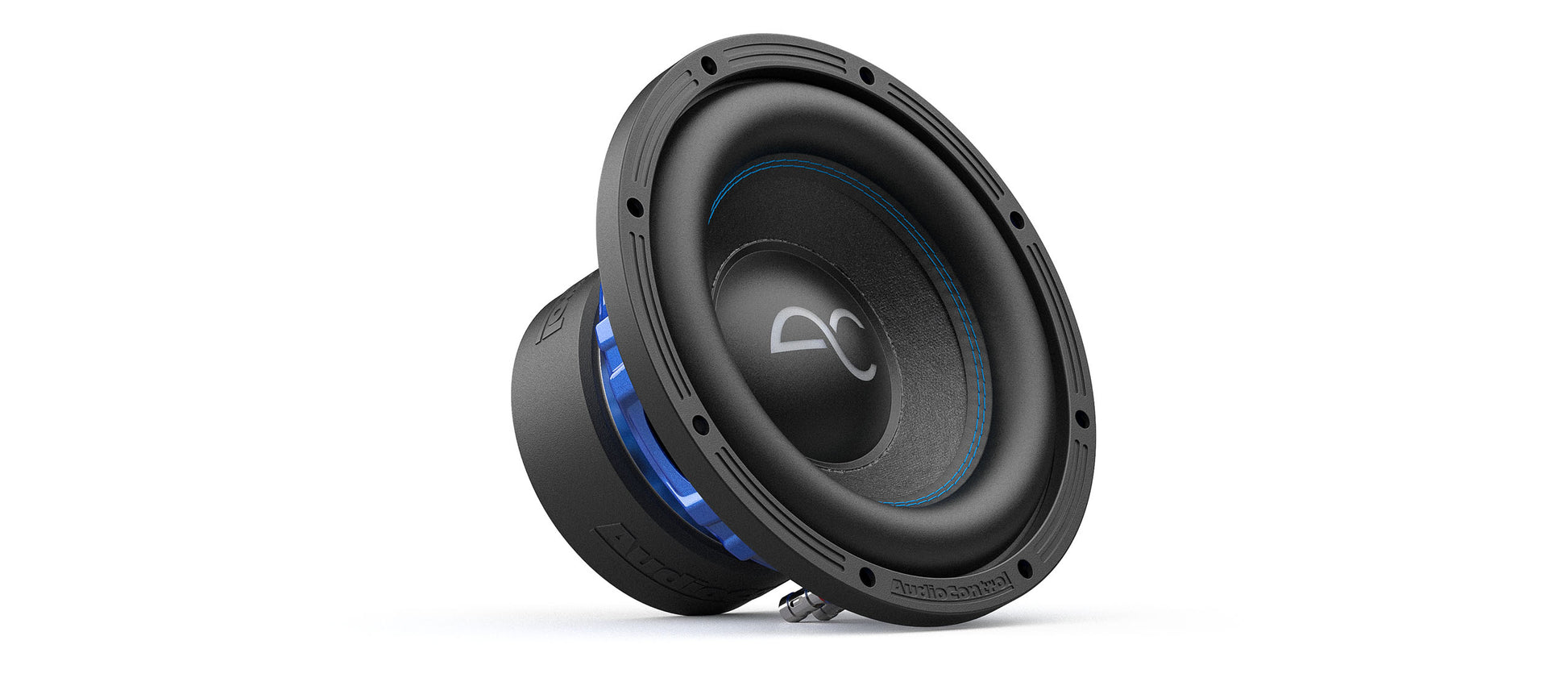

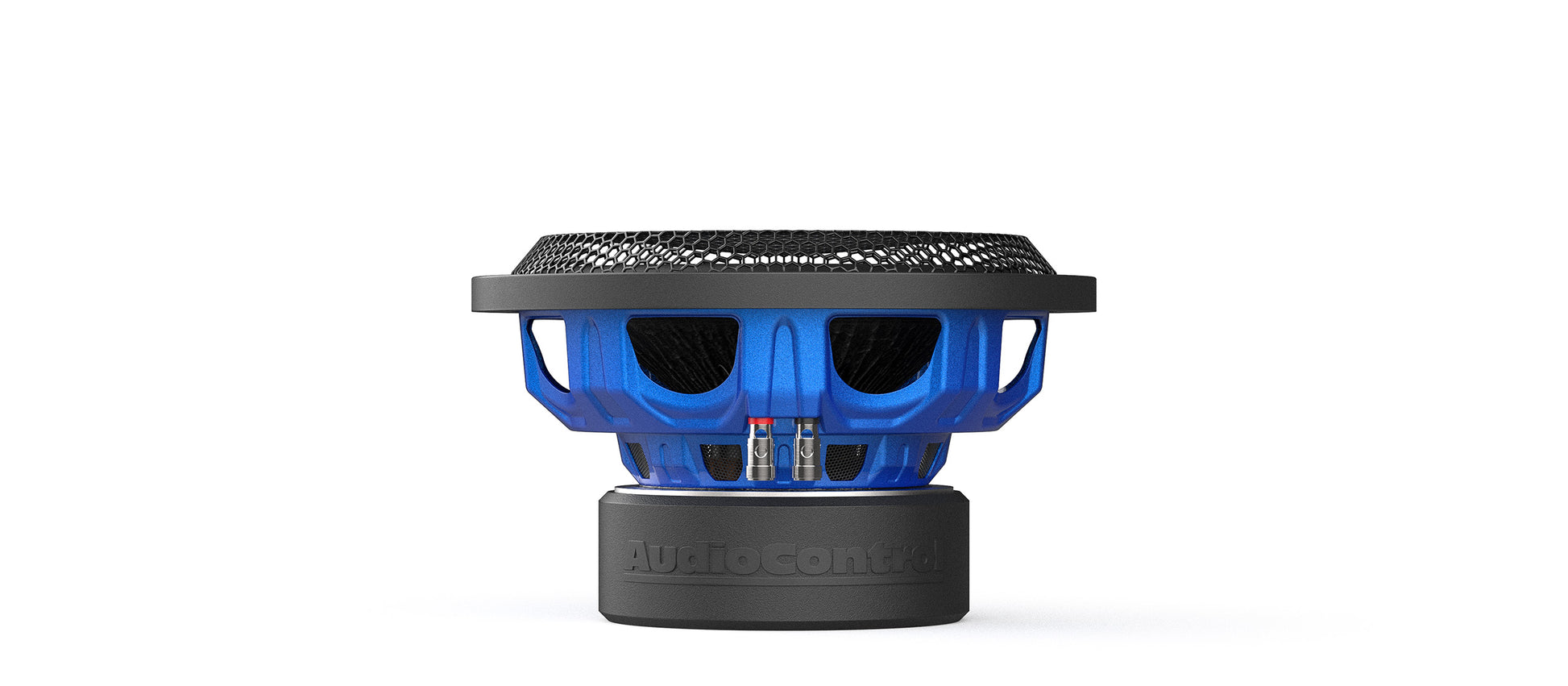

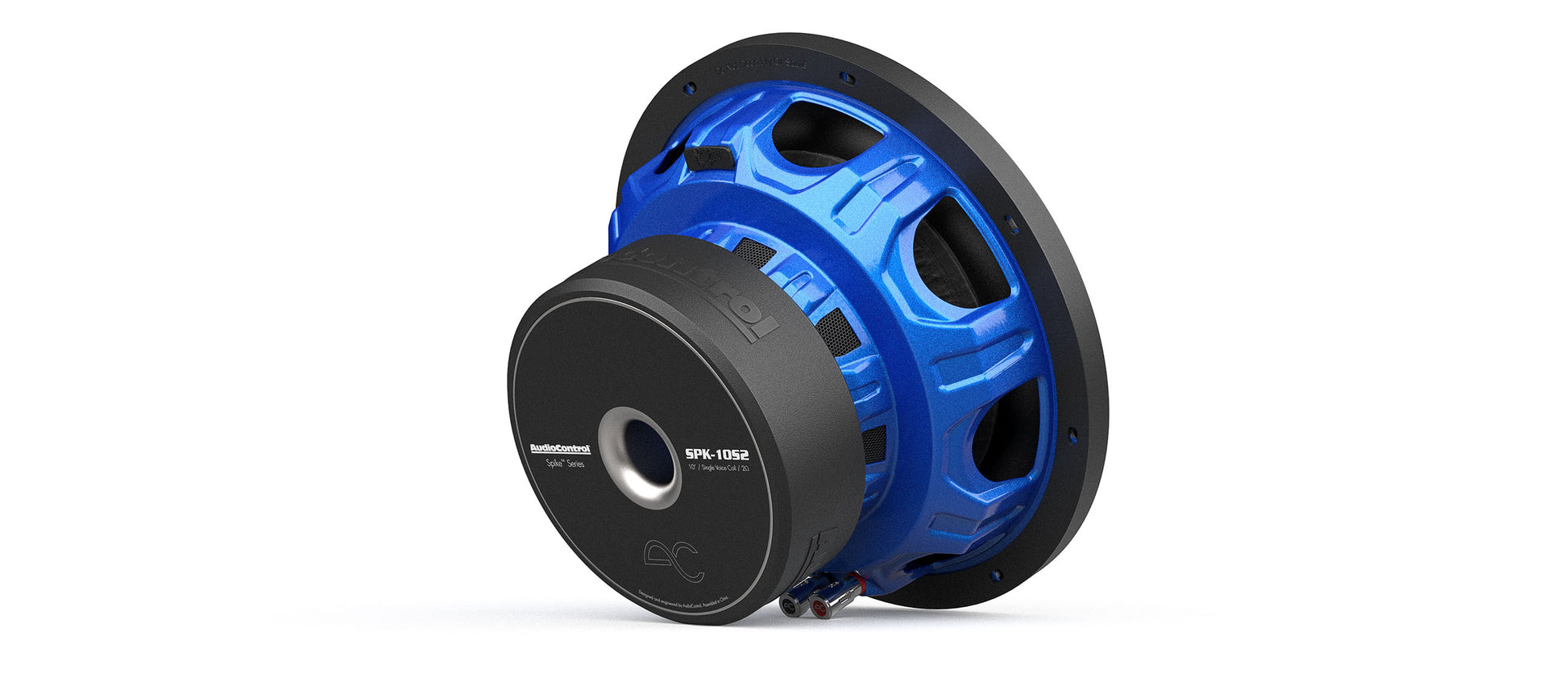

AudioControl SPK-10S2 Spike Series 10-Inch Single 2-ohm High-Performance Subwoofer
AudioControl SPK-10S2 Spike Series 10-Inch Single 2-ohm High-Performance Subwoofer
Specifications
- Continuous Power Handling (watts RMS) 300-700W
- Nominal Impedance (Z) 2 ohms
- DC Resistance (Re) ]] 1.6 ohms
- Resonance Frequency (Fs) 38.4879 Hz
- Piston Area (Sd) 0.0314 m2
- Force Factor (BL) 11.0788 T.m
- Mechanical Q Factor (Qms) 6.1223
- Electrical Q Factor (Qes) 0.6341
- Total Q Factor (Qts) 0.5746
- Sensitivity 1W/M (SPL) 82.2488
- Mechanical Comp (Cms) 0.0850 mm/N
- Moving Mass (Mms) 201.1450 g
- Linear Excursion (Xmax). 14 mm
- Volume Acoustic Comp (Vas) 11.7161 Ltr/ 0.4137 Cu ft
- Reference Efficiency (NO.) 0.1011% RMS
- Power (Pe) 500 Watts
- Frequency Response 20-200 Hz
- Voice Coil Diameter 2.5 in/63.5 mm
- Displacement 0.0626 cu ft/ 1.771 Ltr
Product Description
Spike Series Subwoofers feature a 3-layer voice coil former to handle some serious power. That means you can turn up the volume and still enjoy heart-pounding bass that’s free from distortion. You won’t believe the sound produced by the fibre matrix paper cone with mica coating – it’s like having a concert in your vehicle! Each Spike subwoofer comes with a protective grille to keep it safe from damage, so you can enjoy your journey with peace of mind.
Features
- High Excursion Design for Ultra-Low Bass
- Fiber Matrix Paper Cone with Mica Coating
- 3-Layer High Temp Voice Coil Former
- Dual Damping System for Linear Bass Reproduction
- Dual Dust Cap System for Enclosure Compression Control
- Efficient Heavy-Duty Motor Design
- Removable Subwoofer Grille Included
Pairings
Our Sonic Sommeliers Recommend the Following:
- A single Spike Series 2-ohm subwoofer pairs attractively with the ACM-1.300 or ACX-300.1 for the conservative to moderate listener. For more beefy bass, seek out the ACX-600.1.
- Planning to enjoy the exuberant audio from one of our LC-5.1300 or D-5.1300 amplifiers? The outstanding output delivered from channel 5 is a perfect pairing. Bon appétit!
- For system designs utilizing two Spike Series 2-ohm subwoofers, we recommend the LC-1.1500… Divine!
- Seeking a plethora of punch and precision? Planning to include three or more Spike Series subwoofers in your system? Consult an expert at your favourite authorized AudioControl dealer or visit audiocontrol.com for more system configurations that deliver ludicrous lows.
In the box
- SPK-10S2, Manual
