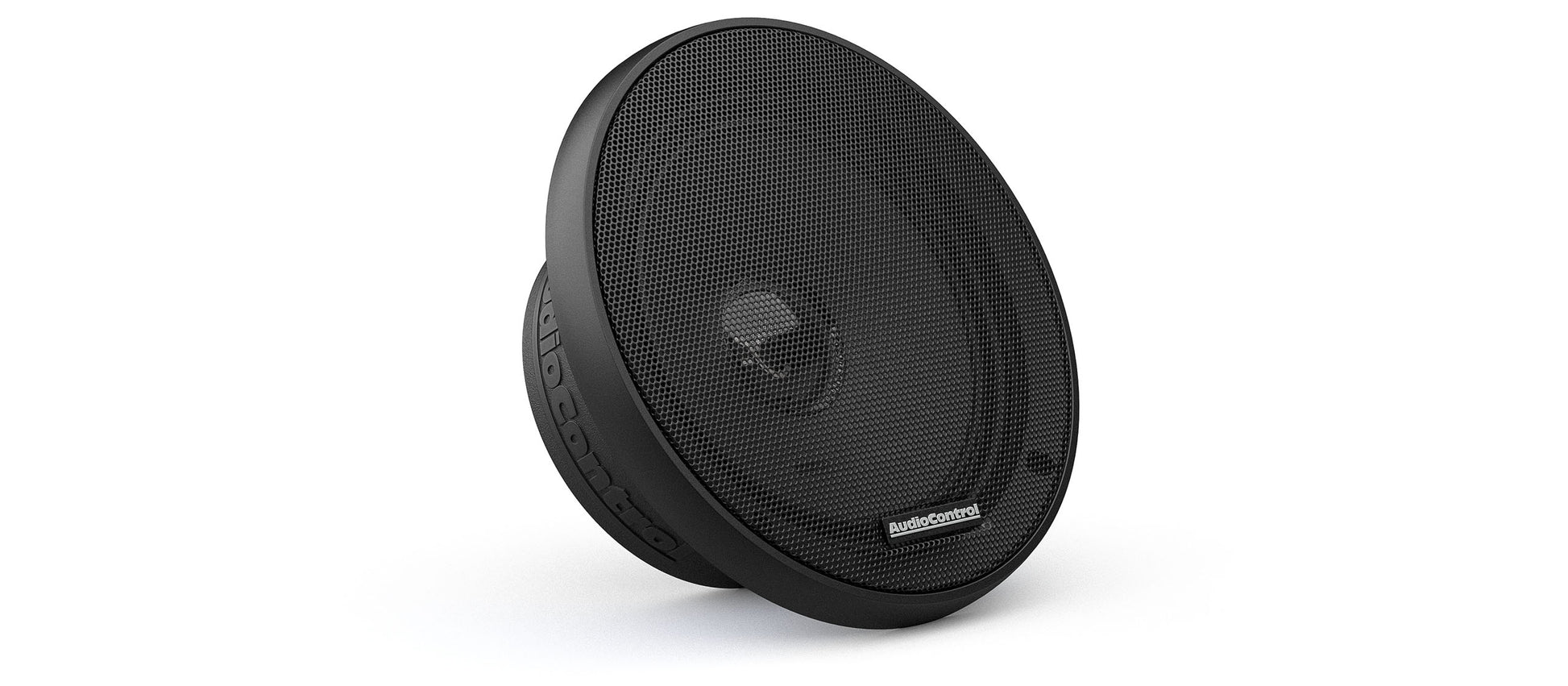

AudioControl has over 45 years of experience engineering top-quality audio components. Buckle up and get ready to embark on a wild new auditory adventure with AudioControl’s PNW speakers! Experience the vibrant landscapes of the Pacific Northwest through your music when you combine AudioControl’s legendary amplifiers with the new PNW series of speakers. Trust us, you’ve never heard sound quite like this before. The PNW line features an edge-enhanced steel frame for ultimate structural strength, a black anodized voice coil former for superior heat dissipation, and a linear double-roll surround for precise cone movement. Plus, the rigid poly mica-coated cone optimizes sound reproduction.

Specifications

• Continuous Power Handling (watts RMS) 75-125w

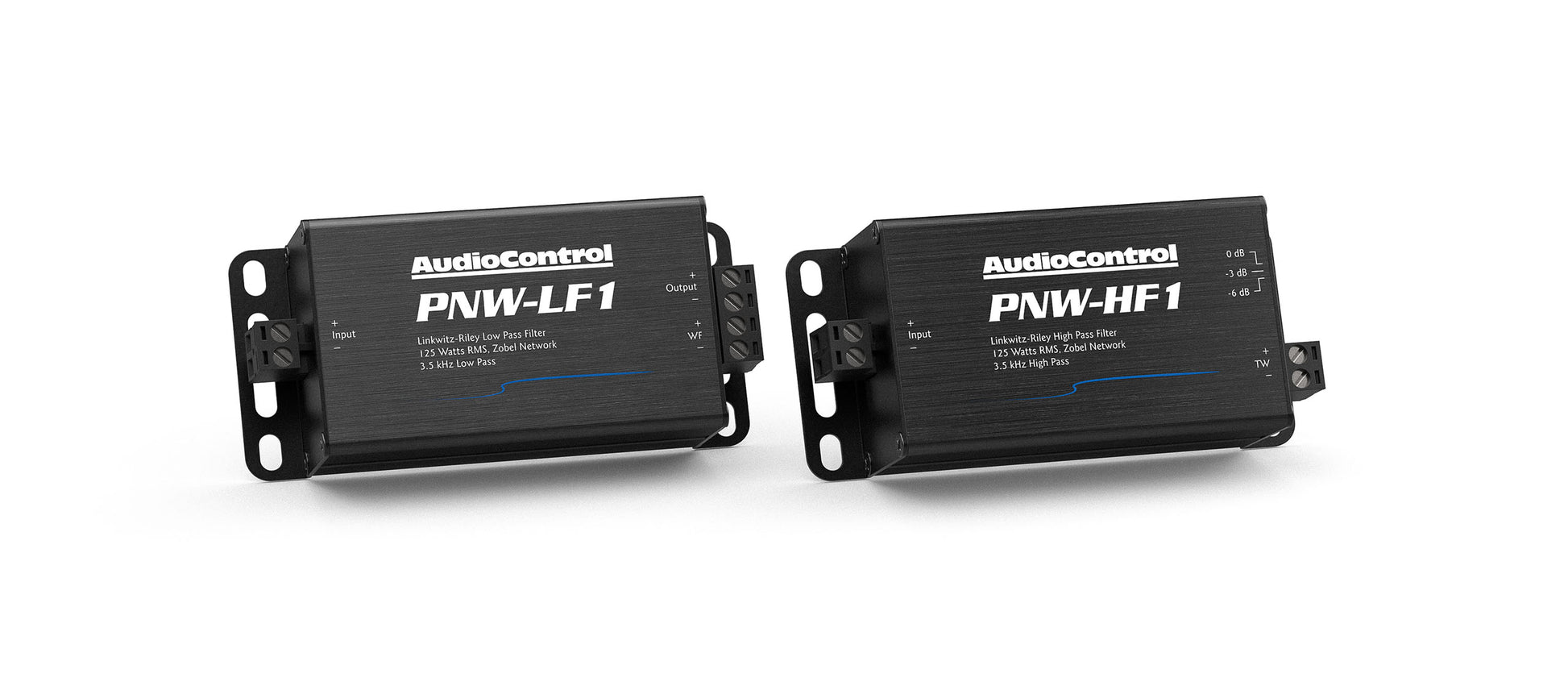

• Crossover Type 2nd order Linkwitz-Riley
• DC Resistance (Re). 2.3 ohms
• Filter Type HP / LP
• System Frequency (Fs) Response 60-20k Hz
• XO Frequency 3.5kHz HP / LP
• Slope (Octave) -12 dB
• Tweeter Voice Coil Diameter. 20 mm
• Midrange Voice Coil Diameter. 35 mm

Dimensions

• Overall Diameter (w/o Grille) 6.5 in / 166 mm
• Cut Out Diameter: 5.59 in / 142 mm
• Mounting Depth: 2.36 in / 60 mm
• Mounting Height (w/o Grille): 0.20 in / 5.2 mm
• Mounting Height (w/ Grille): 0.86 in / 22 mm
• Motor Diameter (w/ Cover): 4.6 in / 117 mm
• Grille Overall Diameter: 7.05 in / 179 mm

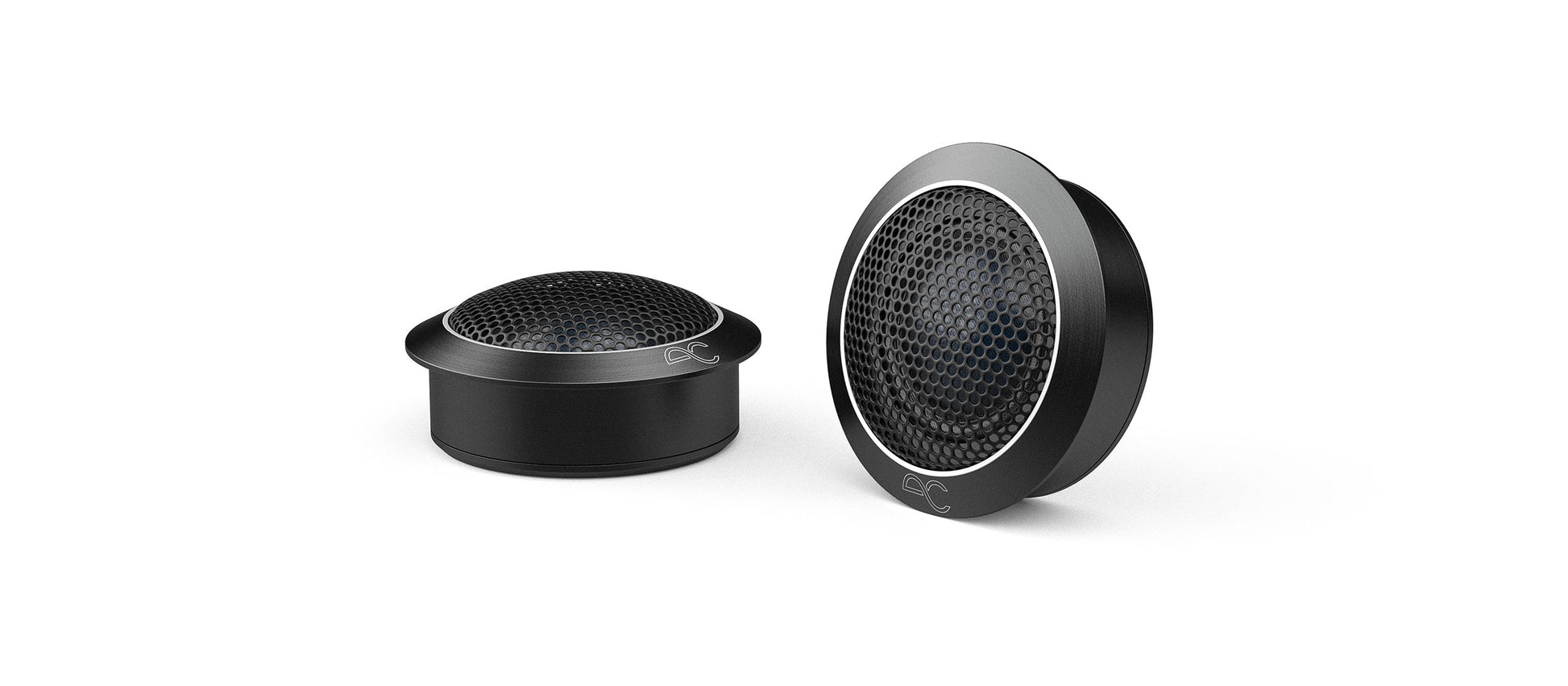

• Dimensions for tweeter
• Overall Diameter: 2.13 in / 54 mm
• Cut Out Diameter: 1.85 in / 47 mm
• Mounting Depth: 0.63 in / 16 mm

In the box:

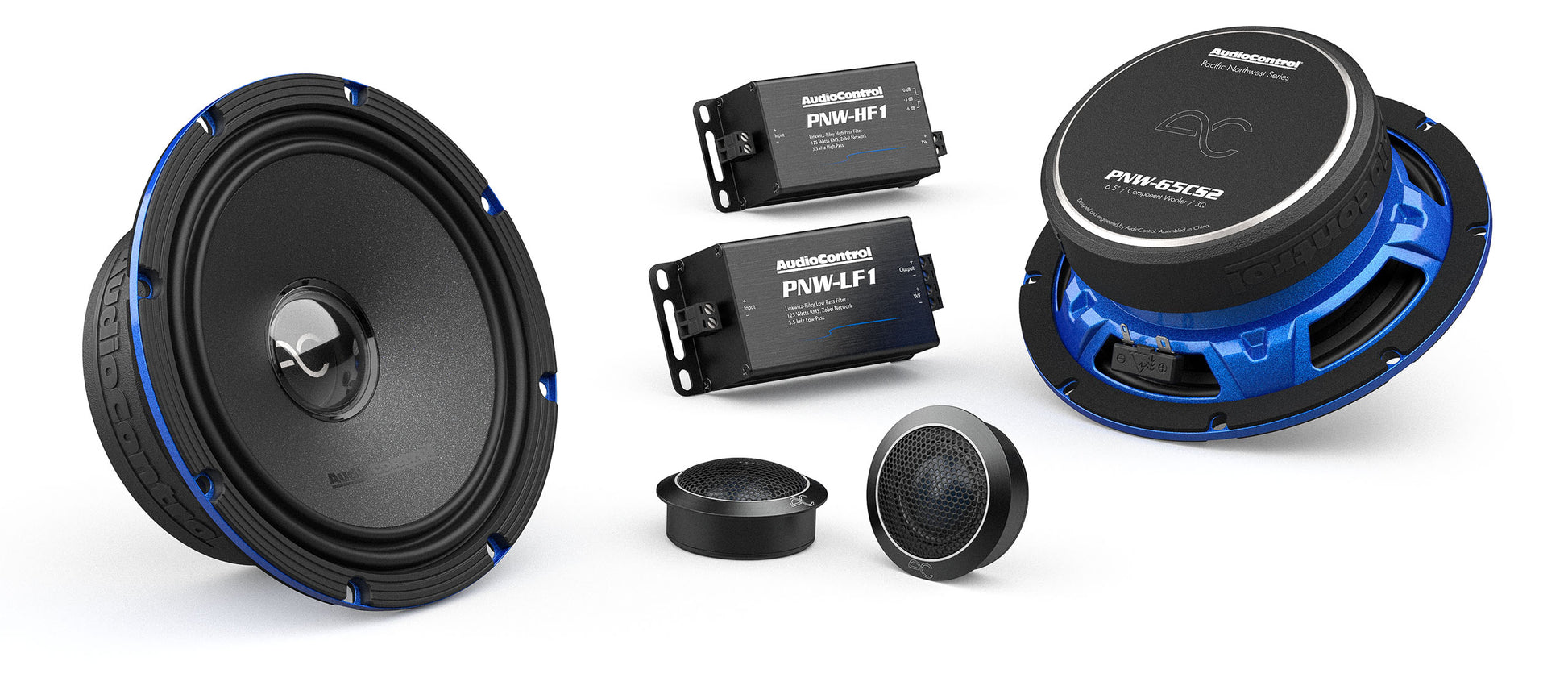

• PNW-65CS2, Manual
