AUDIOCONTROL LC2i 2-Channel Line Out Converter with Accubass
AUDIOCONTROL LC2i 2-Channel Line Out Converter with Accubass

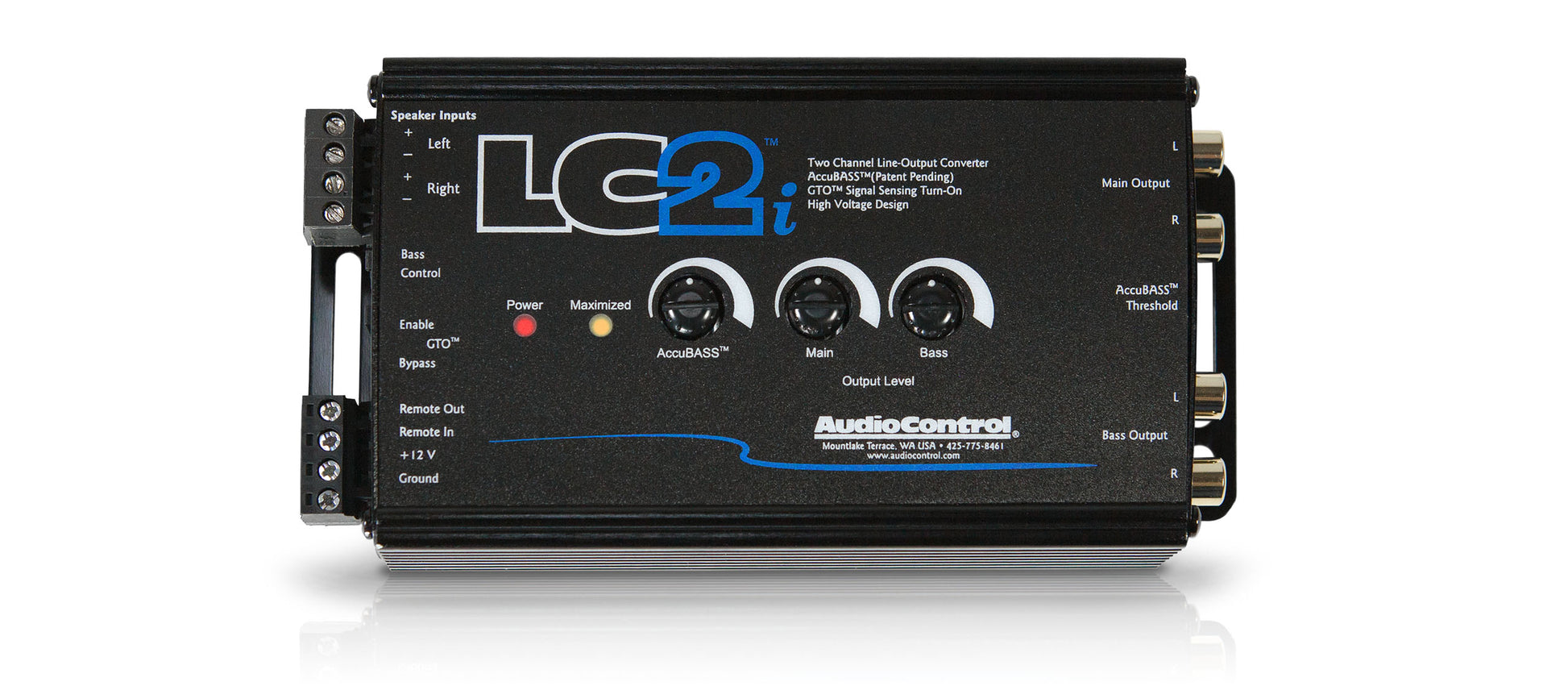

The LC2i, is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. It converts them to high-quality pre-amp signals that can then be directed to after-market processors and/or amplifiers. Users can enjoy maximum sound quality while maintaining the use of factory volume and steering wheel controls.
Product Description
Inputs

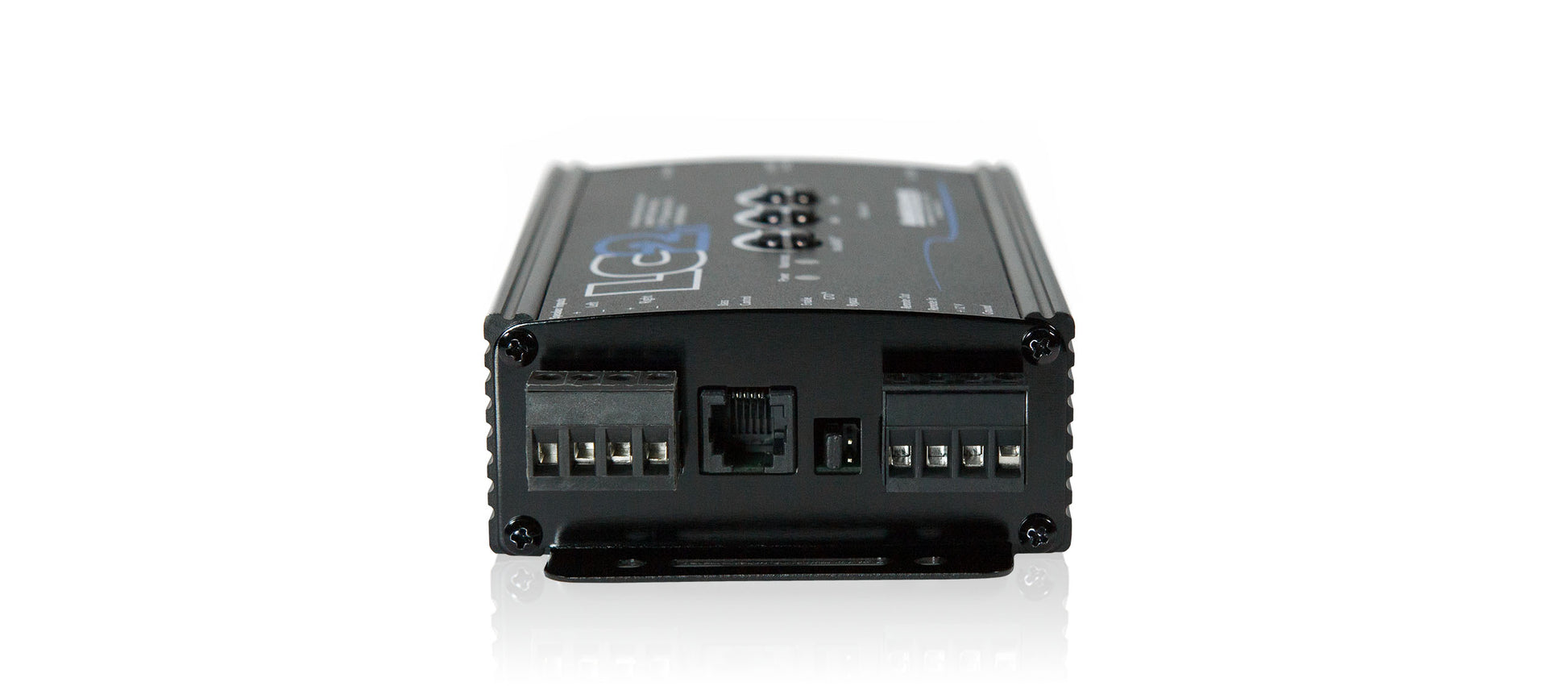

- Speaker Level Input: 1 (2 channels)
- Maximum Speaker Level Input: 400W per channel at 4Ohm
- Input Impedance: 20k Ohm
Outputs

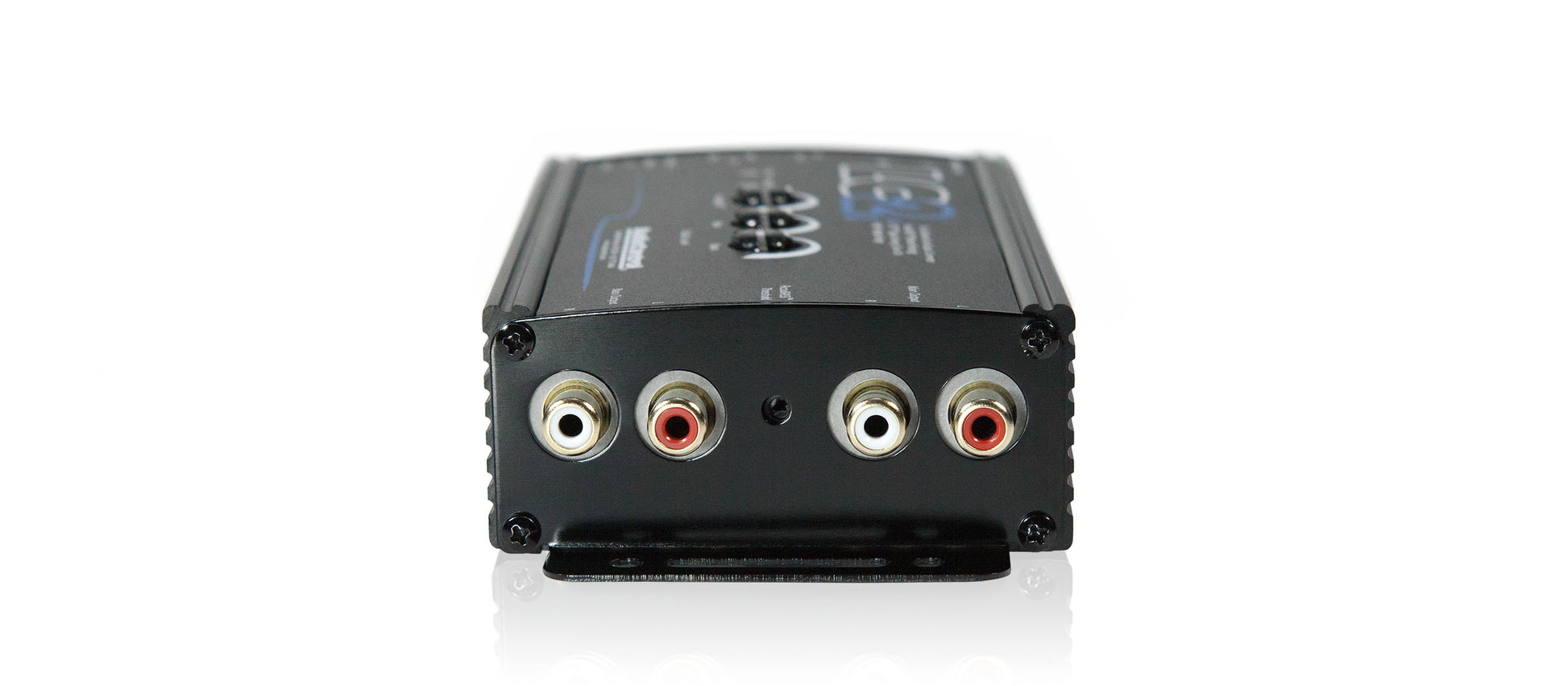

- Preamp Outputs: 2 (2 channels main, 2 channels bass)
- Maximum Output Level: 9.5Vrms/13V peak
- Output Impedance: 150 Ohm
Performance
- Total Harmonic Distortion: 0.01%
- Signal to Noise: >110dB
- Frequency Response: 10Hz-100kHz ±1 dB
Control
- Remote In
- 12VDC Remote Out (always active when unit is on)
General
- Current Draw: 150mA
- Recommended Fuse Rating: 1A
- Weights & dimensions
- Dimensions: 5.4"L x 3.25"D x 1.5"H (6.5"L including mounting brackets)
- Weight: 1.0lbs (0.5kg)
