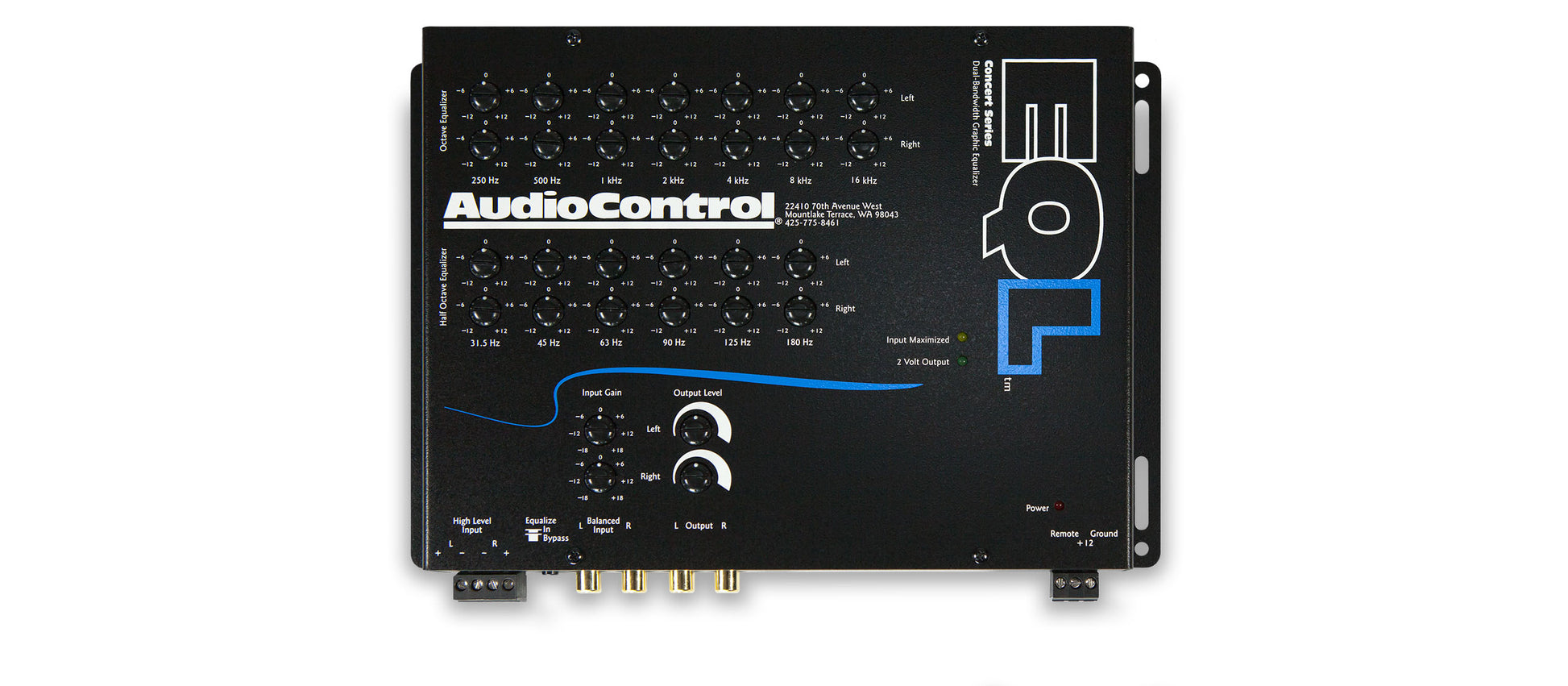

AUDIOCONTROL EQL
AUDIOCONTROL EQL
- Stereo Equalization
- 6 Band 1/2 Octave Bass EQ
- 7 Band 1 Octave Equalizer
- Input and Output Level Matching Controls
- Programmable Frequency Match (PFM) Subsonic Filter
- Preamp and Speaker Level Inputs
- Balanced Inputs
*THIS IS NOT A STOCK ITEM PLEASE CALL TO ORDER
Product Description
2 CHANNEL EQUALIZER
The EQL works wonders with any 2 channel audio system: From existing factory installed setups to custom audiophile-grade systems. Level-matching circuitry allows connection to either preamp-level or speaker-level inputs. The EQL also features thirteen-band, dual-bandwidth equalization and a Programmable Frequency Match (PFM) filter for precise bass control.
INPUTS
- Preamp Inputs: 1 (2 channels)
- Input Gain: ±18dB
- Speaker Level Inputs: 1 (2 channels)
OUTPUTS
- Preamp Outputs: 1 (2 channels)
- Maximum Output Level: 7.5Vrms
PERFORMANCE
- Total Harmonic Distortion: 0.003%
- Frequency Response: 10Hz-100kHz
- Signal to Noise: 110dB
- CONTROL
- Remote In
GENERAL
- Power Supply: Variable isolation transformer switching supply
- Recommended Fuse Rating: 2A
WEIGHTS & DIMENSIONS
- Dimensions: 8.9″W x 6.9″D x 1.25″H
- Weight: 2.7lbs (1.2kg)
IN THE BOX
- EQL
- Power and Speaker Connector
- Manual
- Warranty
