Alpine HDS-990 - Status Hi-Res Audio Media Player 192kHz/24Bit Playback Bluetooth USB DAC

Alpine HDS-990 - Status Hi-Res Audio Media Player 192kHz/24Bit Playback Bluetooth USB DAC

HI-RES AUDIO MADE ACCESSIBLE

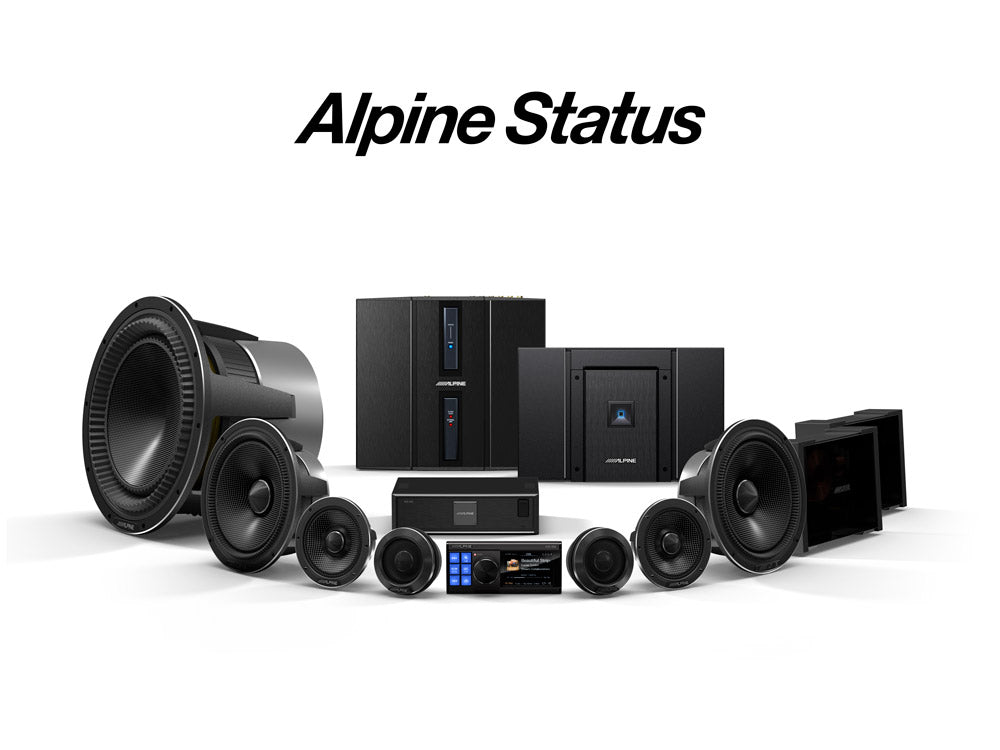

The Alpine Status system features many technologies, components and materials of the Alpine F1Status system to achieve ultra high-precision music reproduction - at an affordable price tag. It is designed to play music tracks at 192kHz / 24bit format, which are widely accessible in many online stores and streaming platforms. High-Res Audio playback of 192kHz / 24bit allows Alpine Status to create a heightened listening experience in the vehicle that emulates the feeling of an intimate recording studio session.

View full details

Product Description

Features

  • Hi-Res Audio Media Player (192kHz / 24bit max sampling rate with down-sampling)

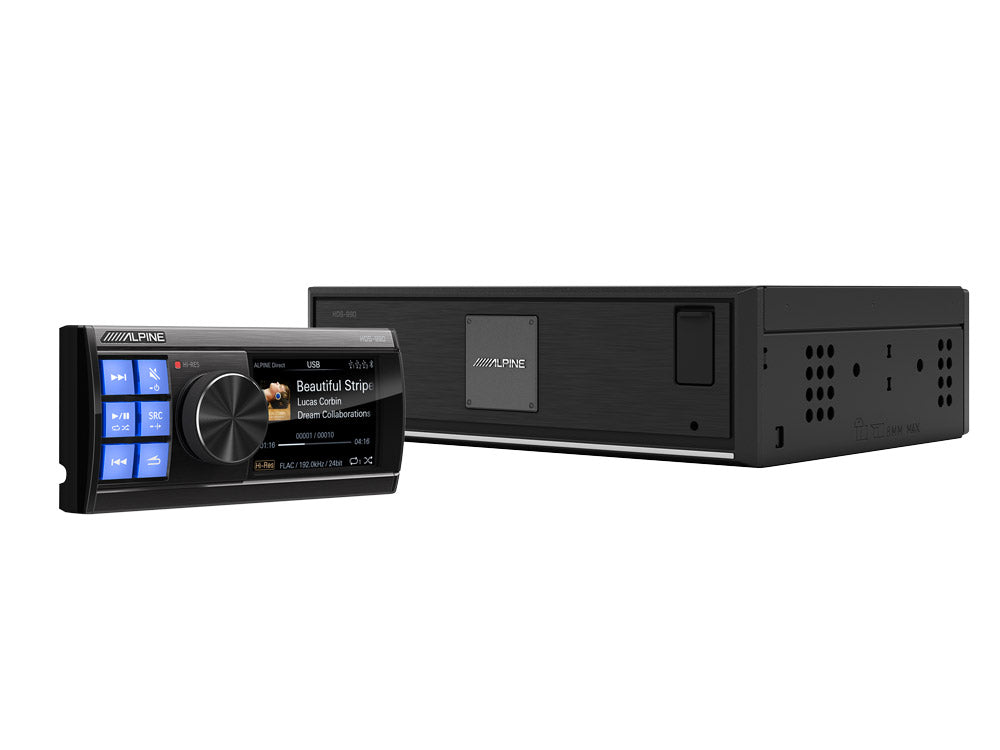

  • External control unit with hide-away 1DIN media-box

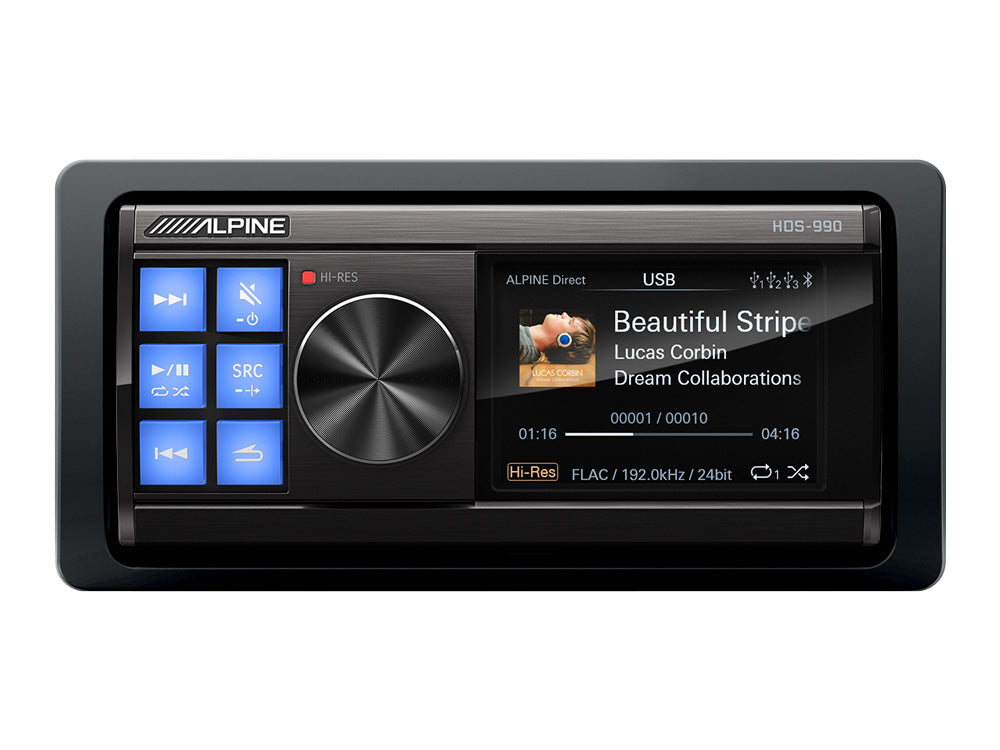

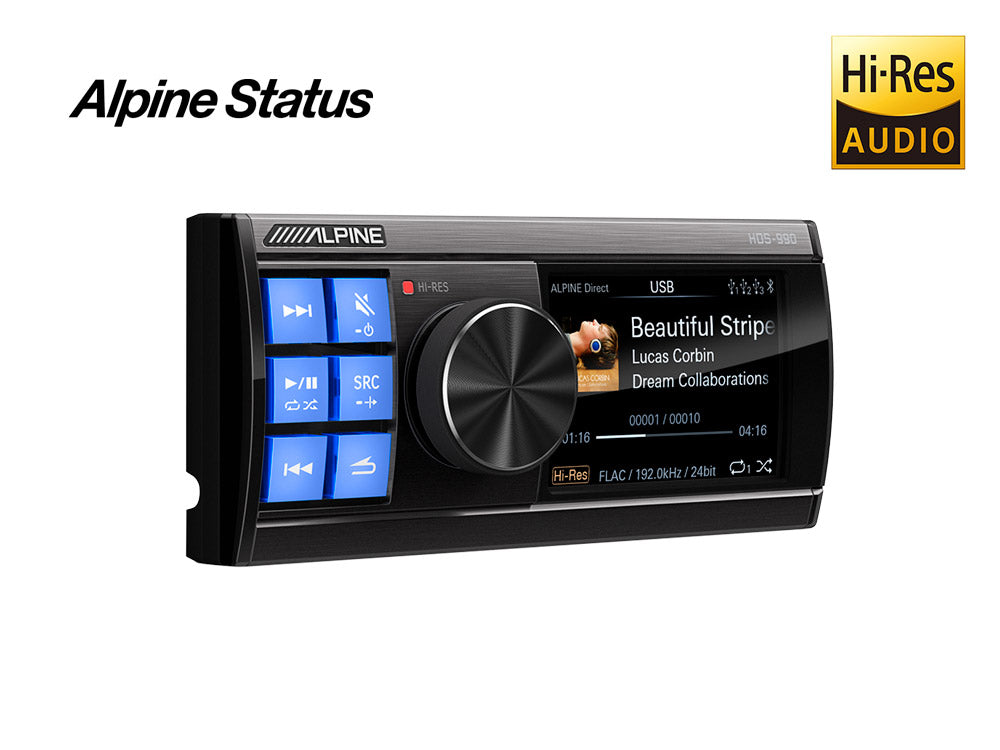

  • Color display
  • 3 USB Ports (1 front / 2 back ports) for audio playback
  • Bluetooth Audio Streaming (LDAC, aptX HD)
  • 4x 50Watts built-In amplifier
  • 6-channel 31-band Parametric EQ
  • 3-way digital X-Over
  • Digital Time Correction
  • MP3, WMA, AAC, MP4, WAV, FLAC, APE and DSD playback
  • 4-channel high-level inputs
  • 2-channel AUX inputs (RCA)
  • 4-channel high-level outputs (4x 50 Watts)
  • 6-channel RCA outputs
  • Optical TOSLINK output
  • Coaxial output
  • Rotary encoder
  • Blue button illumination

Specifications

  • Performance
  • Power Output (rated 4Ω, 14,4V, 10%THD): 25W RMS x4
  • THD+N (RCA 1W into 4Ω): ≤ 0.03%
  • S/N (RCA A-wt): ≥ 98dB
  • Input Voltage: high level 32Vpp, RCA 8Vpp
  • Output Voltage: high level 28Vpp, RCA 12Vpp
  • Frequency response (1W into 4Ω): 20Hz – 40kHz (+/-1.5dB)

General

  • System sampling rate: 192kHz / 32bit
  • Operating voltage: 9 – 16V
  • Standby power consumption ≤ 0.1W
  • REM start input: high level (FL+/FL-), ACC optional
  • REM start output: 12V (0.2A)
  • Weight: 0,77kg

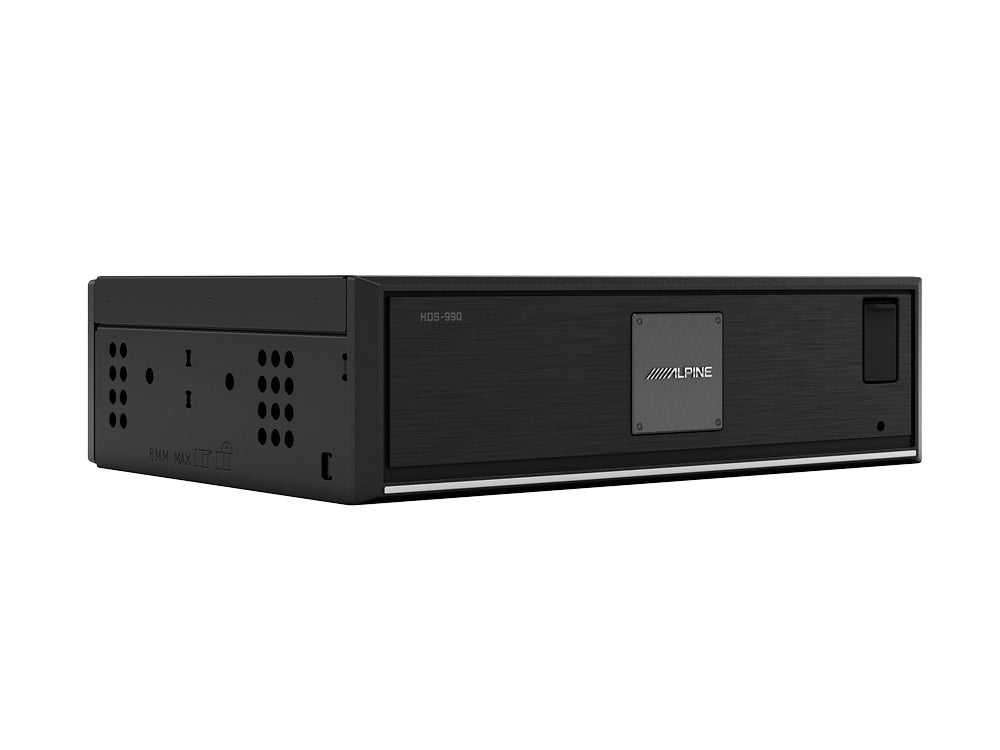

  • Dimensions (main unit): width 178mm, depth 144mm, height 50mm
  • Dimensions (controller without installation frame): width 122mm, depth 12mm, height 54mm

Music Player

  • Interface: USB 2.0
  • Storage capacity: maximum support 2TB
  • File system: FAT16/32, NTFS, exFAT
  • Maximum number of songs: 10.000
  • MP3 Decoding: MPEG Audio Layer-3, sampling frequencies: 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz, 12kHz, 11.025kHz, 8kHz. Bit rate: 8-320kbps
  • WMA Decoding: Windows Media Audio, Sampling frequencies: 48kHz, 44.1kHz, 32kHz, 22.05kHz, 16kHz, 11.025kHz, 8kHz. Bit rate: 12-192kbps (stereo), 0-128kbps (mono)
  • AAC Decoding: “.M4A” file in ACC-LC format, sampling frequencies: 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz, 12kHz, 11.025kHz, 8kHz. Bit rate: 8-320kbps
  • MP4 Decoding: MPEG Audio Layer-4, sampling frequencies: 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz, 12kHz, 11.025kHz, 8kHz. Bit rate: 8-500kbps
  • WAV Decoding: Wave sound file, sampling frequencies: 192kHz, 176.4kHz, 96kHz, 88.2kHz, 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz. Bit rate: 8bit, 16bit, 24bit
  • FLAC Decoding: Free Lossless Audio Codec, sampling frequencies: 192kHz, 176.4kHz, 96kHz, 88.2kHz, 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz, 12kHz, 11.025kHz,
  • 8kHz. Quantization bits: 8bit, 16bit, 24bit
  • APE Decoding: Monkey’s Audio, sampling frequencies: 192kHz, 176.4kHz, 96kHz, 88.2kHz, 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz, 12kHz, 11.025kHz, 8kHz.
  • Quantization bits: 16bit, 24bit
  • DSD Decoding: Direct Stream Digital (DSD64, DSD128, DSD256), sampling frequencies: DSD64 2.8224MHz, DSD128 5.6448MHz, DSD256 11.290MHz
  • Bluetooth Supported Audio Formats: SBC / AAC / LDAC
