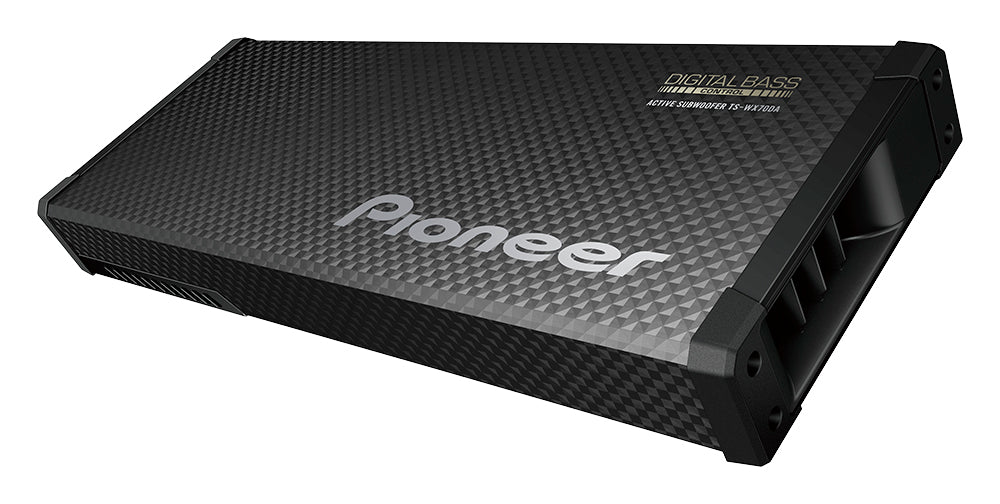

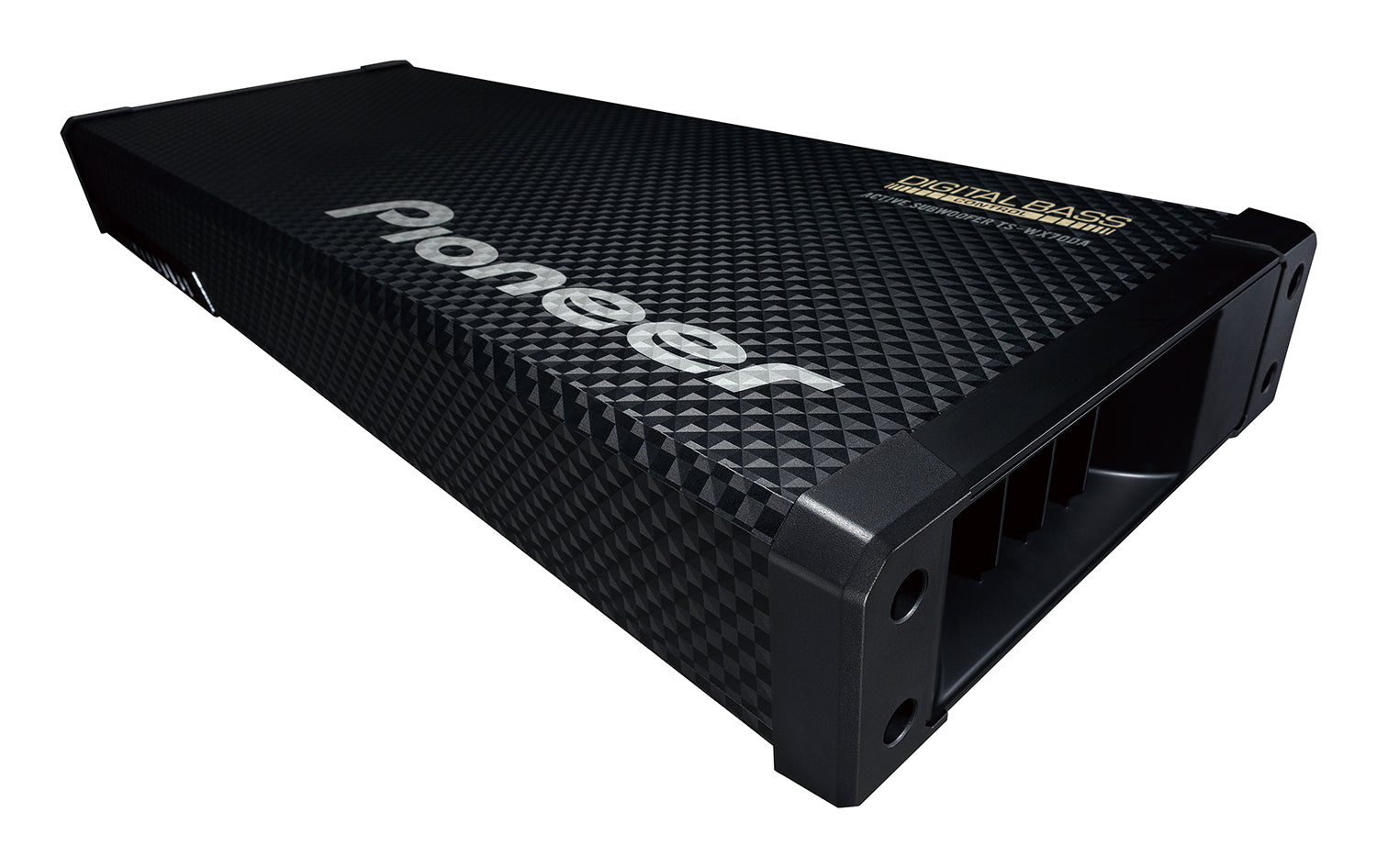

PIONEER TS-WX70DA
PIONEER TS-WX70DA
- 200 Watts Max Power (100 Watts Nominal)
- Selectable Bass Modes: DEEP and DYNAMIC
- Rear loaded horn-type structure
- Solid body and build for flexible installation
Product Description
With Class-D amplifier technology, the subwoofer generates 200W maximum power, consuming power at levels lower than conventional amplifier designs and reducing the need for a large, traditional heat sink. The result is a compact, easy to install amplifier which in some vehicles requires no direct battery connection.
Selectable “BASS MODE”
TS-WX70DA features two selectable Bass Modes: DEEP and DYNAMIC, producing strong, rich, deep bass you can feel. You can easily control and customize the bass output from the supplied wired remote control.
DEEP Mode: Achieve rich, deep bass sound quality in the car. Suitable for Classic, Jazz, Country Music, etc.
DYNAMIC Mode: Emphasize powerful, strong and dynamic bass sound in the car. Suitable for EDM, Hip-Hop, Rock Music, etc.

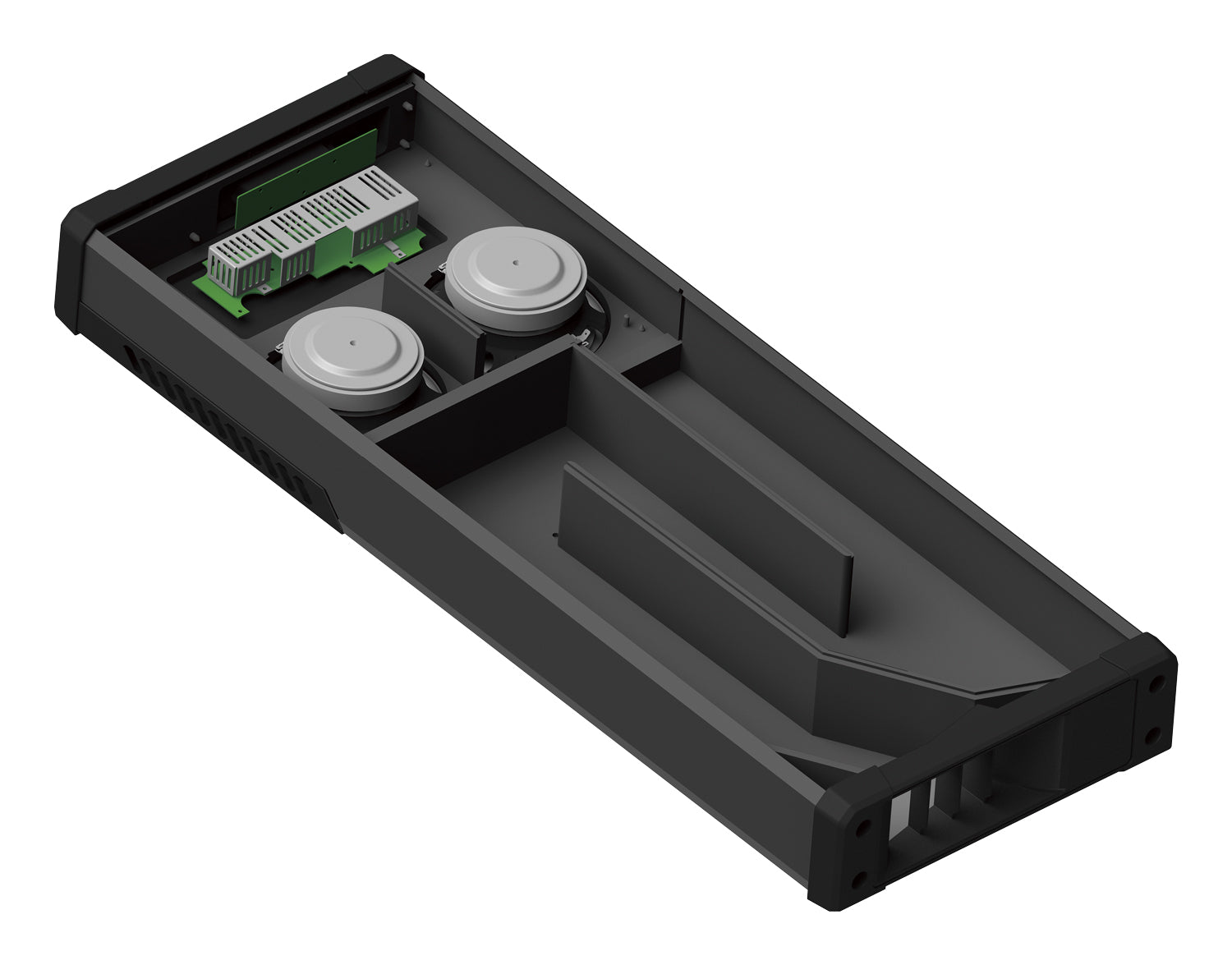

Back Loaded Horn Structure
The rear loaded horn-type structure passively amplifies sound for deeper, more natural bass reproduction.
Installation Flexibility
With its solid body and build, the TS-WX70DA can be installed wherever space is available in a car's luggage area.
- Maximum power input (100W x 2) 200 W
- Nominal input power (50W x 2) 100 W
- Built-in variable LPF (50-125 Hz, -12dB/oct.) Yes (variable)
- Recommended sealed enclosure (Litres) 13,5 litres
- Dimensions 850 x 97 x 323 mm
- Magnets strontium
- Weight (accerssory parts included) 10,4 kg
- Woofer Size 2 x 16 cm
- Amplified Subwoofer
- Space Saving
- Impedance 4 Ω
- Frequency response DEEP Bass Mode: 20 - 250 Hz / DYNAMIC Bass Mode: 40 - 250 Hz
- Sensitivity DEEP Bass Mode: 104 dB / DYNAMIC Bass Mode: 110 dB
