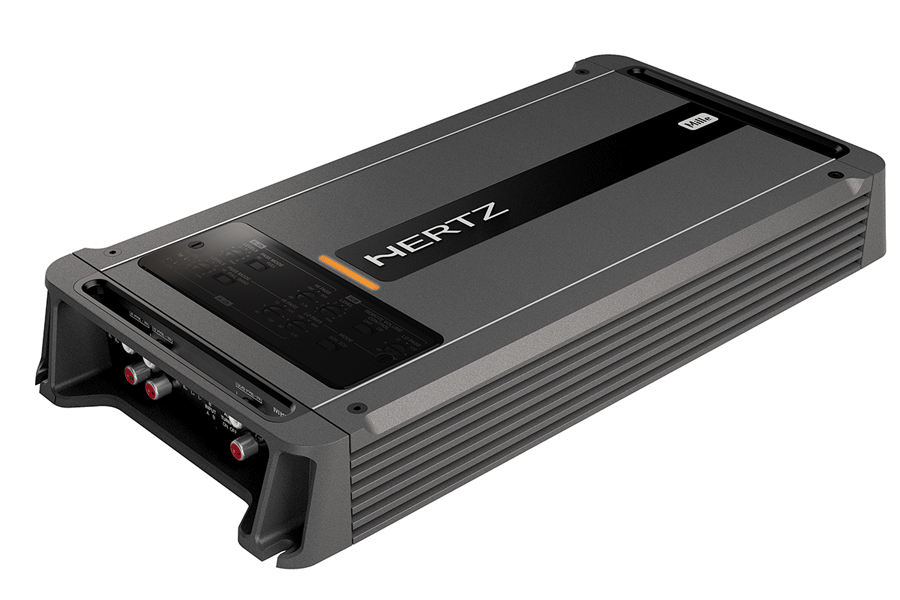

Hertz ML Power 5 - Mille 5 Channel Class D Amplifier
Hertz ML Power 5 - Mille 5 Channel Class D Amplifier
The ultra-versatile Hertz audio car amplifier ML Power 5 provides plenty of clean power enabling system builders to run a complete front system actively including a subwoofer. The revolutionary chassis is designed to provide enough cooling to allow the amp to run at high level without risk of overheating. An optional bass level control (HRC BM) is available separately.
Product Description
The ultra-versatile Hertz audio car amplifier ML Power 5 provides plenty of clean power enabling system builders to run a complete front system actively including a subwoofer. The revolutionary chassis is designed to provide enough cooling to allow the amp to run at high level without risk of overheating. An optional bass level control (HRC BM) is available separately.
Specifications
- Channel mode 5 - 3
- Output Power (RMS) @ 14.4 VDC
- 5 Ch 70 W x 4 + 380 W x 1 (4ohm)
- 5 Ch 100 W x 4 + 550 W x 1 (2ohm)
- 3 Ch 200 W x 2 (4ohm) + 380 W x 1 (4ohm)
- 3 Ch 200 W x 2 (4ohm) + 550 W x 1 (2ohm)
- Distortion - THD (100Hz @ 4ohms): 0.08 %
- S/N Ratio (A weighted @ 1V): 100 dB A & B Ch - 106 dB C Ch
- Damping factor (100Hz @ 4ohms): 50 A & B Ch - 90 C Ch
- Size W x D x H mm (in.): 170 x 349 x 46.70 - (6.69" x 13.74" x 1.84")
