Alpine R2-A75M - R - Series Mono Amplifier
Alpine R2-A75M - R - Series Mono Amplifier
If you like your music loud and clear, our R-Series R2-A75M mono amplifier is for you. It cleanly reproduces the bass in your music so you can enjoy the enhanced realism you want, even when you're playing High-Res music. Alpine has built some of its top-of-the-line amplifier technology into this R2-Series amp, including high-efficiency transformers, premium low-noise custom capacitors, and low-distortion dual "Sierra" feedback/correction circuitry.
The Alpine R2-A75M mono amplifier produces up to 750 watts RMS @ 2 Ohms, making it a perfect match for an Alpine R-Series subwoofer line. Advanced Class-D amp technology makes this powerful amp small enough to fit almost any location. You can adjust the amp's low-pass filter, bass boost, and subsonic filter to get just the right bass tone. Plus, you can add the optional RUX-KNOB2 remote bass knob to control your bass from the dash.
Product Description
If you like your music loud and clear, our R-Series R2-A75M mono amplifier is for you. It cleanly reproduces the bass in your music so you can enjoy the enhanced realism you want, even when you're playing High-Res music. Alpine has built some of its top-of-the-line amplifier technology into this R2-Series amp, including high-efficiency transformers, premium low-noise custom capacitors, and low-distortion dual "Sierra" feedback/correction circuitry.
The Alpine R2-A75M mono amplifier produces up to 750 watts RMS @ 2 Ohms, making it a perfect match for an Alpine R-Series subwoofer line. Advanced Class-D amp technology makes this powerful amp small enough to fit almost any location. You can adjust the amp's low-pass filter, bass boost, and subsonic filter to get just the right bass tone. Plus, you can add the optional RUX-KNOB2 remote bass knob to control your bass from the dash.
Features:
Install

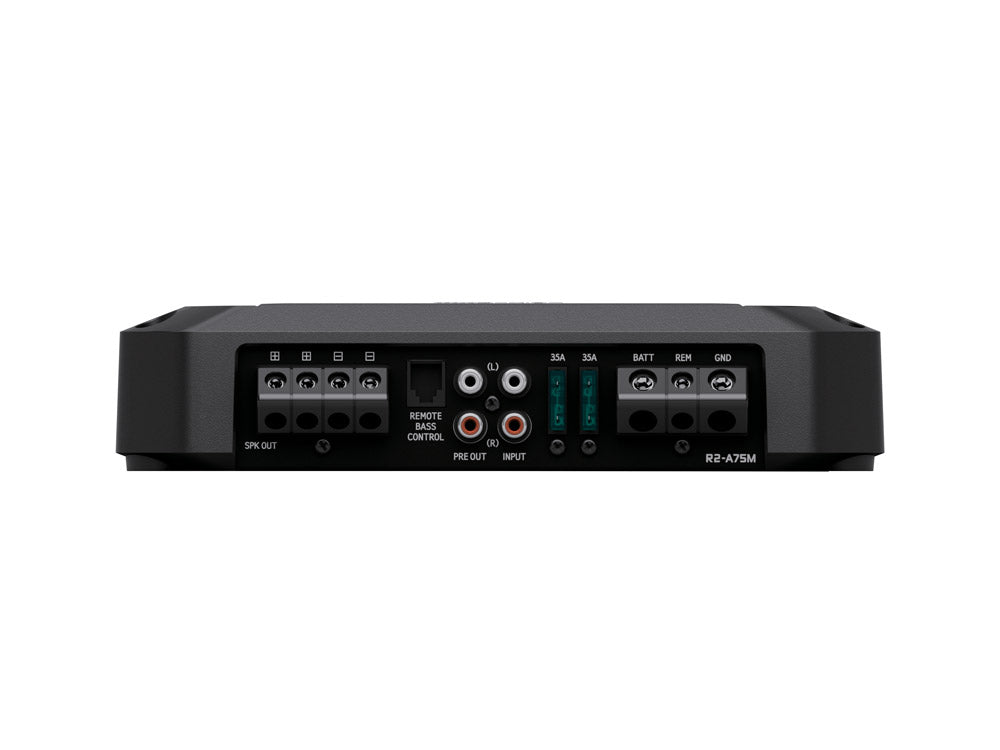

- Terminal Layout: One side
- Small footprint for easy installation
- Screw terminals (for speaker and power cables)
General
- Class-D Amplification (Digital)
- Channel Design: Mono Channel

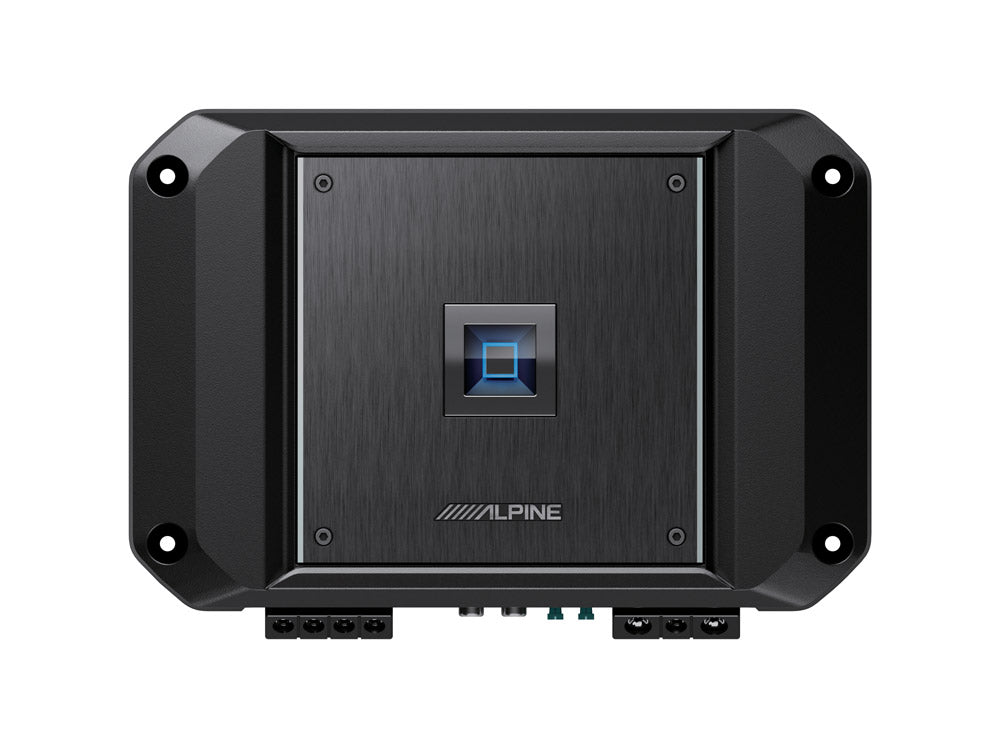

- Top panel controls
- Thermal Management Control
- Top Mounted LED Power/Status Indicator
- Speaker Level Input with remote turn on
- Crossover: Adjustable Low-pass (LPF) and Variable Subsonic filter
- Adjustable Gain Control
- Bass EQ
- Remote Bass Control (RUX-KNOB2) Ready
Specifications:
Max Power Output Ratings
- Total Max Power: 1500W
RMS Power Ratings
- Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 1 x 750W
- Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 1 x 500W
Sound Tuning
- Crossover: Variable LPF: 50-400Hz (-24dB/oct)
- Crossover: Variable Subsonic: 8Hz-40Hz (-24dB/oct)
General
- Power Requirements: 14.4 V.DC (9 - 16 V allowable)
- Input Sensitivity (RCA Input): Hi: 0.5V - 10V / Low: 0.2V - 4.0V
- High Level Input with automatic power on
- Cable size: Power Cable AWG 4, SPK Cable AWG 8
- Frequency Response: 10Hz – 400Hz
- THD+N (@ 10W into 4 Ohms): <0.04%
- Damping Factor: >250
- Weight: 3.5kg
Dimensions
- Heat Sink (WxHxD) mm: 282 x 55 x 165
