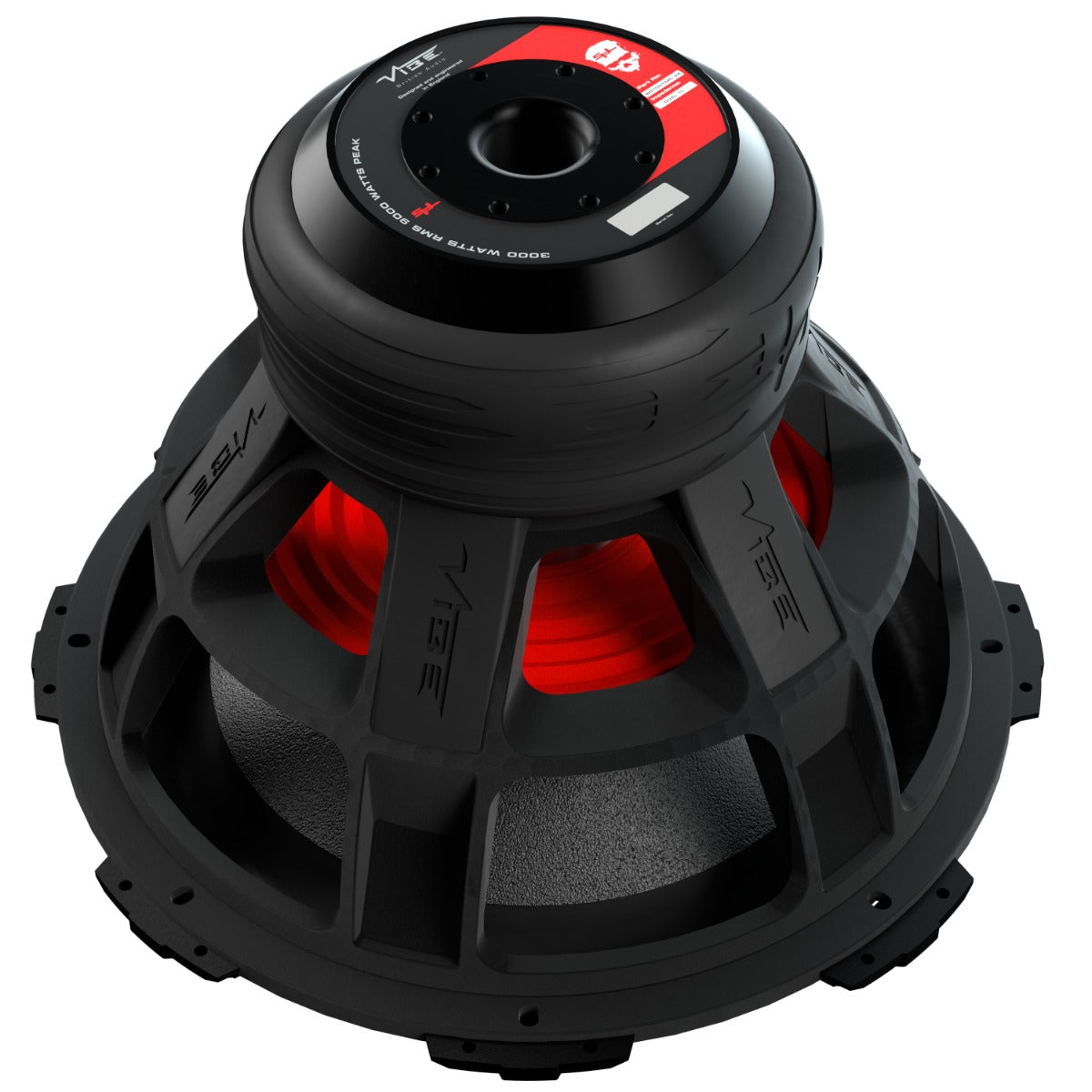

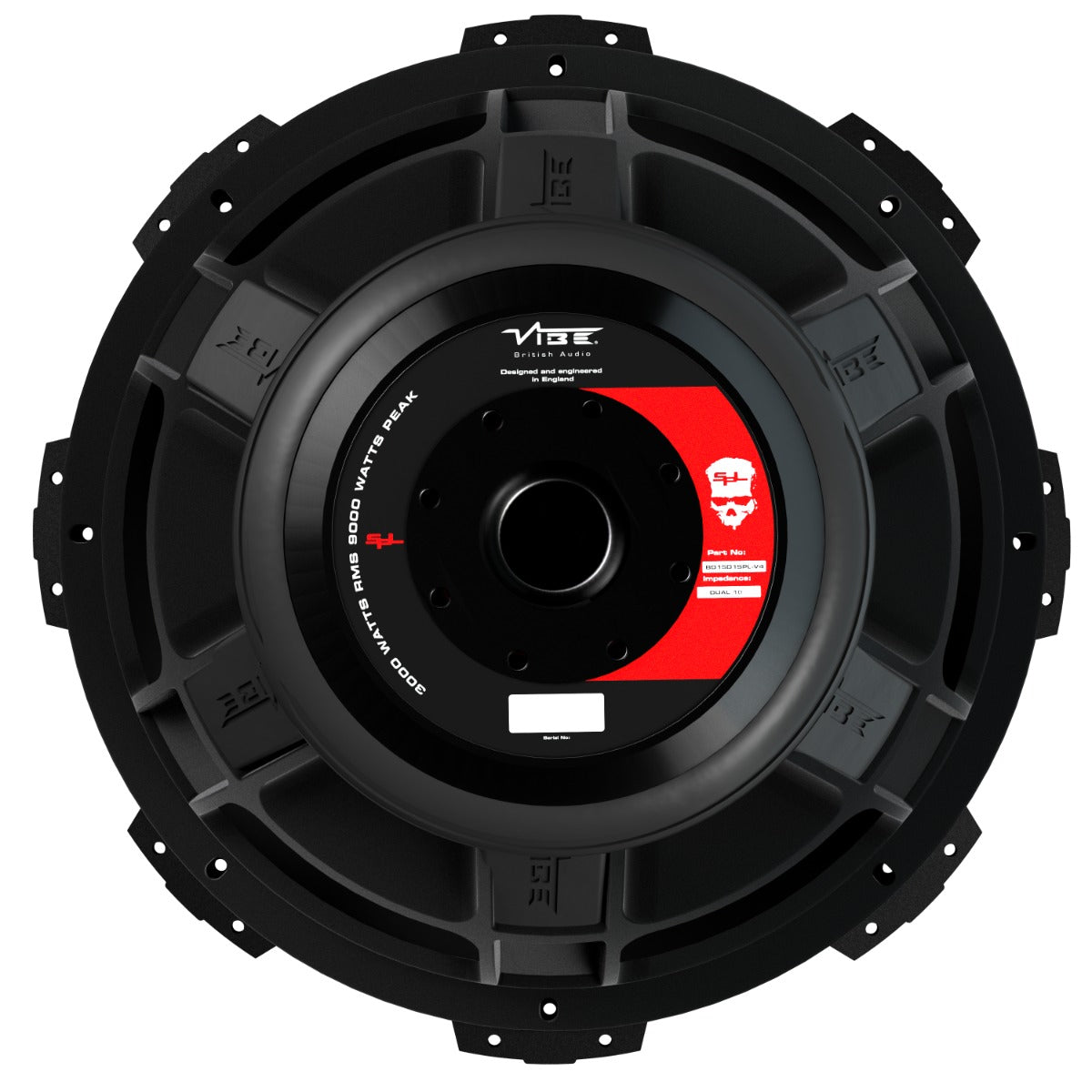

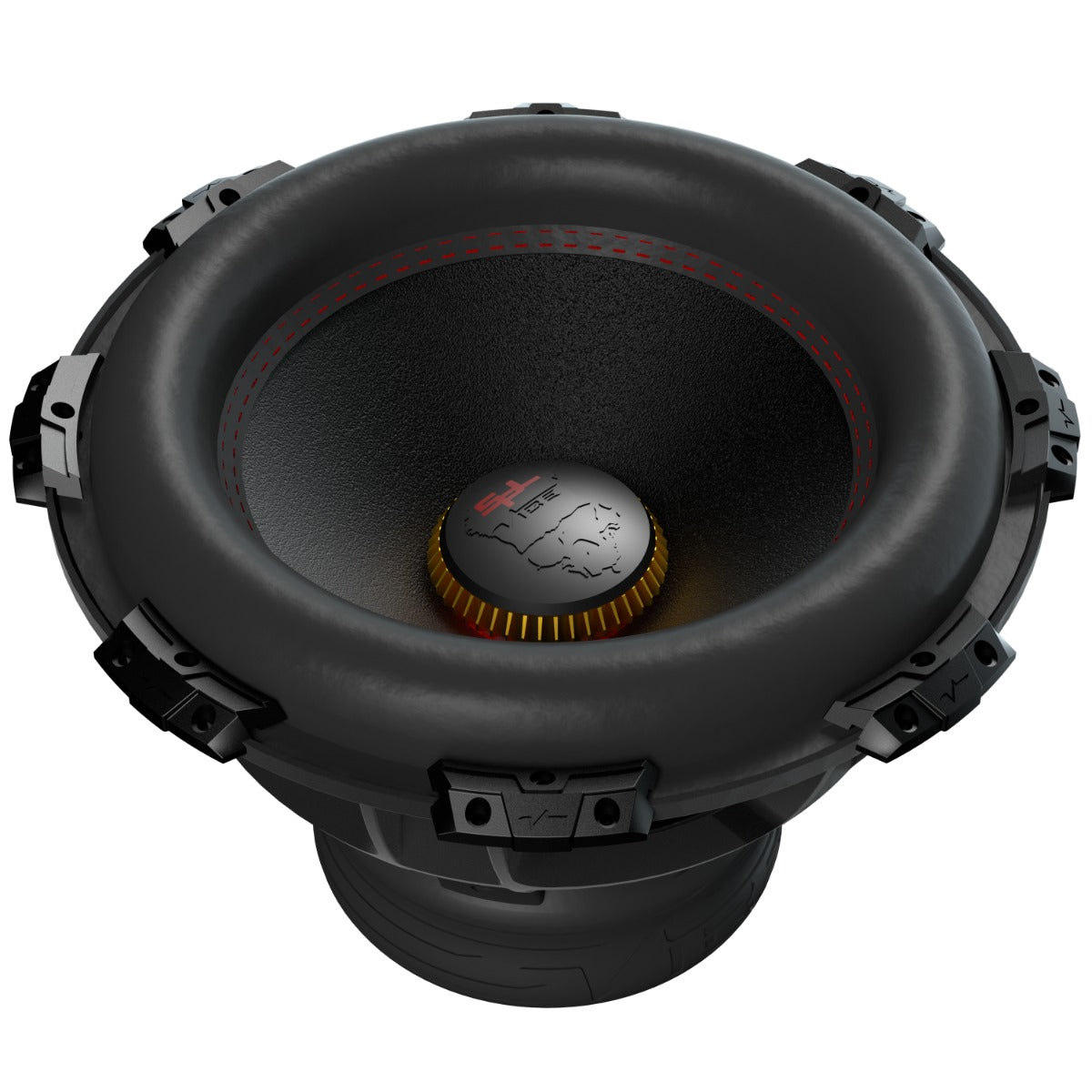

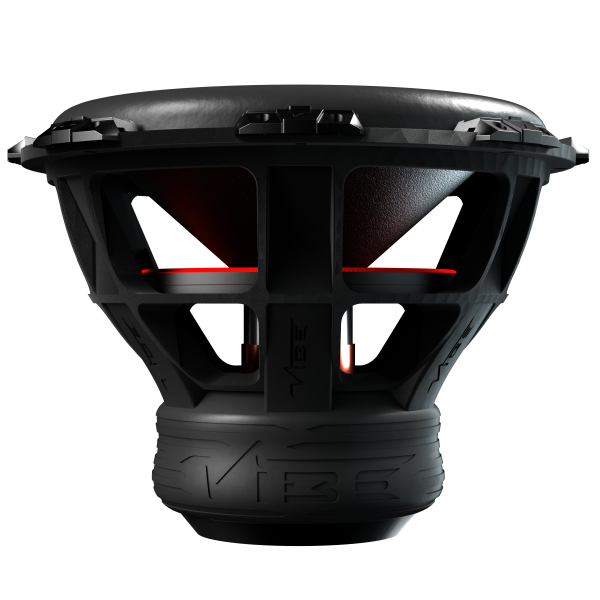

• Model: BD15D1SPL-V4

• Speaker Size: 15” (381mm)

• Peak/RMS: 3000W/9000W

• Sensitivity: 88dB

• Freq. Response: 15Hz – 850Hz

• Impedance: Dual 1Ω

• Mounting Depth: 10.1” (258mm)

• Mounting Diameter: 14.7” (357mm)

• Enclosure Volume: 3-5 cuft³

Key Features

• Extreme Excursion - Designed for massive air movement and deep bass.
• Premium Design - New basket and dust-cap for increased rigidity and aggressive aesthetics.
• Best Power Handling - Triple stacked pole vented motor, 3″ high-temp 4-layer, and 4″ 8-layer aluminium long wound dual voice coils.
• Premium Parts - Quad NOMEX spiders and ultra-wide foam surround for durability and minimal distortion.
• Paper Composite Cone - Lightweight and strong for high efficiency in extreme SPL applications.
• Dual Voice Coil - Flexible wiring for optimal amp matching.
• Torsion Basket - Angular design supports the massive motor system and moving parts.
• FEMM Motor - Advanced FEMM-designed motor for high force and performance gains.
• Alloy Dust Cap Cooling - The alloy dust cap provides superior heat dissipation, ensuring the subwoofer remains cool during intense performance. This cooling feature enhances durability and maintains consistent audio quality even under extreme conditions.

Recommended Amplifier - VIBE BD5000.1DSPL-V3
